Overview

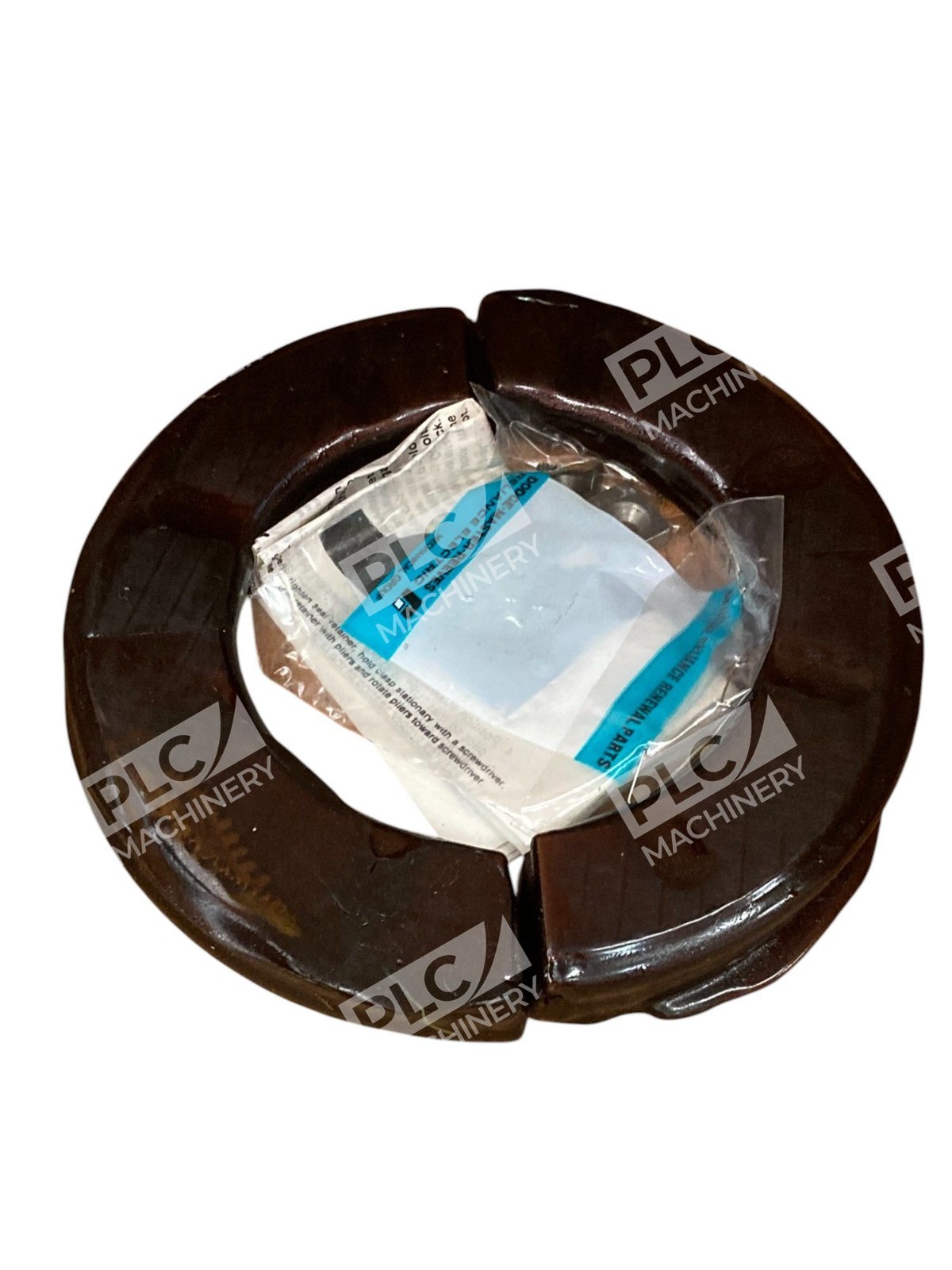

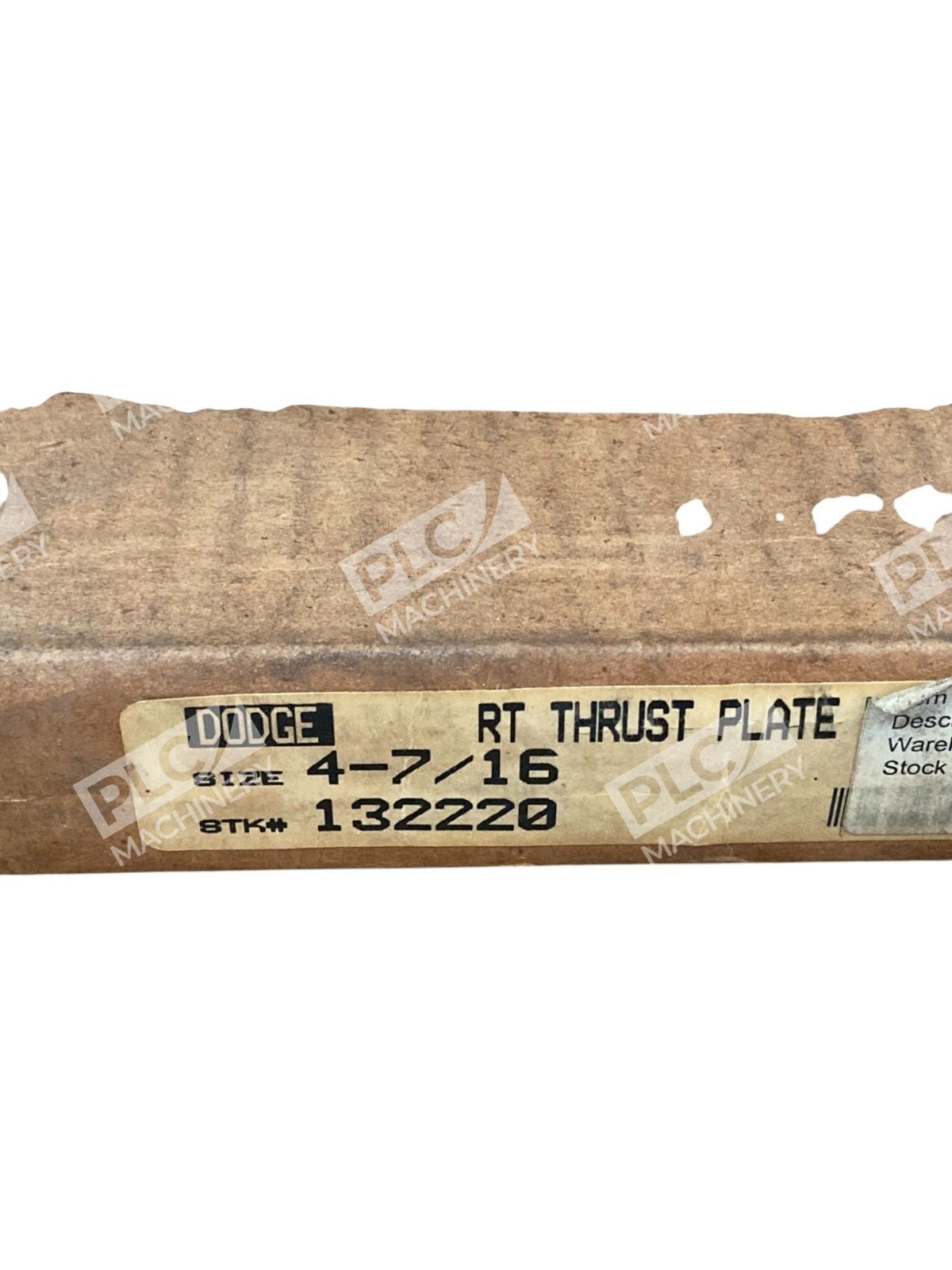

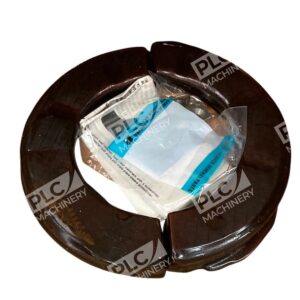

The Dodge 132220 RT Thrust Plate Assembly is a high-precision component designed for hydrodynamic bearing applications in industrial motion control and mechanical power transmission systems. This 4-7/16″ bore thrust plate kit is engineered to manage axial (thrust) loads in pillow block bearing assemblies, delivering consistent performance in demanding industrial environments. Dodge, a recognized leader in mechanical power transmission components, manufactures this assembly to exacting standards for reliable service life and minimal downtime.
Key Features
- 4-7/16″ bore diameter rated for precision alignment with Sleevoil RTL Series pillow blocks
- Hydrodynamic thrust plate design minimizes friction and wear under thrust loading
- Manufactured by Dodge with precision machining for dimensional accuracy

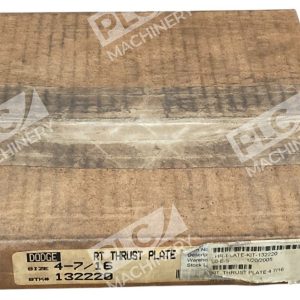

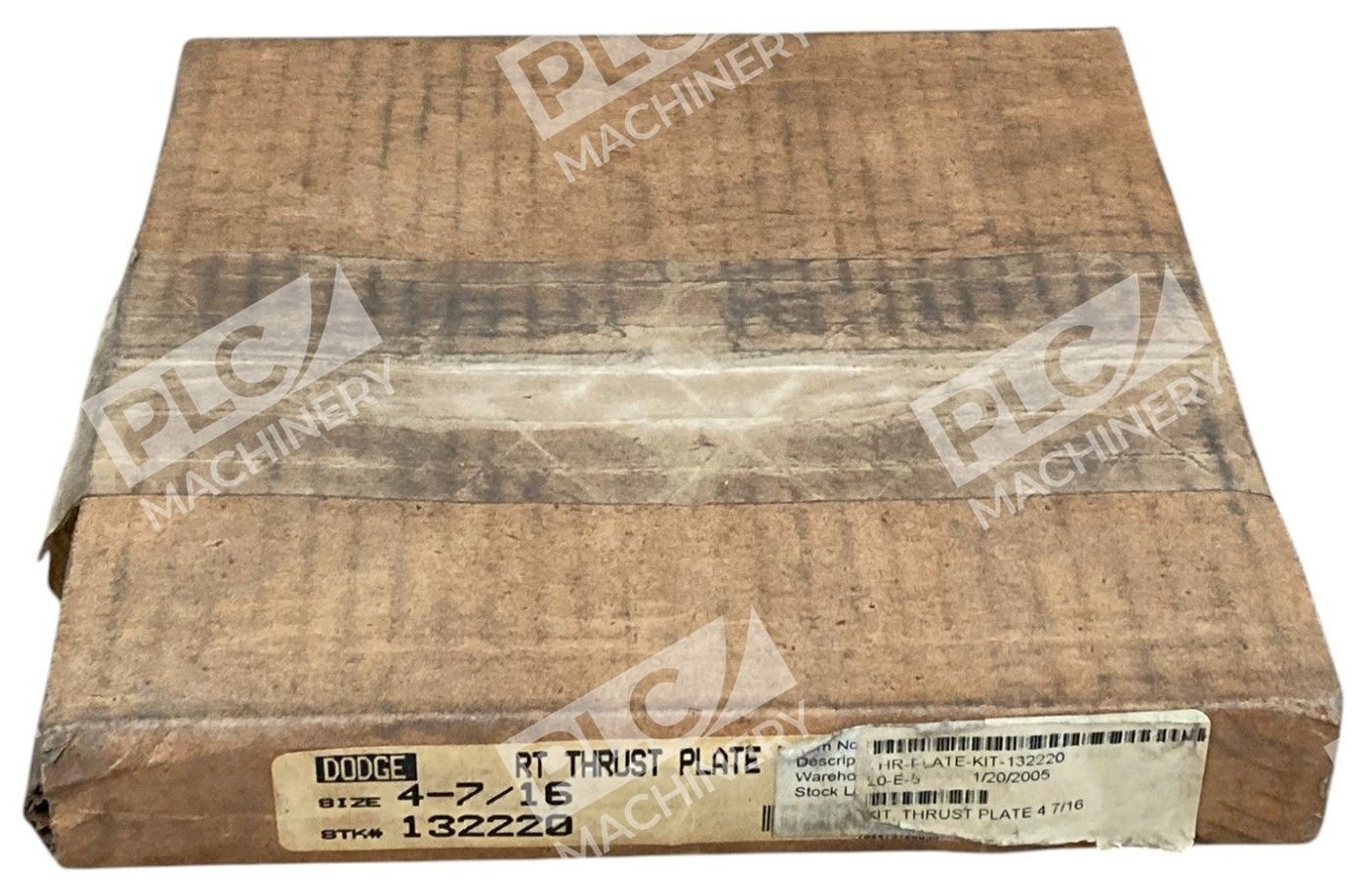

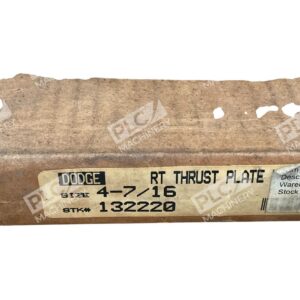

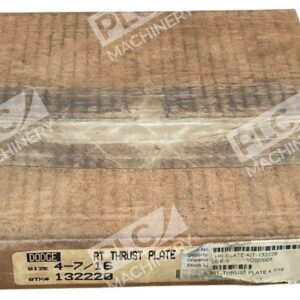

- New in box condition, ready for immediate installation
- Suitable for low to moderate thrust load applications with negligible misalignment tolerance
- Durable construction ensures long service intervals and reduced maintenance
Technical Specifications
Key dimensions and performance parameters for this thrust plate assembly:
Typical Applications
The Dodge 132220 RT Thrust Plate Assembly is commonly specified for:
- Pillow block bearing assemblies requiring axial load support
- Mechanical power transmission systems in rotating machinery
- Industrial conveyor and drive systems
- Coupled shaft applications requiring thrust load management
- Equipment where space constraints and low misalignment are design factors
Compatibility & Replacements
Compatible With
- Dodge Sleevoil RTL Series pillow blocks (4-7/16″ bore size)
- Standard metric and imperial shaft sizes matching 4-7/16″ mounting bore
- Industrial bearing housings rated for RT series thrust plate kits
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Thrust plate kits are application-specific; ensure bore diameter and mounting configuration match your existing assembly.
Works With
- Dodge Sleevoil RT Series pillow blocks
- Standard bearing puller and assembly tools for pillow block maintenance
- OEM replacement applications for equivalent Dodge thrust plate assemblies
