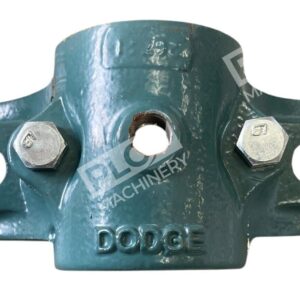

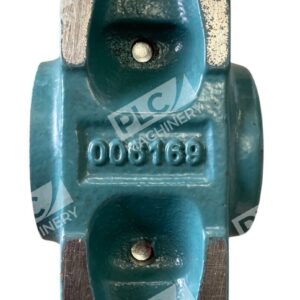

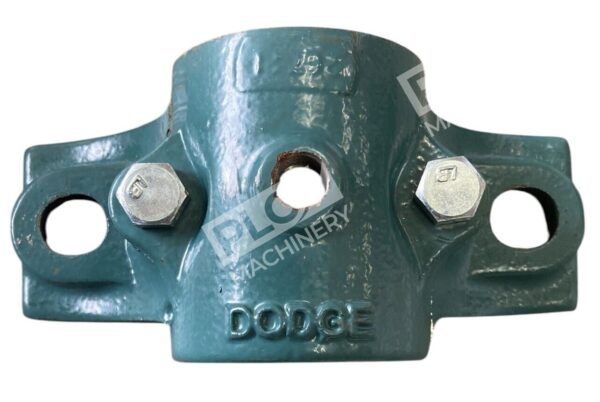

Dodge P2B-BASP-108 1-1/2″ Bore 2-Bolt Pillow Block Housing
The Dodge P2B-BASP-108 is a high-quality pillow block bearing designed to provide reliable shaft support in various industrial applications. Featuring a 1-1/2 inch bore and a robust two-bolt cast iron housing, this bearing unit ensures durability and efficient performance.
Key Features
- Bore Diameter: 1-1/2 inches
- Housing Material: Cast iron with a powder-coated finish for enhanced corrosion resistance
- Housing Construction: Split design for easy installation and maintenance
- Base to Center Height: 1.375 inches (34.925 mm)
- Bolt Center-to-Center Length: Adjustable between 4.188 inches (106.375 mm) and 4.938 inches (125.425 mm)
- Bore Length: 3 inches (76.2 mm)
- Insert Material: Tin babbitt for smooth operation
- Lubrication: Grease-lubricated for reduced maintenance
- Maximum Speed: Suitable for applications up to 600 RPM
- Expansion Capability: Designed as an expansion (floating) bearing to accommodate thermal expansion and contraction
Applications
The Dodge P2B-BASP-108 pillow block bearing is ideal for use in various industrial settings, including manufacturing, material handling, and power transmission systems. Its sturdy construction and design features make it suitable for applications requiring reliable shaft support and minimal maintenance.
Additional Information
For technical support or further inquiries, please contact the supplier at +1-864-284-5700.
