Overview

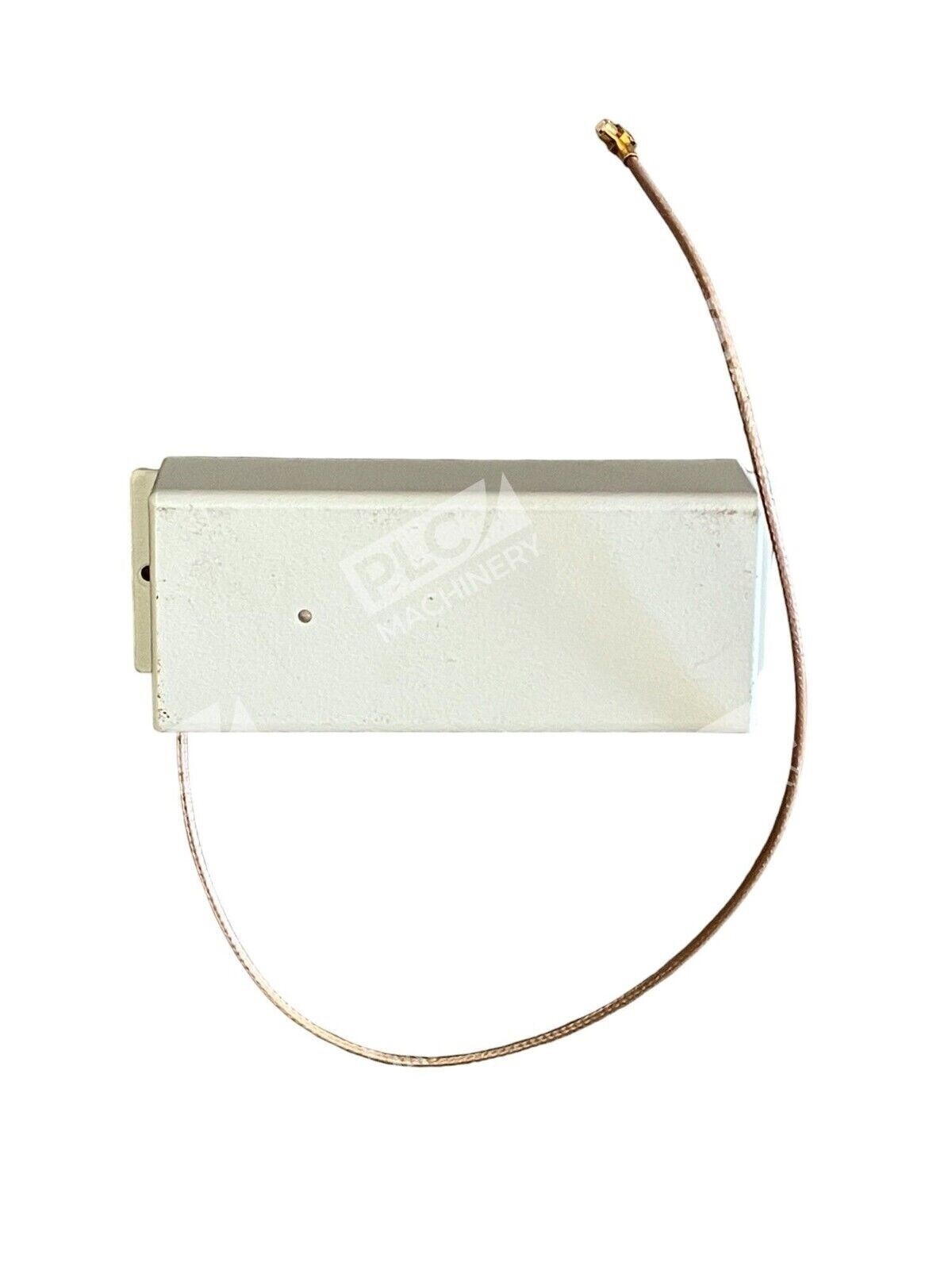

The Dialoc ID MR50 is a general-purpose industrial RFID reader operating at 13.56 MHz, designed for secure access control and identification applications in demanding environments. This ruggedized reader features a sealed epoxy enclosure that protects internal electronics from dust, moisture, and industrial contaminants, making it ideal for manufacturing floors, secured facilities, and outdoor installations. The MR50 communicates via RS232/EIA-232 serial interface, enabling straightforward integration with host systems, PLCs, and access control networks.
Key Features
- 13.56 MHz RFID technology for standard contactless card and tag reading
- Fully sealed epoxy construction protects electronics in harsh industrial environments
- RS232/EIA-232 serial communication interface for easy host system integration
- Bi-color LED status indicator for visual feedback
- Supports T=0 protocol with Inside Contactless custom command extensions
- Compact mounting design—fits on flat surfaces with standard 4 mm screws
- No user-serviceable parts; sealed design ensures long-term reliability
Technical Specifications
- Frequency: 13.56 MHz
- Communication Interface: RS232/EIA-232
- Enclosure: Epoxy-sealed
- Card Protocol: T=0 (ISO/IEC standardized with custom extensions)
- LED Indicator: Bi-color status light
- Mounting: Flat surface or wall-mounted with 4 mm screws

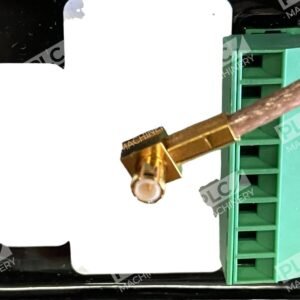

- Antenna Type: External antenna (internal antenna available on MR51 variant)

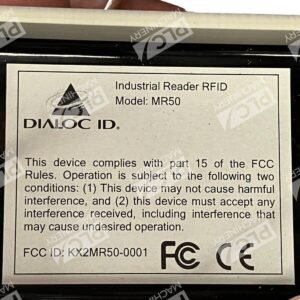

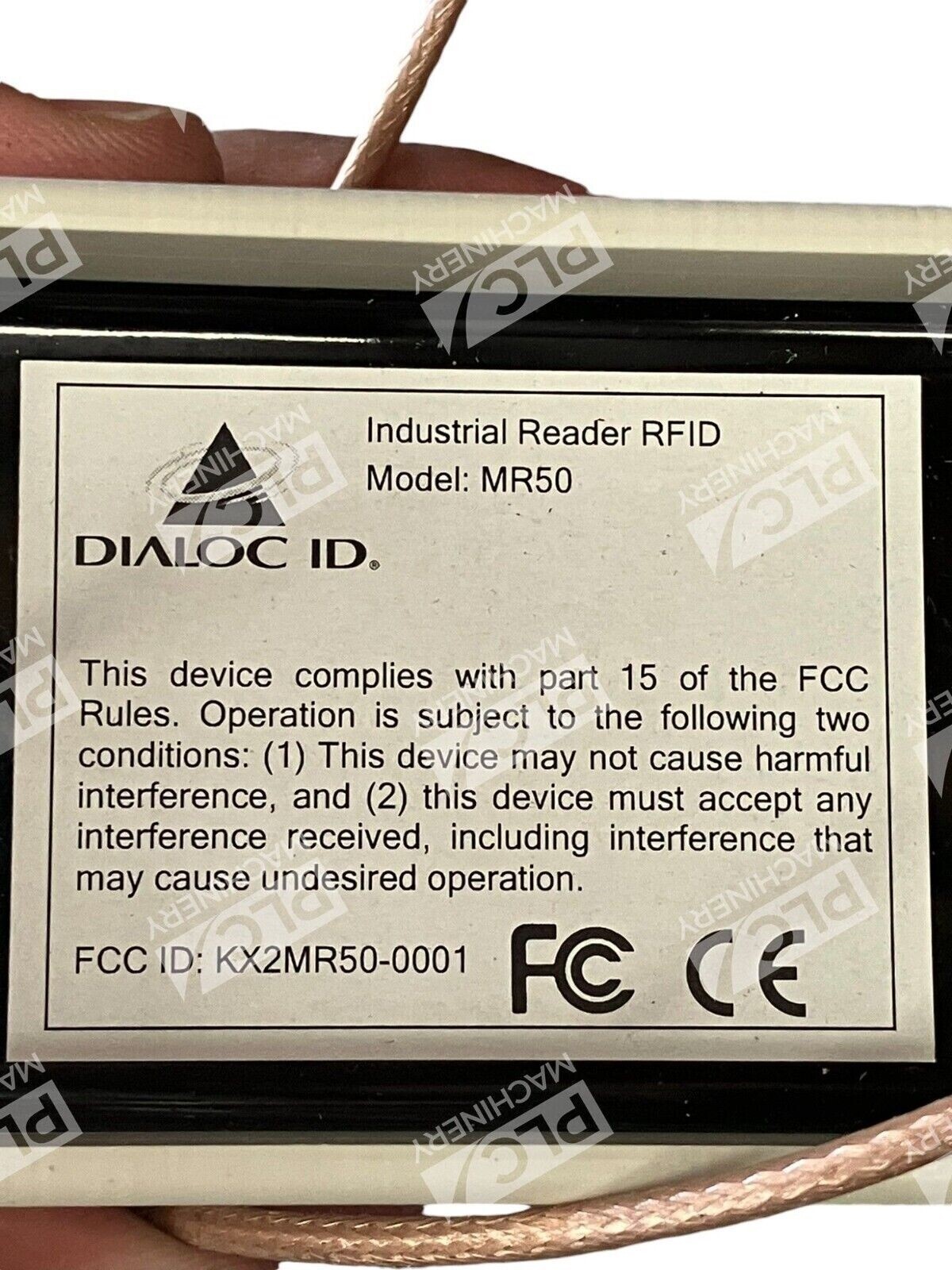

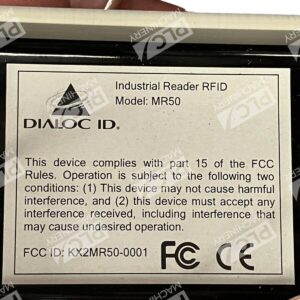

- Certifications: FCC Part 15 compliant
Typical Applications
- Industrial access control and employee badge verification
- Material handling and inventory tracking in manufacturing environments
- Facility security and perimeter monitoring
- Equipment and asset identification in hazardous locations
- Integration with PLC-based automation and control systems
- Keyless entry systems for secure areas
Compatibility & Replacements
Compatible With
- RS232/EIA-232 serial communication systems
- PLC controllers with serial input modules
- Standard industrial access control platforms
- T=0 protocol-based RFID networks
- Host systems supporting 13.56 MHz HF RFID standards
Replaces / Drop-In Replacement For
- Other Dialoc ID MR50-0001 units (direct replacement)
- Legacy 13.56 MHz RFID readers requiring RS232 serial interface
Works With
- RS232 serial interfaces and COM ports on controllers
- PLC programming environments (Studio 5000, TIA Portal, etc.) via serial I/O modules
- Industrial RFID card standards at 13.56 MHz frequency
- Standard SCADA systems with serial communication capability
