Overview

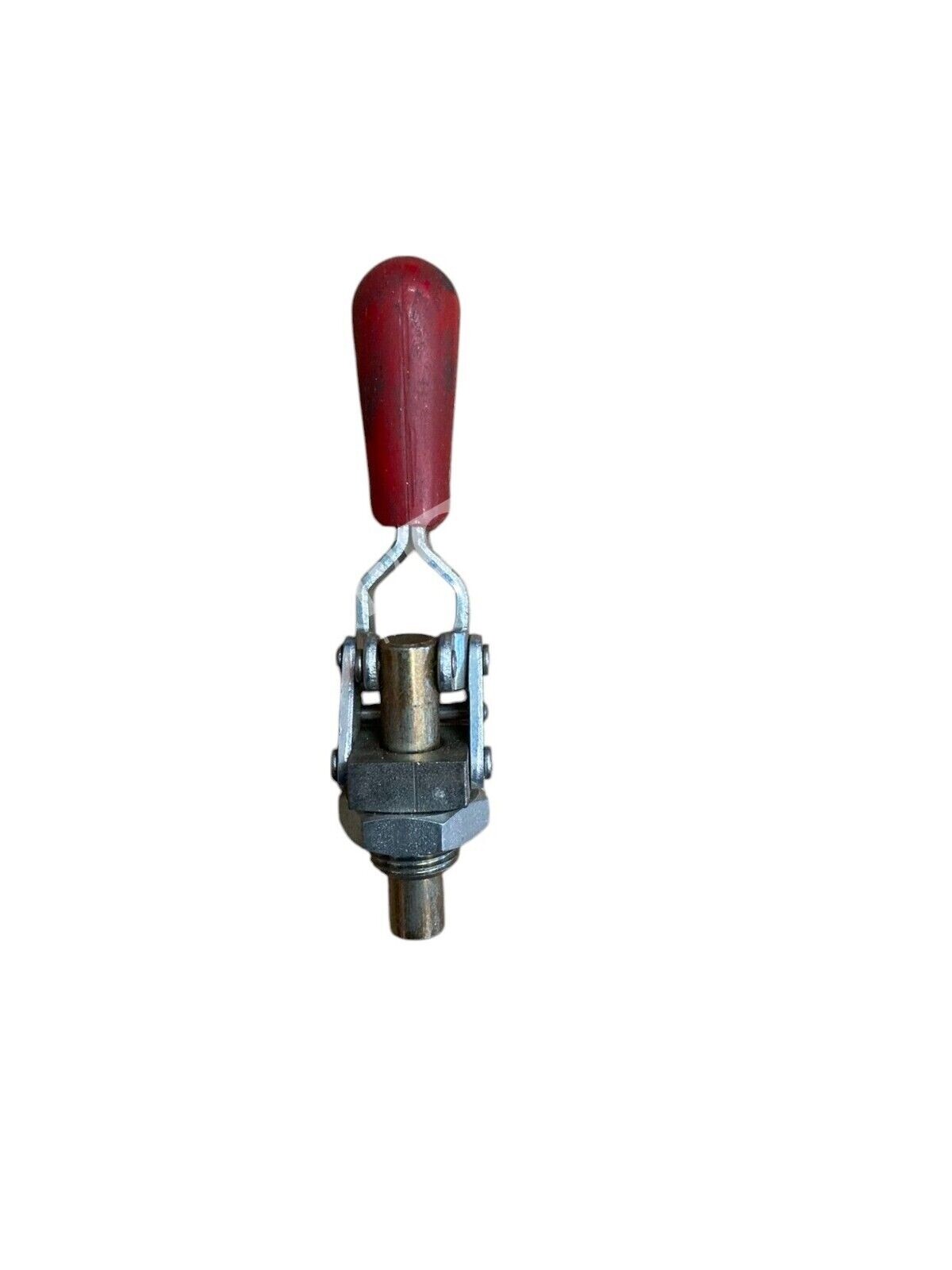

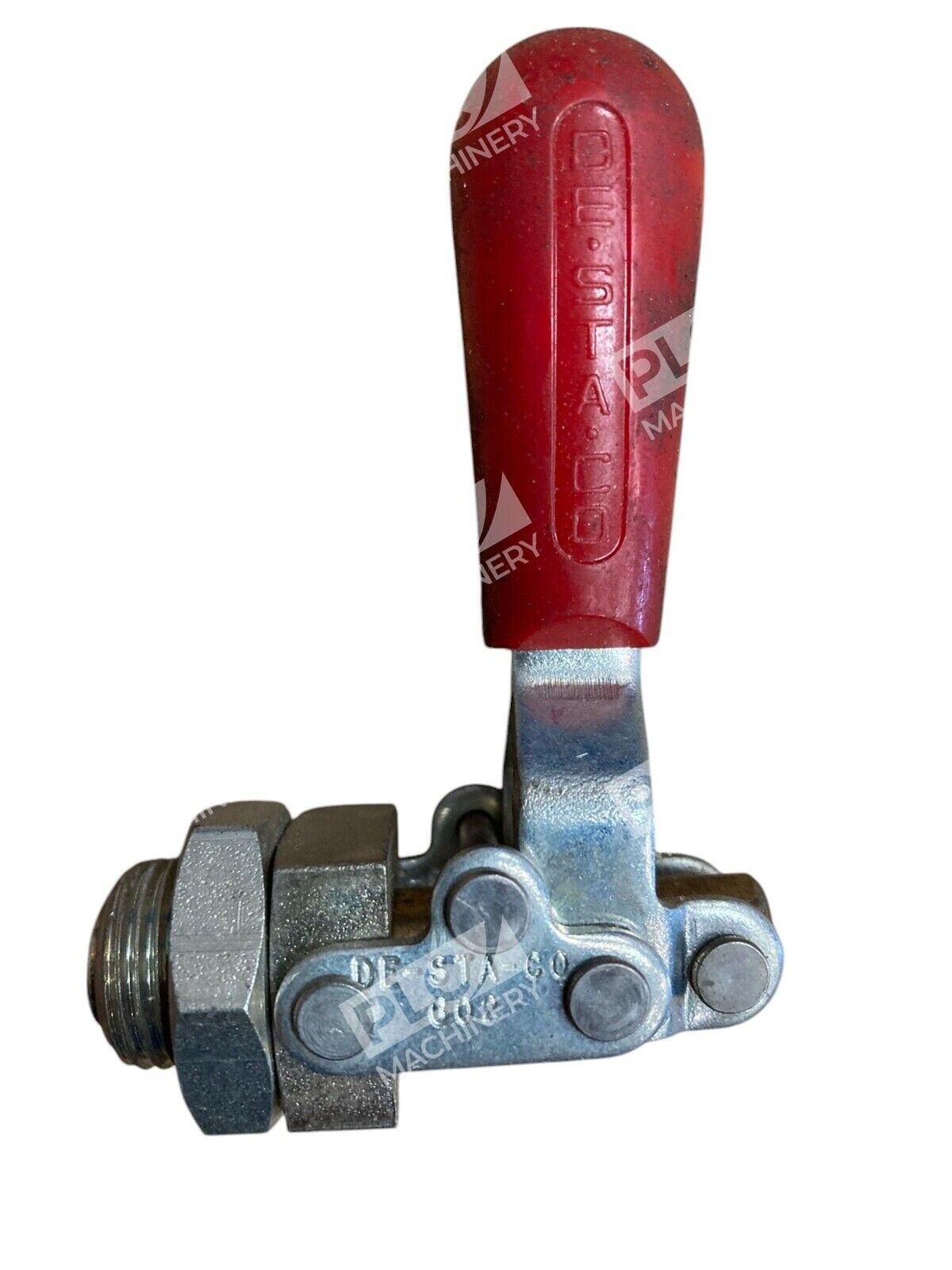

The Destaco 602 toggle clamp is a versatile, through-hole mounted straight-line action clamp designed for compact push/pull clamping in tight workspaces. With a 200 lbf (900 N) maximum holding capacity and 0.75 in (19.1 mm) plunger travel, the 602 delivers reliable, repeatable workholding across automotive, aerospace, and packaging applications. The clamp features a flanged base for stable mounting, a round plunger with 1/4-20 thread, and a 360-degree rotatable red handle for ergonomic control in confined setups.
Key Features
- 200 lbf (900 N) maximum holding capacity with 31:1 mechanical advantage
- Straight-line plunger action locks securely in both extended and retracted positions
- Compact, lightweight design (0.3 lb) ideal for space-constrained fixtures
- Round plunger with 1/4-20 UNC thread for standard machine mounting
- Flanged base mounting style provides stable, through-hole installation

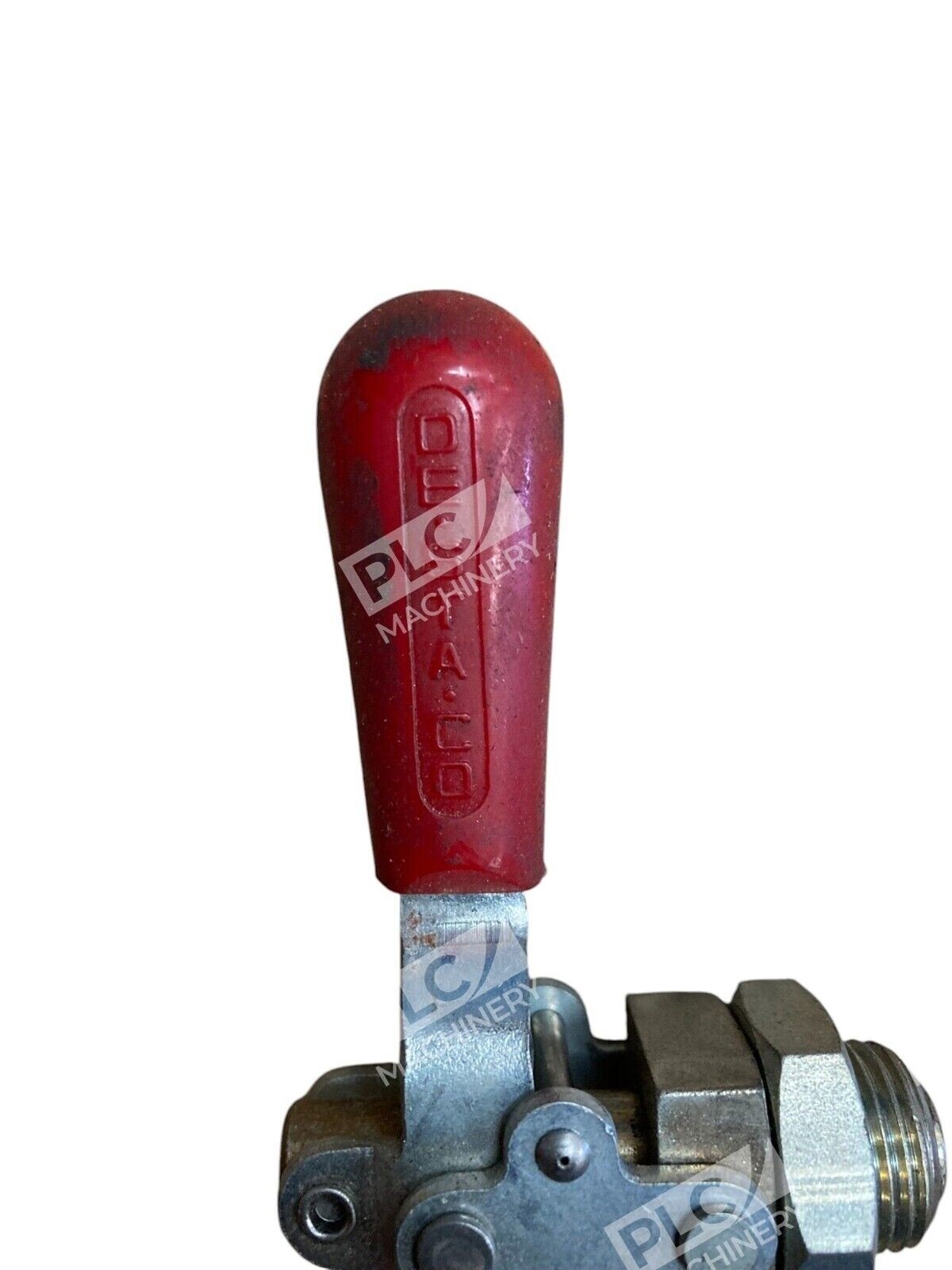

- Rotatable red handle for ergonomic access in tight assembly environments
- Steel construction ensures durability under frequent operational cycling
Technical Specifications
- Maximum Holding Capacity: 200 lbf (900 N)
- Plunger Travel: 0.75 in (19.1 mm)
- Plunger Height: 0.37 in (9.4 mm)
- Plunger Thread: 1/4-20 UNC
- Body Thread: 5/8-18
- Force Ratio (Ef:Af): 31:1 pushing / 28:1 pulling
- Overall Length: 2.43 in (61.8 mm)
- Weight: 0.3 lb (0.14 kg)
- Standard Material: Steel
- Base Mounting Style: Flanged
- Spindle Thread: Round plunger
- Handle: 360-degree rotatable, red
Typical Applications
- Fixture checking and workpiece positioning in CNC and manual machine shops
- Welding jig assembly and locating in automotive manufacturing
- Tensioning and hold-down in aerospace assembly operations
- Quick-change workholding in packaging and material handling automation
- General-purpose clamping in metalworking and fabrication environments
Compatibility & Replacements
Compatible With
- Standard machine threads (5/8-18 body, 1/4-20 plunger)
- Through-hole mounting fixtures and toggle clamp assemblies
- DESTACO 602/604/624 series accessory ecosystem
- Manual and power-actuated clamping systems
- Industrial assembly, welding, and fixture workstations
Replaces / Drop-In Replacement For
- Earlier DESTACO 602 variants with equivalent specifications
- Generic straight-line action clamps in similar size and force class
- Custom-designed push/pull toggle clamps with 200 lbf+ capacity requirements
Works With
- DESTACO 205203 spindle assembly (sold separately, recommended accessory)
- Standard 5/8-18 threaded mounting blocks and base plates
- DESTACO 602105 mounting nut (included)
- Manual fixture design and CNC workholding applications
- Power clamp actuators (pneumatic, hydraulic, electric) via mechanical interface
