Overview

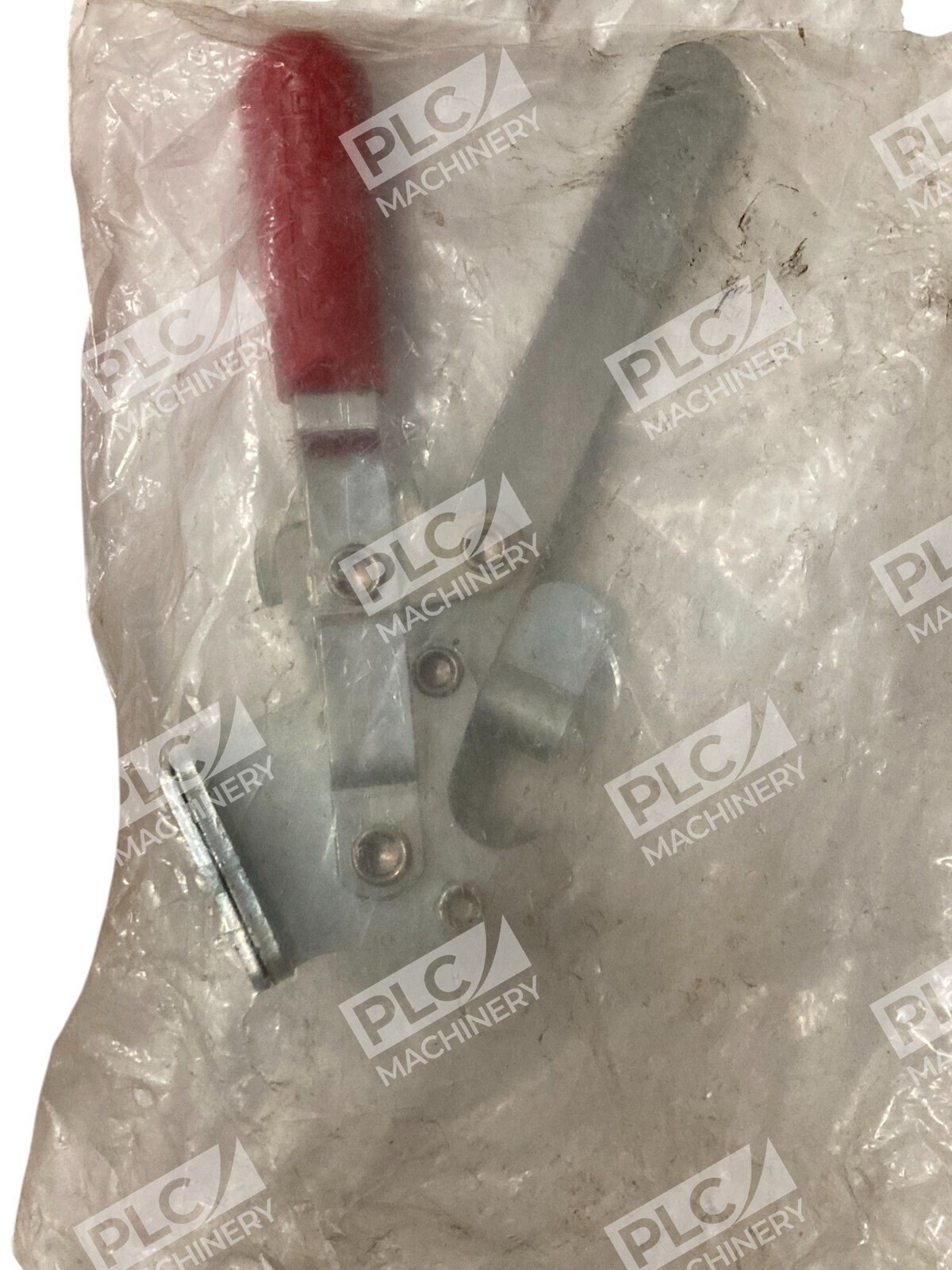

The Destaco 247-S is a heavy-duty manual vertical hold-down toggle locking clamp engineered for reliable workpiece securing in industrial assembly, welding, and fixture applications. With a maximum holding capacity of 1000 lbsf (4400 N), this clamp delivers robust clamping force with minimal operator effort through its cam-action toggle mechanism.
Key Features
- 1000 lbsf (4400 N) maximum holding capacity
- Solid bar clamp arm design for maximum load distribution
- Hardened steel bushings at all pivot points for durability and wear resistance
- Larger bar guides provide superior lateral stability during clamping
- Supplied with neoprene spindle for secure workpiece contact
- Ergonomic, non-slip handle grip for controlled operation
- Vertical toggle handle with 120° clamp bar opening angle
- Flange-mount base with standard threaded holes for easy installation
Technical Specifications
The Destaco 247-S features a precision-machined steel construction designed for normal service duty cycles. Its solid bar arm extends 7.020 inches (124.2 mm), while the height under the clamp arm measures 1.980 inches (50.3 mm). The unit weighs 2.38 lb (1.08 kg) and operates with a 120° clamp bar opening angle and 67° handle opening.
Typical Applications
The 247-S performs excellently in assembly operations, checking fixtures, and welding workstations where consistent, repeatable clamping is essential. Its solid bar design and lateral stability make it well-suited for light to medium-duty manufacturing and fabrication environments. The toggle lock mechanism ensures positive hold without drift or slippage during production cycles.
Compatibility & Replacements
Compatible With
- Destaco 247/267 Series workholding systems
- Standard M12 bolt retainers (Model 210114)
- Spindle retainers and accessory mounts (Model 247110-M)
- Manual clamping workstations and fixture plates
Replaces / Drop-In Replacement For
- Earlier 247-S models with equivalent specifications
- Verify application compatibility with your existing fixture design before ordering
Works With
- Destaco spindle accessories and retention hardware
- Standard industrial fixture plates and mounting bases
- Manual clamping stations and assembly work surfaces
- Welding tables and machining fixture assemblies
