Dell Optiplex 745 SFF Motherboard 0KG317

Dell Optiplex 745 SFF Motherboard 0KG317

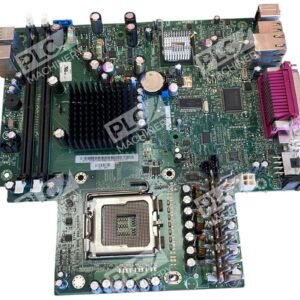

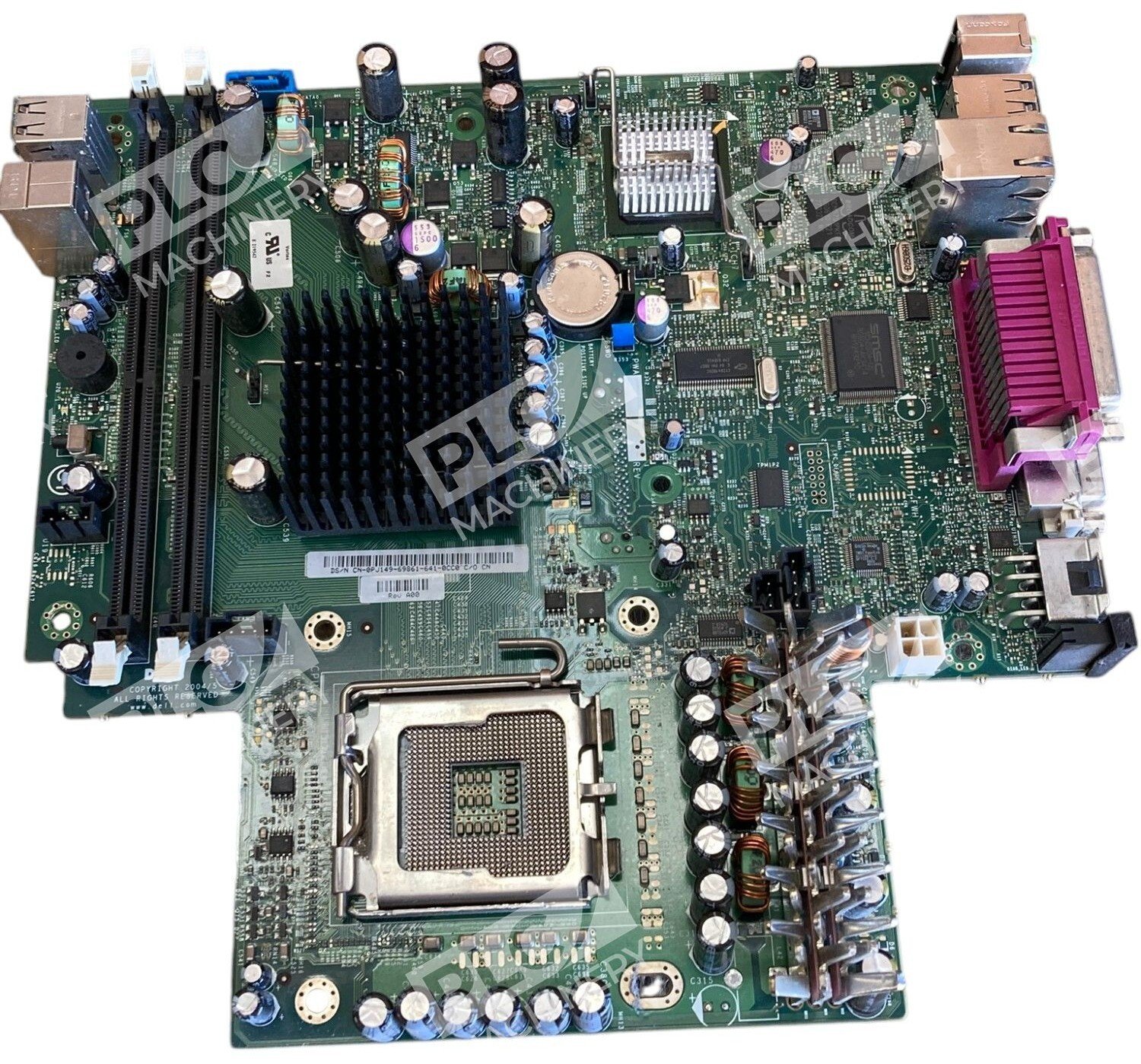

The Dell Optiplex 745 Small Form Factor (SFF) Motherboard, part number 0KG317, is engineered to deliver reliable performance for business and personal computing needs. Designed to fit seamlessly into the compact SFF chassis, this motherboard offers a balance of functionality and space efficiency.

Processor Compatibility

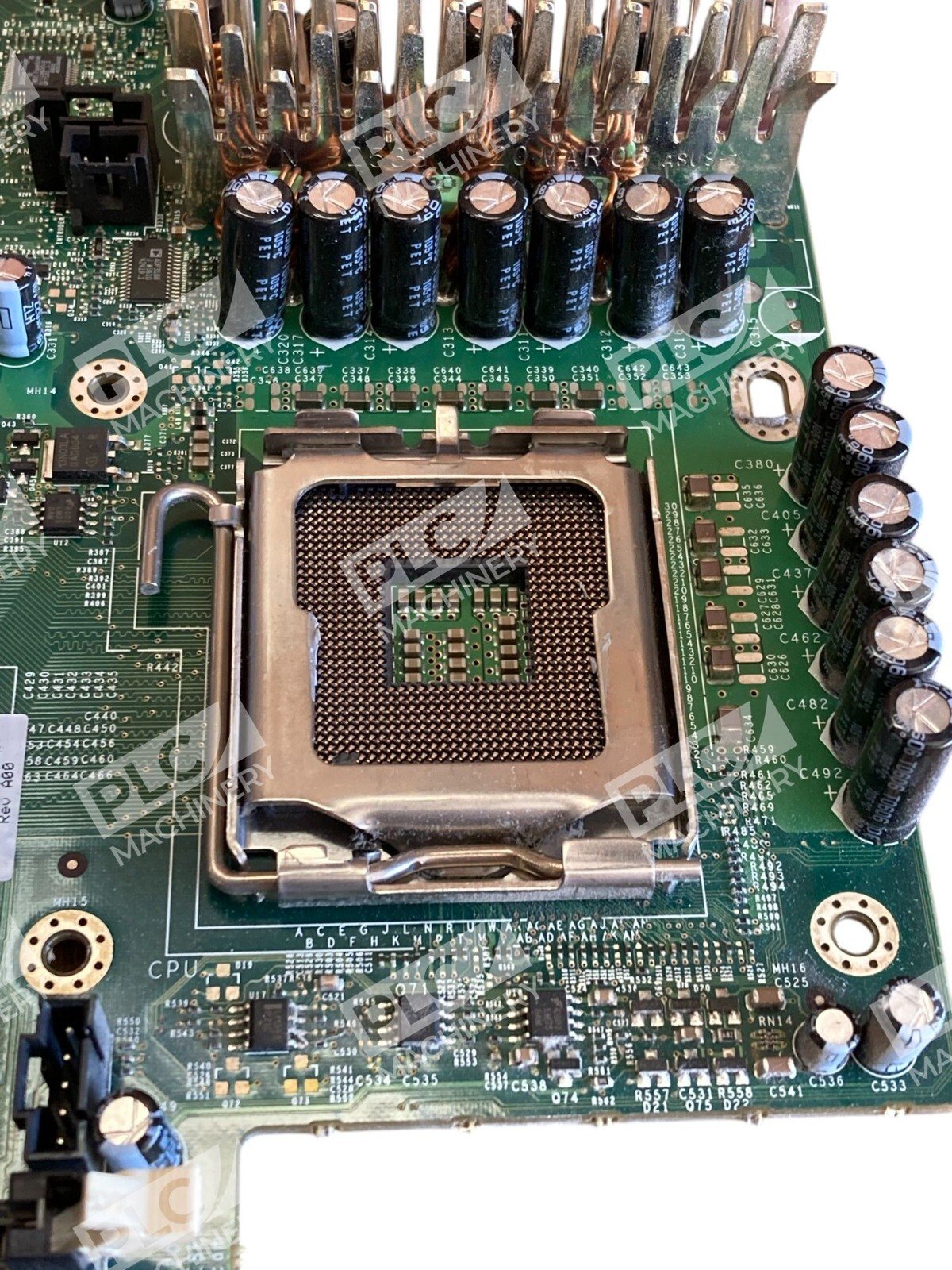

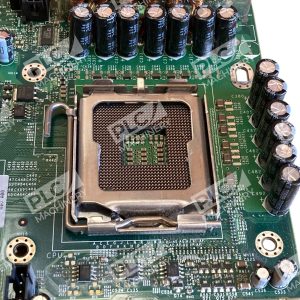

Equipped with an LGA775 socket, the 0KG317 motherboard supports a range of Intel processors, including:

• Intel Core 2 Duo Desktop Processors
• Intel Pentium 4 Processors
• Intel Pentium D Processors
• Intel Celeron D Processors

It accommodates front-side bus (FSB) speeds up to 1066 MHz, ensuring compatibility with various CPU models.

Memory Support

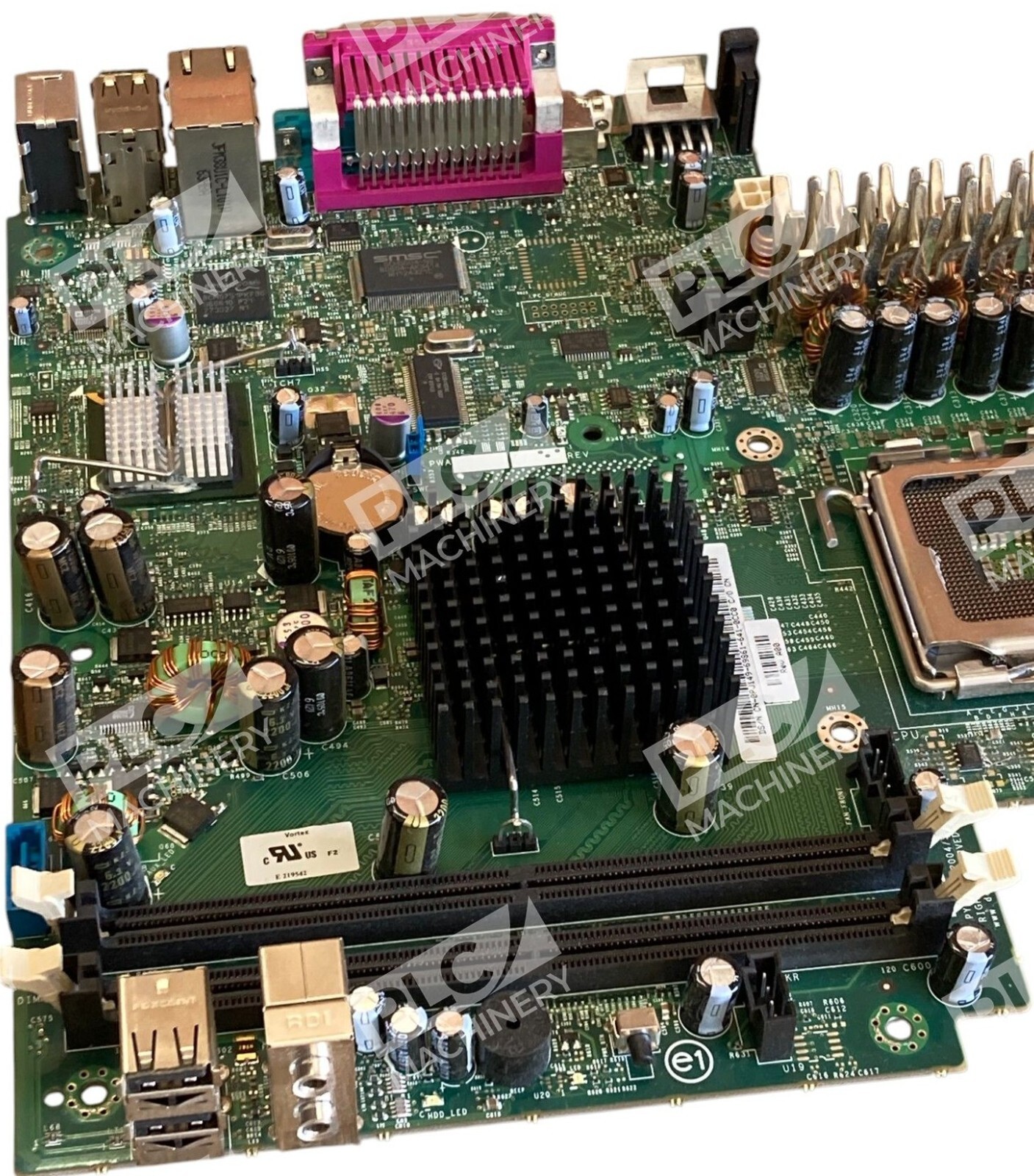

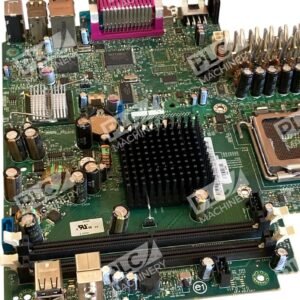

The motherboard features four DIMM slots, supporting DDR2 memory modules with the following specifications:

• PC2-4200 (DDR2-533)
• PC2-5300 (DDR2-667)
• PC2-6400 (DDR2-800)

With a maximum installed memory capacity of 8 GB, users can experience improved multitasking and system responsiveness.

Expansion and Connectivity

For expansion capabilities, the 0KG317 motherboard includes:

• One PCI slot
• One PCI Express x16 slot

These slots allow for the addition of various expansion cards, such as dedicated graphics cards or additional network interfaces.

Storage options are facilitated through multiple connectors:

• Floppy connector
• Serial ATA (SATA) 3.0 Gbps ports
• Ultra ATA interface

These interfaces provide flexibility in connecting a range of storage devices.

Integrated Features

The motherboard comes with integrated Intel Graphics Media Accelerator X3000, offering up to 256 MB of shared video memory. This integrated graphics solution supports everyday computing tasks and multimedia applications.

Networking is handled by the onboard Gigabit Ethernet controller, ensuring high-speed and reliable network connectivity.

Input/Output Ports

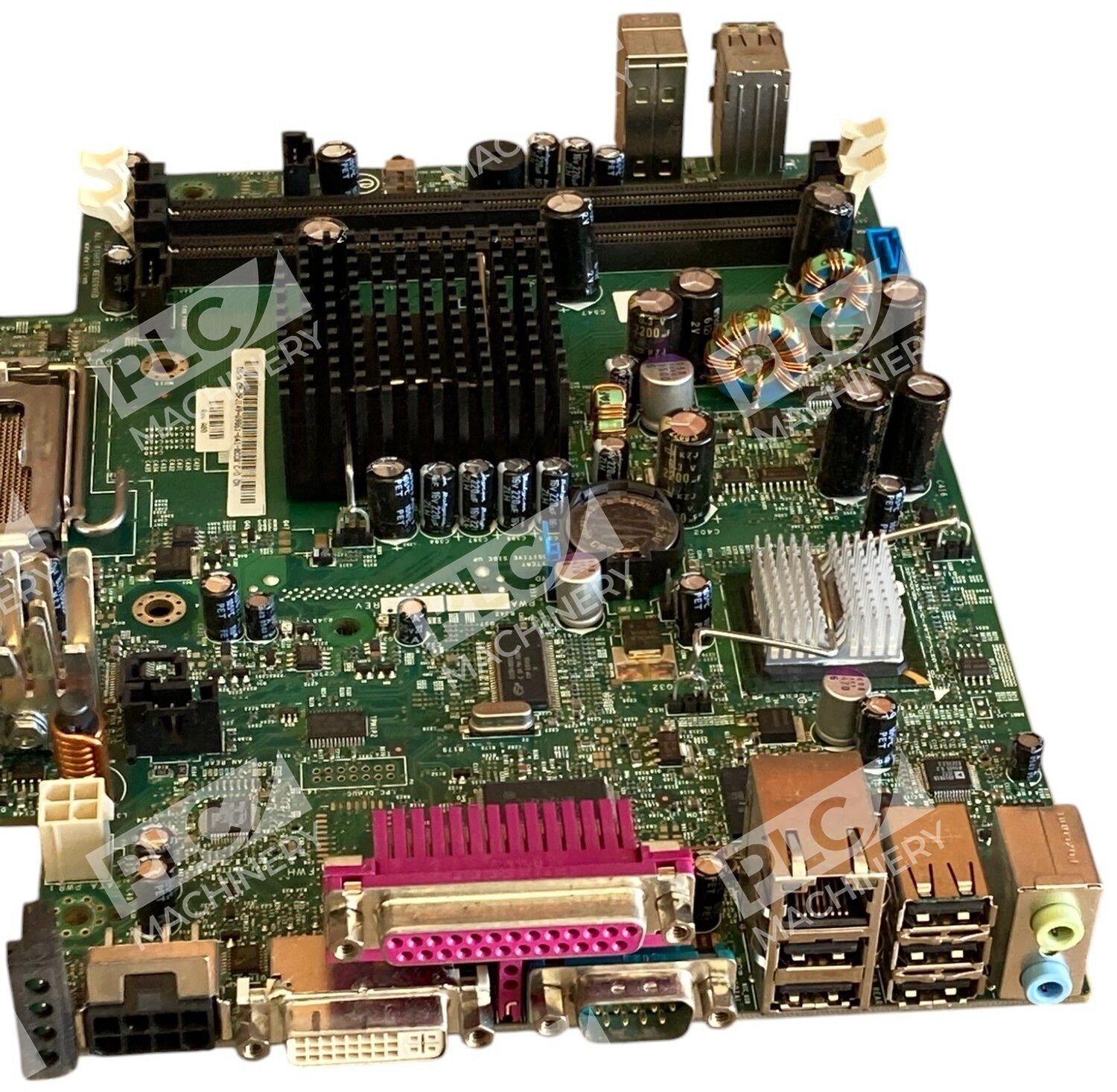

The 0KG317 motherboard provides a variety of I/O ports to connect peripherals and external devices:

• Audio-In
• Audio-Out
• Microphone
• Parallel port
• RJ-45 Ethernet port
• Serial port
• USB 2.0 ports
• Video-Out (VGA)

These ports ensure compatibility with a wide range of devices and accessories.

Form Factor

Designed specifically for the Small Form Factor chassis, the 0KG317 motherboard measures approximately 12.45 inches in height, 3.65 inches in width, and 13.4 inches in depth. This compact design allows for efficient use of space without compromising on performance.

The Dell Optiplex 745 SFF Motherboard 0KG317 is a versatile and reliable foundation for building or upgrading a compact desktop system, offering a blend of performance, expandability, and connectivity options suitable for various computing environments.
