Overview

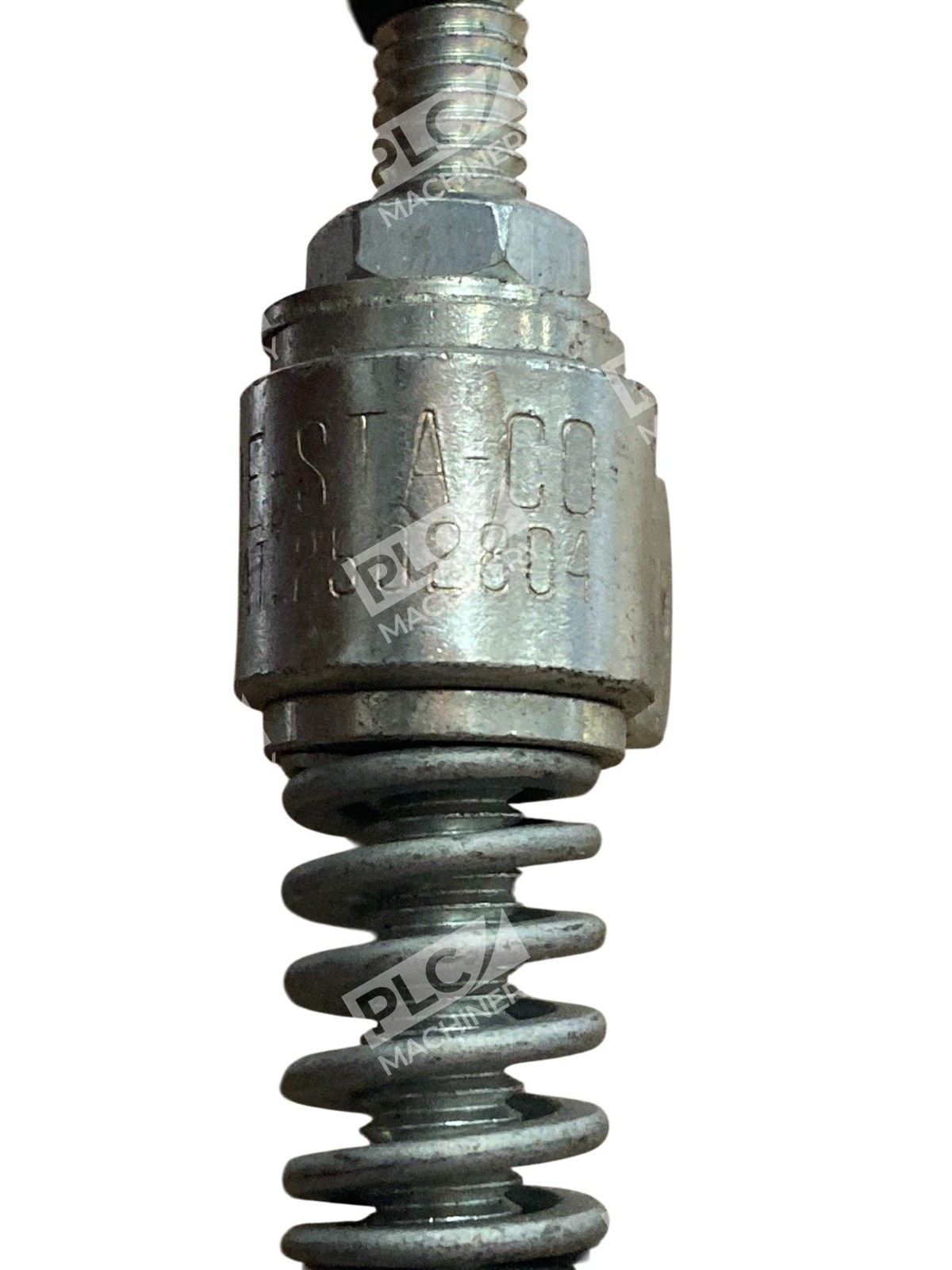

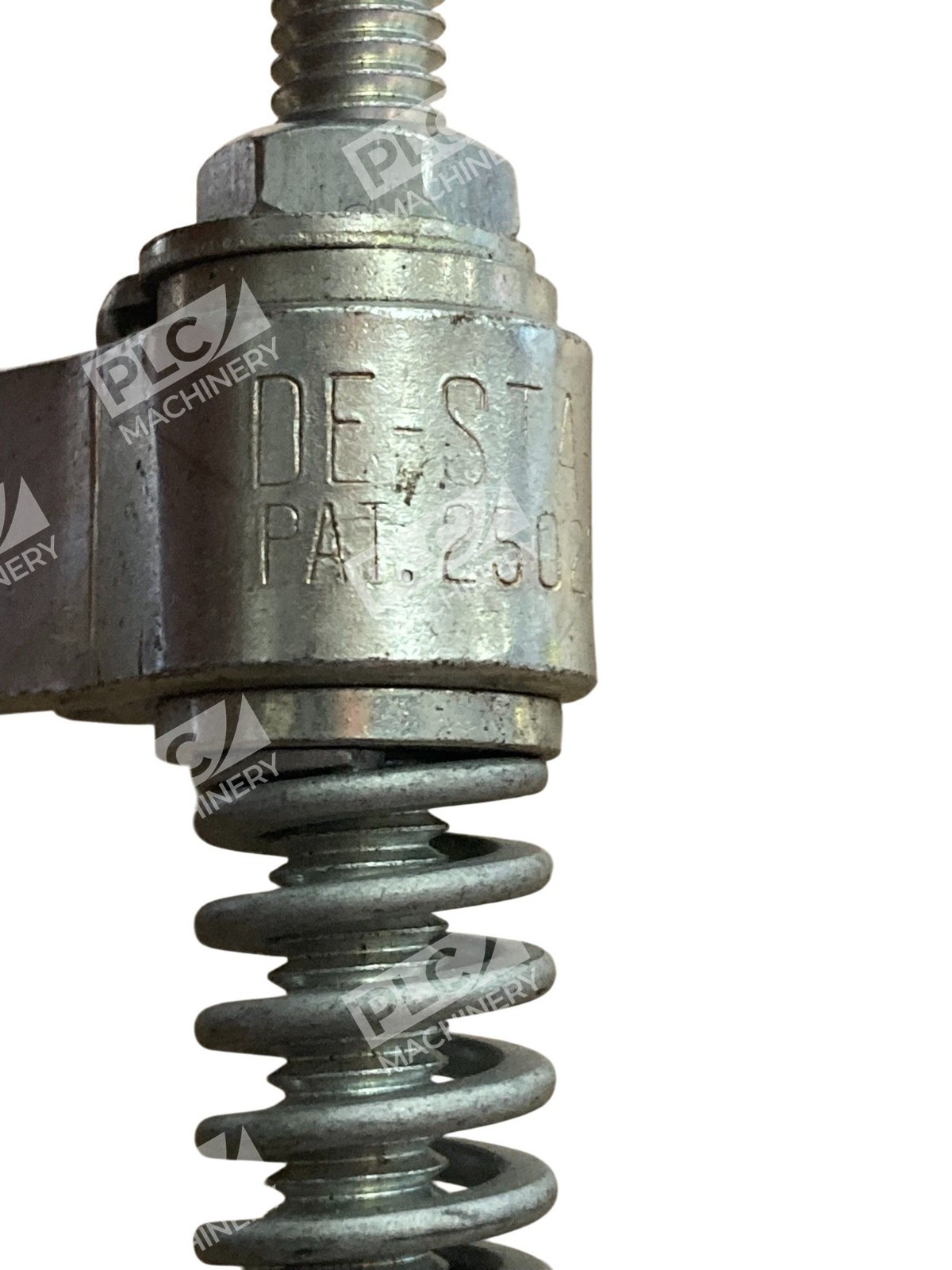

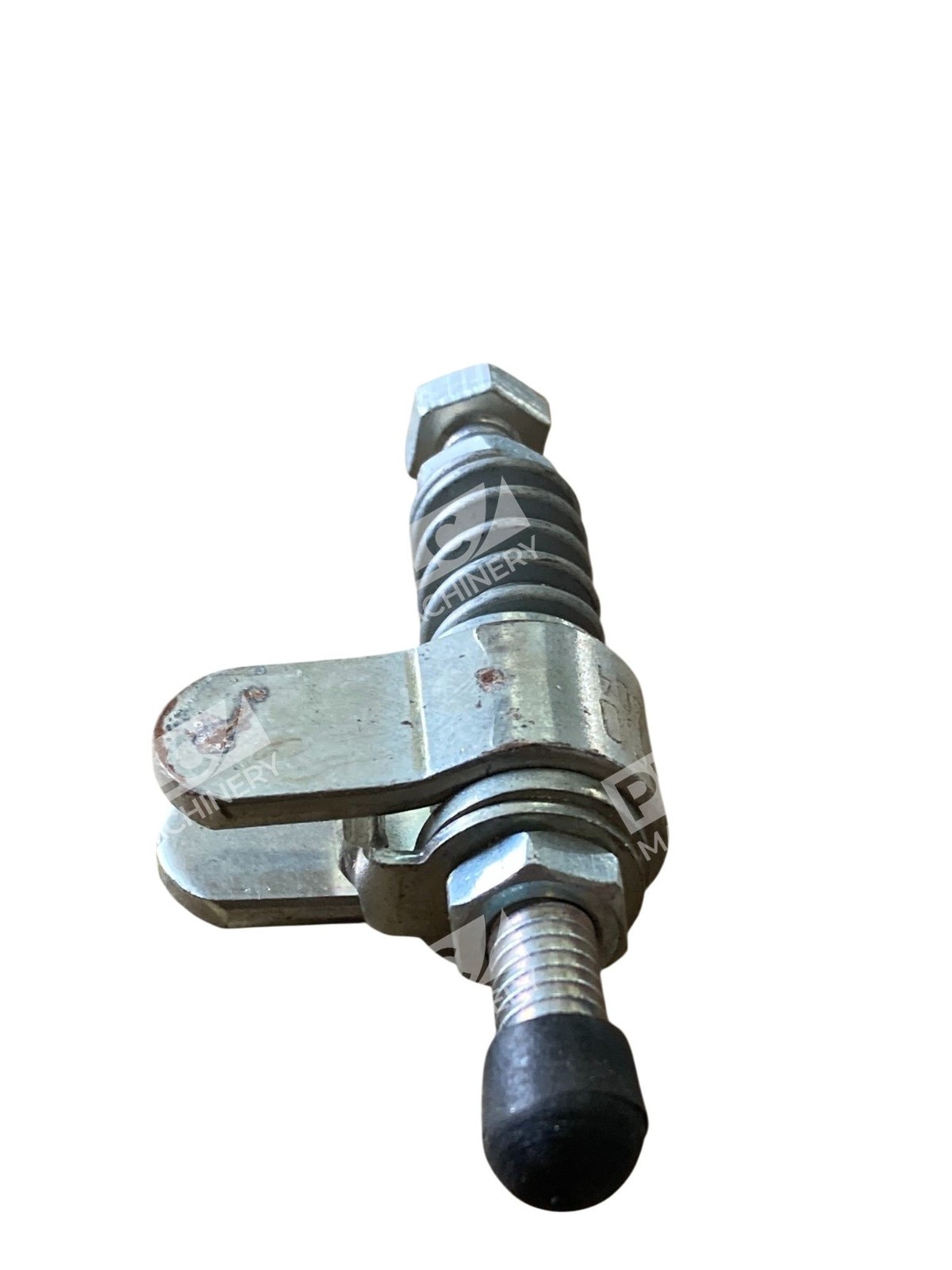

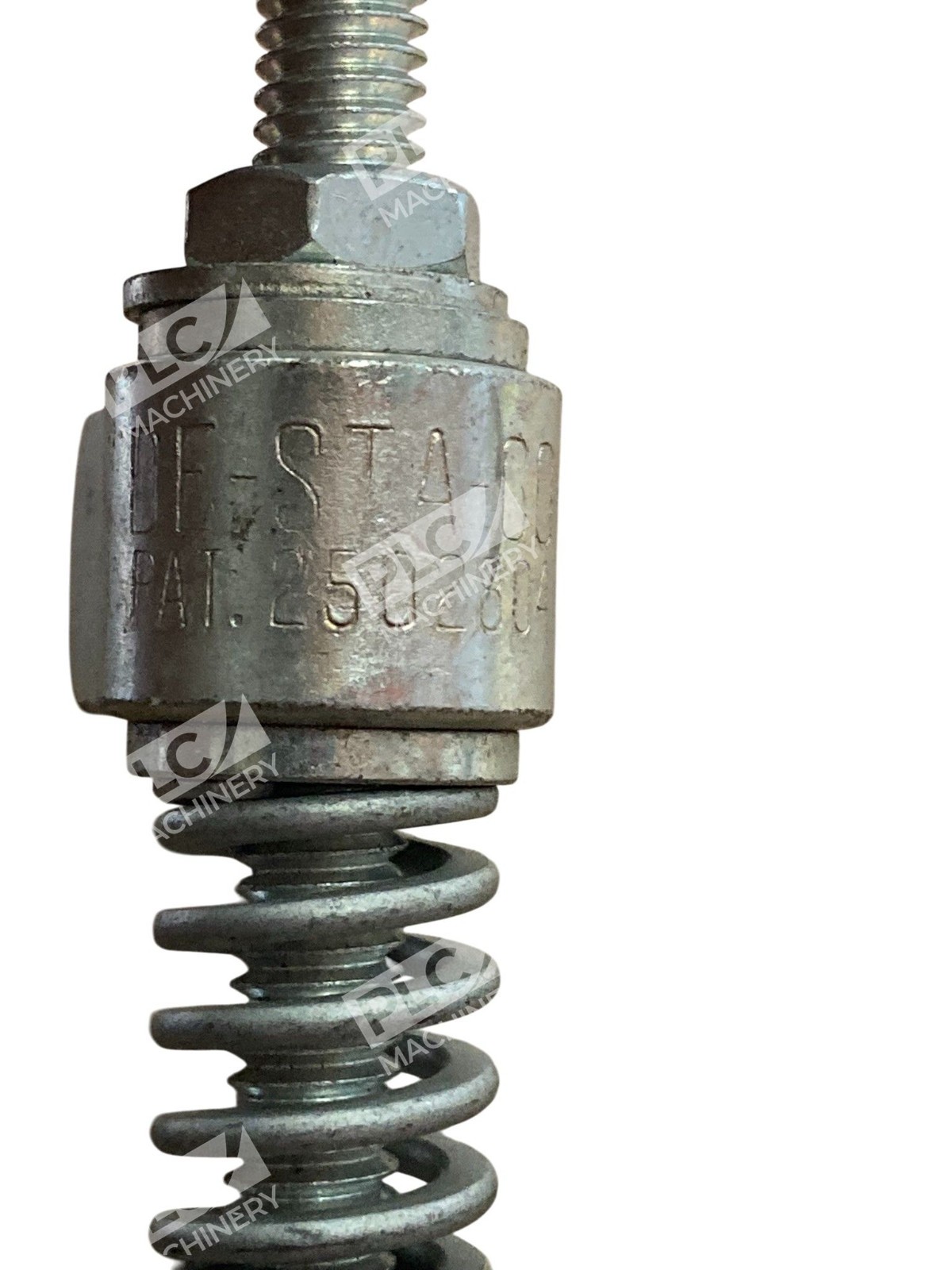

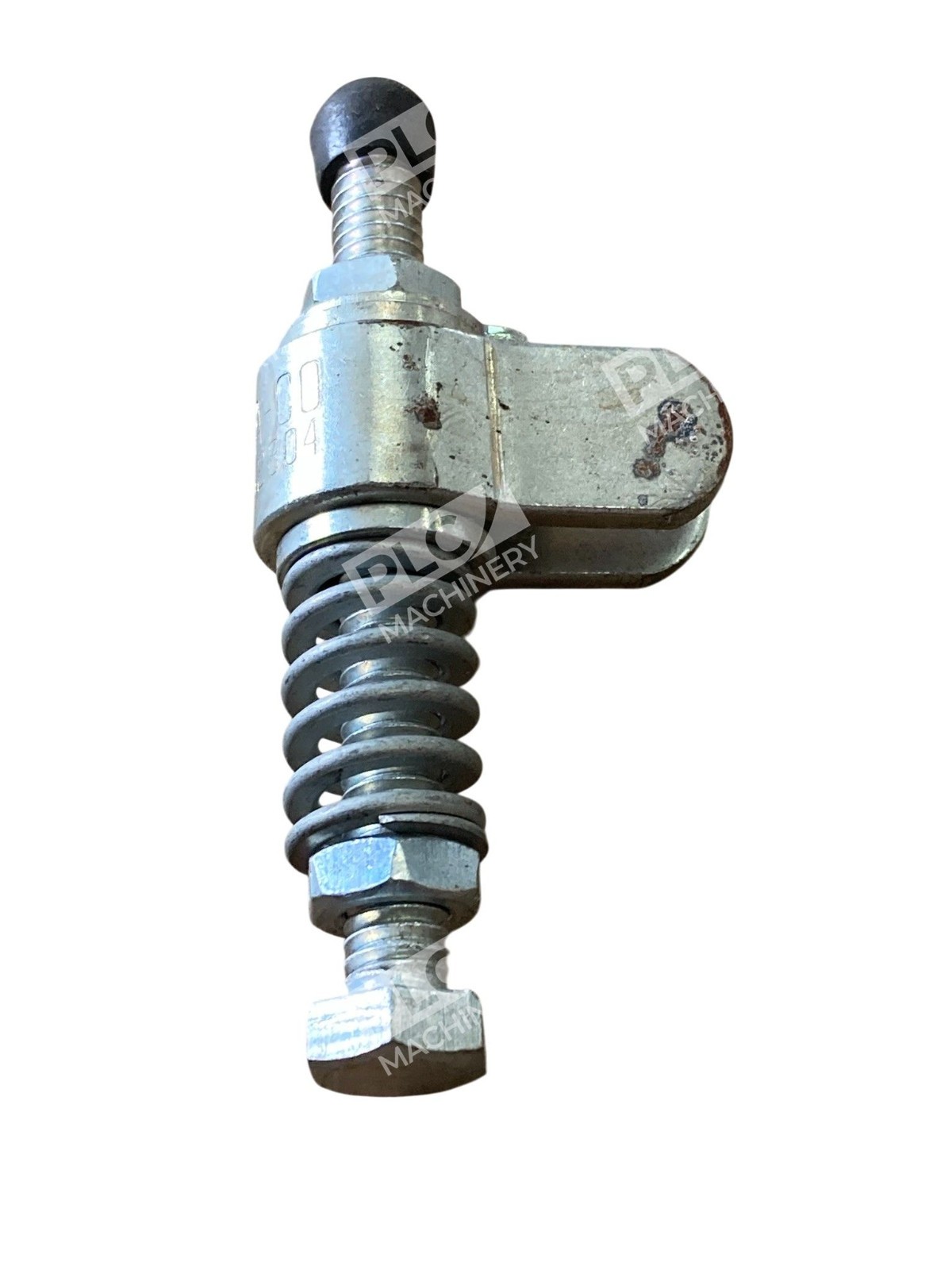

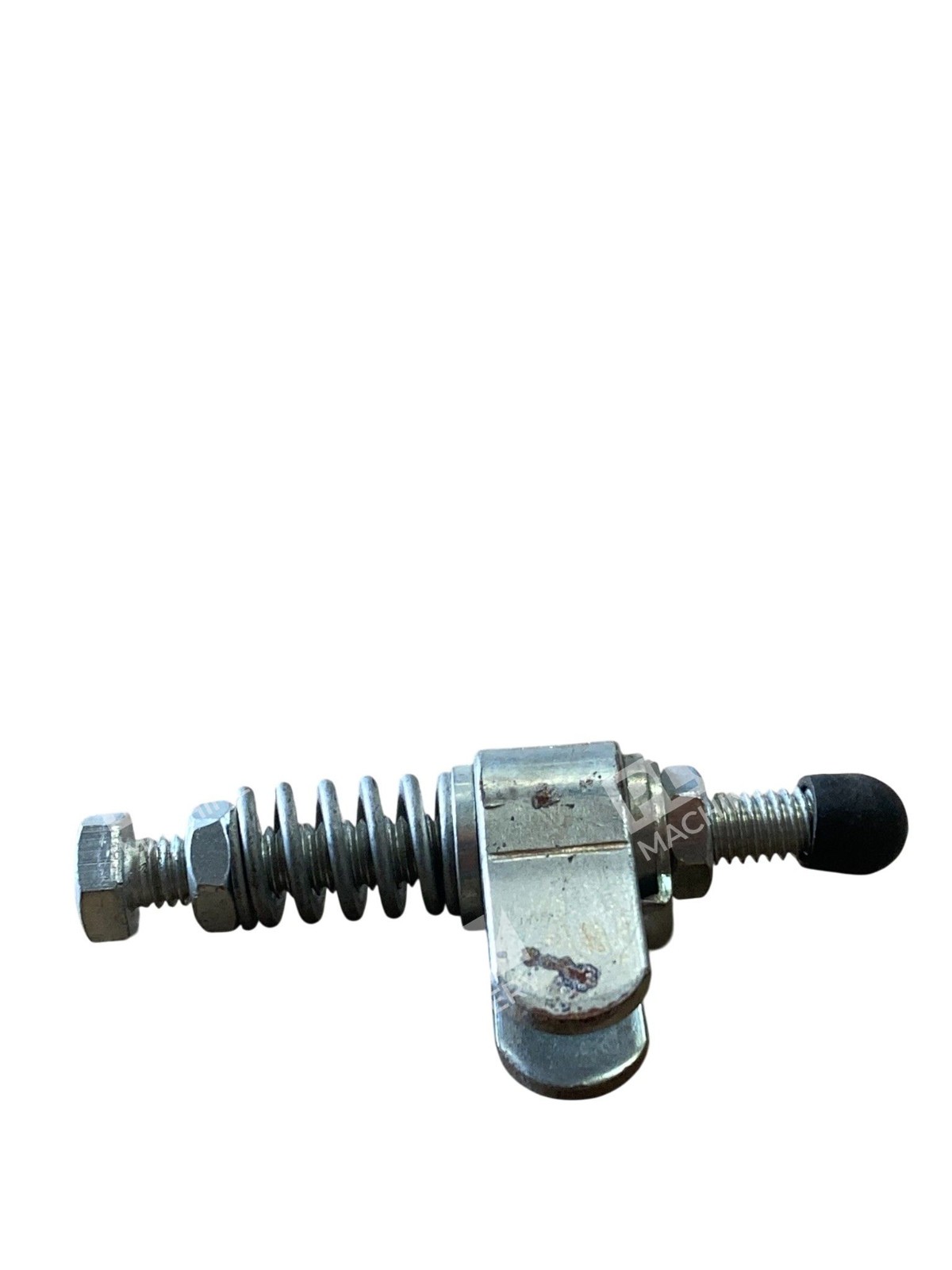

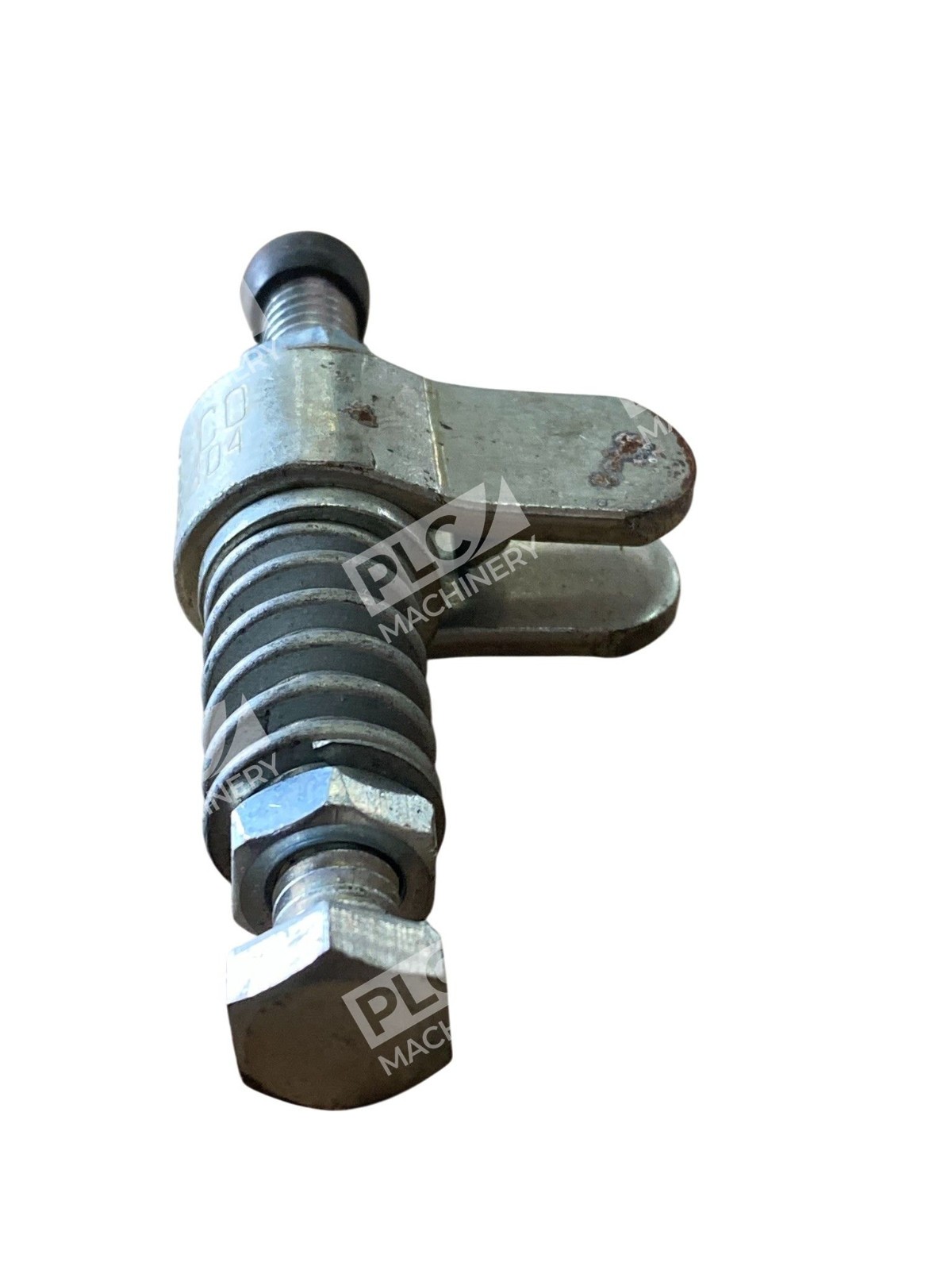

The DE-STA-CO 2502804 is a spindle with spring assembly toggle clamp engineered for industrial workholding applications. With over 88 years of experience, DE-STA-CO brings a quality philosophy unsurpassed by its counterparts. This model combines durable construction with precision engineering, making it ideal for CNC machining, metal fabrication, and production assembly where dependable clamping is critical.
Key Features
- Drop-forged steel jaws with adjustable spindle assembly
- Spring-loaded mechanism for consistent clamping pressure
- Provides more consistent clamping point than cam action designs
- Suitable for horizontal hold-down applications
- Standard unit quantity of 1
Technical Specifications
Exact specifications for model 2502804 should be verified against the manufacturer’s datasheet or your system integrator, as this assembly may be configured with different spindle threads and spring rates depending on application requirements.
Typical Applications
- CNC machine fixtures and workholding
- Metal fabrication and welding jigs
- Assembly line clamping fixtures
- Production tooling and checking fixtures
- Industrial automated assembly stations
Compatibility & Replacements
Compatible With
- DE-STA-CO manual toggle clamp bases and frames
- Standard spindle mounting systems
- Industrial workholding fixtures and molds
- Manufacturing and assembly line equipment
Replaces / Drop-In Replacement For
Verify with your system integrator or DE-STA-CO technical support whether this assembly is a direct replacement for your existing clamp configuration. Part compatibility depends on spindle thread size, spring rate, and mounting specifications.
Works With
- DE-STA-CO toggle clamp handle assemblies
- Manual hold-down and latch-action clamp systems
- Custom and standard workholding fixtures
- Destaco spindle assemblies and caps and mounting assemblies
