Overview

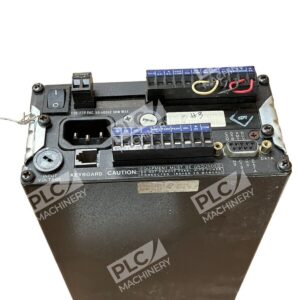

The Daytronic 4077 Series DC Strain Gauge Controller is a rugged panel-mount measurement instrument engineered for accurate strain and load monitoring in precision industrial environments. This single-channel strain gage indicator converts bridge circuit outputs into stable, readable measurements suitable for quality control, materials testing, and mechanical inspection workflows.
Key Features
- Single-channel DC strain gauge measurement and display
- Panel-mount configuration for fixed installation
- Analog indicator readout for direct measurement observation
- Compact, industrial-grade enclosure
- Low power consumption ideal for shop floor deployment
Technical Specifications
- Power Input: 110/220 VAC (selectable)
- Frequency: 50–400 Hz
- Power Consumption: 30 W maximum
- Input Type: DC strain gauge bridge
- Display Type: Analog needle indicator
- Dimensions: 9.06″ W × 6.3″ H × 7.09″ D
- Weight: 6.61 lbs
- Channels: Single channel
- NSN: 6625-01-466-9066
Typical Applications
- Tensile and compression testing
- Load cell monitoring and calibration
- Structural strain measurement in metalworking
- Quality assurance and inspection workflows
- Research and development instrumentation
Compatibility & Replacements
Compatible With
- Standard DC strain gauge transducers and load cells
- Full-bridge and half-bridge strain gauge circuits
- Wheatstone bridge measurement configurations
- Industrial control and testing systems
Replaces / Drop-In Replacement For
- Daytronic 4060 Series strain gauge controllers
- Other single-channel analog strain gage indicators of equivalent specifications
Works With
- Universal strain gauge transducers and load cells
- Precision instrumentation systems requiring analog measurement display
- Manual data logging and analog recording equipment
