Overview

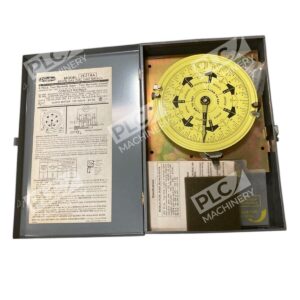

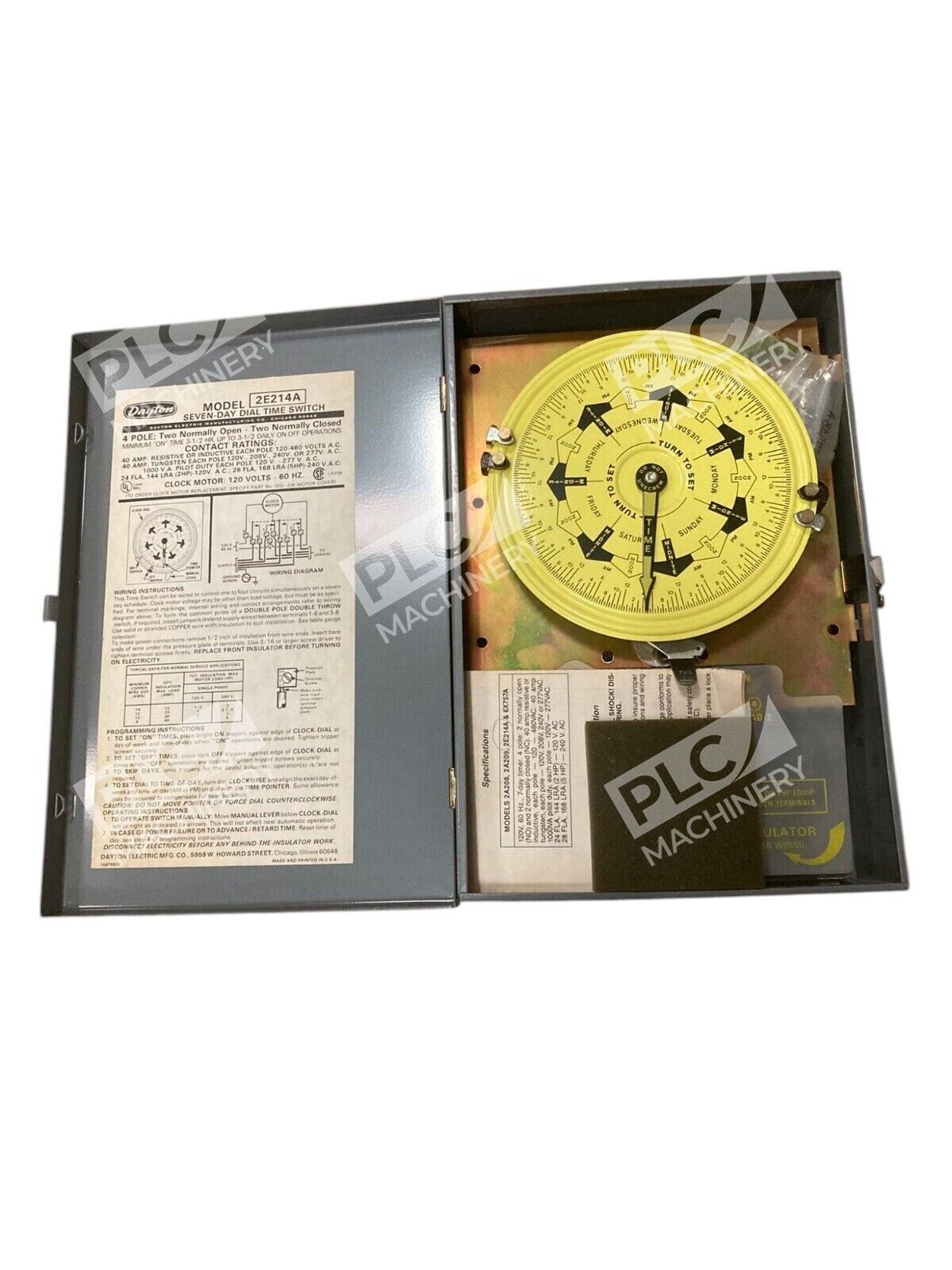

The Dayton 2E214A is a mechanical, electromechanical seven-day dial timer designed for automated scheduling of industrial and commercial equipment. This seven-day dial time switch features four poles and is designed for 120V, 60 Hz operation. With DPDT (Double Pole, Double Throw) contact configuration and 40A maximum current capacity, the 2E214A provides reliable switching for HVAC systems, lighting installations, pool heaters, and other time-sensitive loads.
Key Features
- 40 ampere maximum rating at 125V AC
- Steel enclosure with NEMA Rating 1, 7-day scheduling with 3.5-hour minimum time setting
- Three maximum on/off cycles per week with wall mounting
- DPDT configuration allows simultaneous control of multiple circuits
- Dial-based mechanical operation—no batteries or programming required
- Suitable for outdoor building lights, commercial ovens, heaters for pools and spas, HVAC equipment, and daily appliance scheduling
Technical Specifications

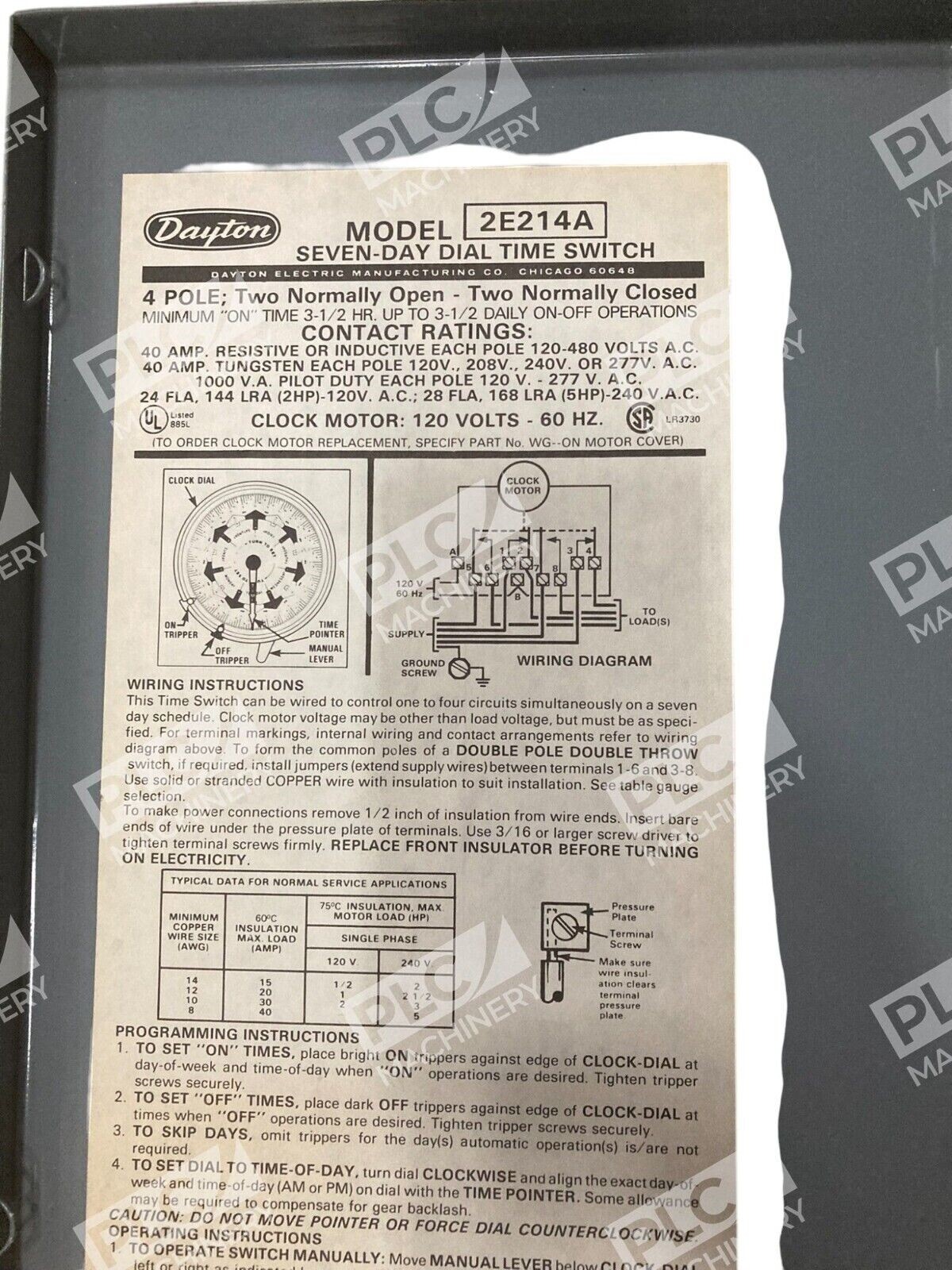

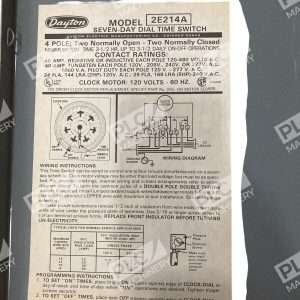

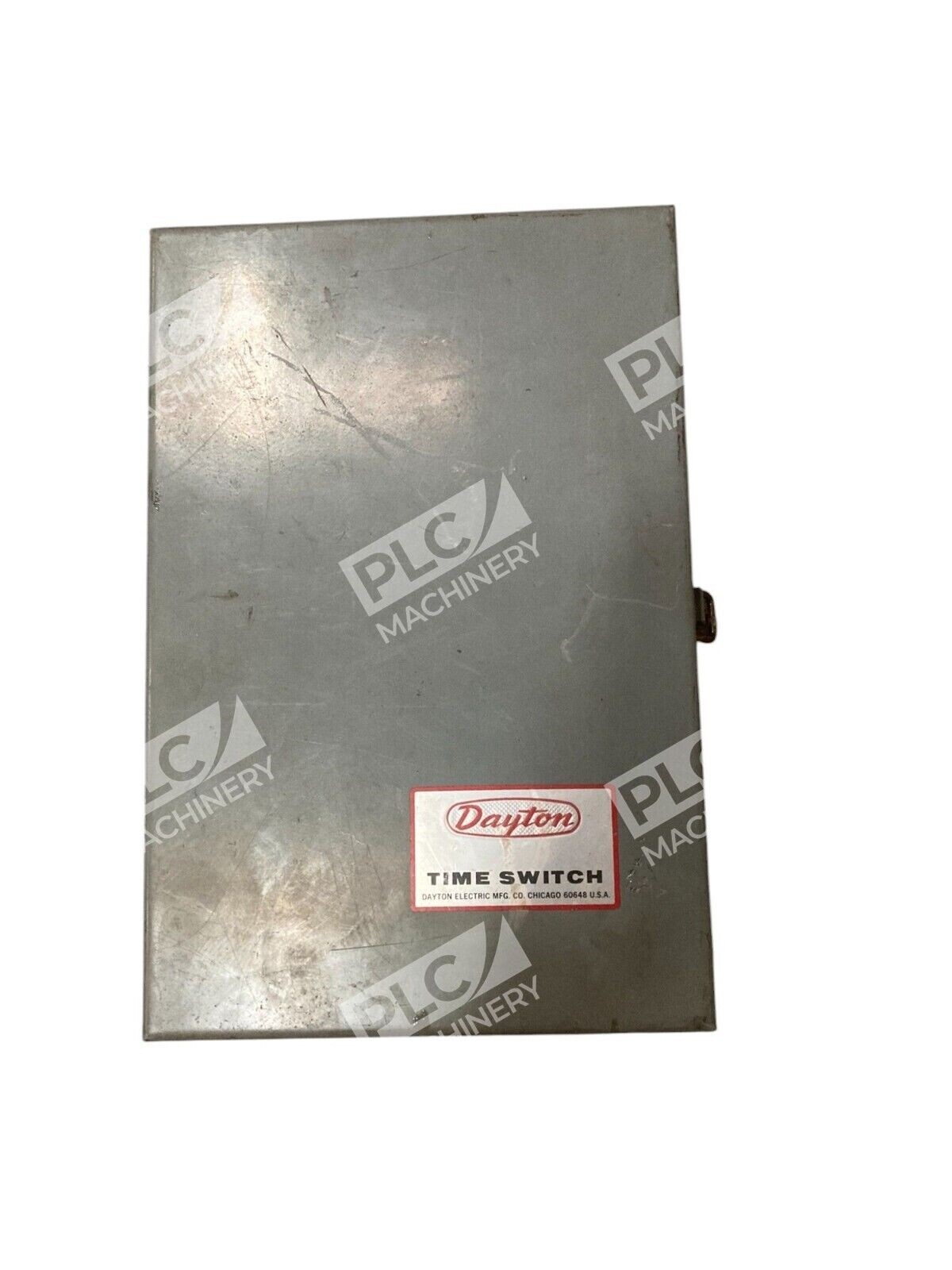

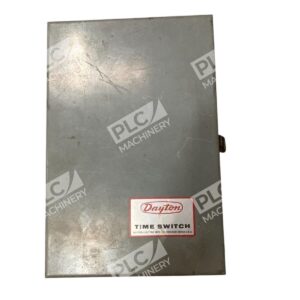

The Dayton 2E214A features robust construction and straightforward mechanical operation. The unit operates at 120V, 60 Hz with a 40A maximum current capacity and DPDT switching contacts. The steel NEMA 1 enclosure houses a 7-day dial mechanism with a minimum time setting of 3.5 hours and support for up to 3 on/off cycles, with wall-mount installation.
Typical Applications
These timers can be used to operate outdoor building lights, commercial ovens, and heaters for pools and spas, as well as HVAC equipment, lighting installations, and appliances at daily, scheduled intervals. Common uses include water heater scheduling, facility lighting control, and equipment startup/shutdown automation in commercial and industrial environments.
Compatibility & Replacements
Compatible With
- 120V, 60 Hz AC power systems
- Standard wall-mounted enclosures and control panels
- Equipment requiring 40A or less switching capacity
- HVAC, heating, and water heater systems
Replaces / Drop-In Replacement For
- Intermatic 7801B timer
- Dayton 2E214 (non-A variant)
- Similar 7-day mechanical dial timers with DPDT configuration
Works With
- Standard 120V AC control circuits
- NEMA 1 rated control enclosures
- Intermatic-compatible tripper sets for expanded scheduling
- Manual or automatic switching applications
