Overview

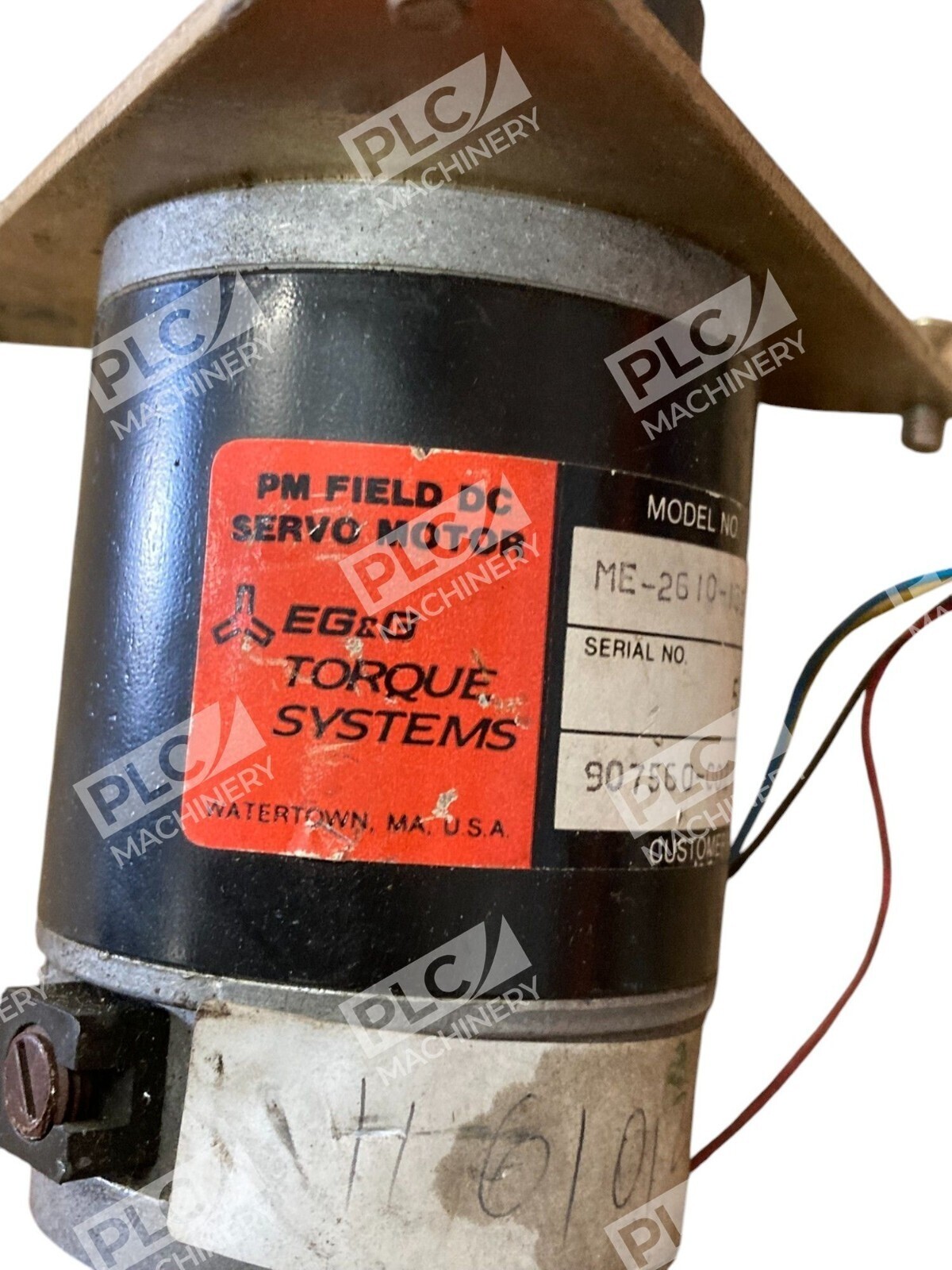

The EG&G Torque Systems PM Field DC Servo Motor ME-2610-135F is a permanent-magnet field DC servo motor engineered for high-precision motion control and automation applications. Manufactured by EG&G, a legacy leader in motion control systems, this model integrates with Datametrics encoder assemblies (such as the S-9845B) for closed-loop feedback control. Ideal for CNC retrofits, precision machinery, and industrial automation, this motor delivers consistent torque and speed regulation in demanding control environments.
Key Features
- Permanent-magnet (PM) field design for stable, predictable torque-speed characteristics
- Compact servo motor form factor suitable for space-constrained automation applications
- Fully functional tested unit for reliable performance in retrofit and upgrade projects
- Compatible with Datametrics rotary encoders for precision closed-loop feedback
- Legacy industrial servo motor — ideal for maintaining or restoring existing equipment
Technical Specifications
Complete detailed specifications for this motor are not available in current manufacturer documentation; however, the following data is confirmed:
- Motor Type: Permanent-Magnet Field DC Servo Motor
- Manufacturer: EG&G Torque Systems

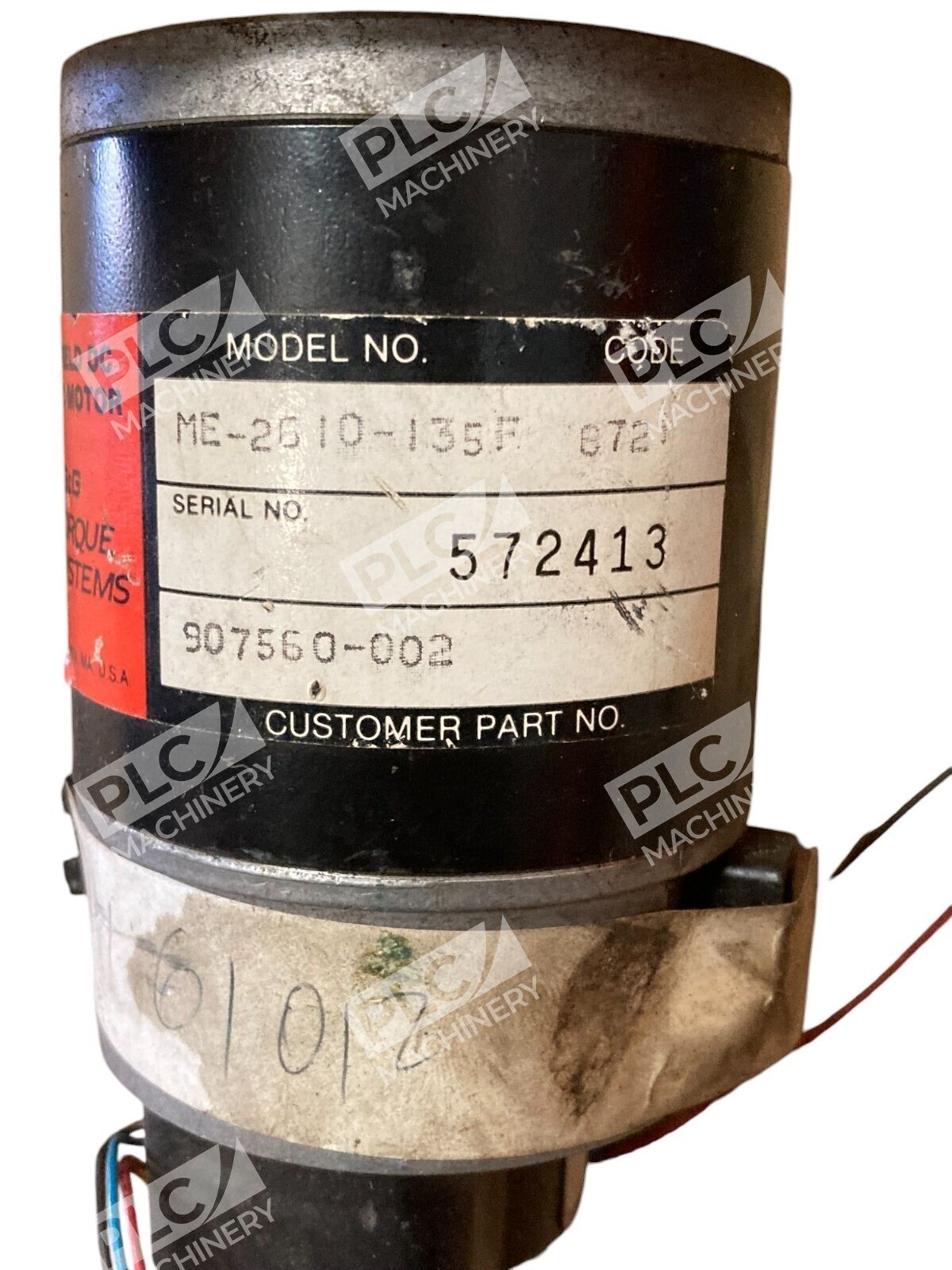

- Part Number: ME-2610-135F

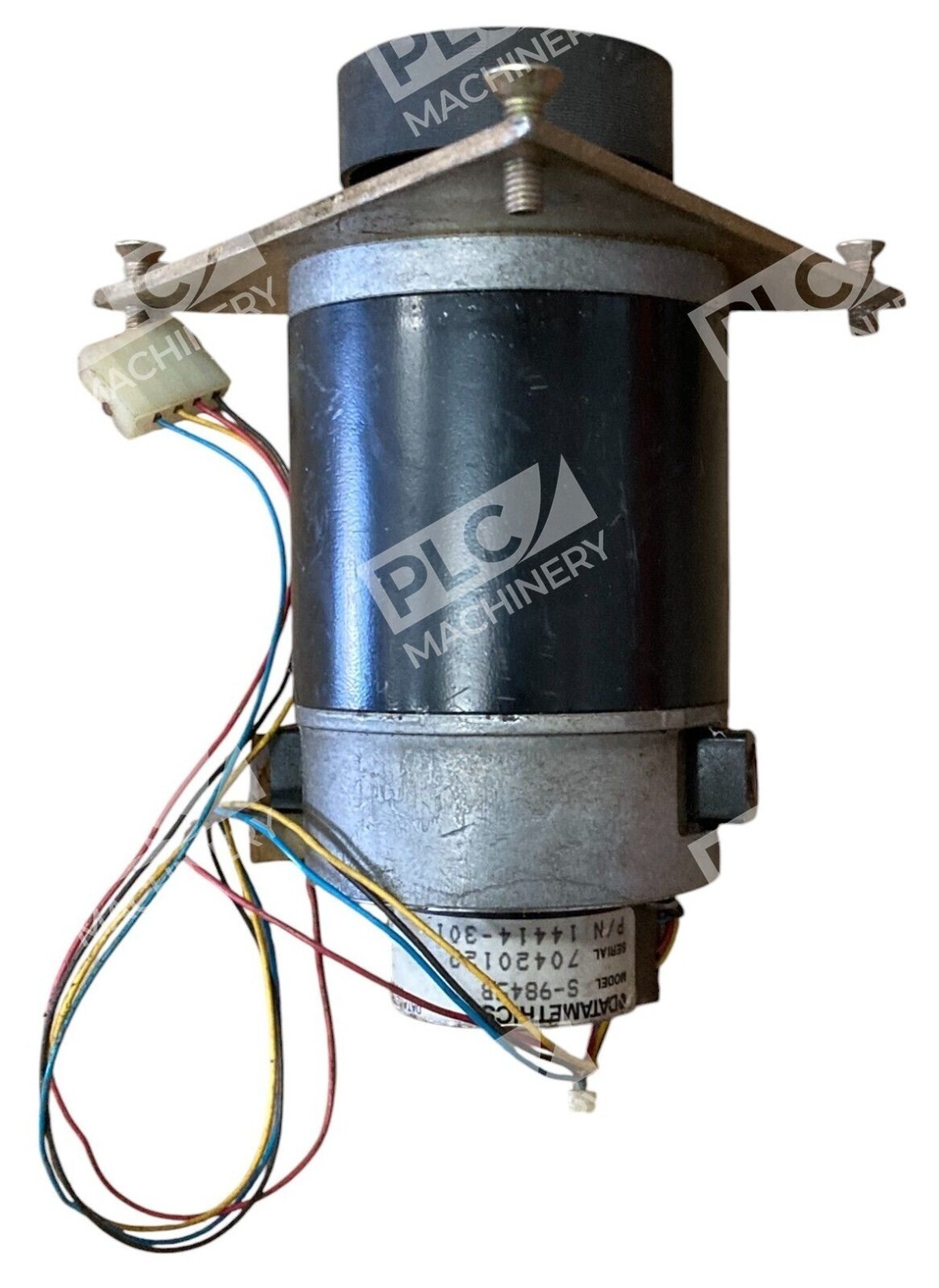

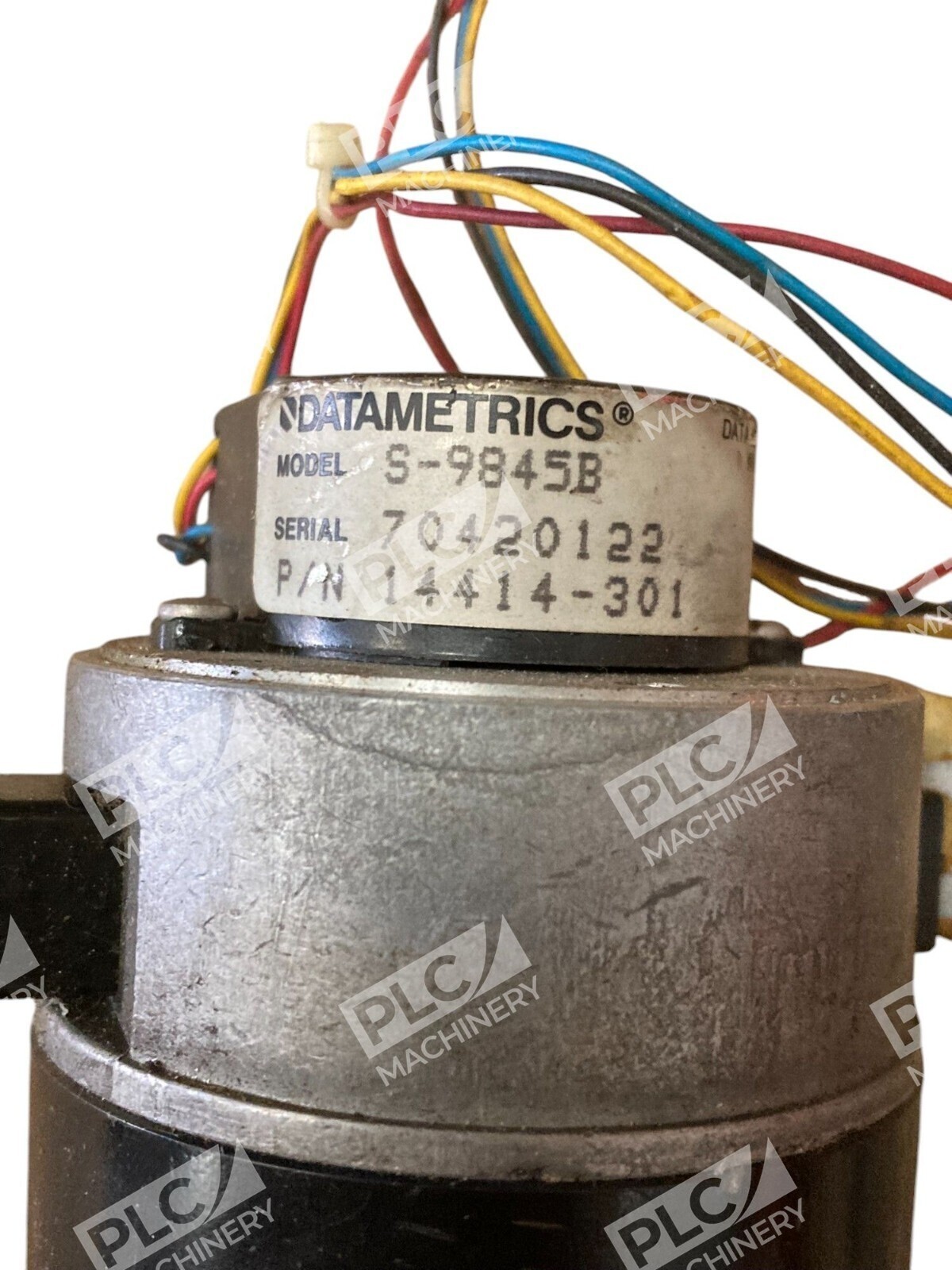

- Associated Encoder: Datametrics S-9845B (optional)
- Application Class: Precision motion control, CNC systems, industrial automation

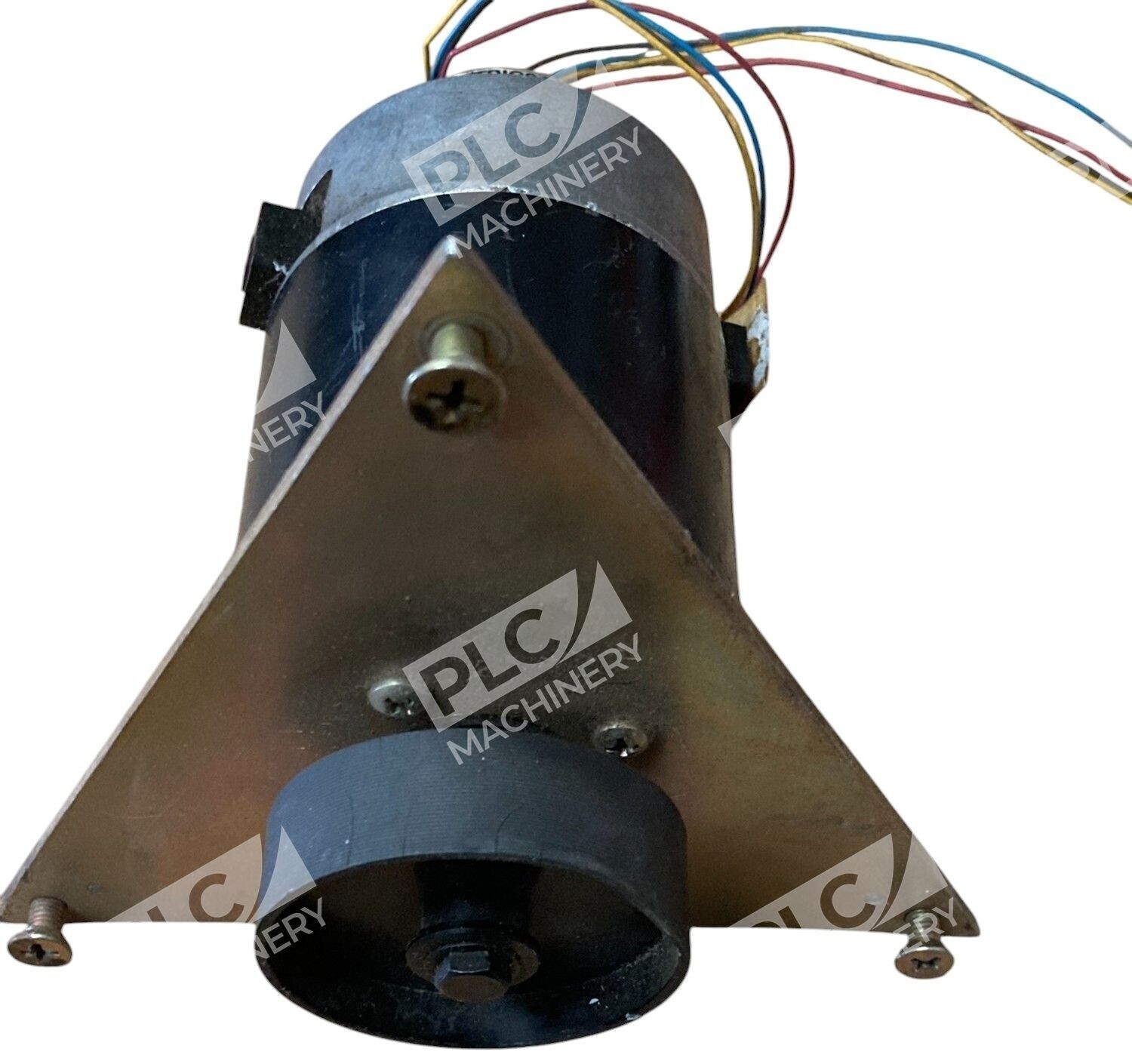

- Mounting: Flange or foot mount (verify exact configuration on unit)
Note: Operating voltage, continuous torque, peak torque, speed range, and thermal ratings must be confirmed by inspecting the motor nameplate or contacting the supplier. Do not assume specifications without verification.
Typical Applications
- CNC machine tool servo drive retrofit and restoration
- Precision motion control in manufacturing automation
- Legacy equipment modernization and upgrades
- Test and measurement systems requiring servo feedback
- Custom machinery requiring closed-loop speed or position control
- Industrial robotics and material handling systems
Compatibility & Replacements
Compatible With
- Datametrics rotary encoders (S-9655, S-9845B, and similar models)
- EG&G Torque Systems servo amplifiers and drive modules
- Legacy CNC control systems with DC servo drive interfaces
- Standard DC servo motor controllers and speed regulators
- Industrial automation platforms requiring PM field servo actuation
Replaces / Drop-In Replacement For
This motor may serve as a replacement or upgrade for other EG&G Torque Systems ME-series motors in similar size and torque classes. However, verify compatibility with your system integrator before ordering, as servo motor selection depends on torque, speed, mounting, and thermal requirements specific to your application. Confirm motor nameplate data and encoder interface type.
Works With
- Analog DC servo amplifiers and pulse-width modulation (PWM) drives
- Precision speed and position feedback via optical or inductive encoders
- Standard industrial DC power supplies and servo control electronics
- Custom motion control firmware and closed-loop feedback systems
