Overview

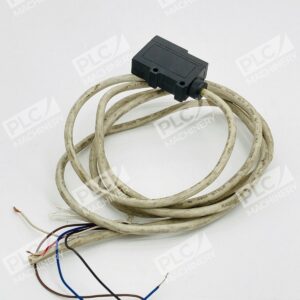

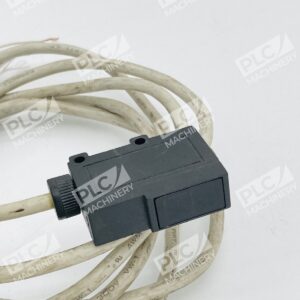

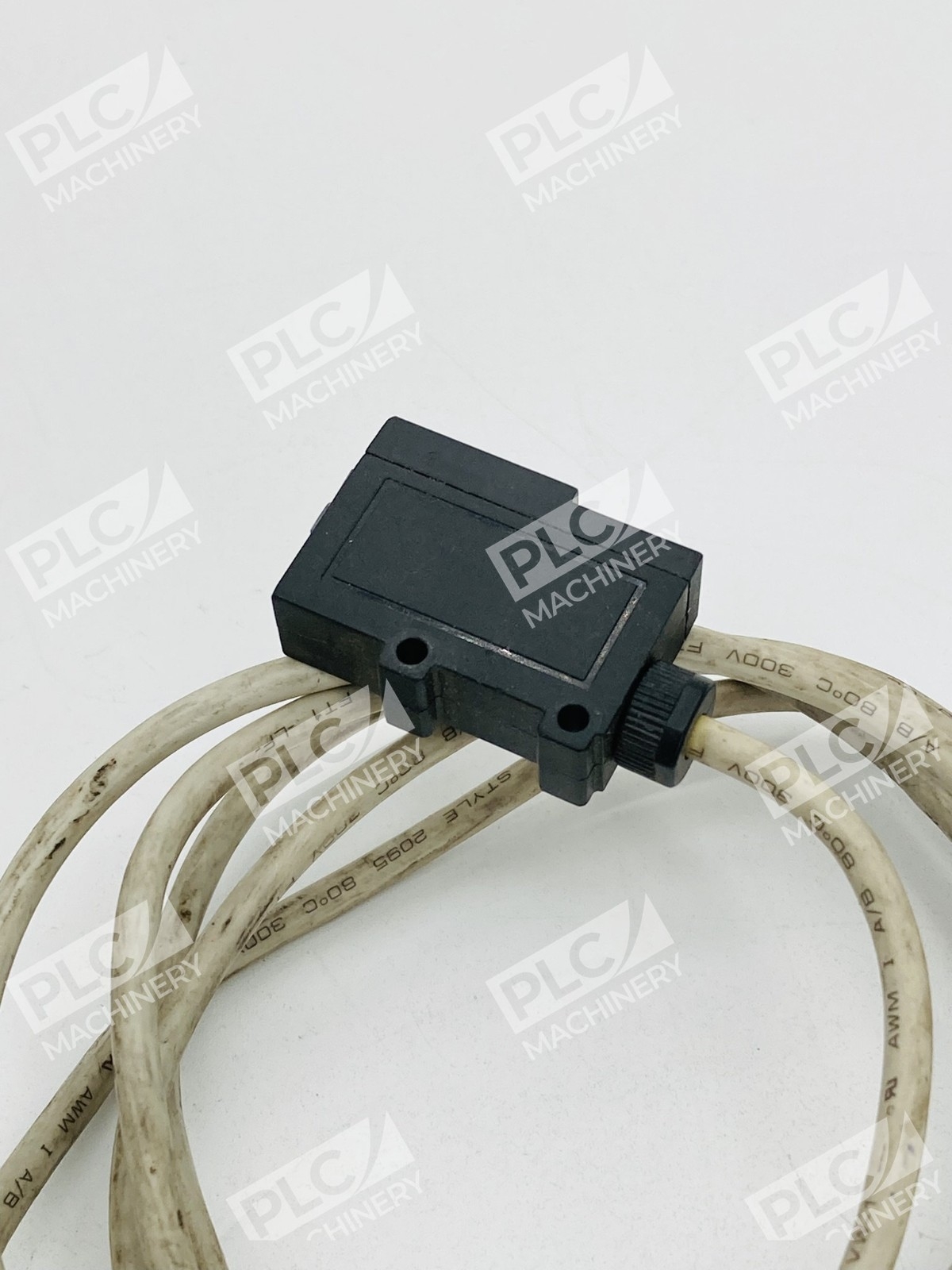

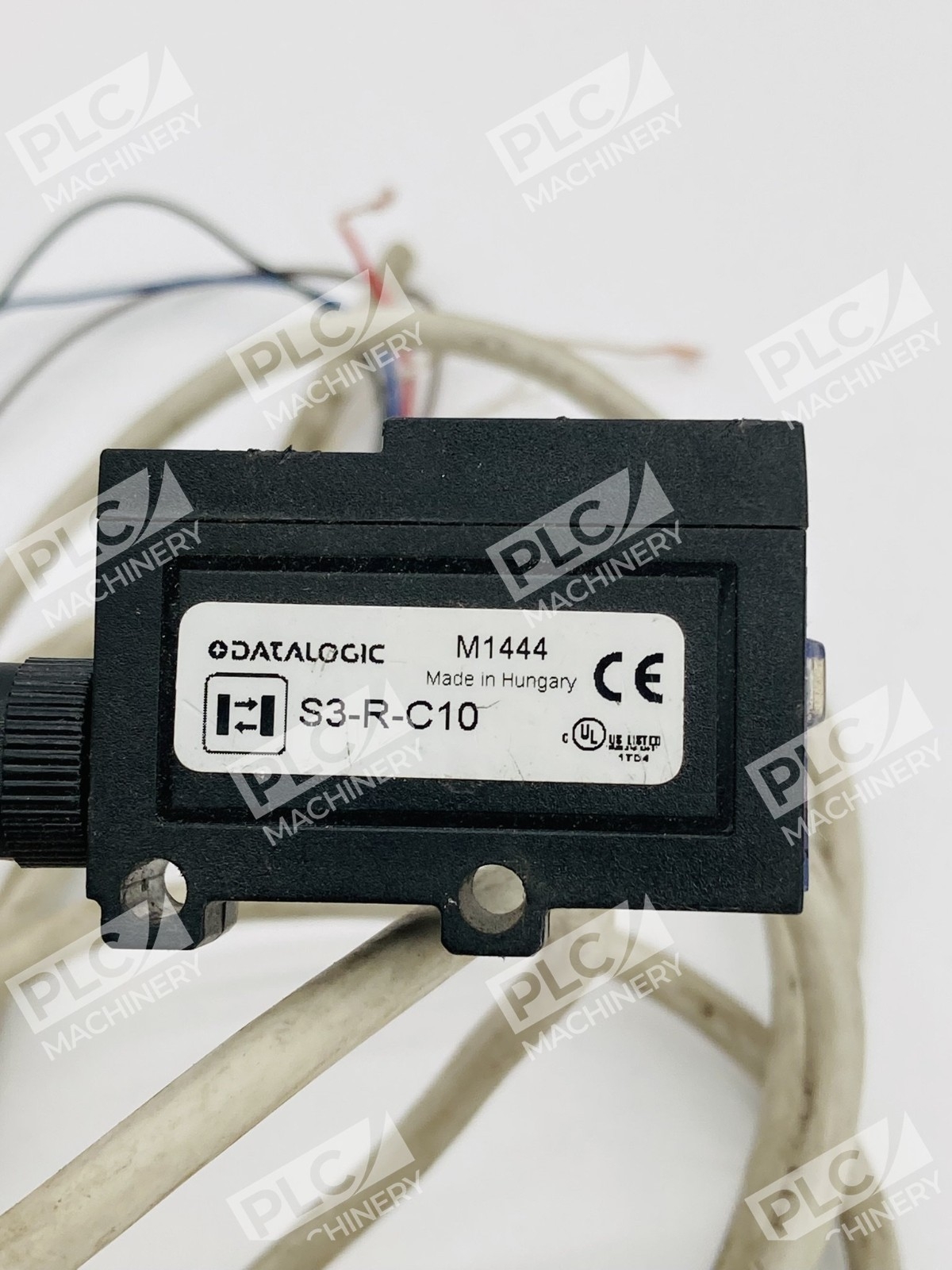

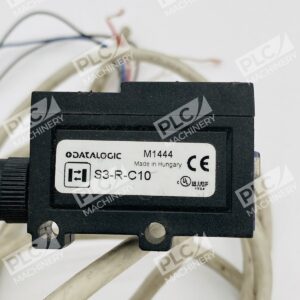

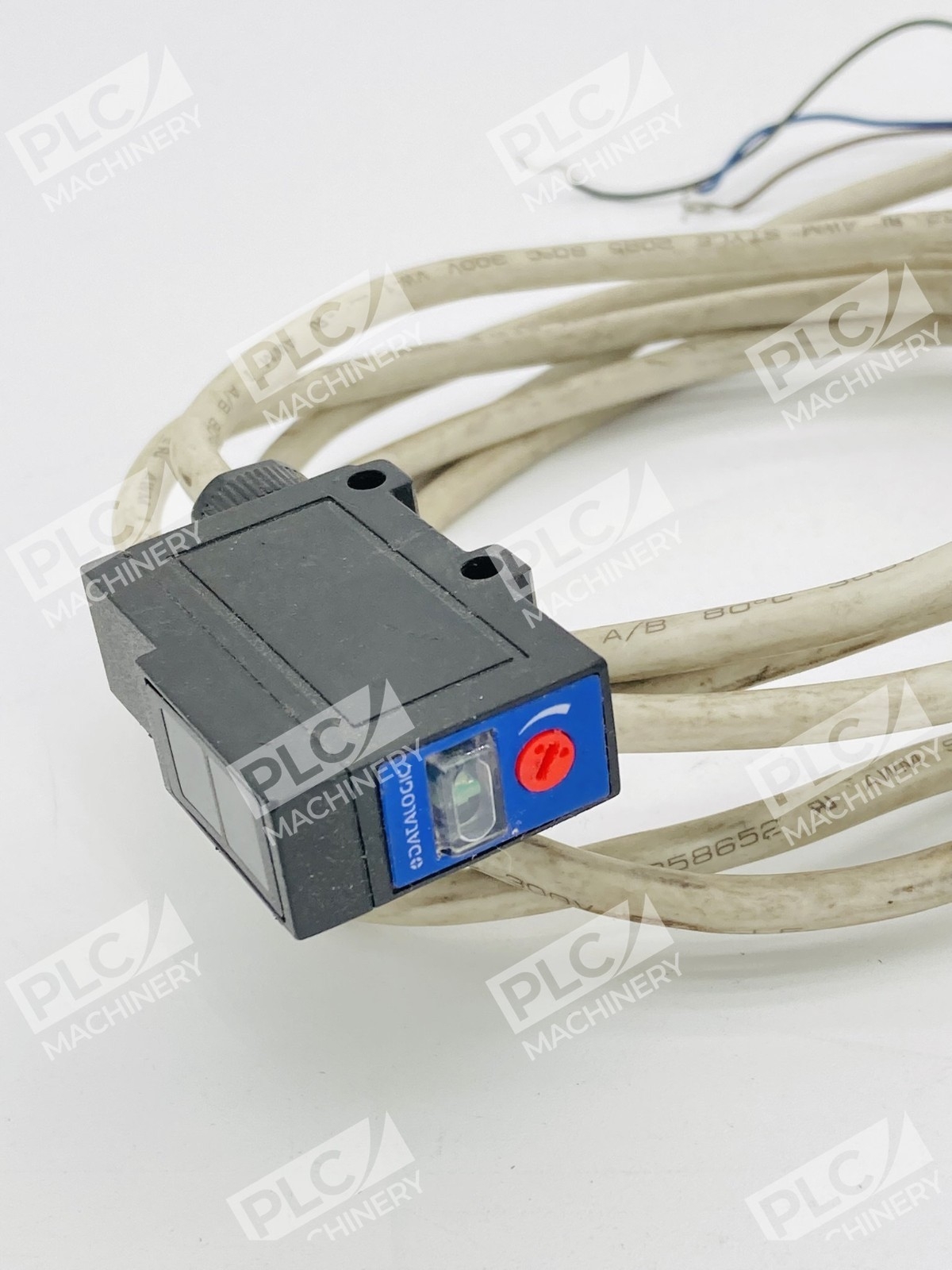

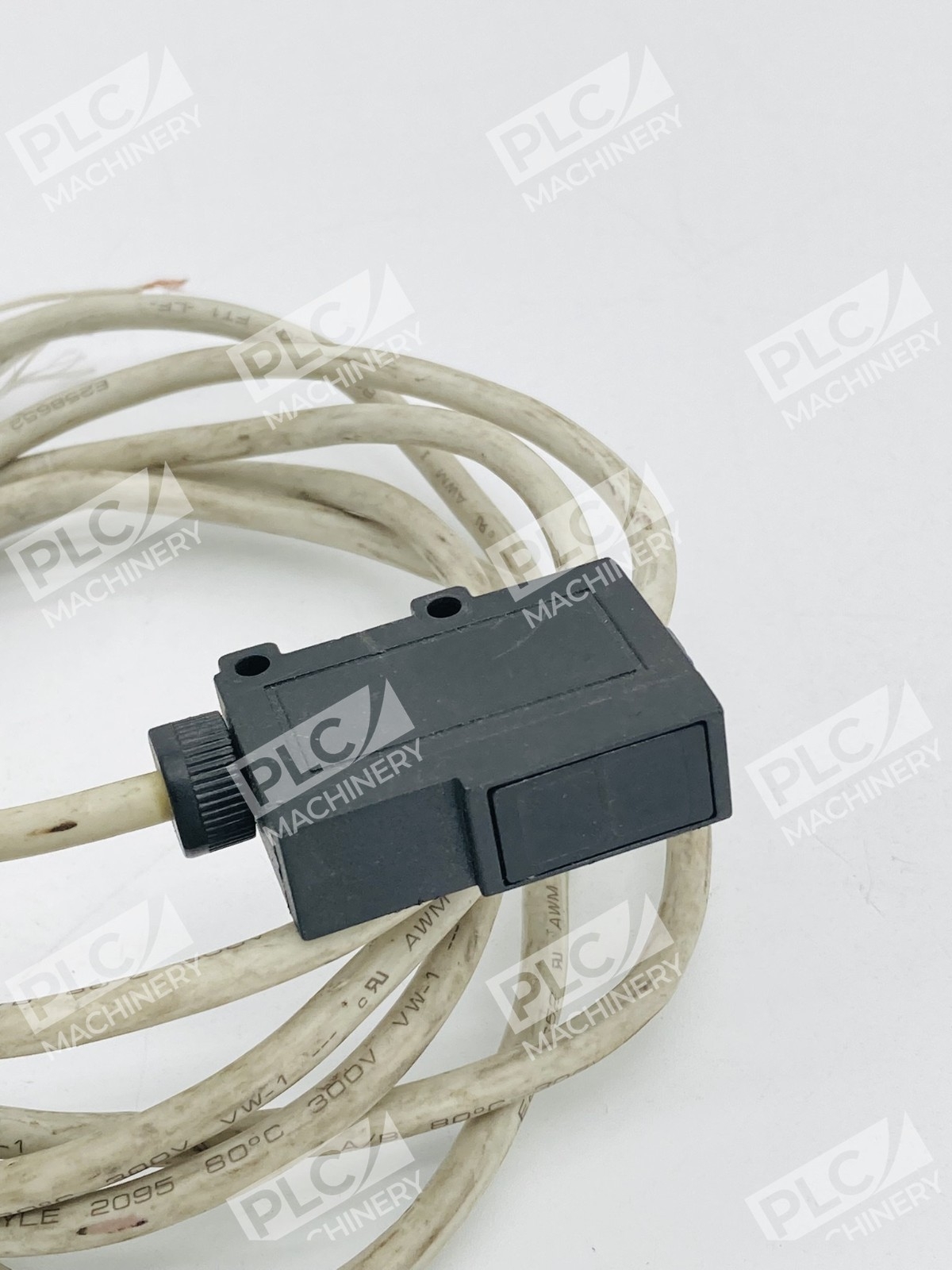

The Datalogic S3-R-C10 miniature photoelectric sensor combines compact form factor with industrial-grade reliability. Part of the proven S3 series, this sensor delivers consistent performance in proximity detection, object identification, and motion control tasks across manufacturing, packaging, and material handling applications. The radial cable design integrates seamlessly into tight automation layouts.
Key Features
- Miniature square plastic housing for space-constrained installations

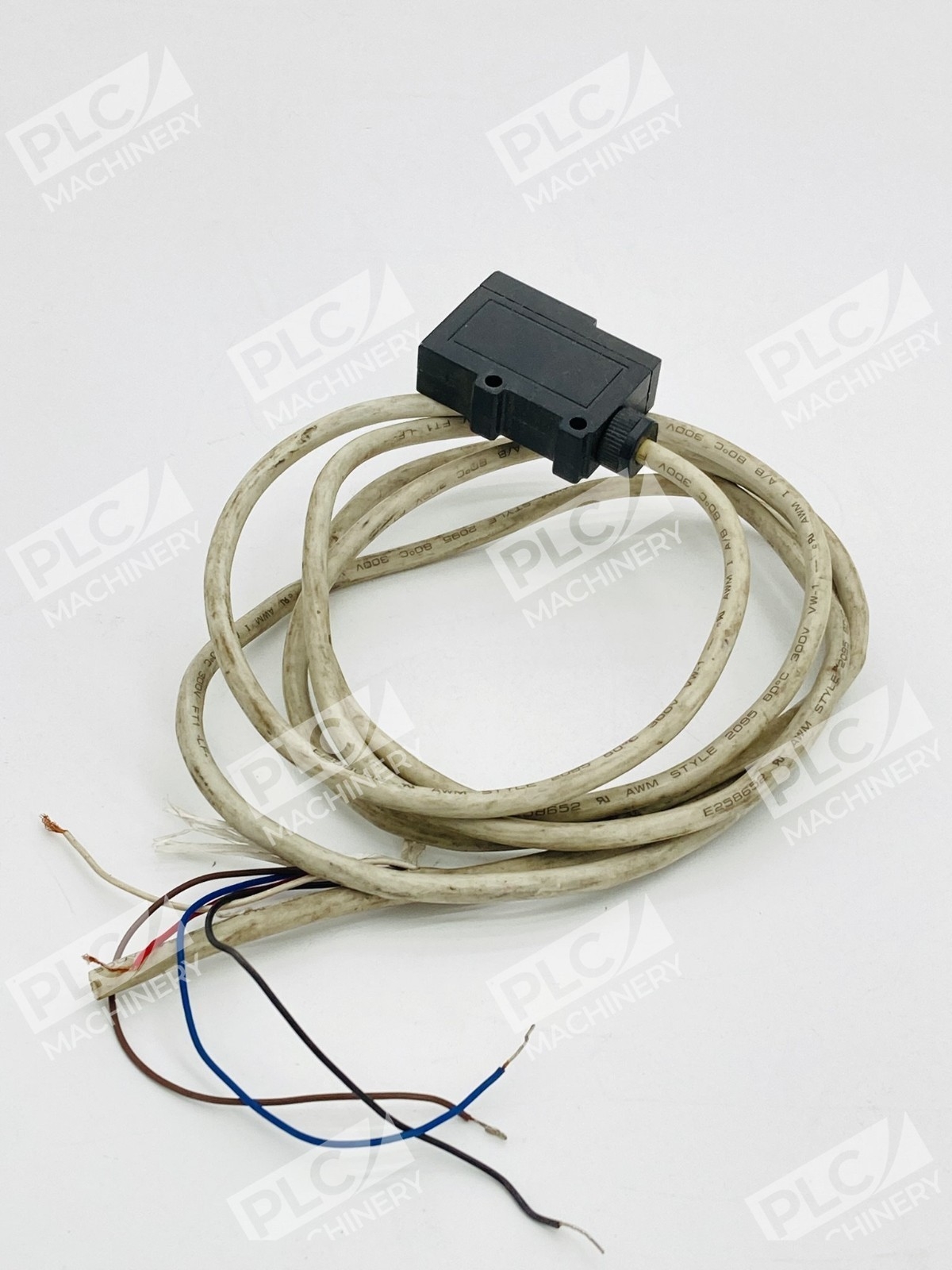

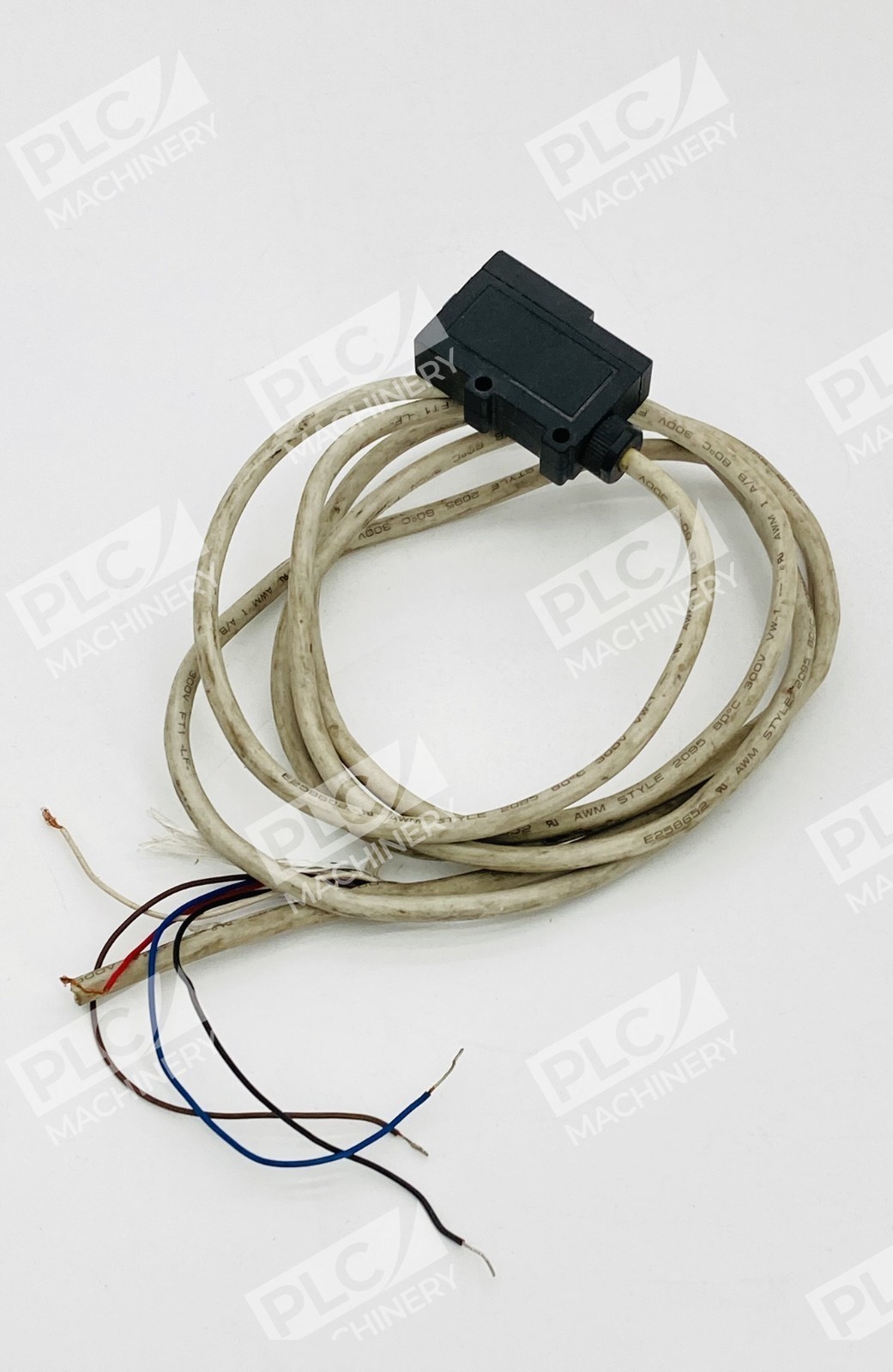

- Radial cable connection with M8 compatibility and 2 m cable option

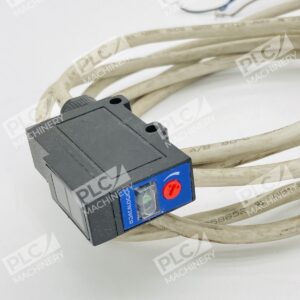

- Integrated trimmer adjustment for sensitivity tuning on-site
- Wide operating voltage range (10–30 Vdc) with reverse polarity protection
- Low power consumption (30 mA max) for efficient system design
- Red LED output indicator for real-time operational status
Technical Specifications
- Power Supply: 10–30 Vdc
- Consumption: 30 mA maximum
- Connection Type: Radial cable
- Output Configuration: PNP (available with NPN on S3 base version)
- Light Emission: Red LED (660 nm)
- Sensing Type: Proximity
- Adjustment: Trimmer potentiometer
- Housing Material: Plastic
- Reverse Polarity Protection: Yes
Typical Applications
- Packaging machinery and conveyor line detection
- Parts counting and presence verification
- Motion control and object identification
- Food and beverage processing systems
- Automotive assembly and quality control
- Small machine tool positioning and alignment
Compatibility & Replacements
Compatible With
- Industrial automation controllers and PLCs
- Standard 10–30 Vdc DC power supplies
- M8 connector systems and industrial networks
- Datalogic automation ecosystems and monitoring platforms
Replaces / Drop-In Replacement For
- S3T-R-C10 (newer generation variant with extended features)
- Other S3-R series proximity sensors in comparable applications
- Legacy S3 radial cable configurations
Works With
- Standard industrial PLC platforms (Siemens, Allen-Bradley, Mitsubishi, Omron)
- 24 Vdc industrial control systems
- M8 4-pole connectors and 2 m cable harnesses
- Traditional hardwired discrete I/O modules
