Overview

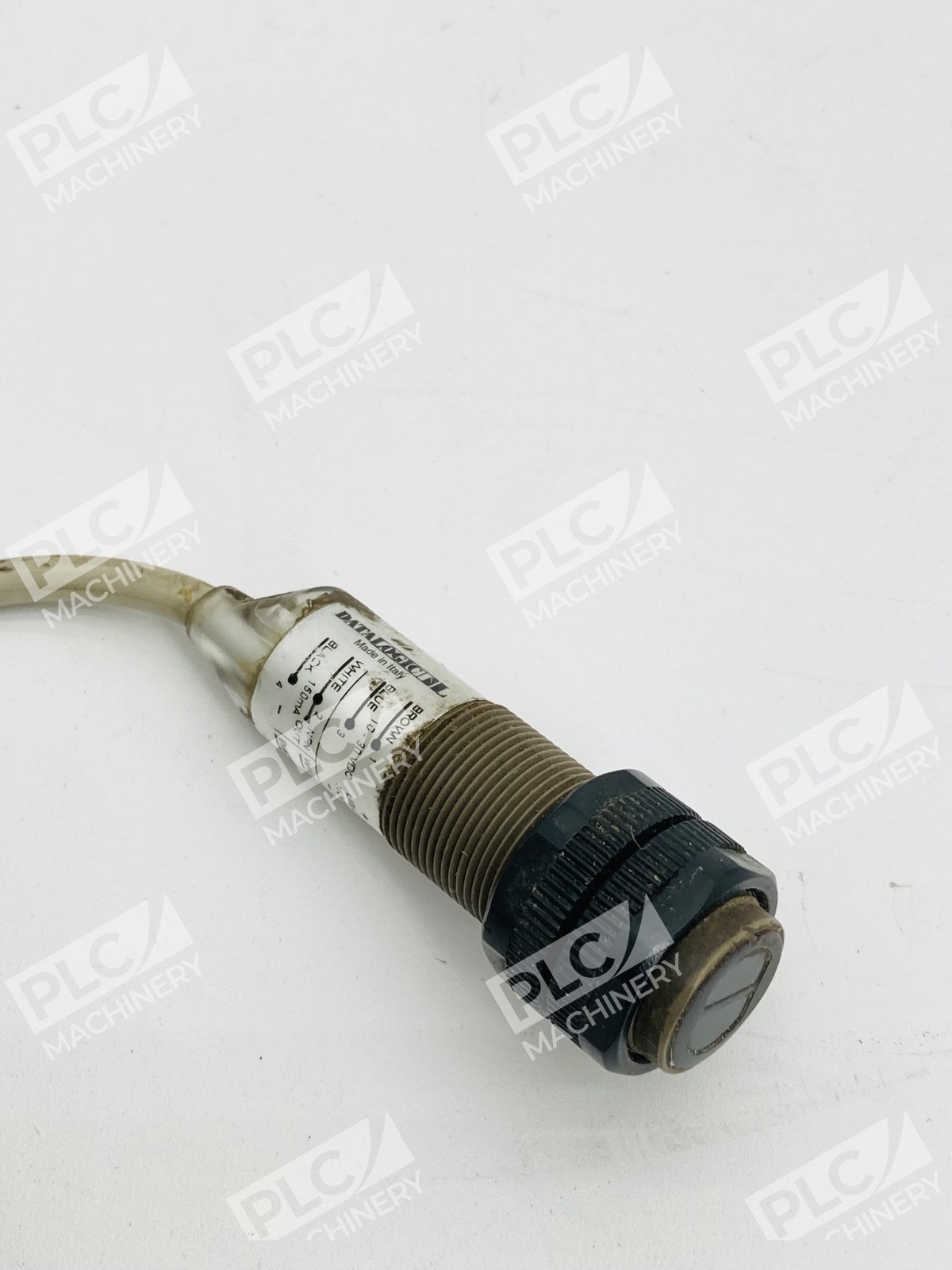

The Datalogic S18-5-K-30 is a tubular photoelectric diffuse sensor built for reliable object detection in industrial automation and packaging applications. Featuring short-range proximity detection with a 30 cm operating distance, this sensor delivers precise detection for pick-and-place, filling, sorting, and quality control systems. The IP67-rated ABS plastic housing with M18 thread mounting ensures durability in harsh factory environments.
Key Features
- Short proximity diffuse optics with 30 cm detection range
- 10-30 VDC power supply with 4-wire cable connection

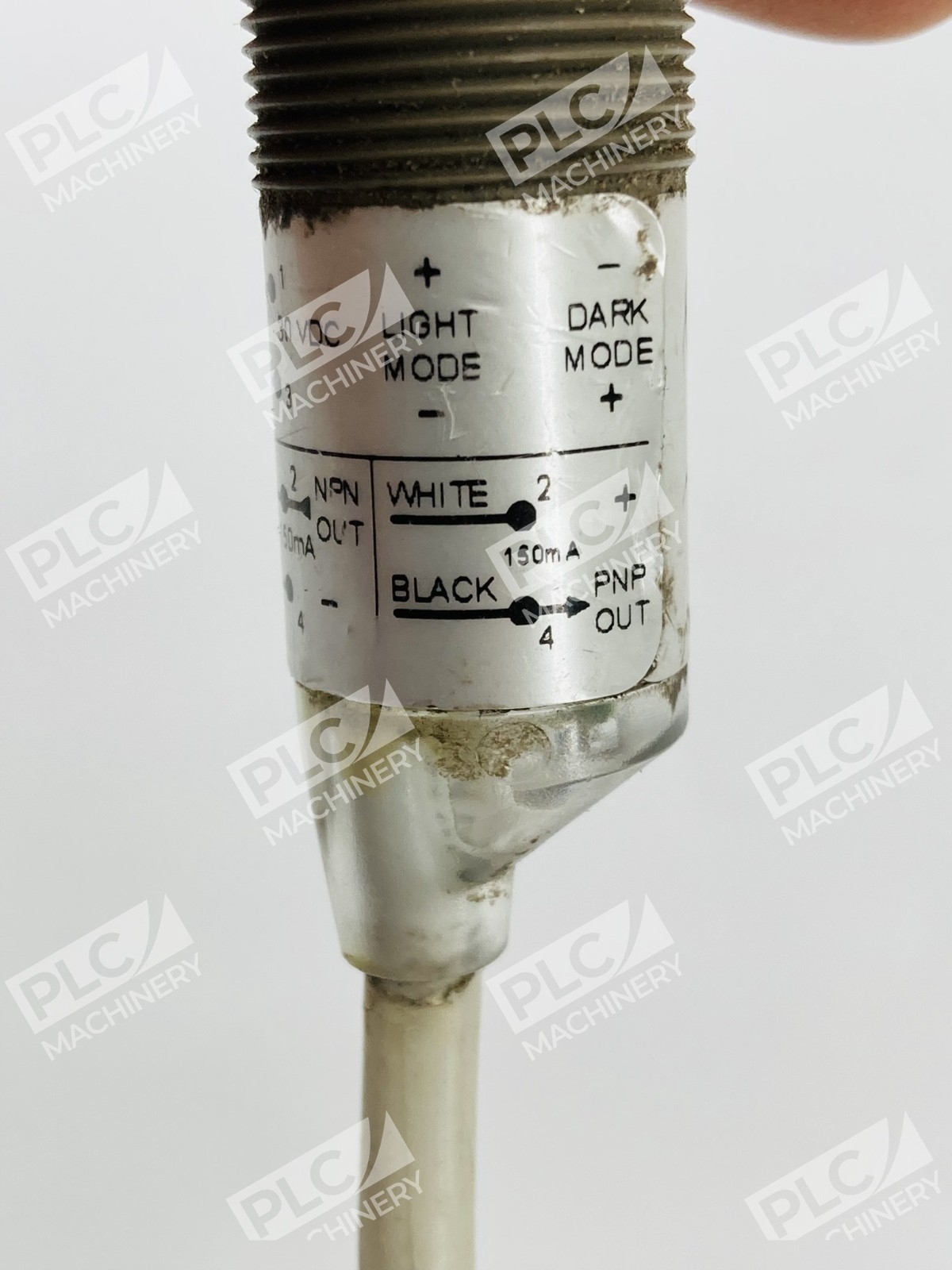

- Configurable NPN/PNP output and dark/light operating modes
- IP67 protection rating for reliable performance in wet/dusty environments
- ABS plastic housing with M18 thread mount and integrated fixing nut
- Standard industrial M18 tubular form factor
Technical Specifications
- Model: Datalogic S18-5-K-30

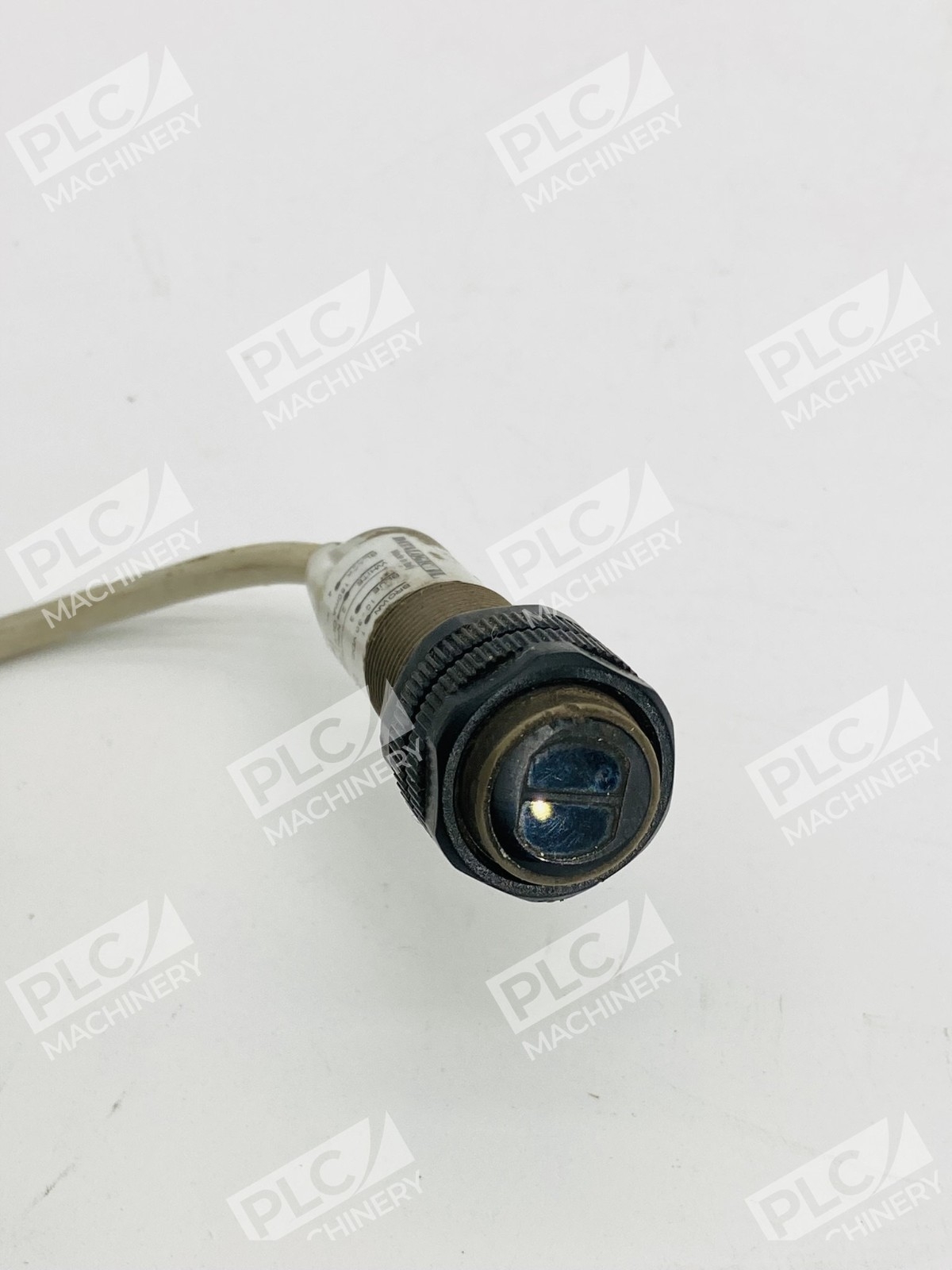

- Sensor Type: Photoelectric diffuse (short proximity)
- Supply Voltage: 10–30 VDC
- Operating Distance: 0–30 cm

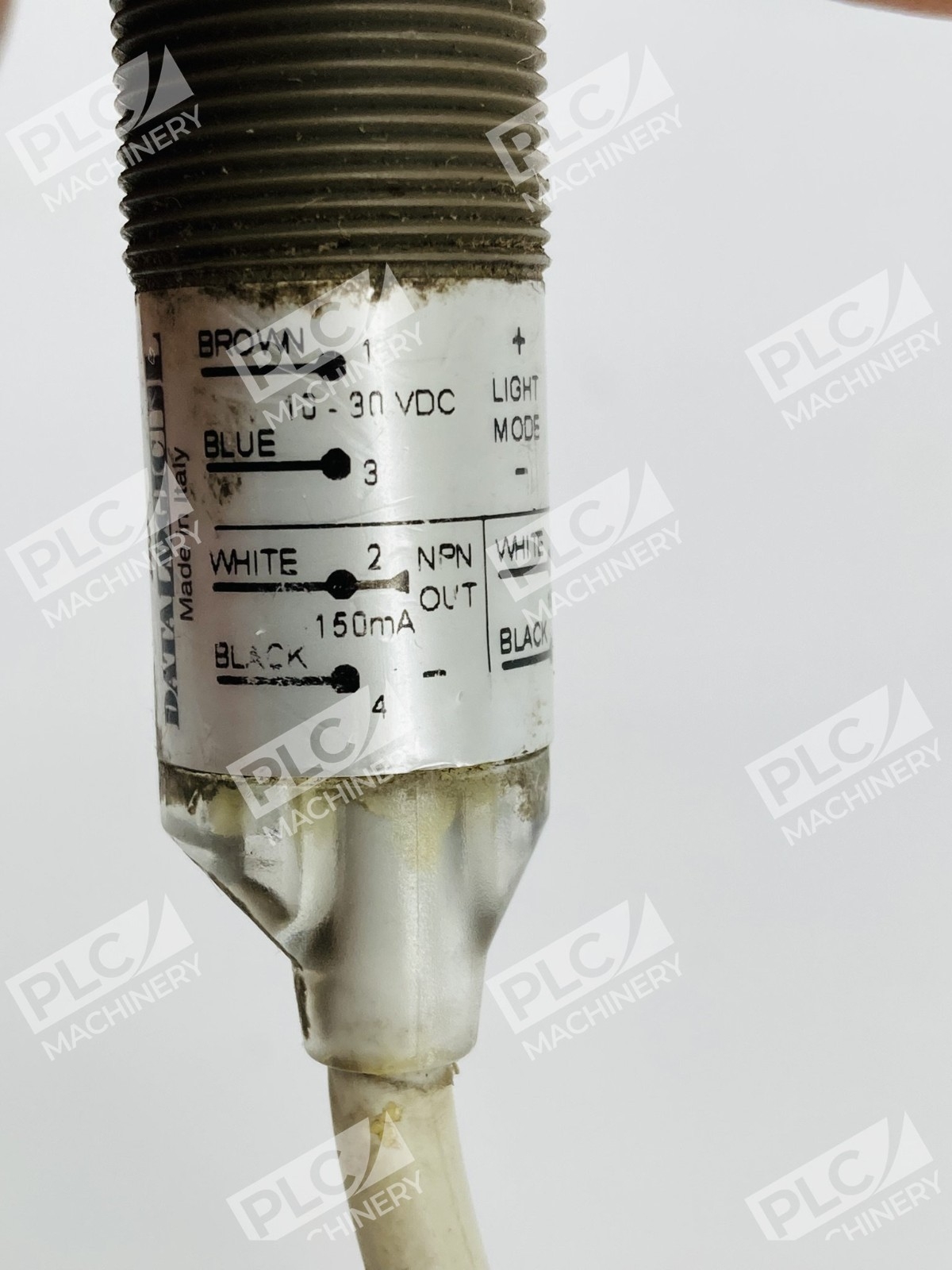

- Output Type: Configurable NPN/PNP (4-wire)
- Operating Modes: Dark mode, light mode

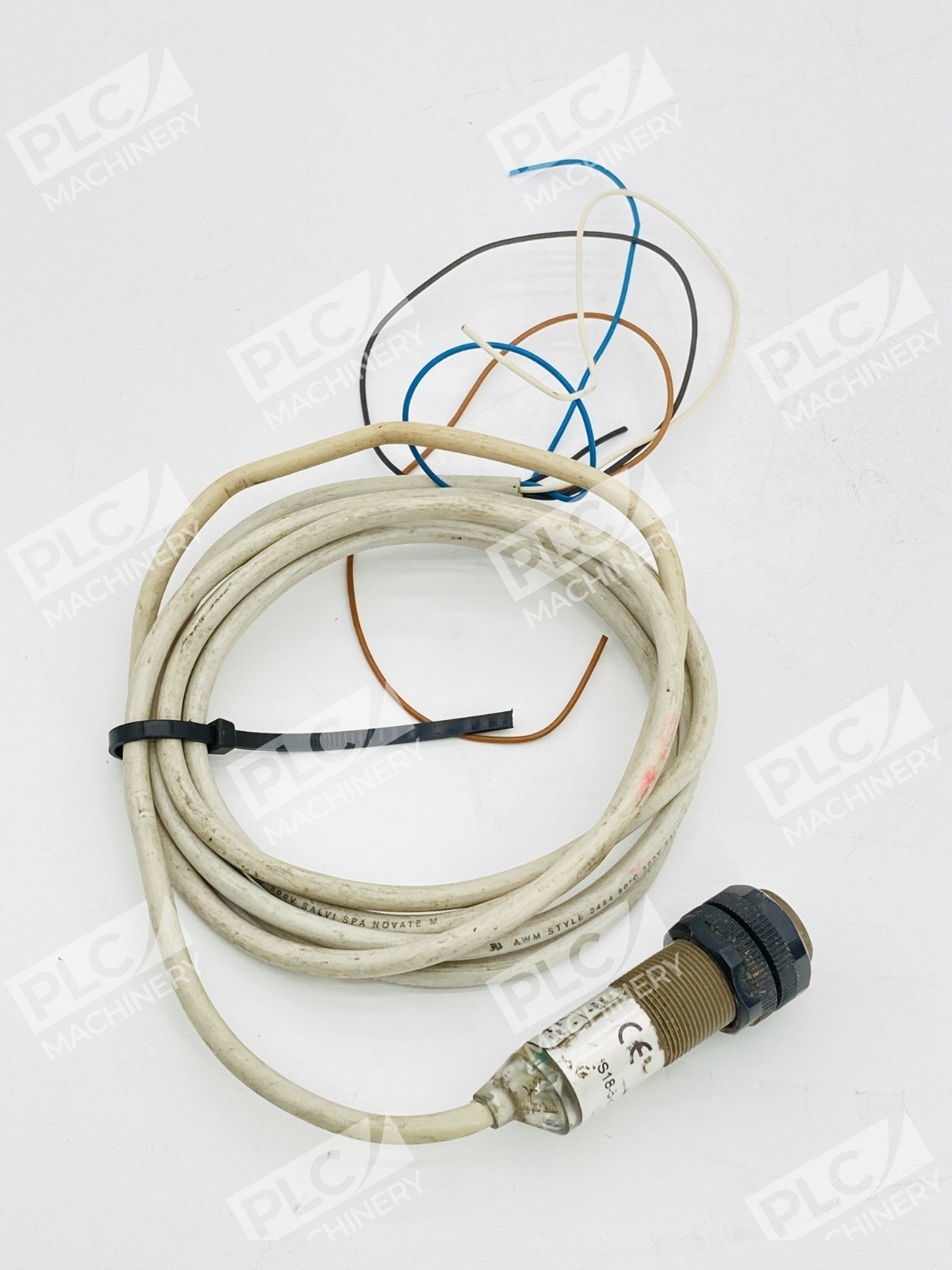

- Connection: Cable (30 cm standard)
- Housing Material: ABS plastic
- IP Rating: IP67
- Thread Size: M18 x 1
- Datalogic Code: 952250020
- Operating Temperature: −10 to +50 °C
- Storage Temperature: −25 to +70 °C
Typical Applications
- Packaging machinery—detecting product presence on conveyors and filling lines
- Assembly automation—verifying part position and presence at workstations
- Pick-and-place systems—confirming object location and readiness for handling
- Quality control—inspecting containers and product dimensions in-line
- Material handling—monitoring parts at transfer points and buffers
Compatibility & Replacements
Compatible With
- Standard 24 VDC industrial control systems (10–30 VDC supply range)
- PLC inputs (digital NPN or PNP configured)
- Motion controllers and drives supporting standard sensor inputs
- M18 mounting fixtures and DIN rails with appropriate adapters
Replaces / Drop-In Replacement For
- Datalogic S18-5-K-32 (M12 connector version; requires adapter)
- Datalogic S18M-5-K-30 (metal housing version; ABS plastic equivalent)
Works With
- Standard 24 VDC power supplies and industrial relay modules
- NPN and PNP input cards (field-configurable output polarity)
- All industrial sensor networks supporting 4-wire DC sensors
- M18 sensor mounting brackets and accessories
