Overview

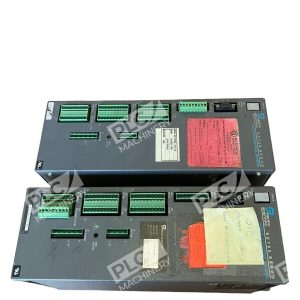

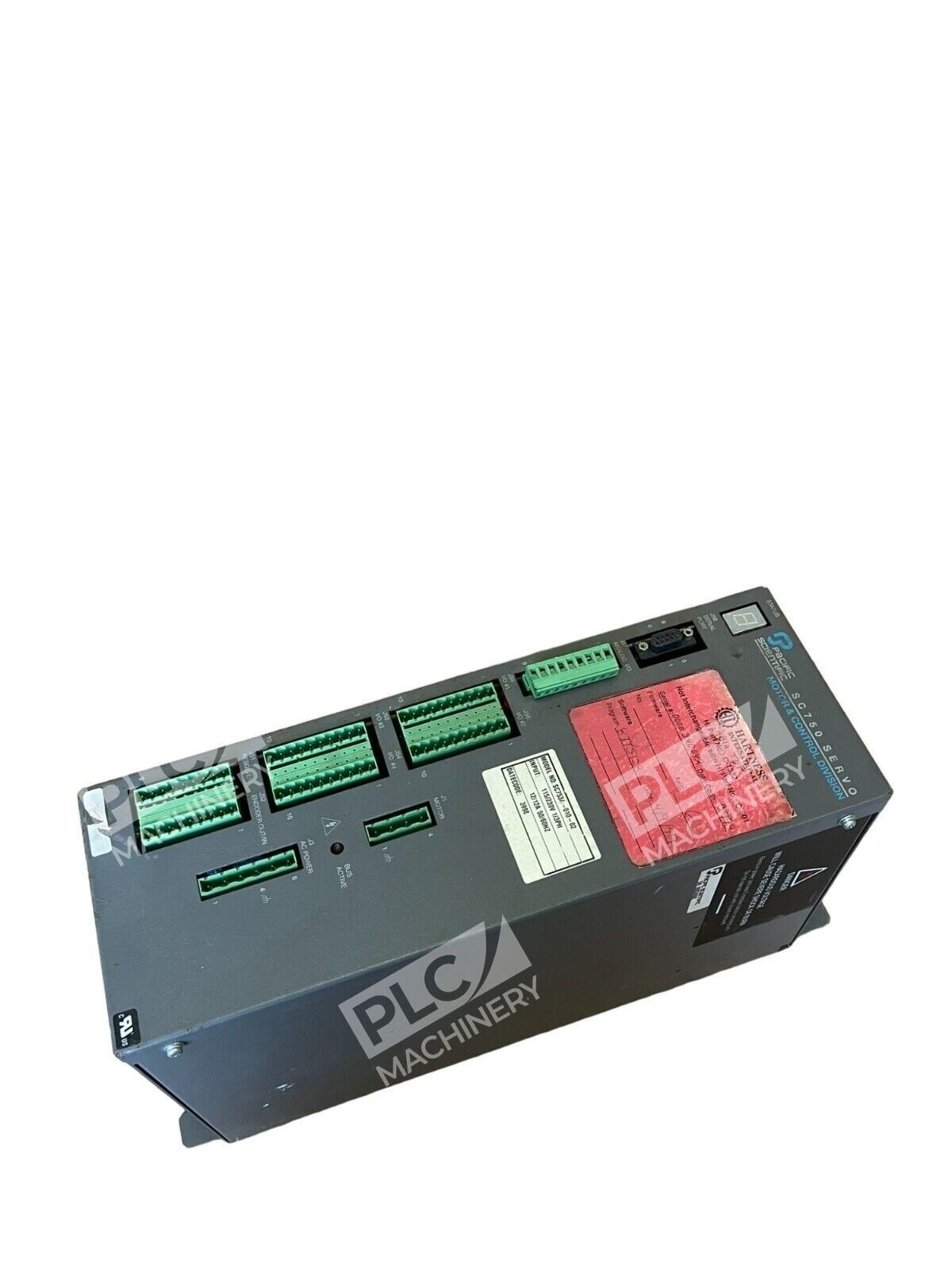

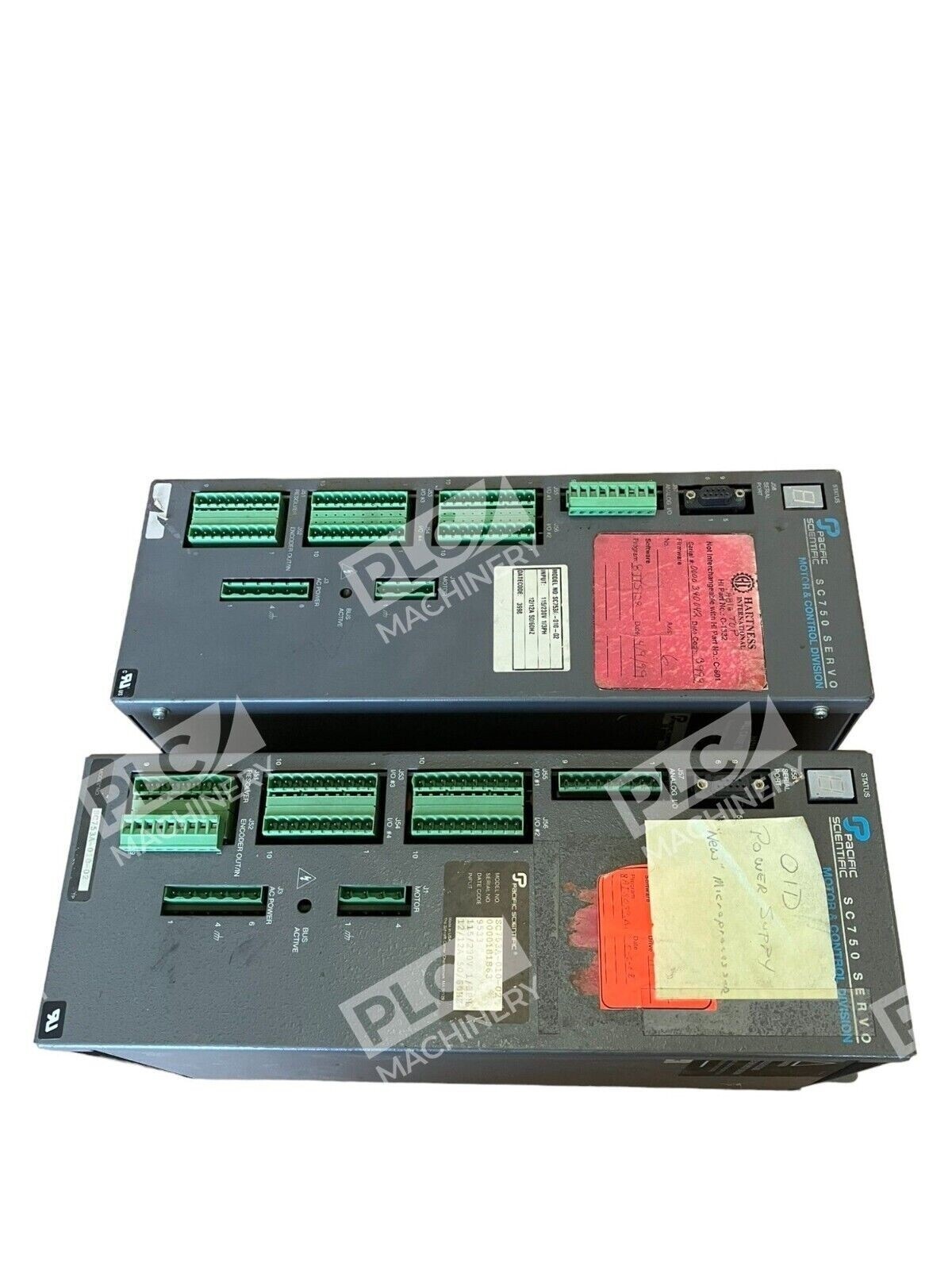

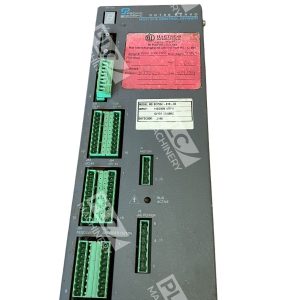

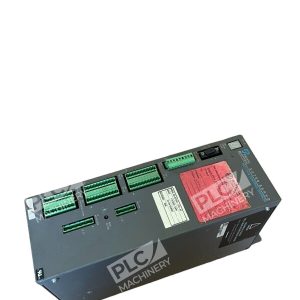

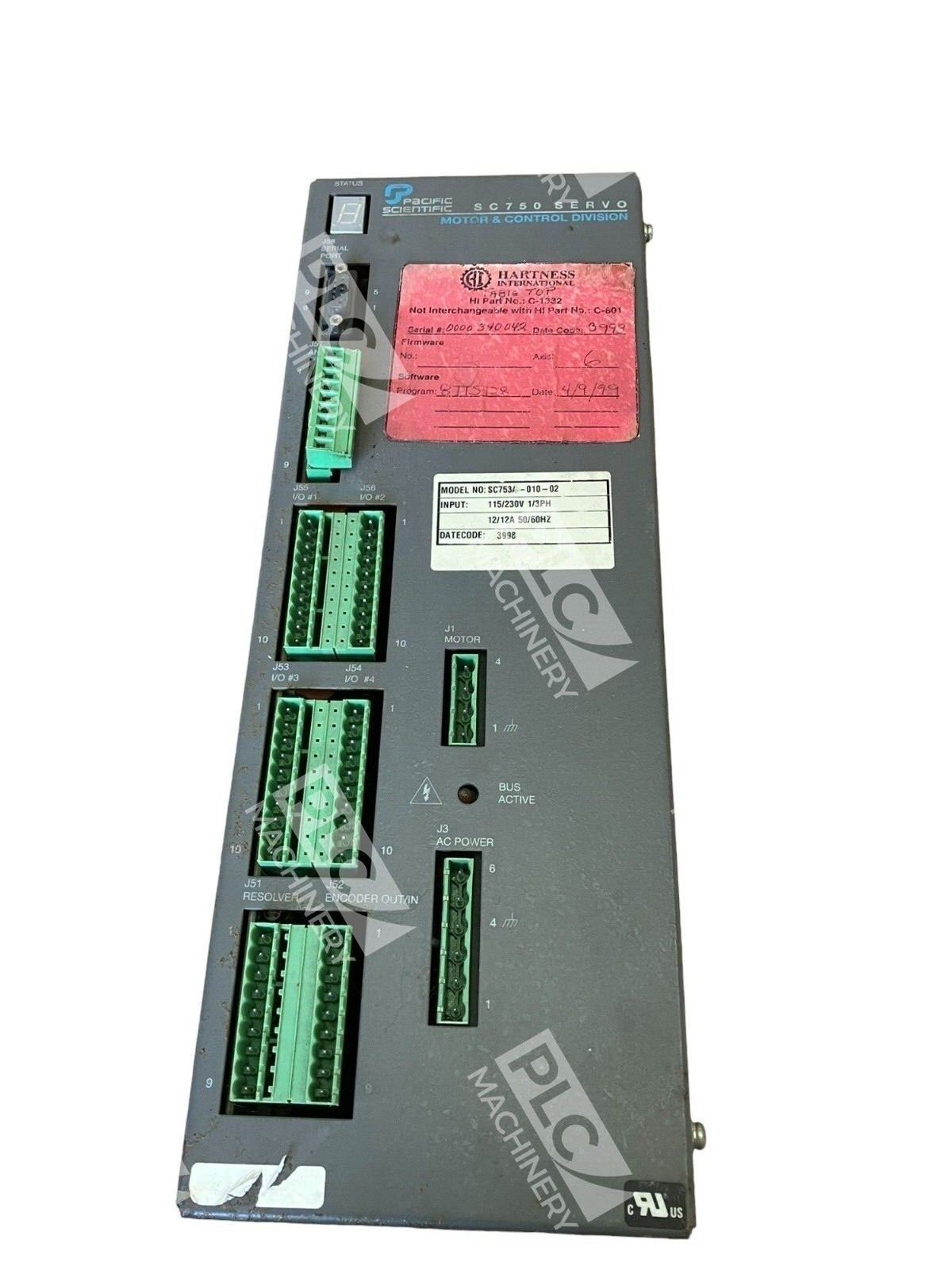

The SC753A-010-02 servo drive is an industrial-grade servo controller developed by Pacific Scientific (Danaher Motion) for single-axis brushless and DC servo motor control. This SC750 series drive handles demanding motion applications with a peak power output of 4500W and peak current rating of 15A. It features resolver-based feedback and programmable control logic via ServoBasic Plus software with 24K user memory.
Key Features
- Peak power output of 4500W for high-performance servo applications
- Peak current rating of 15A continuous to support torque range of 1.1Nm to 100Nm
- 12-bit resolver-to-digital converter (RDC) for accurate position feedback
- ServoBasic Plus software compatibility with serial communication link and 24K user memory
- Protective enclosure rated for water, heat, dust, and industrial environmental conditions
- Compact design weighing approximately 7.6 kg for easy integration
Technical Specifications
- Peak Power Output: 4500W
- Peak Current: 15A
- Continuous Current: 7.5A
- Servo Motor Torque Range: 1.1Nm to 100Nm
- Feedback Device: Resolver with 12-bit RDC
- Software Platform: ServoBasic Plus
- Communication: Serial link / PacLAN interface
- Analog Input Range: ±12V differential (100kΩ impedance)
- Analog Output Range: ±5V (50Ω source impedance)
- Weight: 7.6 kg
- Environmental Protection: NEMA-rated enclosure (heat, dust, water resistant)
- Series: SC750 Single-Axis Servocontroller
Typical Applications
The SC753A-010-02 is widely deployed in:
- CNC machine tool control and spindle automation
- Industrial robotic arm positioning and velocity control
- Packaging machinery and product handling systems
- Printing and drilling equipment requiring precise servo feedback
- Material handling and tool changing systems
- Any application requiring single-axis digital servo control with resolver feedback
Compatibility & Replacements
Compatible With
- Pacific Scientific brushless and DC servo motors (1.1Nm–100Nm torque range)
- ServoBasic Plus software environment
- PacLAN network interface (up to 32 SC750 servocontrollers on single link)
- Standard resolver sensors with 12-bit feedback resolution
- Industrial automation control systems using serial communication
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The SC753A series includes variants SC753A-001-01, SC753A-001-02, SC753A-005-01, SC753A-040-08, and SC753A-080-02, but direct replacement compatibility must be confirmed against your specific servo motor and control architecture.
Works With
- ServoBasic Plus servo programming software
- PacLAN serial communication protocol for multi-axis coordination
- Standard resolver feedback encoders
- 12-bit digital resolver conversion modules
- Industrial motion control systems requiring analog command input
