Overview

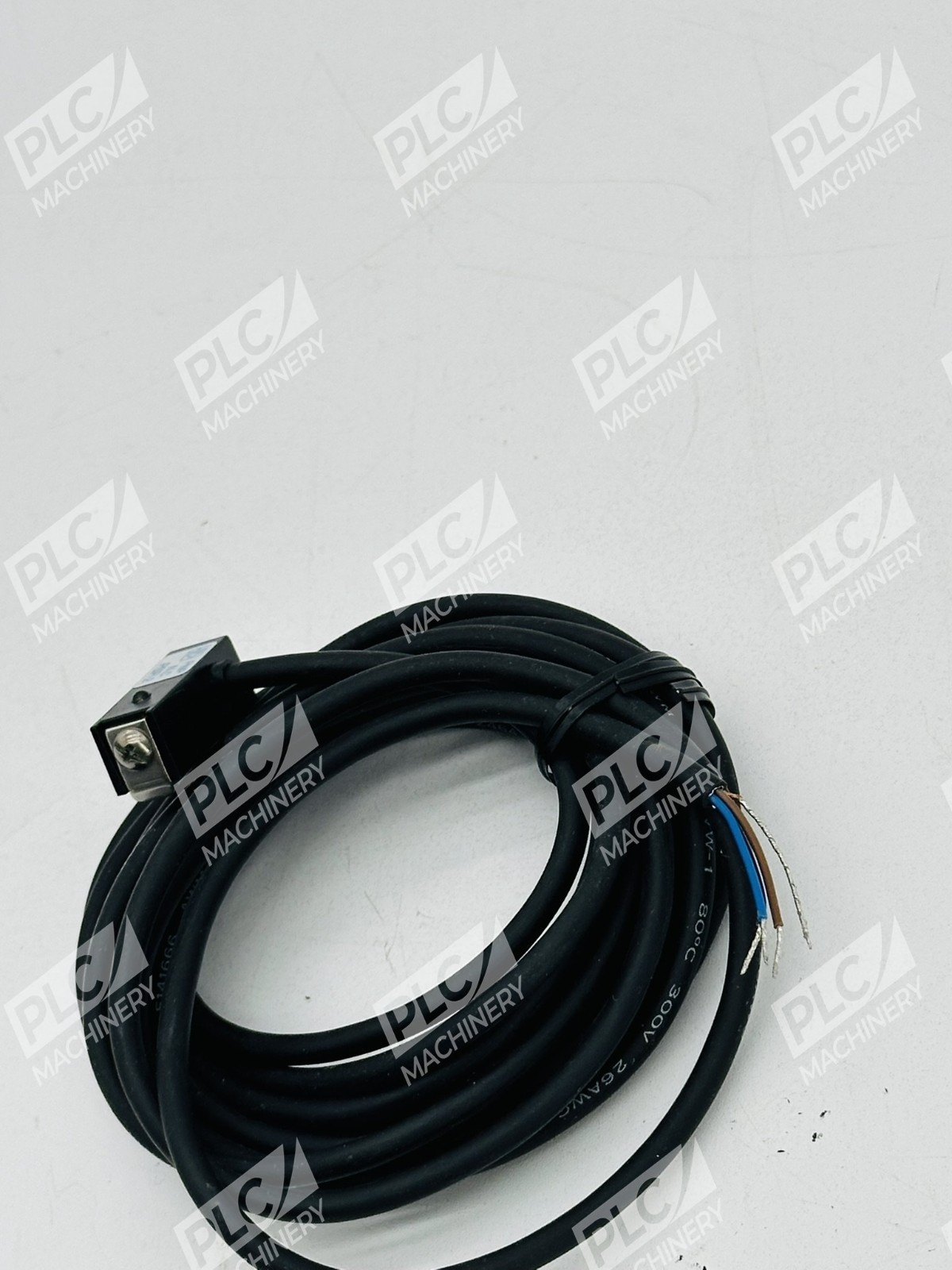

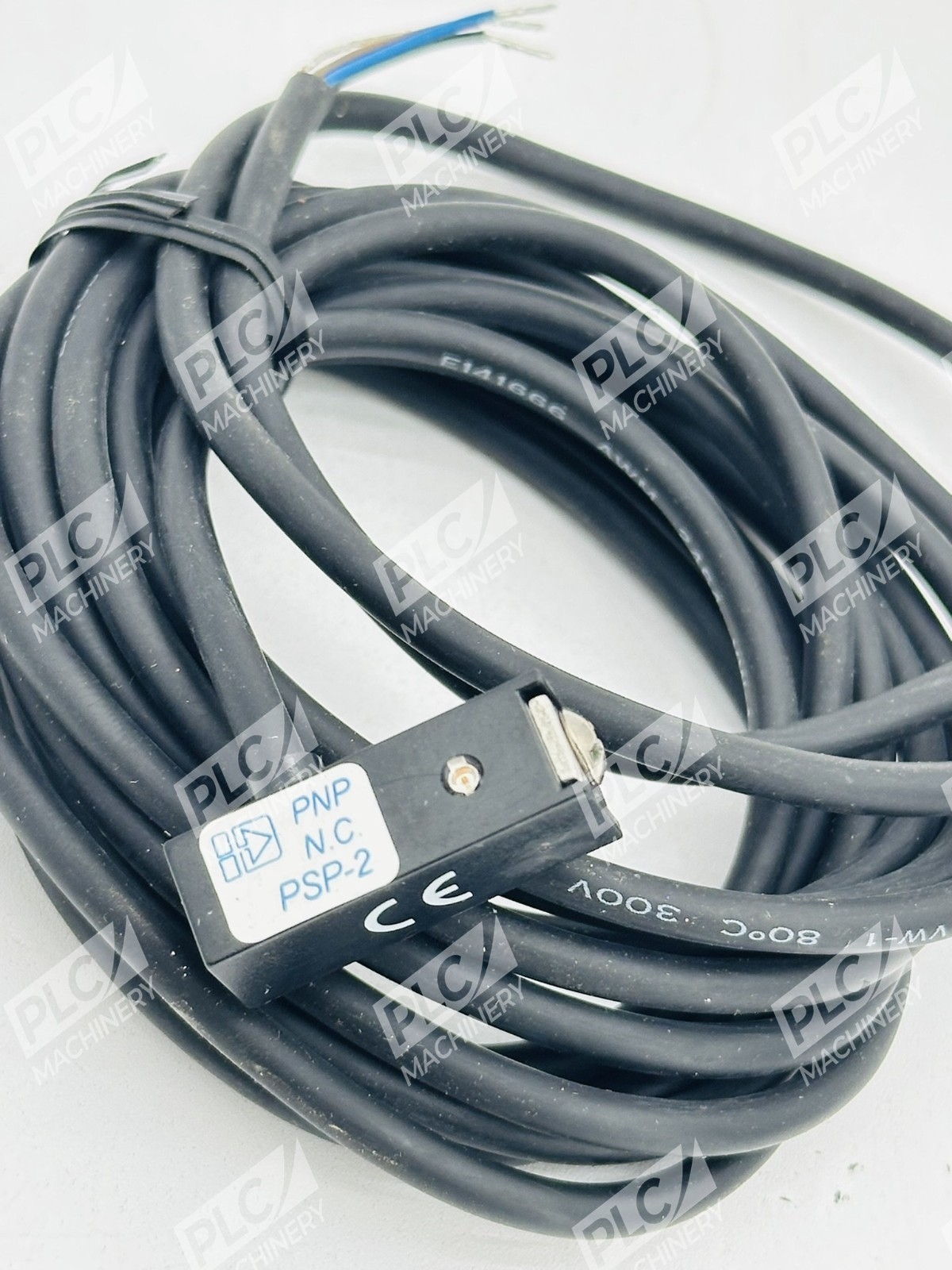

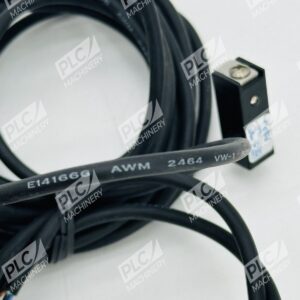

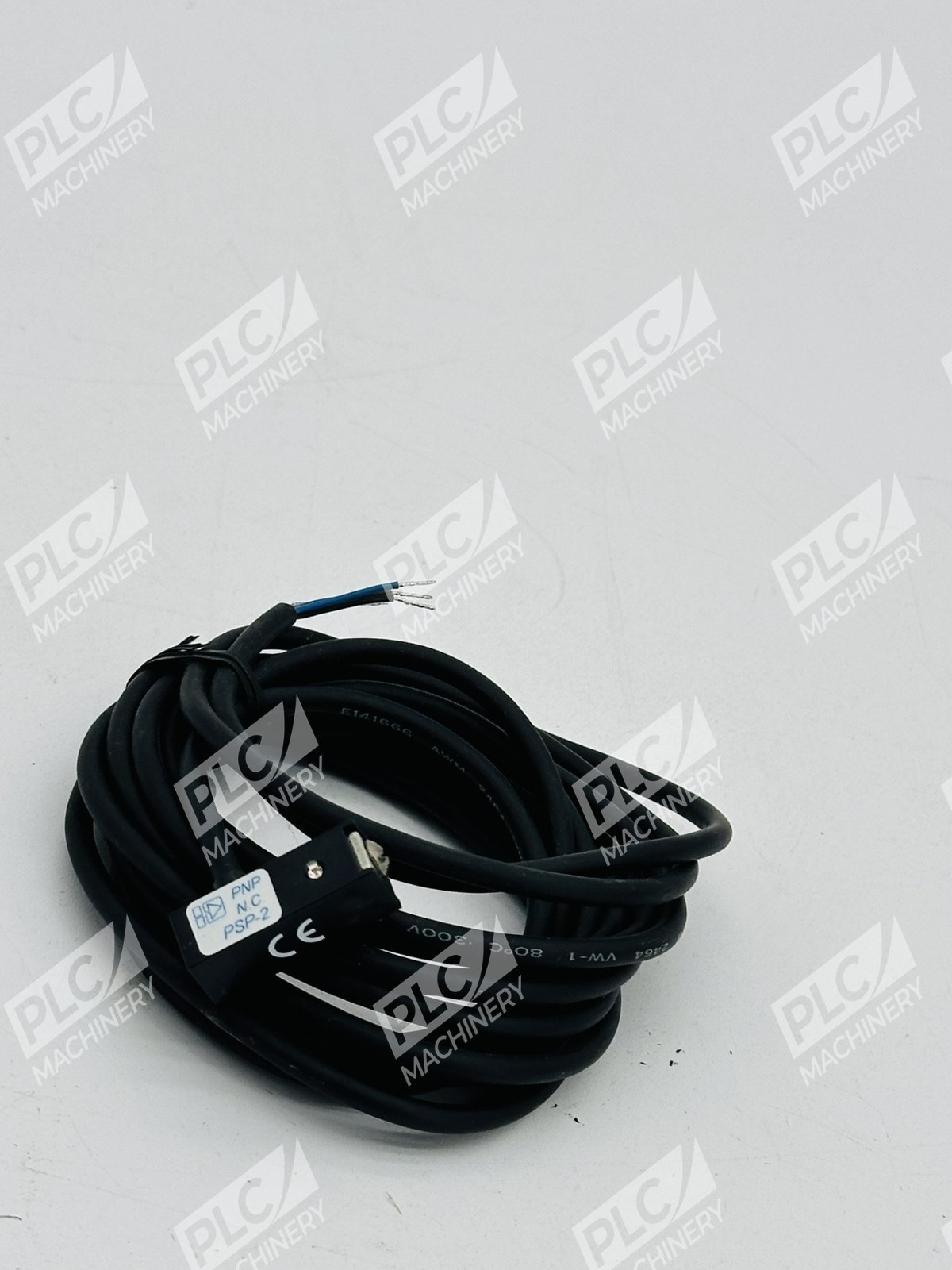

The Danaher PSP-2 Hall-Effect Position Sensor is a magnetic proximity sensor designed for industrial motion control and automation applications. This PNP-output sensor uses Hall-effect technology to detect magnetic field changes and provide reliable switching signals for position monitoring. The PSP-2 is widely used in linear motion systems, actuators, and automation machinery requiring accurate position detection without mechanical contact.
Key Features
- Hall-effect sensing technology for non-contact position detection
- PNP output configuration for direct integration with standard industrial logic
- Compact form factor suitable for space-constrained applications
- Available with quick-disconnect cable options for rapid installation and serviceability
- Discontinued but widely supported by industrial distributors for replacement and repair
Technical Specifications
- Sensor Type: Hall-Effect Position Sensor
- Output: PNP (Normally Open/Closed variants)
- Sensing Technology: Magnetic field detection

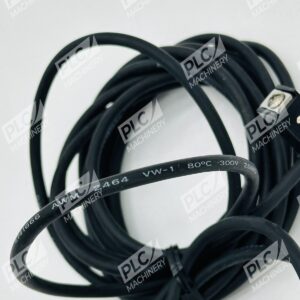

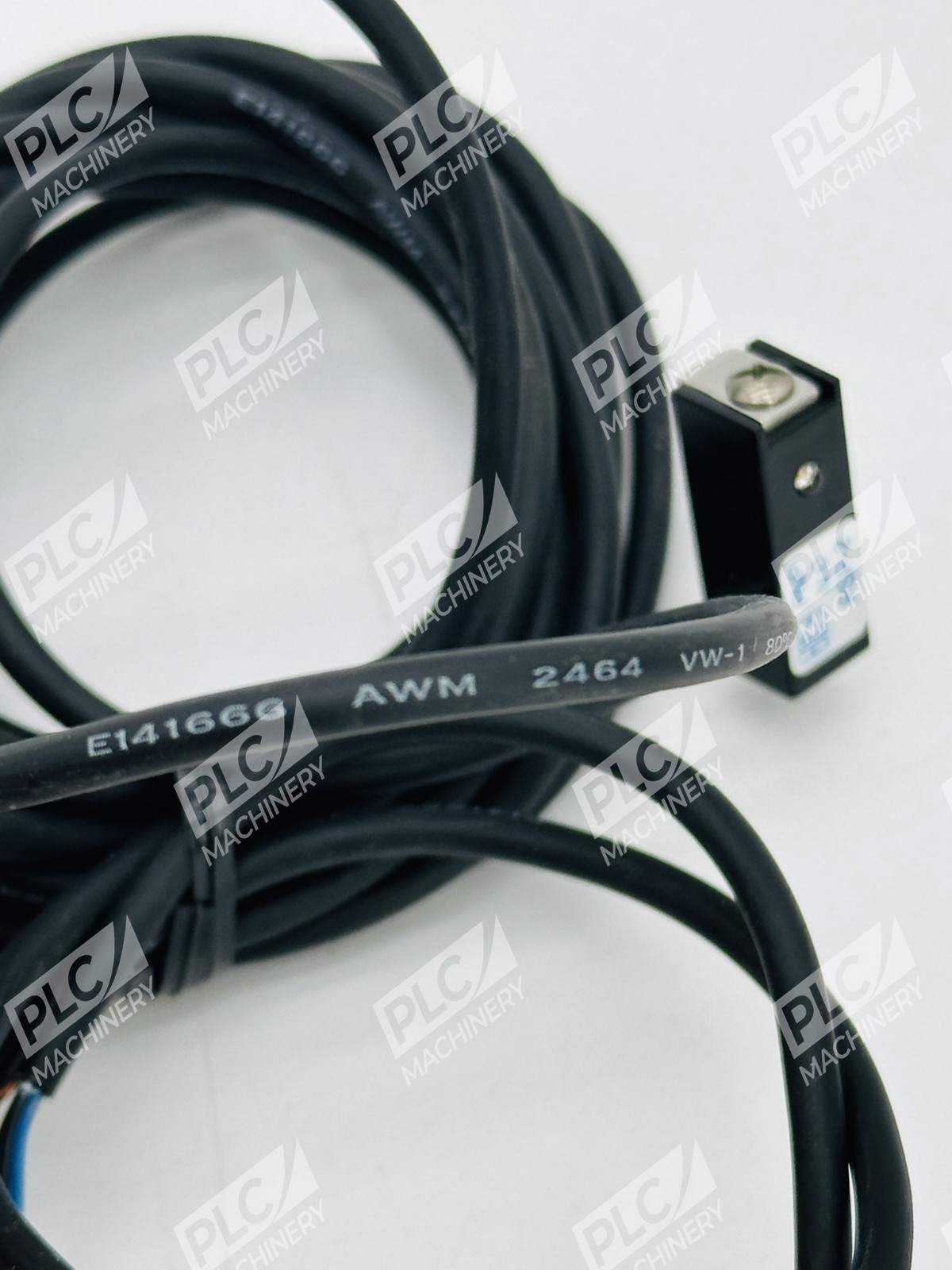

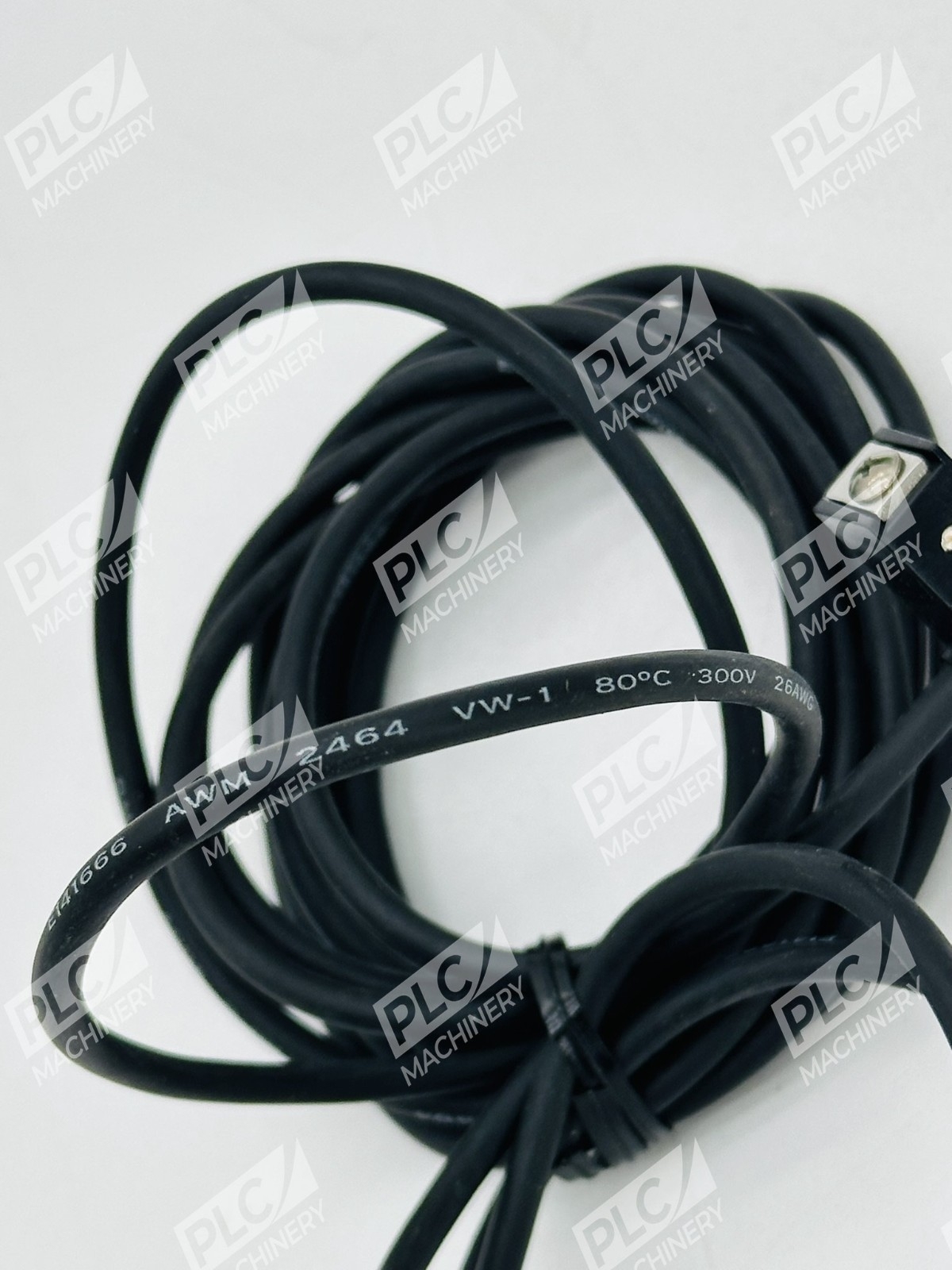

- Cable Options: Available with quick-disconnect connectors in multiple lengths
- Weight: Approximately 0.05 lbs
- Manufacturer: Danaher Motion / Thomson Industries / Industrial Devices
- Status: Discontinued by manufacturer
Typical Applications
- Linear actuator position monitoring
- Pneumatic and hydraulic cylinder end-of-stroke detection
- Carousel and rotary table position feedback
- Industrial door and barrier position sensing
- Material handling and conveyor system control
- Assembly line automation and sequencing
Compatibility & Replacements
Compatible With
- Industrial PLC and logic controller systems supporting PNP sensor inputs
- Allen-Bradley, Siemens, Mitsubishi, and Omron controller platforms
- Standard 24 VDC industrial automation networks
- Motion control systems from Danaher subsidiaries and OEM partners
Replaces / Drop-In Replacement For
- Original Danaher Motion PSP-2 units across all configurations
- Thomson Industries PSP-2 variants
- IDC PSP-2 series sensors (Danaher ownership)
- Verify compatibility with your system integrator before ordering, as cable and connector variants affect interchangeability
Works With
- Studio 5000 and CompactLogix (Allen-Bradley)
- TIA Portal and STEP 7 (Siemens)
- GX Developer and GX Works (Mitsubishi)
- Standard industrial control software supporting discrete digital inputs
- Quick-disconnect connectors for plug-and-play field installation
