Overview

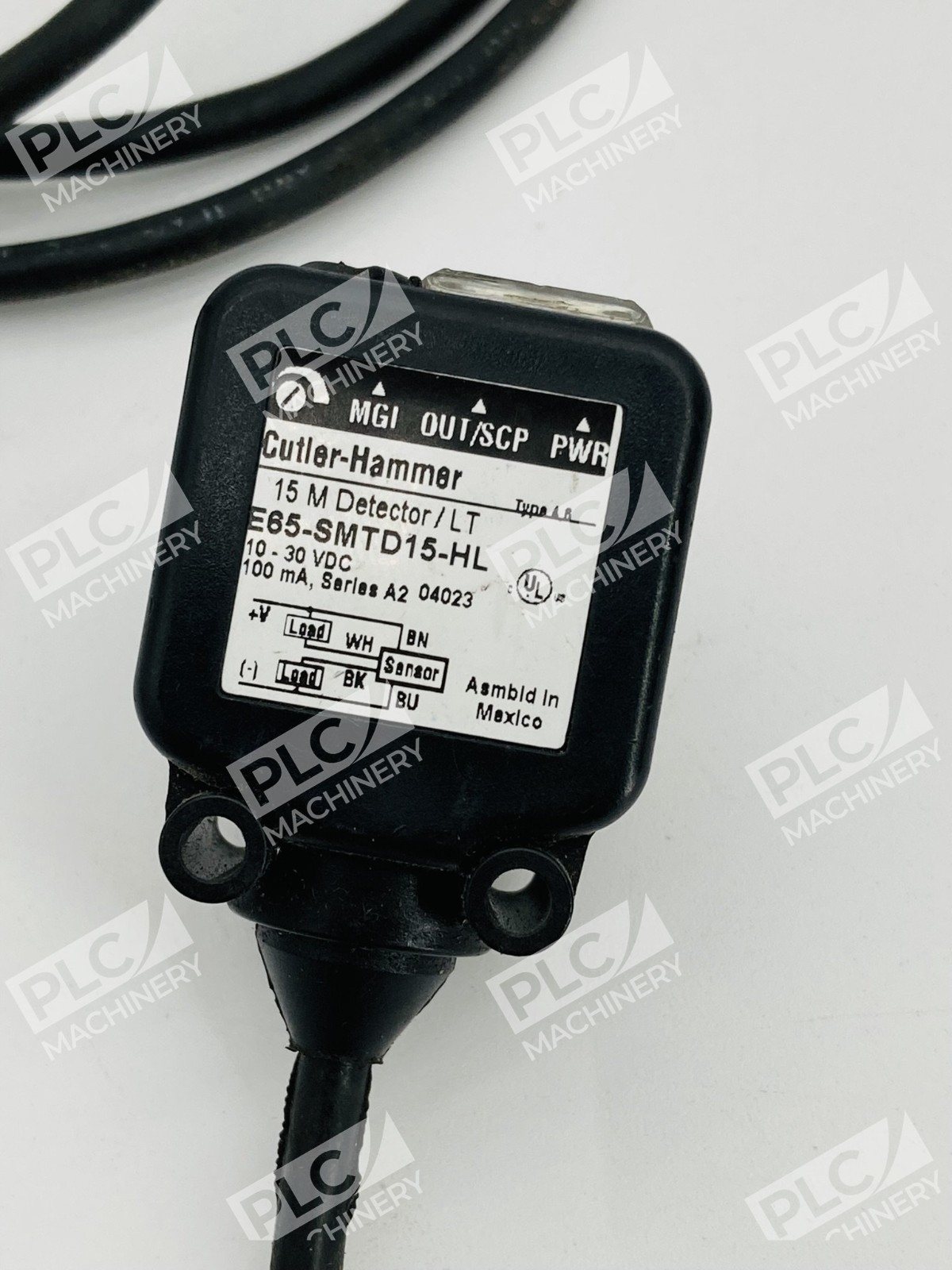

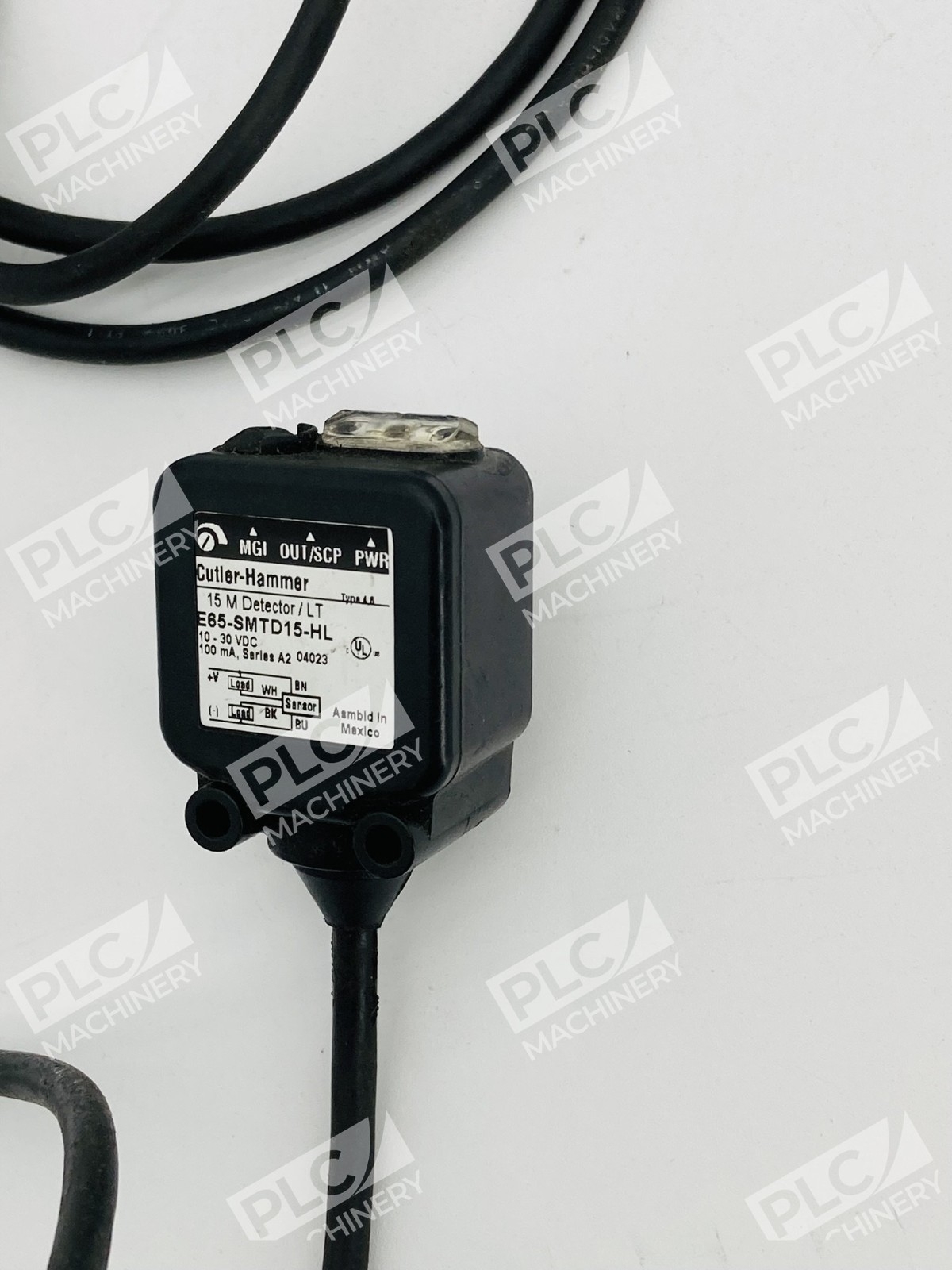

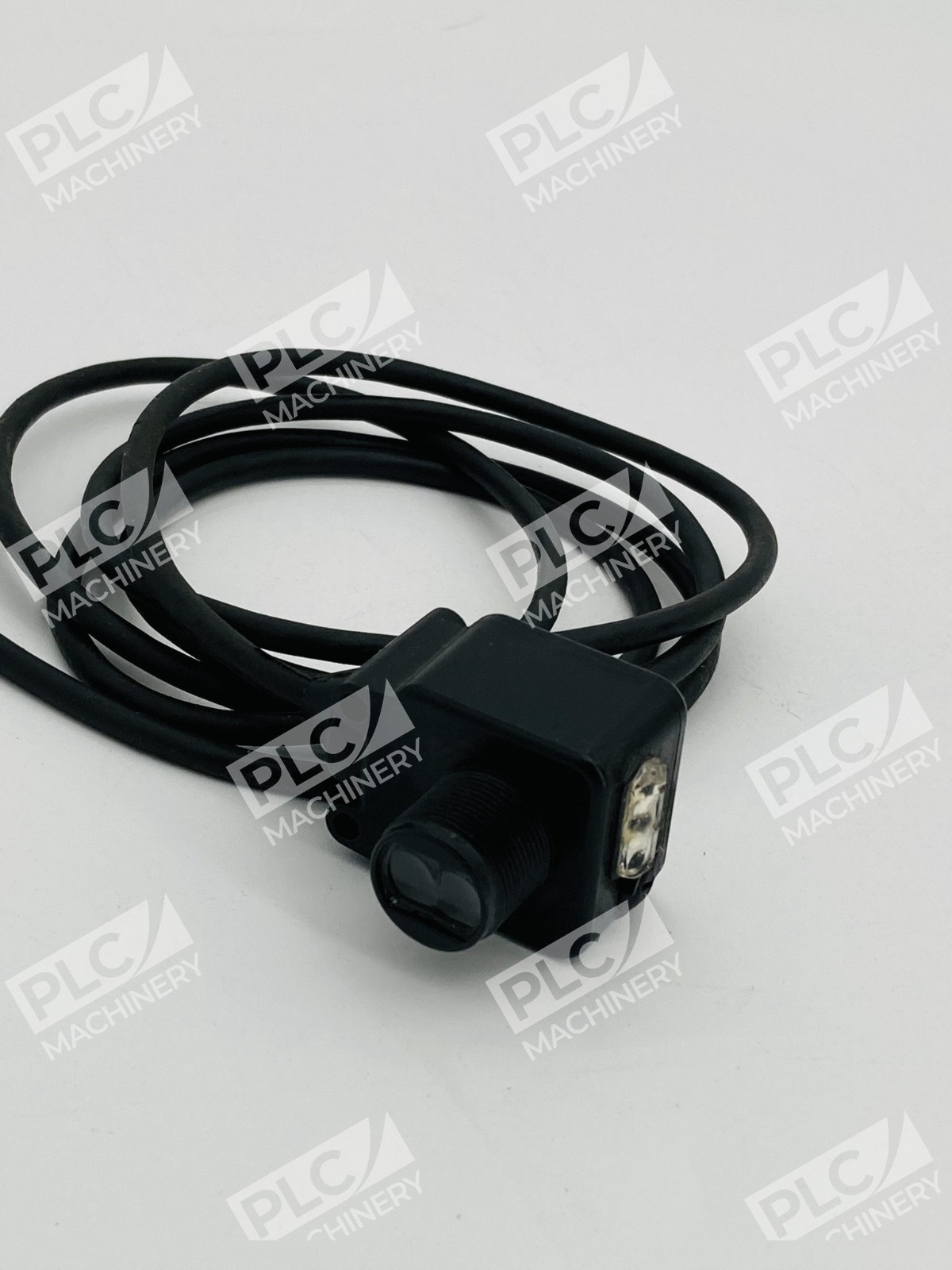

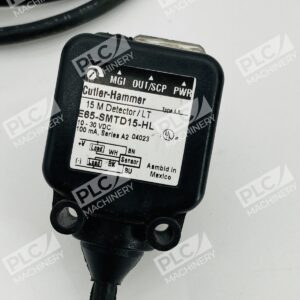

The Eaton Cutler-Hammer E65-SMTD15-HL is a thru-beam photoelectric detector in the proven SM Series product line. Eaton’s Cutler-Hammer SM Series sensors feature high performance and ease of use in an economical, compact package. This Thru-beam Detector features a 50 Foot (15 M) Sensing Range with Visible Red Beam, 10-30 Vdc supply, Cable connection, NPN and PNP Output, and Light Operate logic. The sensor is designed for general-purpose industrial object detection with reliable visible feedback and alignment aids.
Key Features
- TargetLockâ„¢ provides diagnostic information during use to inform you of impending problems before they result in equipment downtime
- Visible sensing beams on all models show you exactly where the sensors are pointing. The durable housing features multiple mounting options to easily fit on your equipment in the tightest of spaces.
- Full protection from overvoltage, reverse polarity and short-circuits reduces the chance of damage. Bright 360 deg LED indicators clearly show sensor status.
- Light Operate mode with NPN and PNP open-collector output options
- Forward-viewing rectangular body design for flexible mounting
Technical Specifications
Electrical:
- Supply voltage: 10-30 Vdc
- Output: NPN and PNP Open Collector, 100 mA
- Power consumption: 2 W
- Response time: 1 ms
Sensing:
- Sensing method: Thru-beam
- Sensing range: 50 Foot (15 M)
- Beam type: Visible Red
- Logic: Light Operate
Physical:
- Dimensions: 1.29 in L x 2.17 in W x 1.47 in H
- Cable: 6.6 ft
- Weight: 30 g
- Vibration rating: 10 Hz to 2 kHz at 30 g
- Enclosure rating: NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K
Environmental:
- Operating temperature: -13 to 131 deg F
Typical Applications
The E65-SMTD15-HL is suited for:
- High-speed conveyor and packaging line object detection
- Parts counting and positioning systems
- Bottling and filling automation
- Metal stamping and forming machine safeguarding
- Web and film edge detection
- General industrial presence/absence detection over 50 feet
Compatibility & Replacements
Compatible With
- Standard 10-30 VDC industrial control power supplies
- PLC and PAC discrete input modules (24 VDC sinking/sourcing inputs)
- Eaton/Cutler-Hammer motor starters and overload relays
- Industrial safety controllers and emergency stop circuits
- General-purpose relay logic and hardwired control panels
Replaces / Drop-In Replacement For
- Eaton E65-SMTD15 (cable version, standard light-operate)
- Most Eaton E65-SM series thru-beam detectors with equivalent voltage and output type
- Comparable thru-beam sensors requiring 50 ft sensing range and cable-based connection—verify part compatibility with your system integrator before ordering
Works With
- All major PLC platforms (Allen-Bradley, Siemens, Mitsubishi, Omron, Schneider Electric) via discrete 24 VDC input modules
- Industrial Ethernet gateways and I/O servers (no native network; external converter required)
- Hardwired relay logic and electro-mechanical control systems
- Open-collector output compatible with both sinking and sourcing input architectures
