Overview

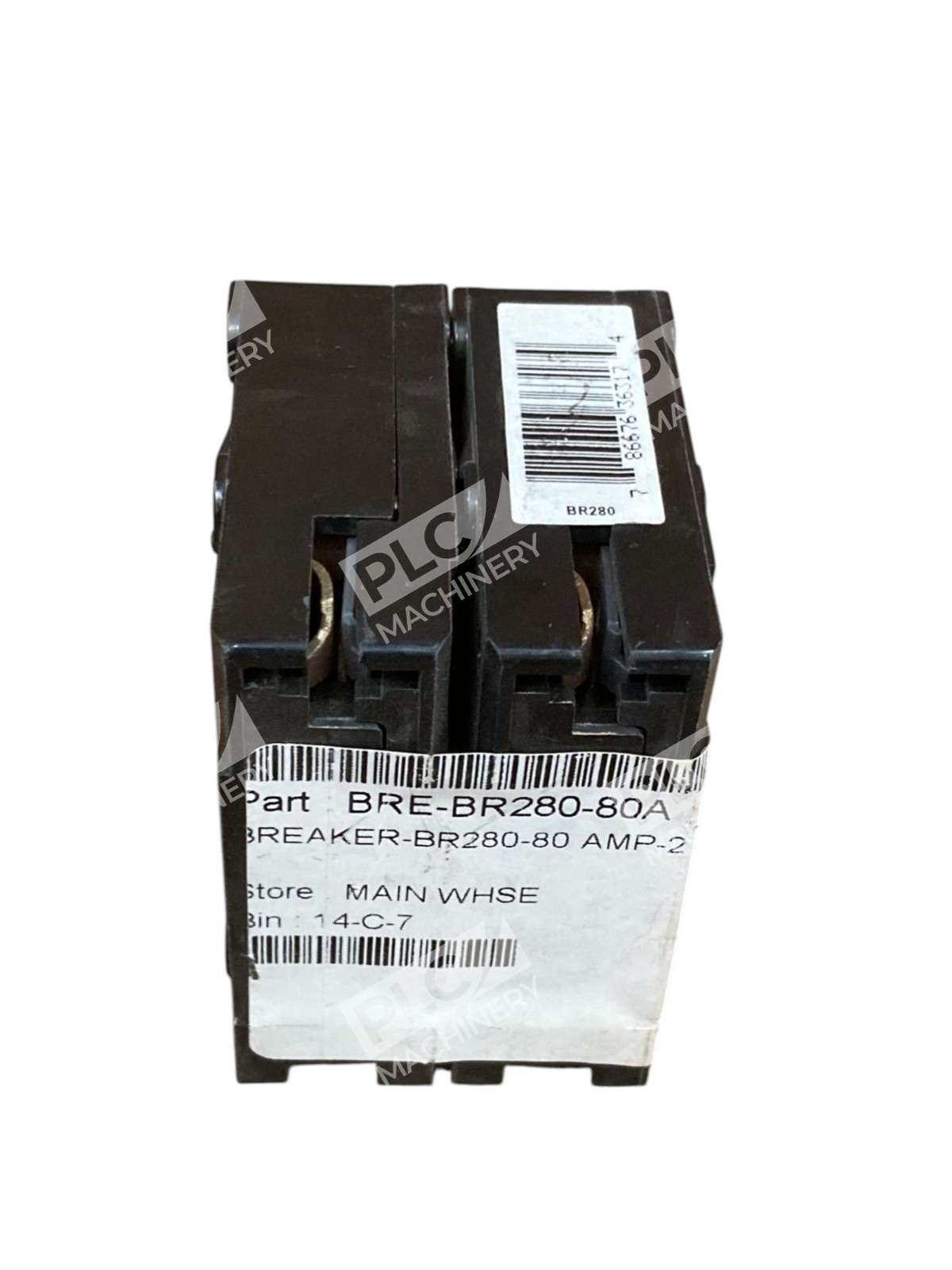

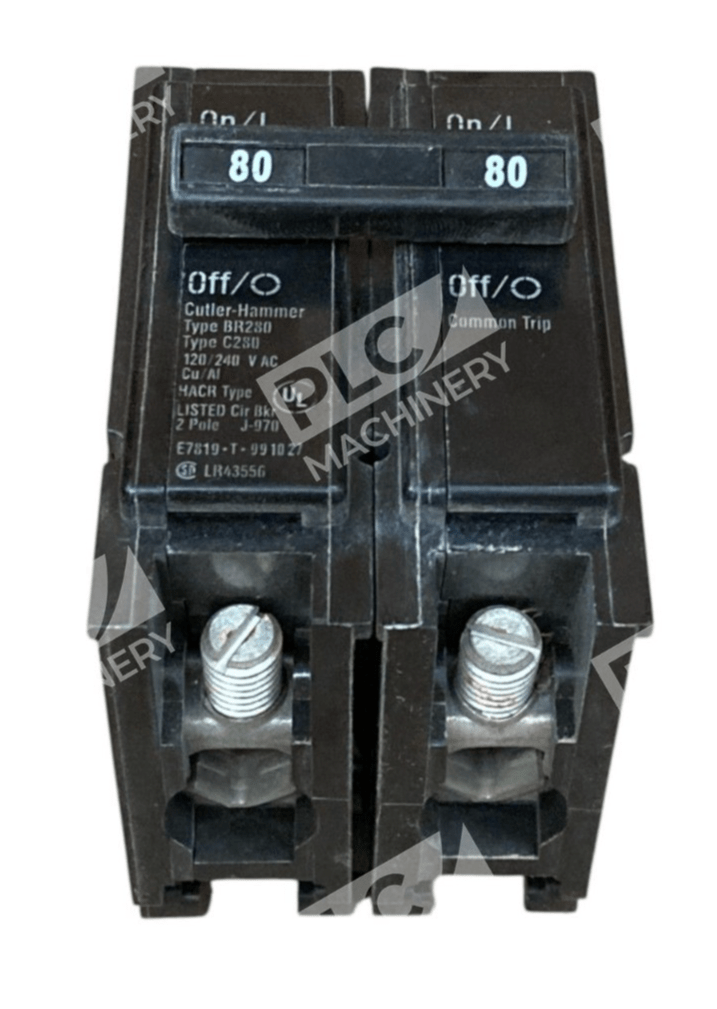

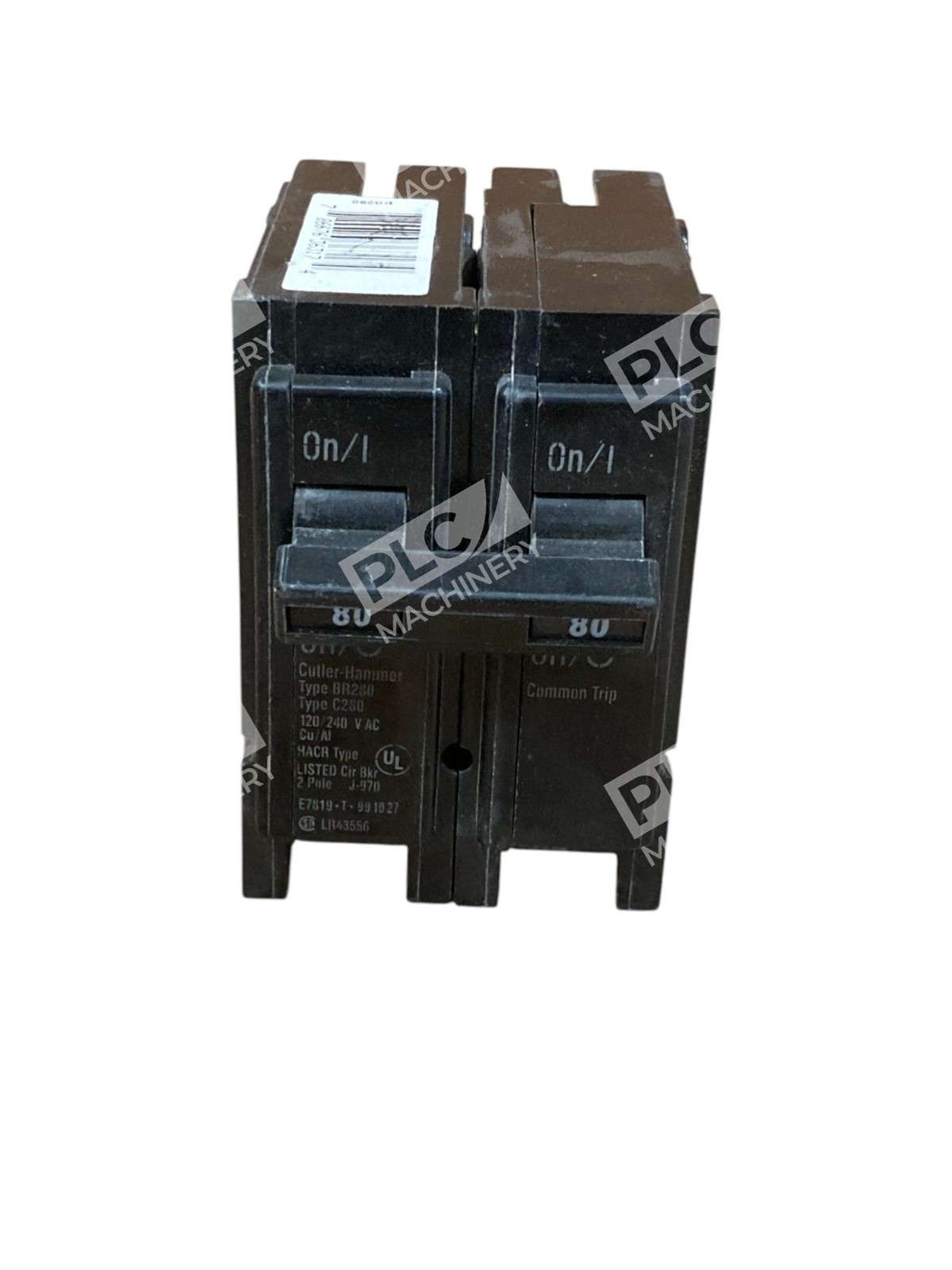

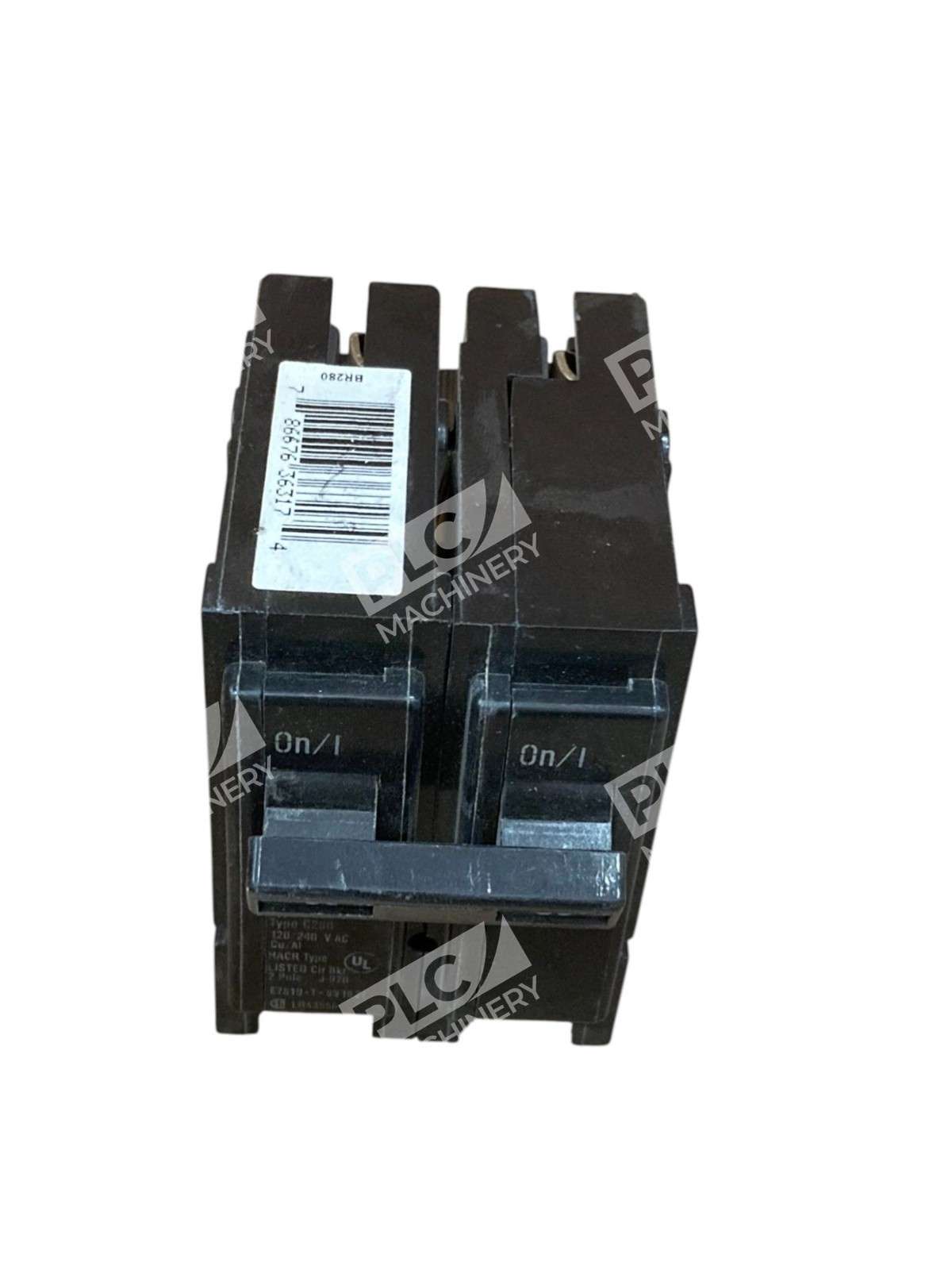

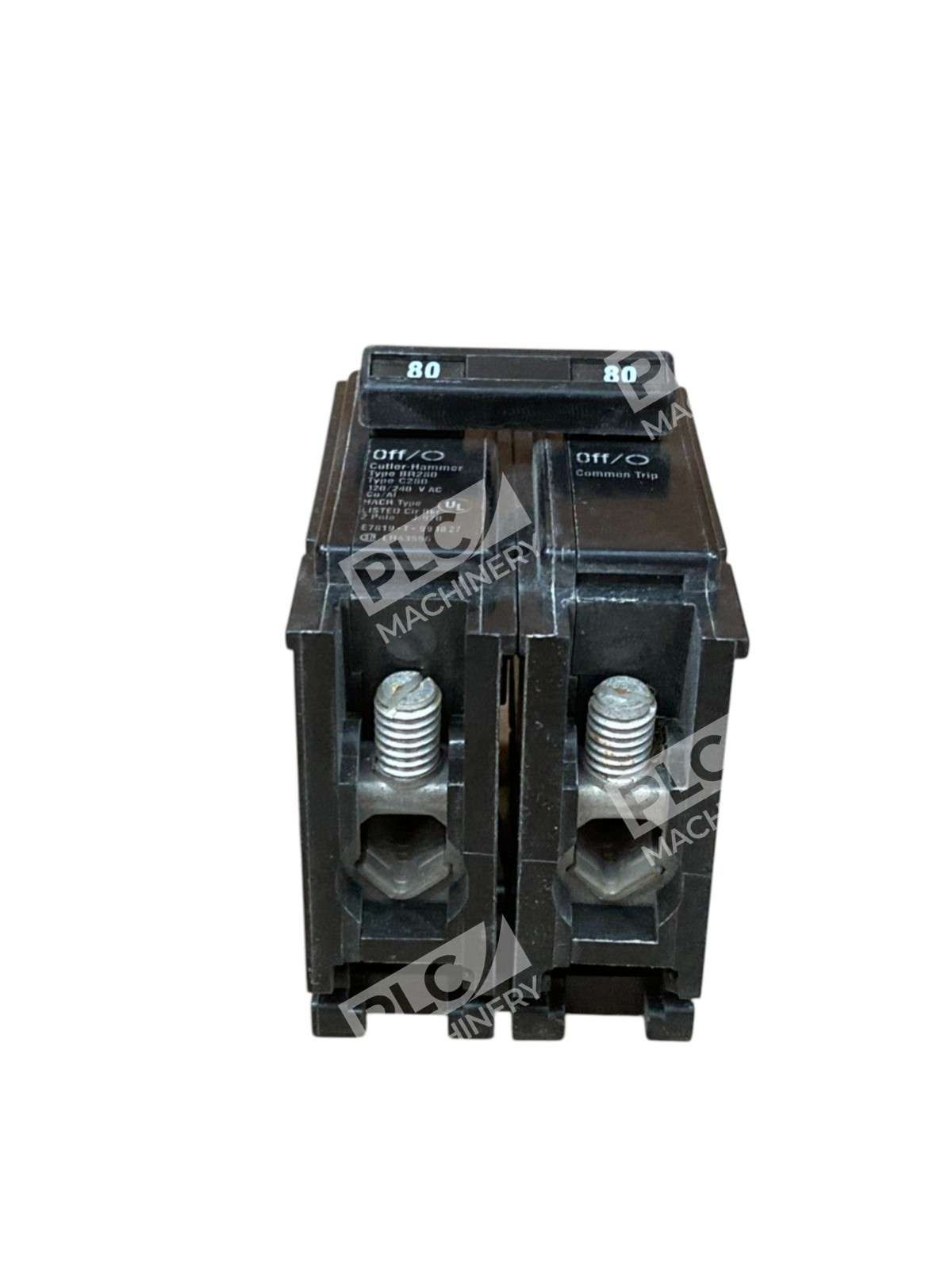

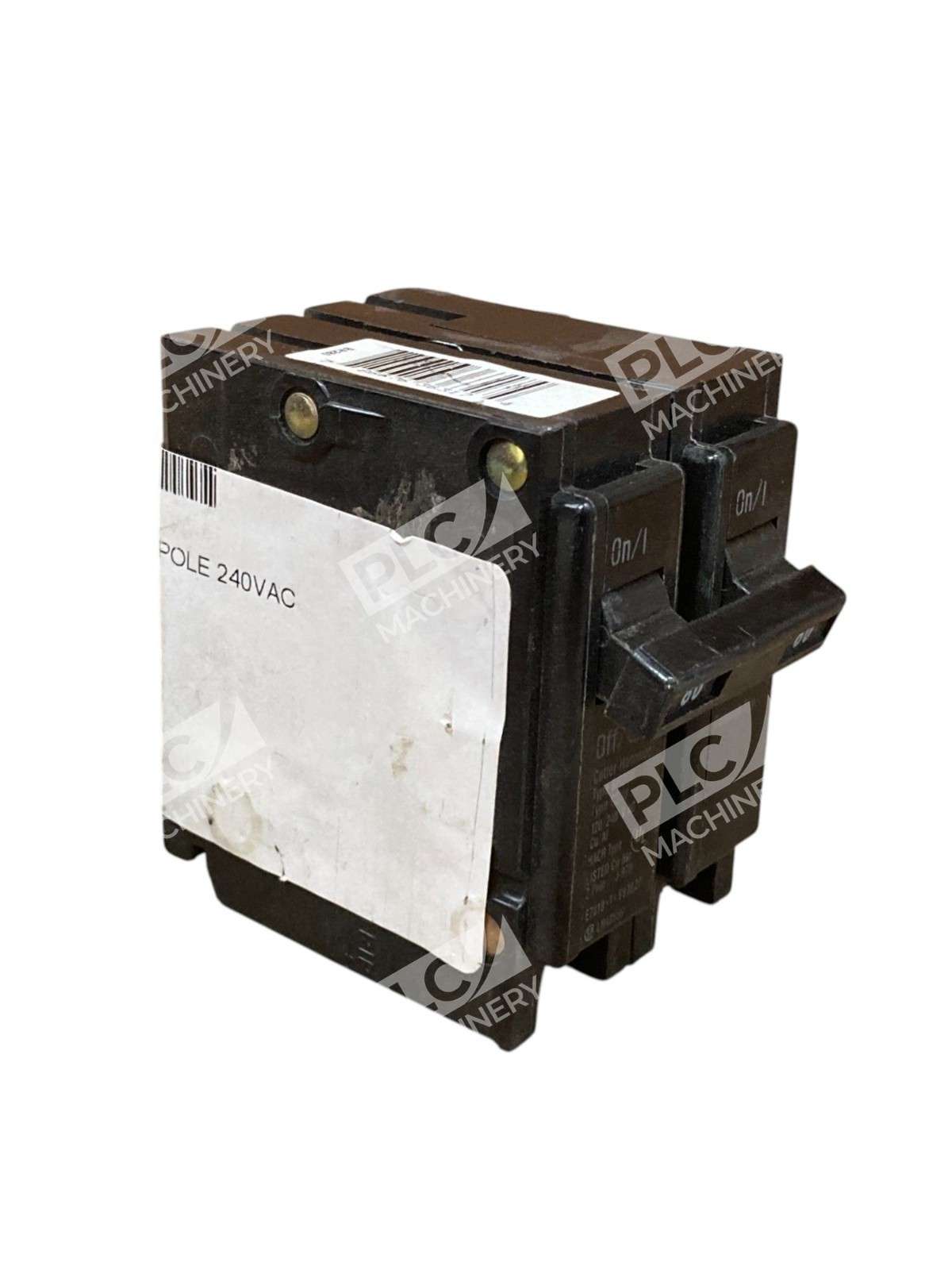

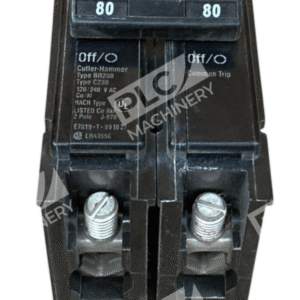

The Eaton BR280 is a Type BR 1-inch plug-on circuit breaker engineered for residential and commercial electrical distribution systems. Built to handle heavy residential loads, the Eaton BR280 is an 80A, 2-pole miniature circuit breaker that delivers dependable thermal-magnetic protection for demanding circuits, including subpanels and HVAC equipment requiring an HACR-rated device. It provides reliable protection by interrupting electrical flow during overloads or short circuits, ensuring safety and preventing damage to your electrical system.
Key Features
- Thermal-magnetic trip curve that avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions
- Plug-on design ensures a secure installation into standard Eaton Type BR panelboards
- Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
- Handle position provides visual trip position
- HCAR application listing
- Common trip operation (both poles trip simultaneously on fault)
Technical Specifications
The BR280 meets industry standards and carries electrical certifications for safe, reliable operation in load centers and panelboards.
Typical Applications
- Residential load centers and panelboards
- Commercial branch circuit protection
- HVAC subpanels and equipment feeders
- Feeder circuits requiring HACR-rated protection
- Replacement circuits in existing Type BR installations
Compatibility & Replacements
Compatible With
- Eaton Cutler-Hammer CPL/CPM panelboards
- Challenger PL/PM/PMF load centers
- Westinghouse GL, GLC, WL, WIB panelboards
- Novaline panels
- Standard Type BR 1-inch spaces
Replaces / Drop-In Replacement For

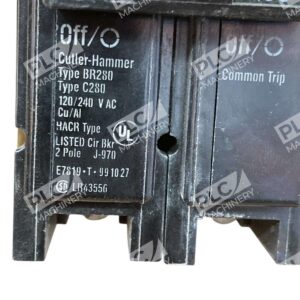

- Legacy C280 part number used in Bryant, Westinghouse, and Challenger load centers
- Older two-pole 80A breakers in Type BR format
Works With
- Type BR residential load centers
- Eaton/Cutler-Hammer residential panelboards
- Standard #8–1/0 AWG copper or aluminum wire
- 120/240V single-phase distribution systems
