Overview

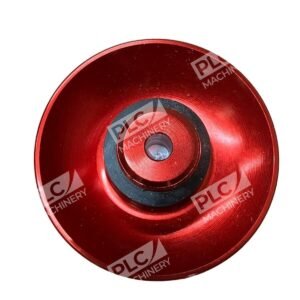

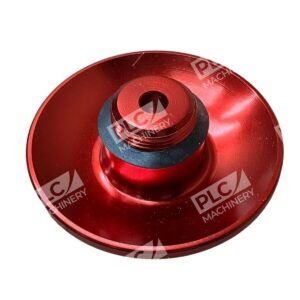

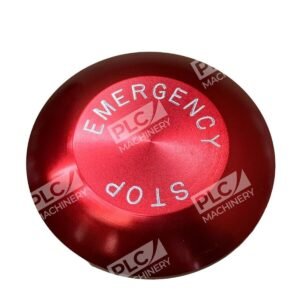

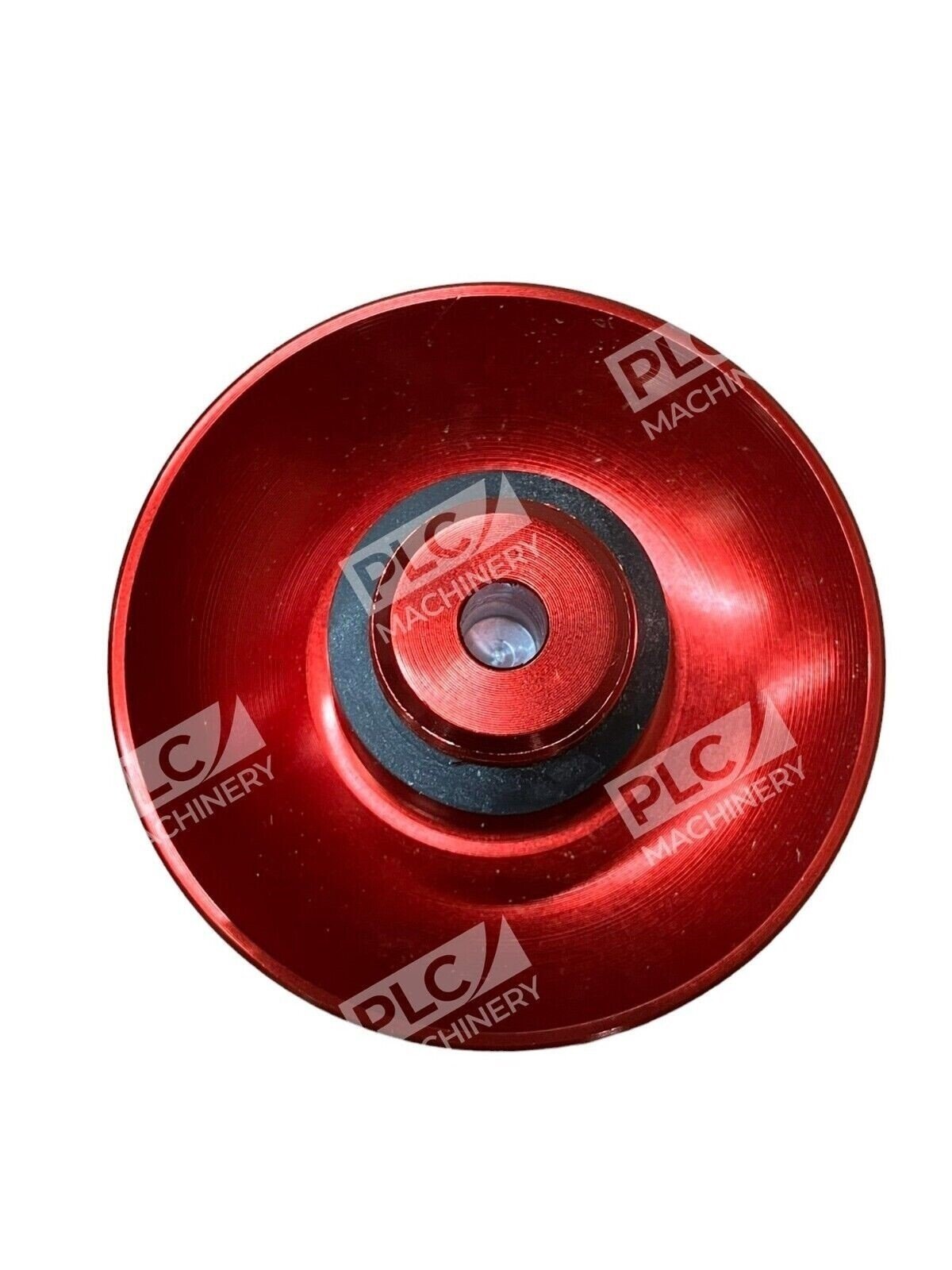

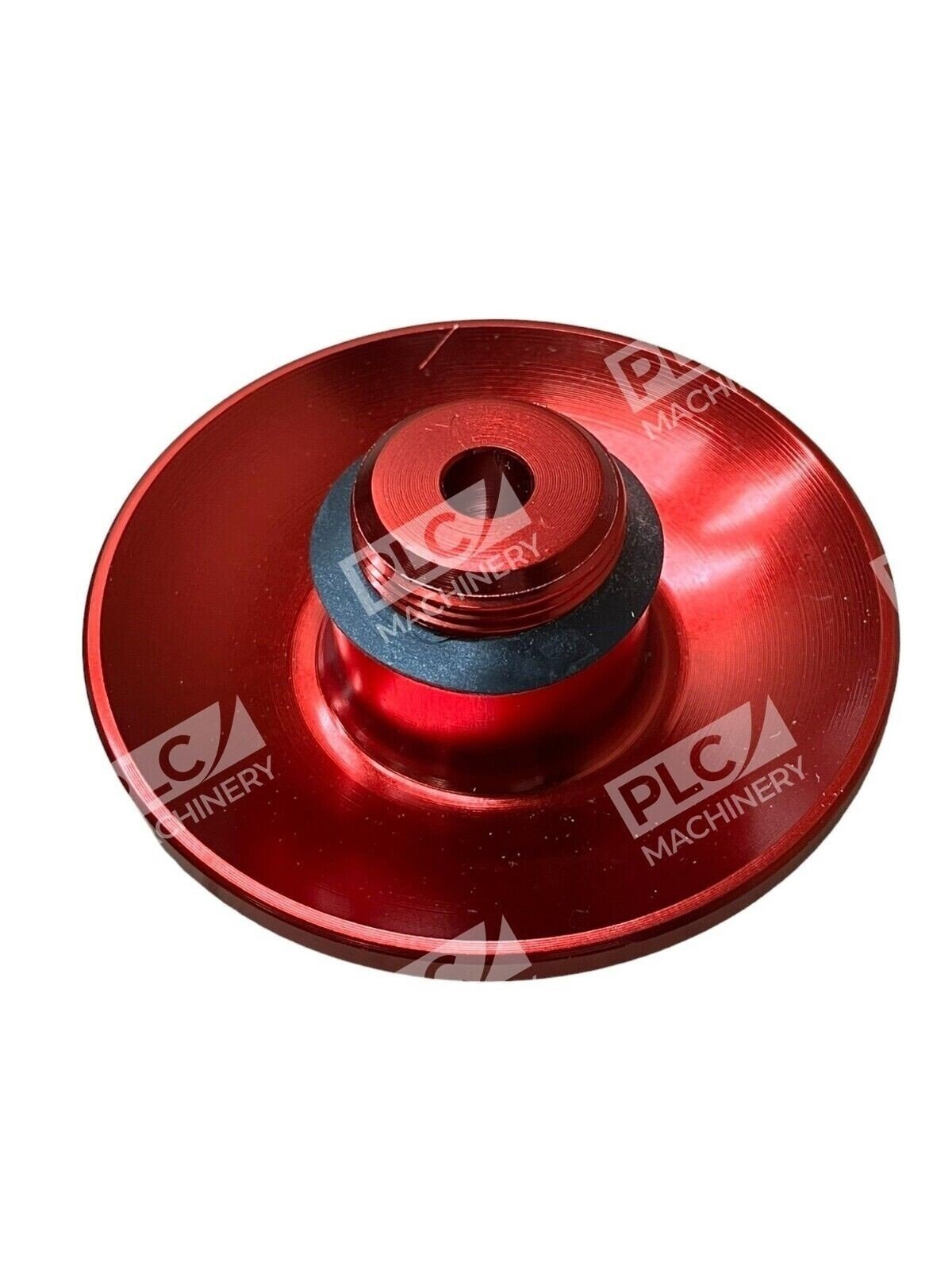

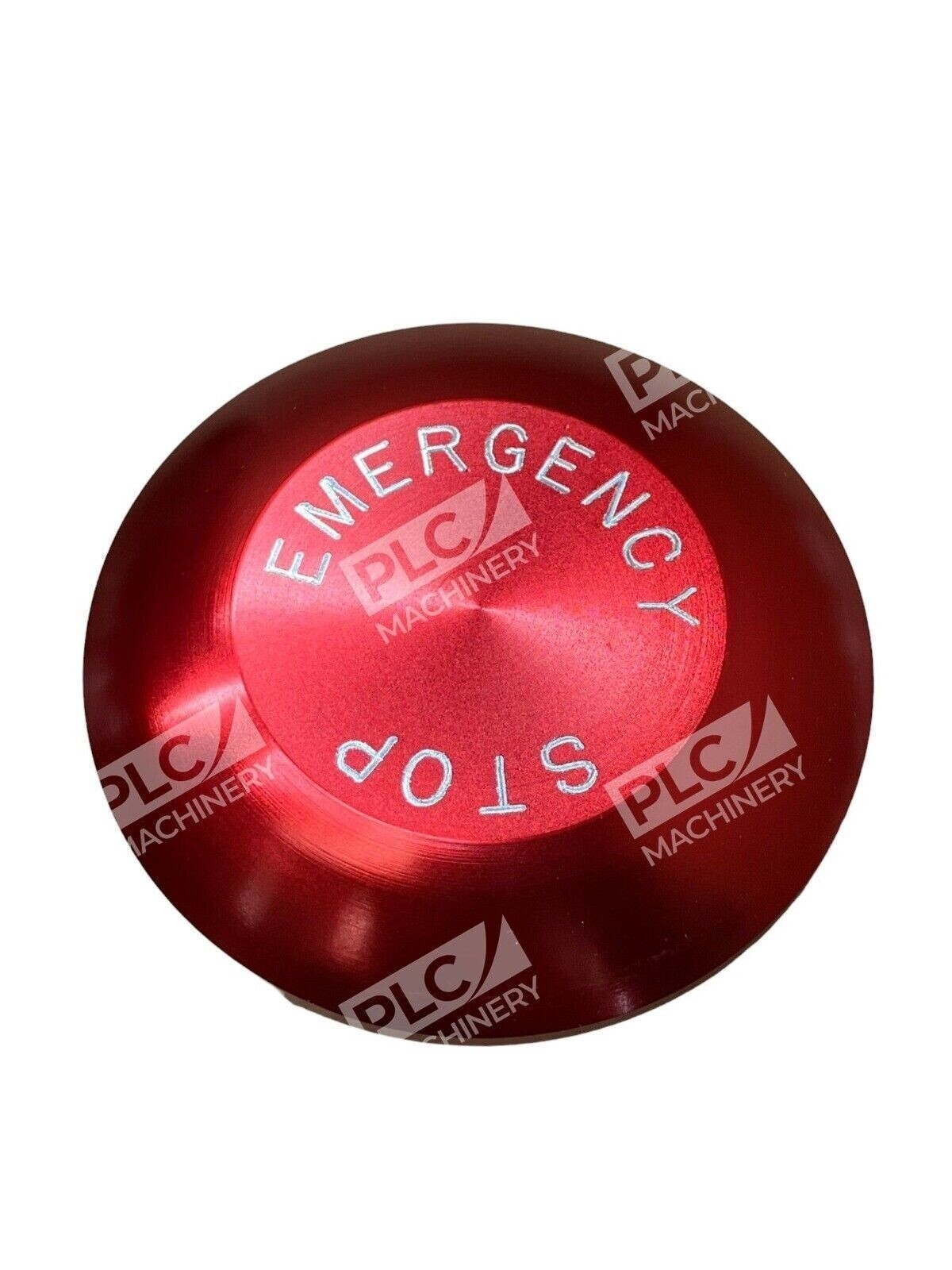

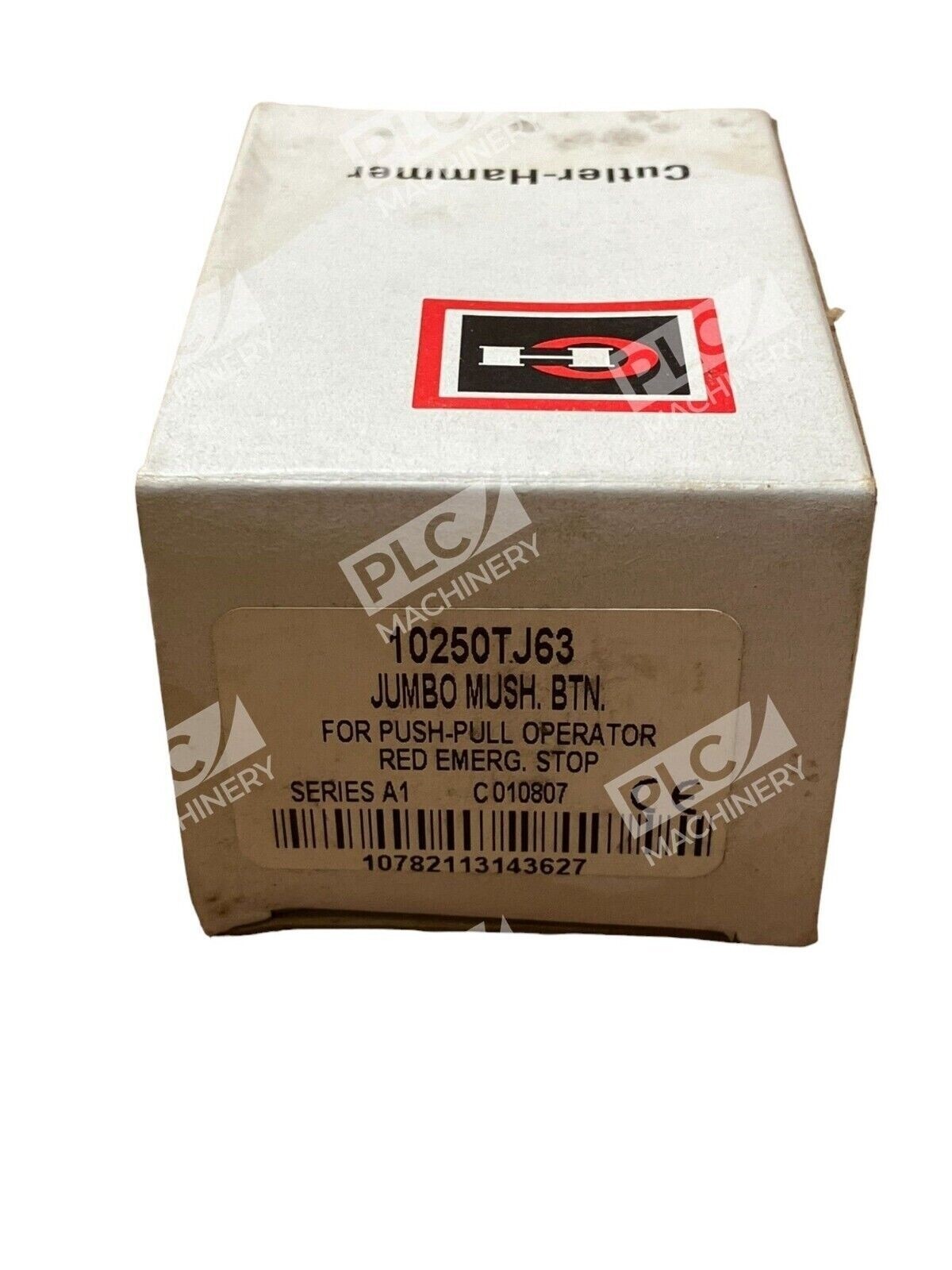

The Cutler Hammer 10250TJ63 is a heavy-duty emergency stop pushbutton designed for non-illuminated push-pull switch assemblies in industrial control panels. This 65 mm jumbo mushroom head operator comes with a red anodized aluminum cap and is part of the proven 10250T series from Eaton. The unit is UL listed and CSA certified for use in NEMA-rated enclosures, making it suitable for harsh manufacturing, process control, and automation environments.
Key Features
- 65 mm jumbo mushroom head design for high visibility and easy hand activation
- 30.5 mm button size rated for 2/3 position non-illuminated push-pull switches
- Anodized aluminum construction with watertight and oiltight seals
- UL listed and CSA certified for safety compliance
- Suitable for NEMA 3/3R/4/4X/12/13 enclosures with IP65 protection rating
- Includes 1 year manufacturer warranty
Technical Specifications
- Contact Rating: 10A @ 600V AC
- Material: Anodized aluminum with metal contacts
- Color: Red
- Head Type: Jumbo mushroom, round shape
- Size: 65 mm cap diameter; 30.5 mm button bore
- Dimensions: 2.4 in L × 2.1 in W × 3.3 in H
- Weight: 0.1 lb
- Operating Temperature: Standard industrial range
- Terminal Connection: Screw clamp
- Contact Form: 1NC (normally closed)
- Certifications: UL, CSA
- IP Rating: IP65
- Series: 10250T
Typical Applications
- Emergency stop stations in manufacturing plants and production lines
- Industrial machinery control panels and press controls
- Process automation systems requiring hazard shutdown capability
- Harsh environment installations requiring watertight enclosures
- Heavy-duty motor control and pump station applications
Compatibility & Replacements
Compatible With
- Eaton 10250T series push-pull switch assemblies
- Non-illuminated 2/3 position pushbutton switches
- NEMA-rated industrial control enclosures (Types 3, 3R, 4, 4X, 12, 13)
- Standard 30.5 mm push-pull operator cavities
Replaces / Drop-In Replacement For
- Existing Cutler Hammer 10250TJ63 units
- Other 10250T series jumbo mushroom red emergency stop heads with matching bore size
- Verify compatibility with your panel assembly before ordering
Works With
- Manual control station design and installation practices
- Push-pull switch platforms from Eaton Cutler-Hammer
- Standard industrial electrical maintenance and replacement workflows
