Overview

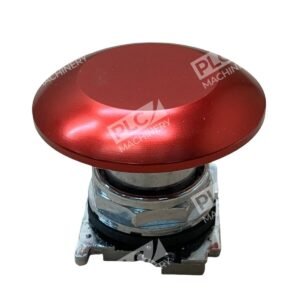

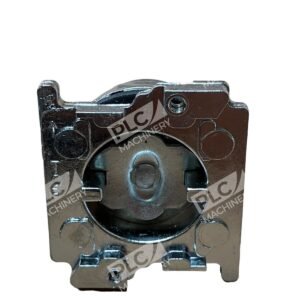

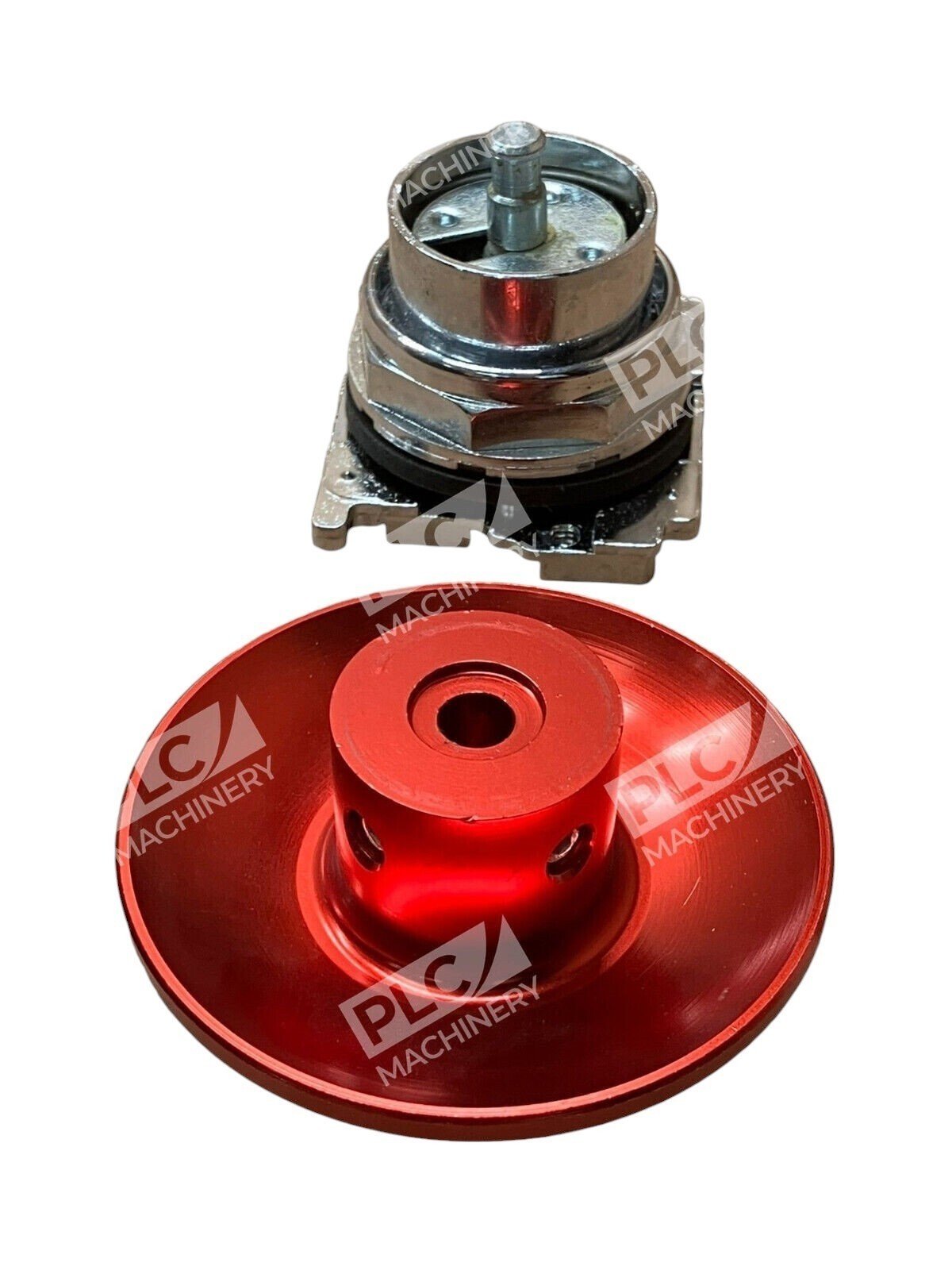

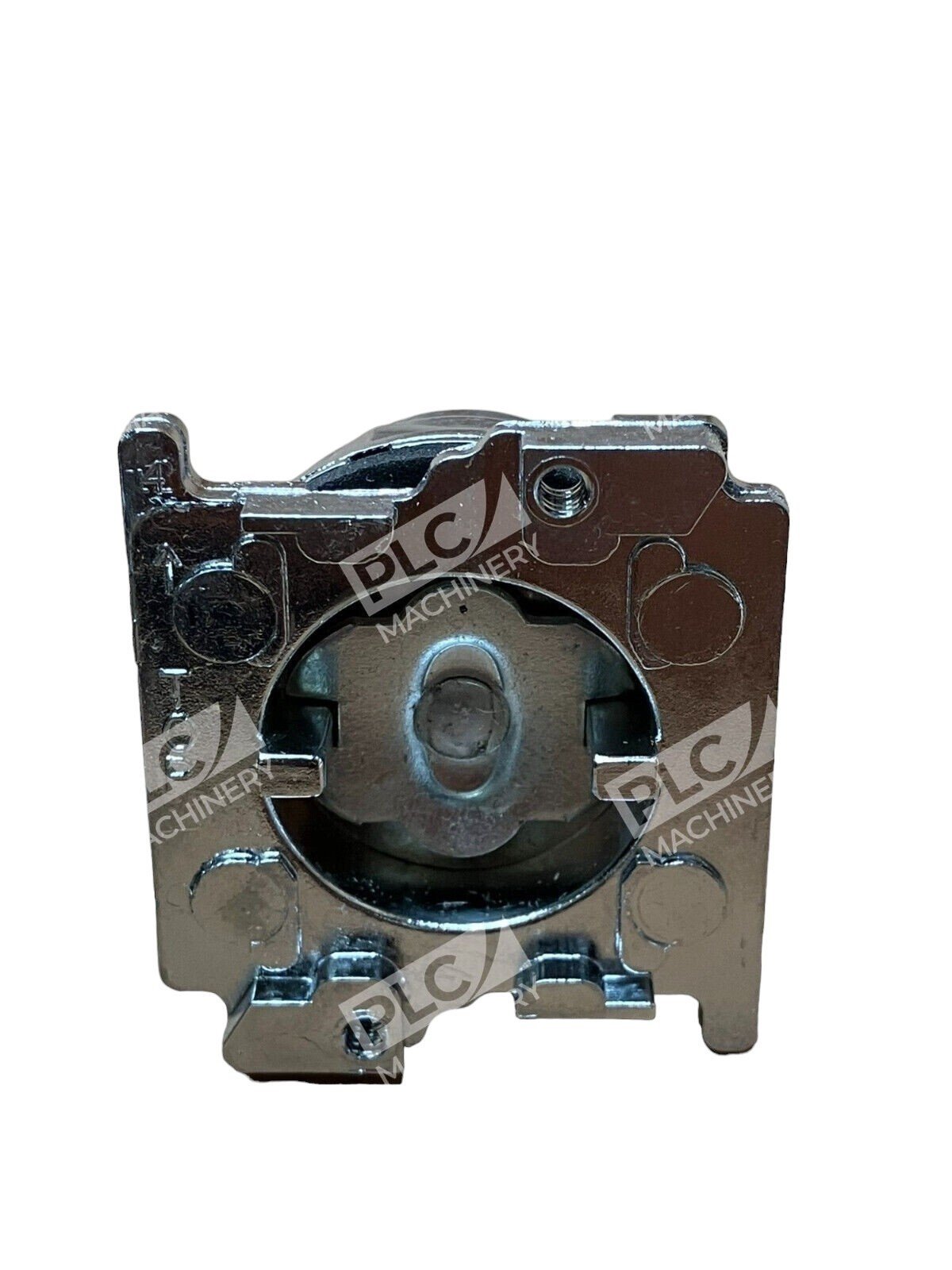

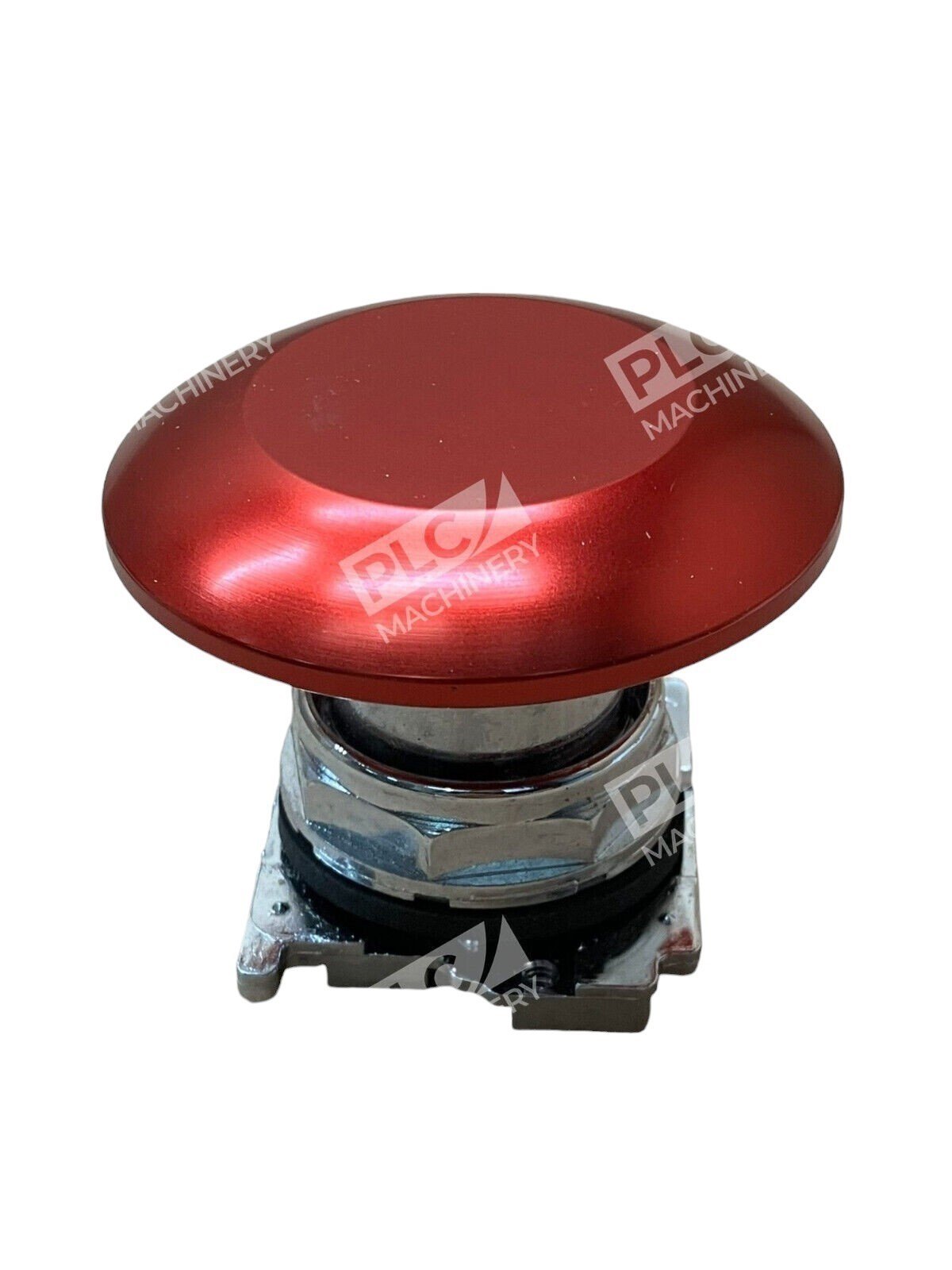

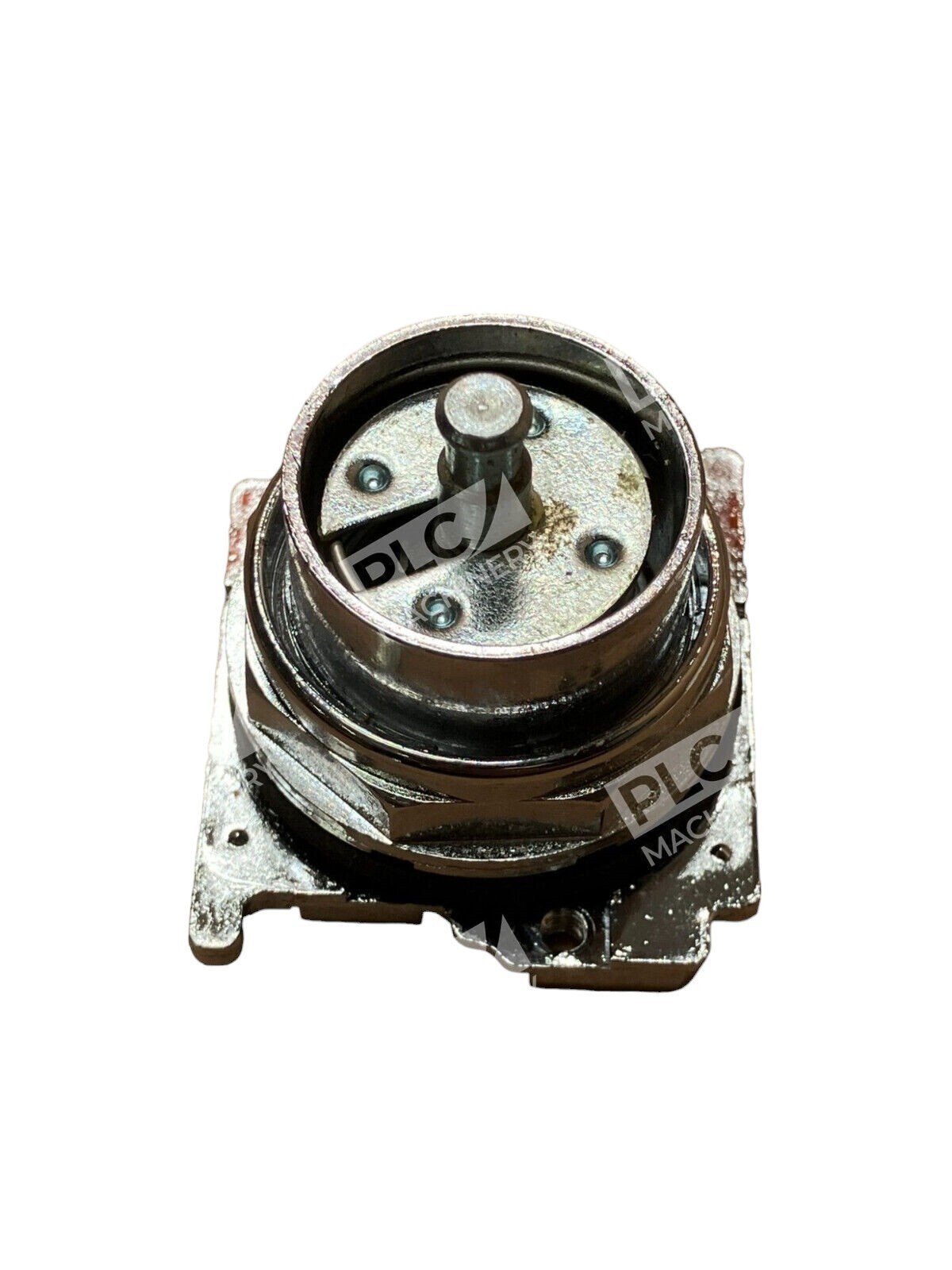

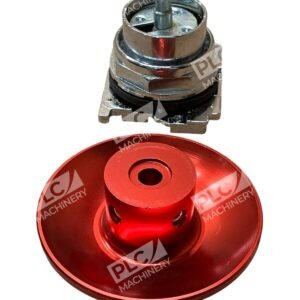

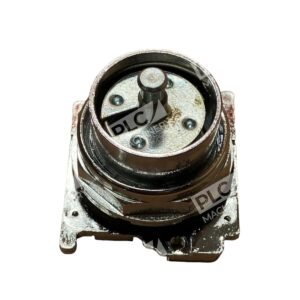

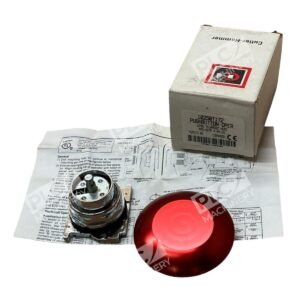

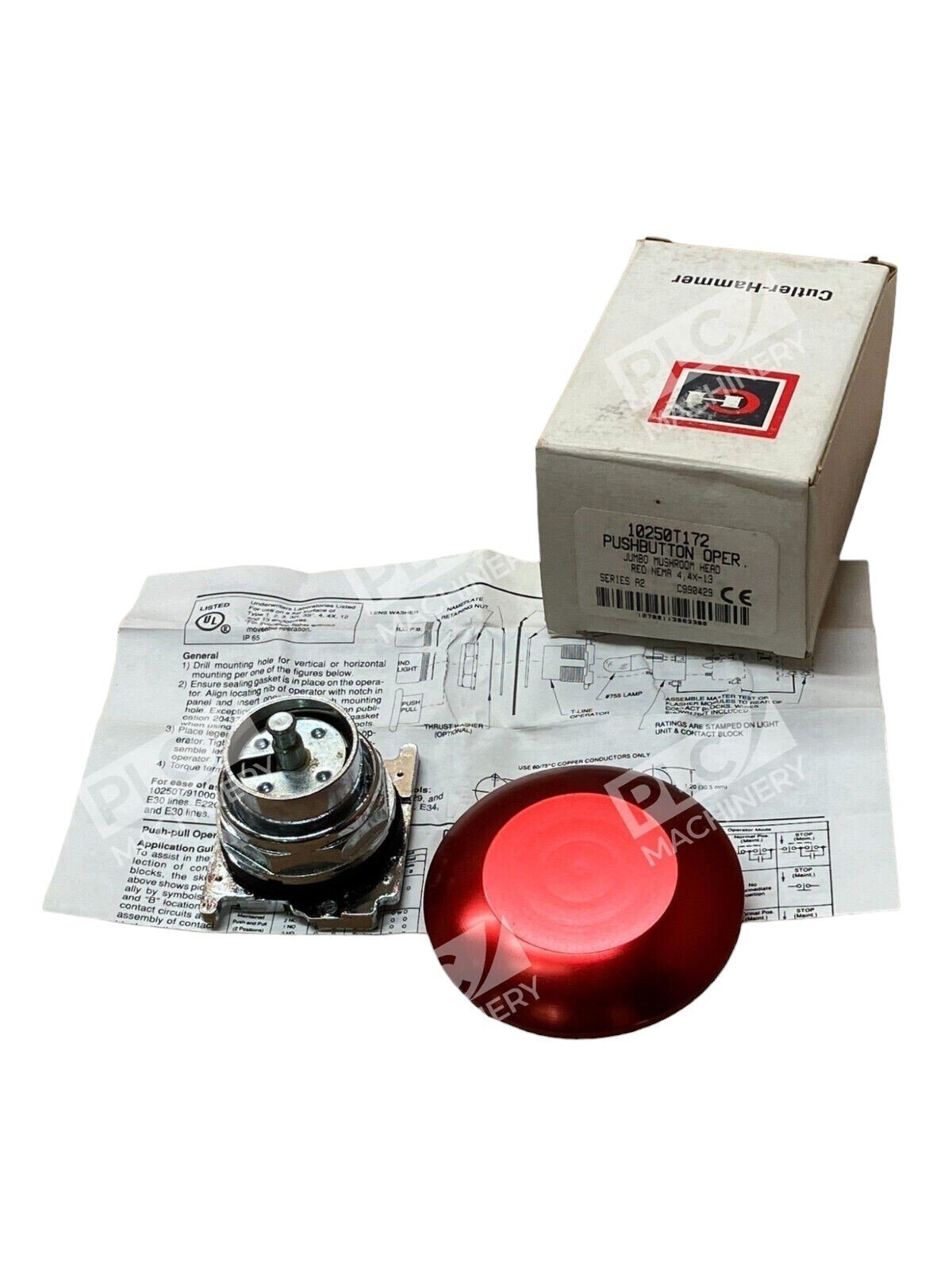

The Eaton 10250T172 is a non-illuminated momentary pushbutton operator with a jumbo mushroom head, designed for heavy-duty industrial automation and emergency stop applications. This 30.5 mm device provides NEMA 3, 3R, 4, 4X, 12, and 13 enclosure ratings with a red actuator, chrome bezel, and anodized aluminum construction. The 10250T172 integrates seamlessly into standard 10250T series control systems and HMI panels.
Key Features
- Zinc die cast construction with chrome-plated housing and mounting nut
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Drainage holes prevent liquid build-up inside the operator, preventing operation failure in freezing environments
- Non-illuminated red mushroom operator for emergency stop/emergency control signaling
- Grounding nibs enhance ground connection when the device is securely tightened
- Momentary action with screw terminal contact block
Technical Specifications
The 10250T172 is available with 65 mm jumbo mushroom head, suitable for NEMA 3, 3R, 4, 4X, 12, and 13 rated enclosures. Standard electrical and mechanical characteristics include:
- Contact configuration: Momentary (requires contact block)
- Actuator color: Red
- Bezel finish: Chrome-plated
- Housing material: Anodized aluminum with zinc die cast body
- Mounting size: 30.5 mm (1.2 inch) diameter
- Operator style: Jumbo mushroom head (65 mm)
- Design: Heavy-duty, oiltight, watertight
- Standards compliance: UL, CSA, IEC, CE
Typical Applications
The 10250T172 serves critical roles in:
- Emergency stop (E-stop) stations and control panels
- Machine tool and process automation systems
- HVAC and pump control systems
- Water treatment and utility automation
- Food and beverage processing equipment
- Any NEMA 4 or IP65-rated outdoor or wash-down environment requiring operator interfaces
Compatibility & Replacements
Compatible With
- Eaton/Cutler-Hammer 10250T series contact blocks and operators
- Standard 30.5 mm pushbutton mounting panels (1.2 inch hole)
- NEMA 3, 3R, 4, 4X, 12, and 13 rated enclosures
- Industrial control and emergency stop circuits
- Standard momentary contact control relays and PLC input modules
Replaces / Drop-In Replacement For
- Eaton 10250T172-2 (with integrated contact block variant)
- Other Cutler-Hammer 10250T series red mushroom operators with equivalent momentary ratings
- Standard emergency stop pushbuttons rated for 30.5 mm mounting (verify mechanical and electrical compatibility with your system integrator)
Works With
- Eaton 10250T contact blocks (various amperage and voltage ratings available)
- Standard 24 VDC, 120 VAC, and 240 VAC control circuits
- Hardwired control systems and legacy automation platforms
- Modern PLC and industrial controller systems via contact block wiring
- Network-agnostic operator interface (manual pushbutton — no network connectivity required)
