Overview

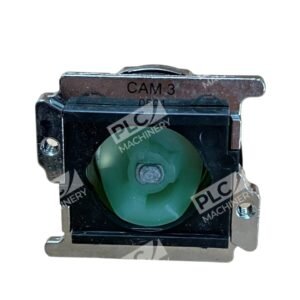

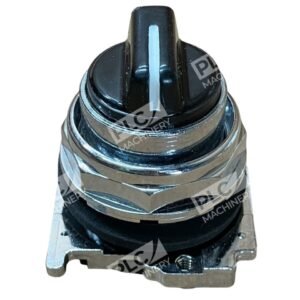

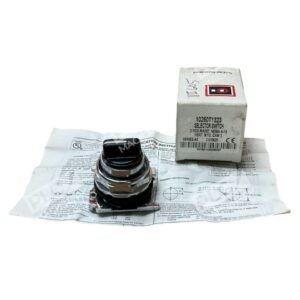

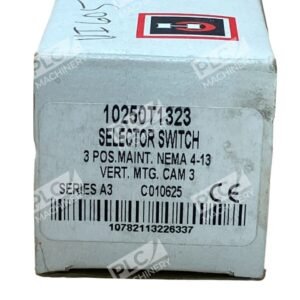

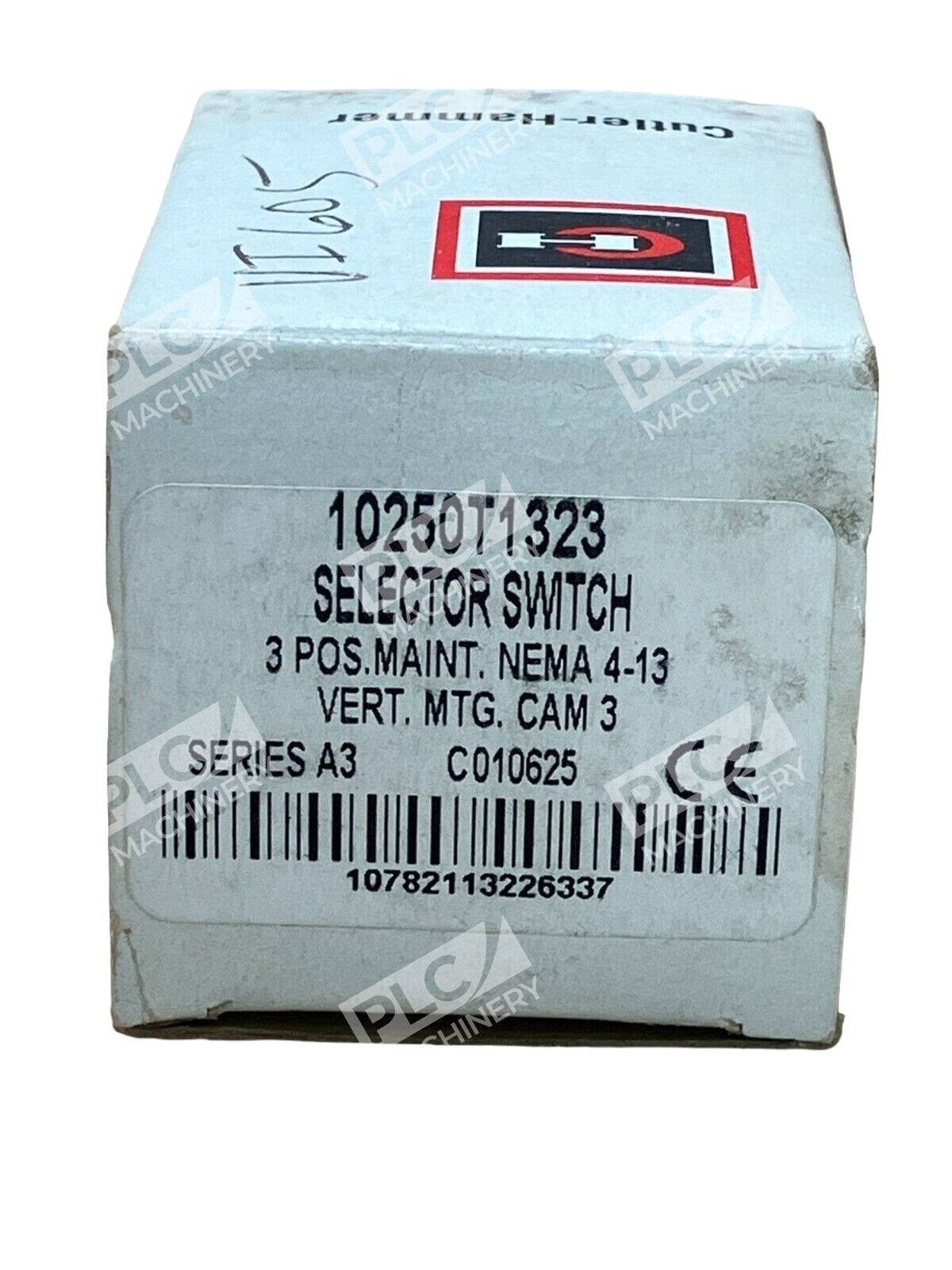

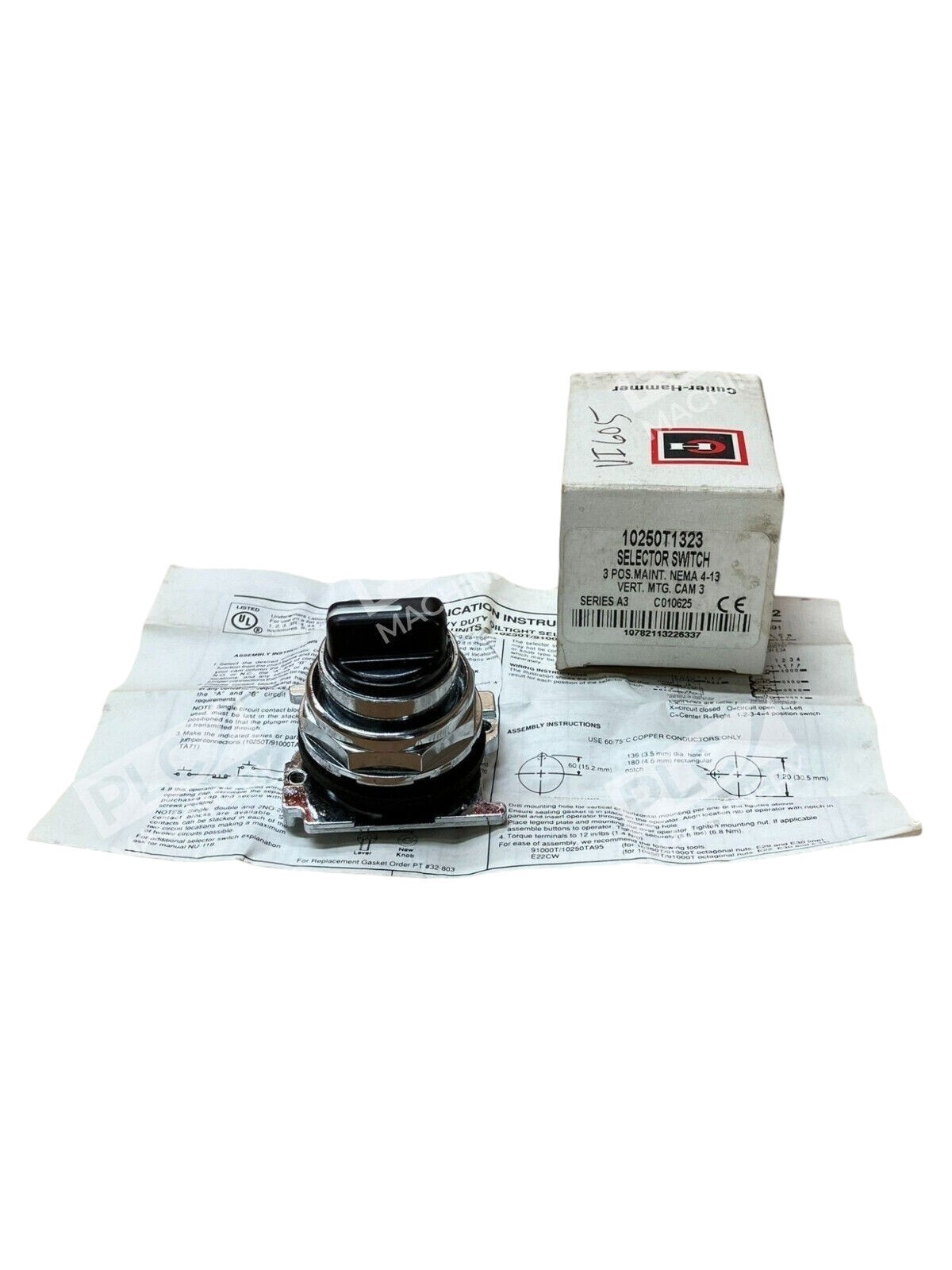

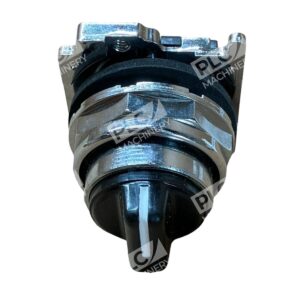

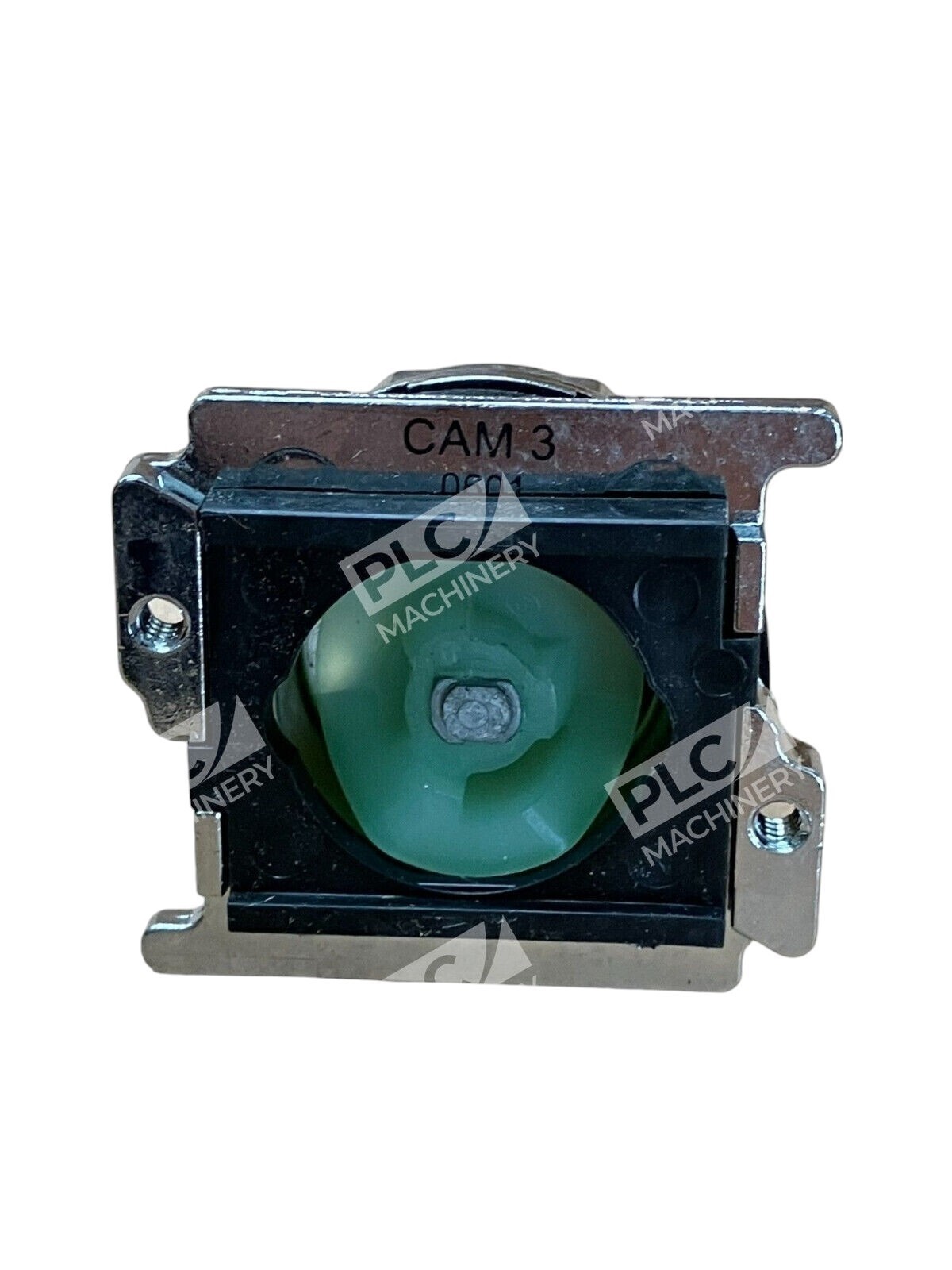

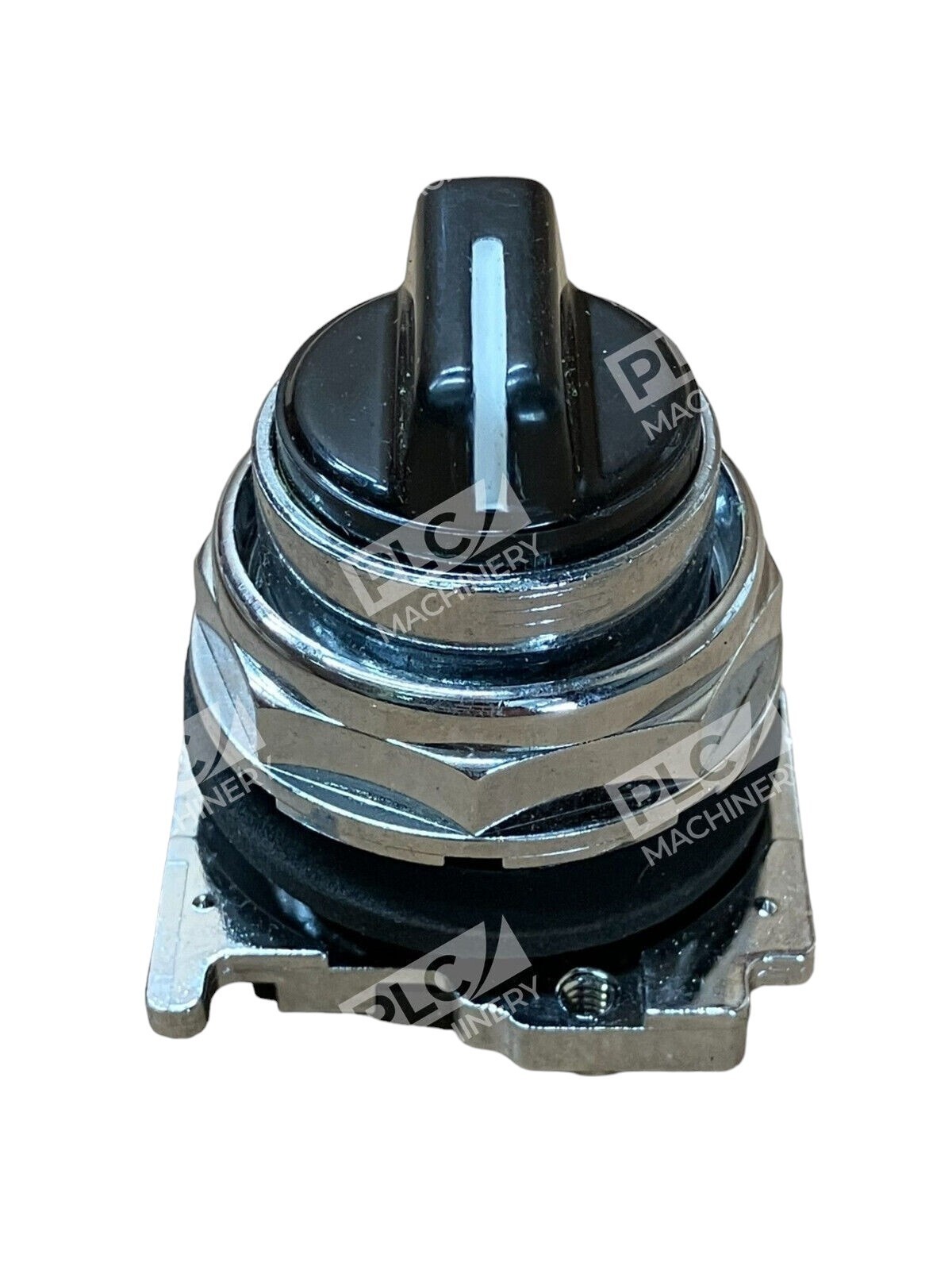

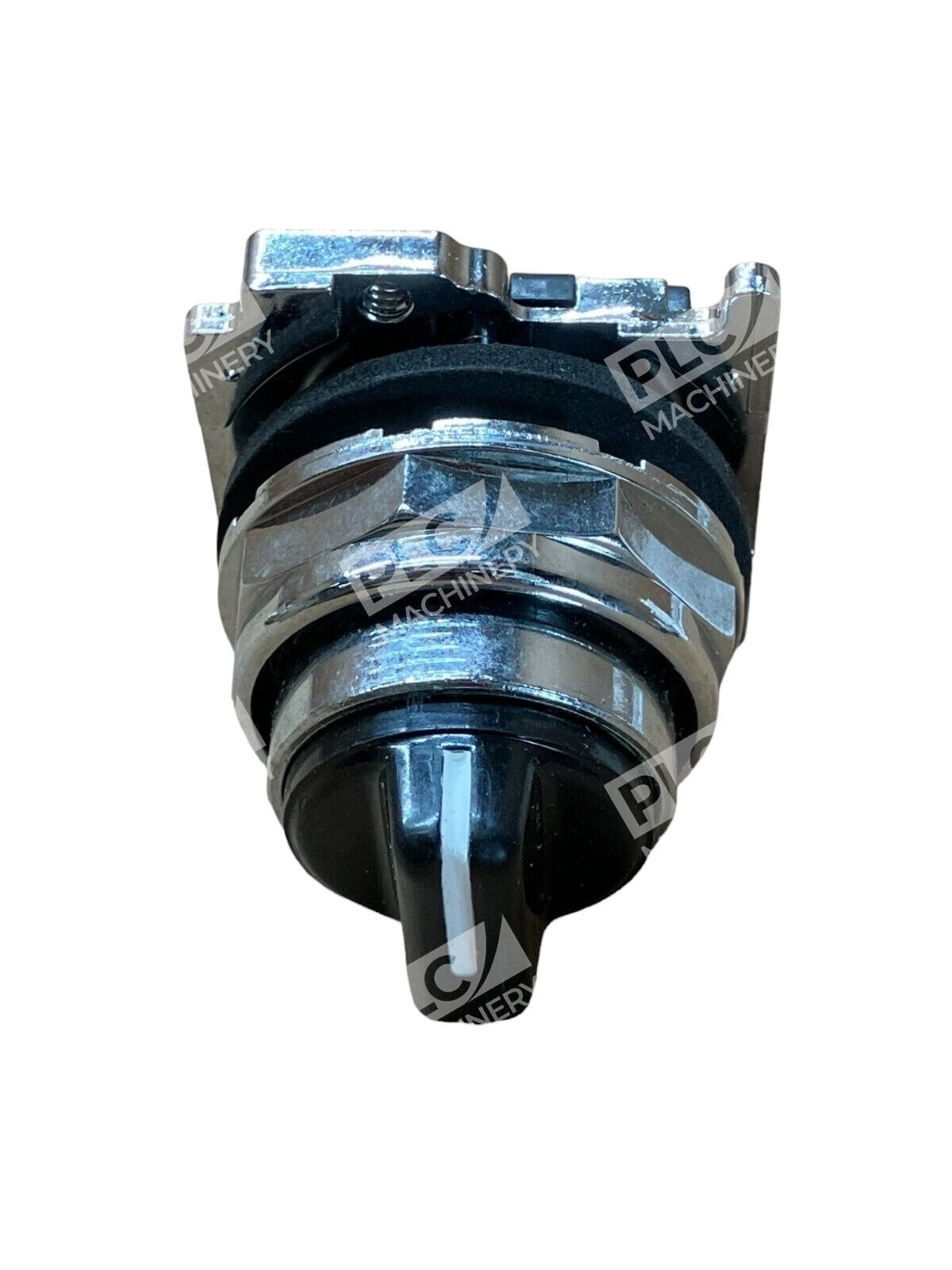

The Eaton Cutler-Hammer 10250T1323 is a heavy-duty selector switch operator from the 10250T series. It is a 3-position 60° Throw Maintained Vertical Mounting Selector Switch with black knob. This selector switch operator features a three-position knob actuator with black color, Cam 3 configuration, and 60 degree throw for maintained action in demanding environments. The switch is designed for rugged industrial use with zinc die-cast construction and chrome plating for corrosion resistance.
Key Features
- Heavy-Duty Construction: Features a heavy-duty zinc die cast construction
- Reliability Enhancement: Reliability nibs improve contact reliability even under dry circuit and fine dust conditions, with enclosed silver contacts featuring pointed reliability nibs
- Environmental Protection: Drainage holes prevent the build-up of liquid inside the operator, which can prevent operation in freezing environments
- Maintained Action: All three positions stay-put; ideal for maintenance selector functions where operator choice must remain locked
- Standard Mounting: 30.5mm round mounting with standard knob handle for easy operation
Technical Specifications
The 10250T1323 operator meets multiple industrial standards and enclosure ratings:
- Positions: 3 (−60°, 0°, +60°)
- Throw Angle: 60 degrees
- Operation: Maintained (all positions stay-put)
- NEMA Ratings: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
- IP Rating: IP65
- Actuator Style: Black knob
- Rated Current (Contact): 6A (120Vac; AC-15), 4A (240Vac; AC-15), 2A (660Vac; AC-15), 1A (125Vdc; DC-13), 0.55A (250Vdc; DC-13), 0.1A (660Vdc; DC-13)
- Mounting Hole Diameter: 30.5mm
- Material: Die-cast Zinc (body) with Chrome-plated (housing)
- Standards Compliance: CE EN60947-5-1, EN60947-5-5, UL508, CSA
Typical Applications
The 10250T1323 is commonly used in:
- Industrial equipment maintenance selectors (hand-off-auto switches)
- Control panel operator interfaces for motor starters and contactors
- Emergency stop and mode selection circuits
- Hazardous and wet environment control stations
- Manufacturing equipment control stations requiring NEMA 4 or higher enclosure ratings
- Facility maintenance and troubleshooting selector circuits
Compatibility & Replacements
Compatible With
- Eaton 10250T series selector switches
- Any control circuit accepting 30.5mm (1.2-inch) diameter operators
- Standard pilot device contact blocks for 10250T series
- Industrial control panels using maintained-action mode selection
Replaces / Drop-In Replacement For
- Other Eaton 10250T series 3-position maintained operators with identical mounting and Cam 3 configuration
- Verify the specific contact block and cam configuration match your application before ordering to ensure compatibility
Works With
- Eaton 10250T series contact blocks and accessory kits
- Industrial motor control relay circuits (AC-15 and DC-13 rated)
- Standard 30.5mm pilot device mounting systems
- Any enclosure rated NEMA 3 through NEMA 13
