Overview

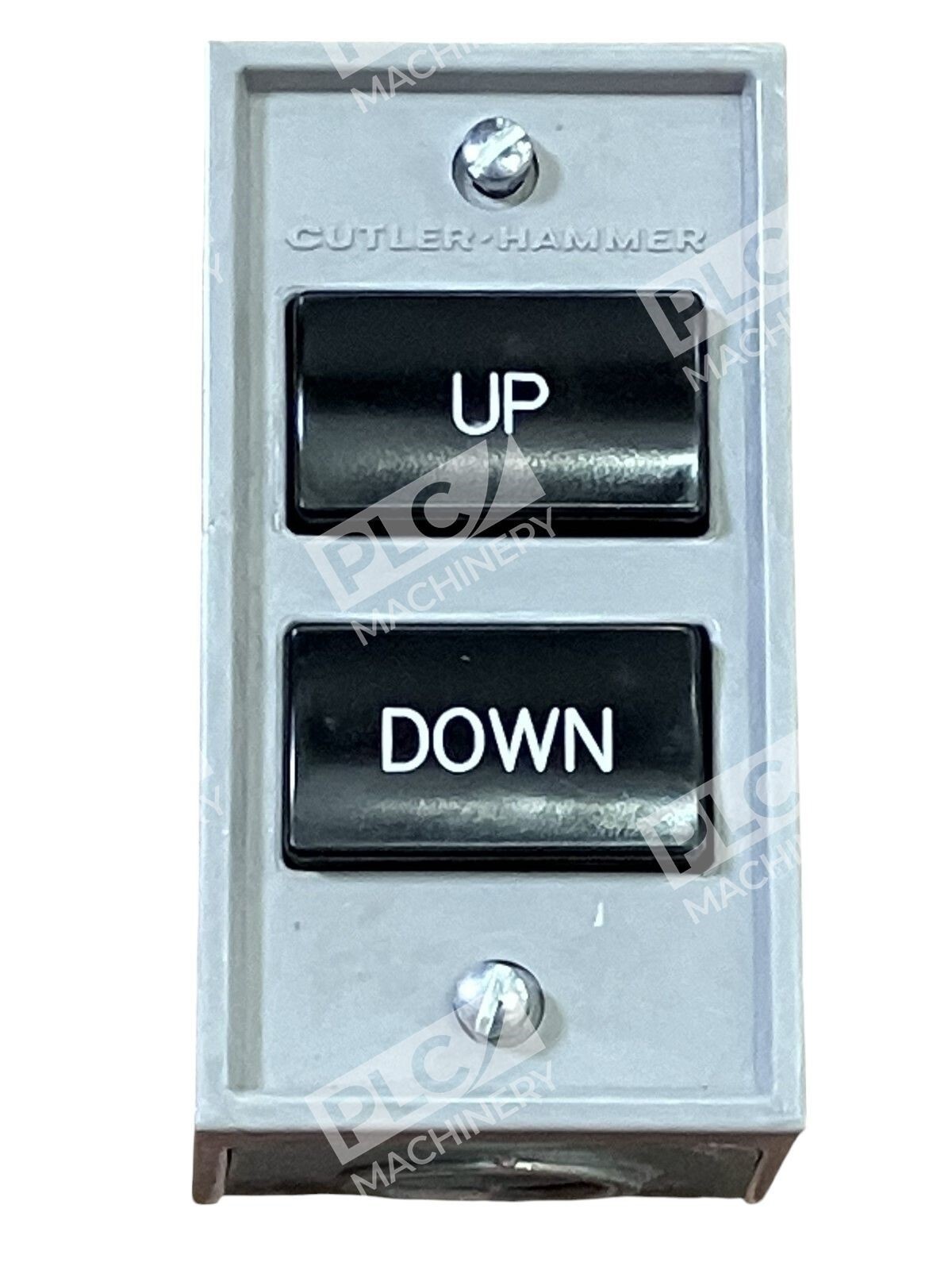

The Cutler Hammer 10250H5204 is an assembled pushbutton control station designed for standard duty industrial applications. This 10250H series unit features two flush operator elements with UP/DOWN legend, 2NO contact configuration, and robust die-cast zinc construction. The station is NEMA 1 rated for general indoor industrial environments and provides reliable manual control for machinery, motors, and production lines.
Key Features
- Two (2) flush pushbutton operators with momentary spring-return action
- 2NO (2 Normally Open) contact configuration for flexible circuit integration
- Heavy-duty die-cast zinc construction with chrome-plated housing
- UP/DOWN legend for intuitive start/stop operation
- NEMA 1 rated for standard industrial enclosures
- Surface mounting design with 5 in × 4 in footprint
- 30.5 mm (1.2 in) panel cutout diameter per element
Technical Specifications
- Manufacturer: Eaton Cutler-Hammer
- Part Number: 10250H5204
- Series: 10250H Standard Duty
- Contact Configuration: 2NO (two normally open contacts)
- Number of Operators: Two (2) elements
- Actuator Style: Flush pushbutton, round
- Mounting Type: Surface mount with two-hole configuration
- Enclosure Rating: NEMA 1
- Material: Die-cast zinc body, chrome-plated housing
- Dimensions: 5 in L × 4 in W × 0.1 in H
- Operating Temperature: Standard industrial range (refer to datasheet for limits)
- Certifications: UL 508, CSA, CE compliant to EN60947-5-1, EN60947-5-5
- Legend: UP/DOWN with black actuators
Typical Applications
- Machine start/stop control for industrial equipment and production machinery
- Manual process control for pumps, conveyors, and compressors
- Operator interfaces in motor control centers (MCCs) and combination starters
- Emergency stop and auxiliary control stations for manufacturing systems
- General-purpose pushbutton applications in NEMA 1 indoor enclosures
Compatibility & Replacements
Compatible With
- Eaton cutout box and control panel enclosure systems
- Standard industrial AC/DC control circuits rated up to 600V AC and 250V DC
- Mechanical control contactors, starters, and motor control equipment
- Standard DIN-rail and surface-mounted control stations
Replaces / Drop-In Replacement For
- Earlier 10250H series two-element pushbutton stations with identical contact configurations
- Verify compatibility with your system integrator before ordering to confirm exact replacement requirements
Works With
- AC-15 and DC-13 contact ratings per IEC 60947-4-1
- Standard electromechanical control circuits and relay logic
- PLCs and soft-starter auxiliary input modules via standard wiring connections
- Certified for use in North American (UL/CSA) and European (CE) industrial control environments
