Overview

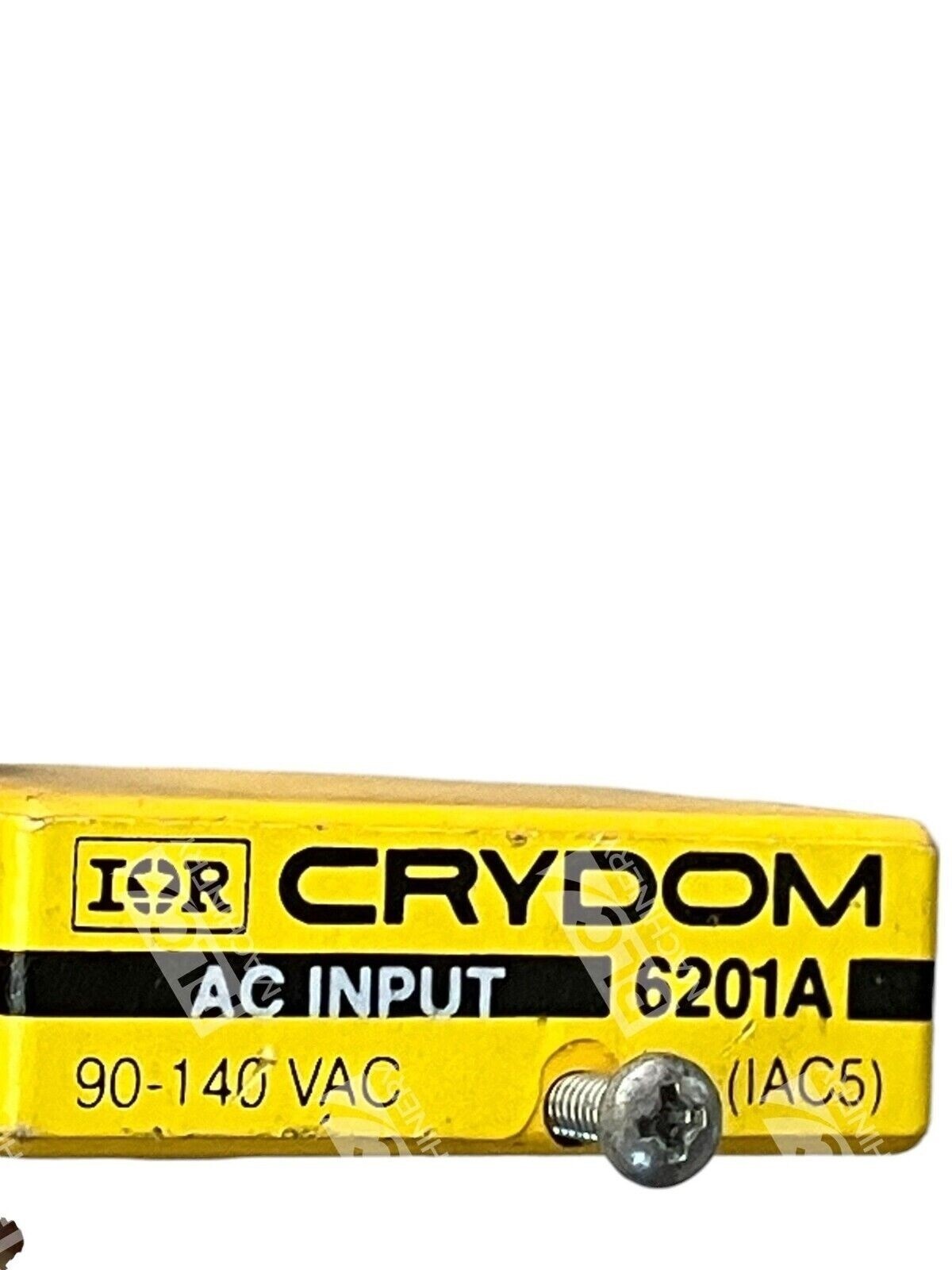

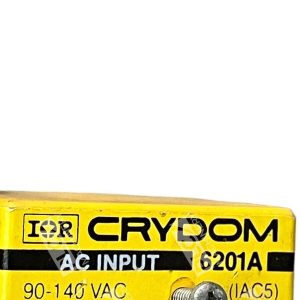

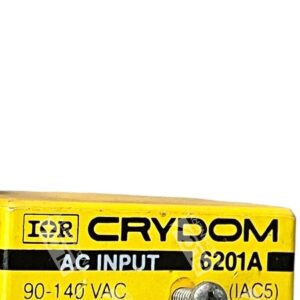

The Crydom 6201A is a surplus AC input solid-state relay module from the IAC5 series designed for PLC processors and industrial automation systems. This module accepts AC voltage inputs ranging from 90–140VAC and provides isolated 5VDC logic output, making it ideal for interfacing high-voltage AC signals with digital control circuits. The module is now obsolete but remains a reliable choice for legacy system maintenance and repairs.
Key Features
- AC input voltage range: 90–140VAC nominal 120VAC
- 5VDC logic output with 16mA drive current
- Fast switching: 20ms turn-on and turn-off time
- 4000V optical isolation between input and output
- Operating temperature range: -30 to 80°C (-22 to 176°F)
- Compact PCB-mount form factor (0.60×1.25×1.70 inches)

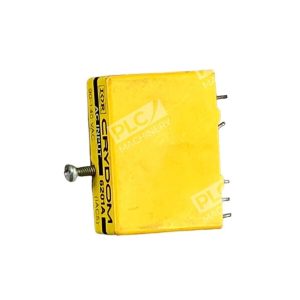

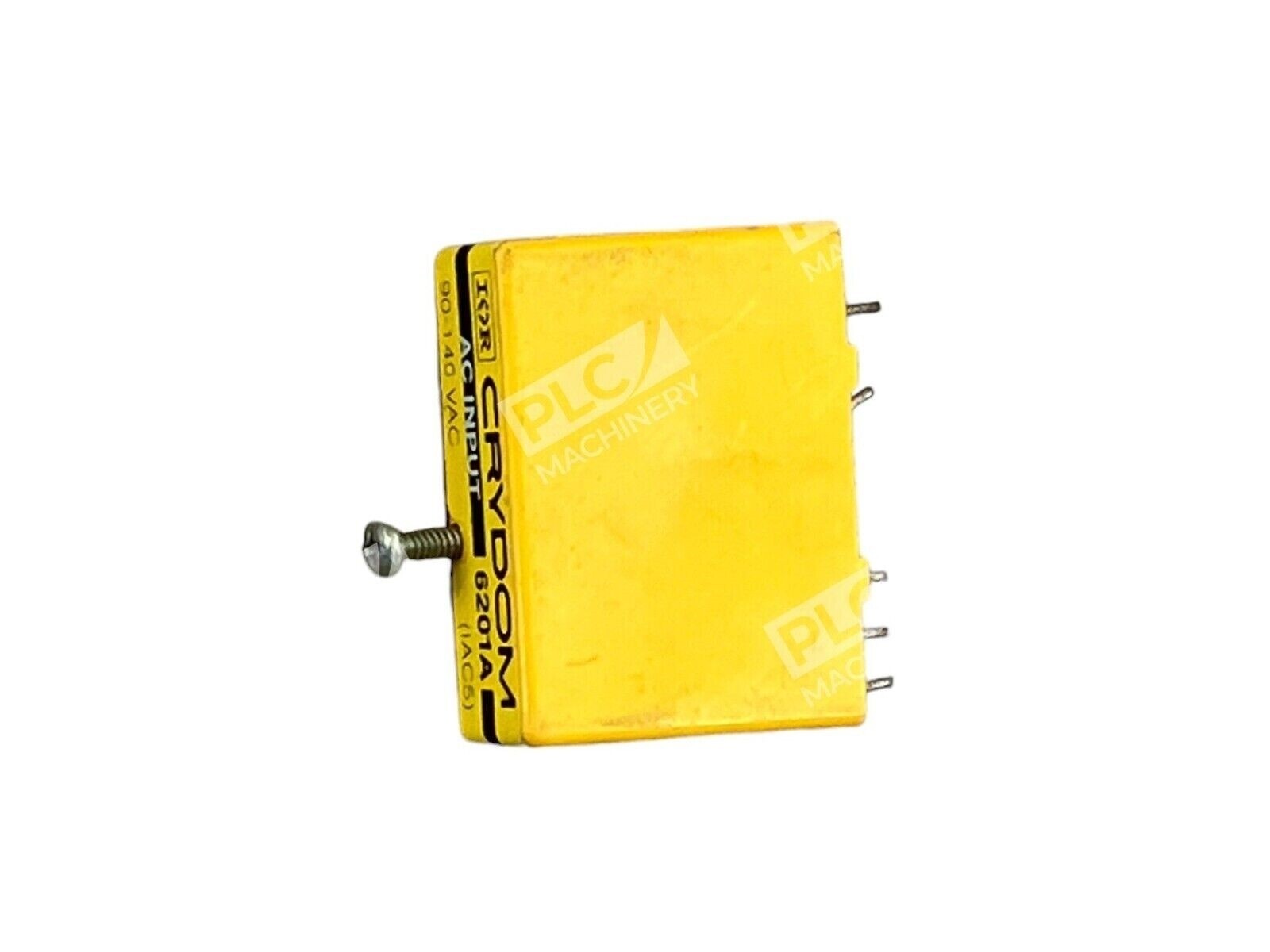

- Yellow housing with snap-pin retainer terminals
Technical Specifications
- Input Voltage: 90–140VAC (120VAC nominal)
- Input Current: 6mA
- Output Voltage: 5VDC logic level
- Output Current: 16mA maximum
- Switching Time (ON): 20ms
- Switching Time (OFF): 20ms
- Optical Isolation: 4000V
- Operating Temperature Range: -30 to 80°C (-22 to 176°F)
- Dimensions (WxHxL): 0.60×1.25×1.70 inches (15.2×31.8×43.2mm)
- Weight: ~35g (1.38 oz)
- Termination: PCB pin or solder terminals
- Mounting: DIN rail or module board
Typical Applications
- PLC and programmable logic controller I/O modules
- Industrial automation and machine control systems
- AC signal conditioning for digital logic circuits
- Sensor interface and discrete input detection
- Legacy equipment repair and replacement
Compatibility & Replacements
Compatible With
- Allen-Bradley PLC processors and I/O racks
- Siemens S7 and S5 PLC systems
- Mitsubishi MELSEC and other compact PLCs
- Omron CP and CQM series controllers
- GE and legacy industrial control systems
- Standard 24VDC logic circuits and microcontroller interfaces
Replaces / Drop-In Replacement For
- Crydom IAC5 series modules
- Verify compatibility with your system integrator before ordering.
Works With
- Potter & Brumfield IAC-5 (electrically equivalent)
- Open-collector transistor output compatible with standard logic families
- PCB or module-board mounting interfaces
- 4–20mA input signal conditioning circuits
