Overview

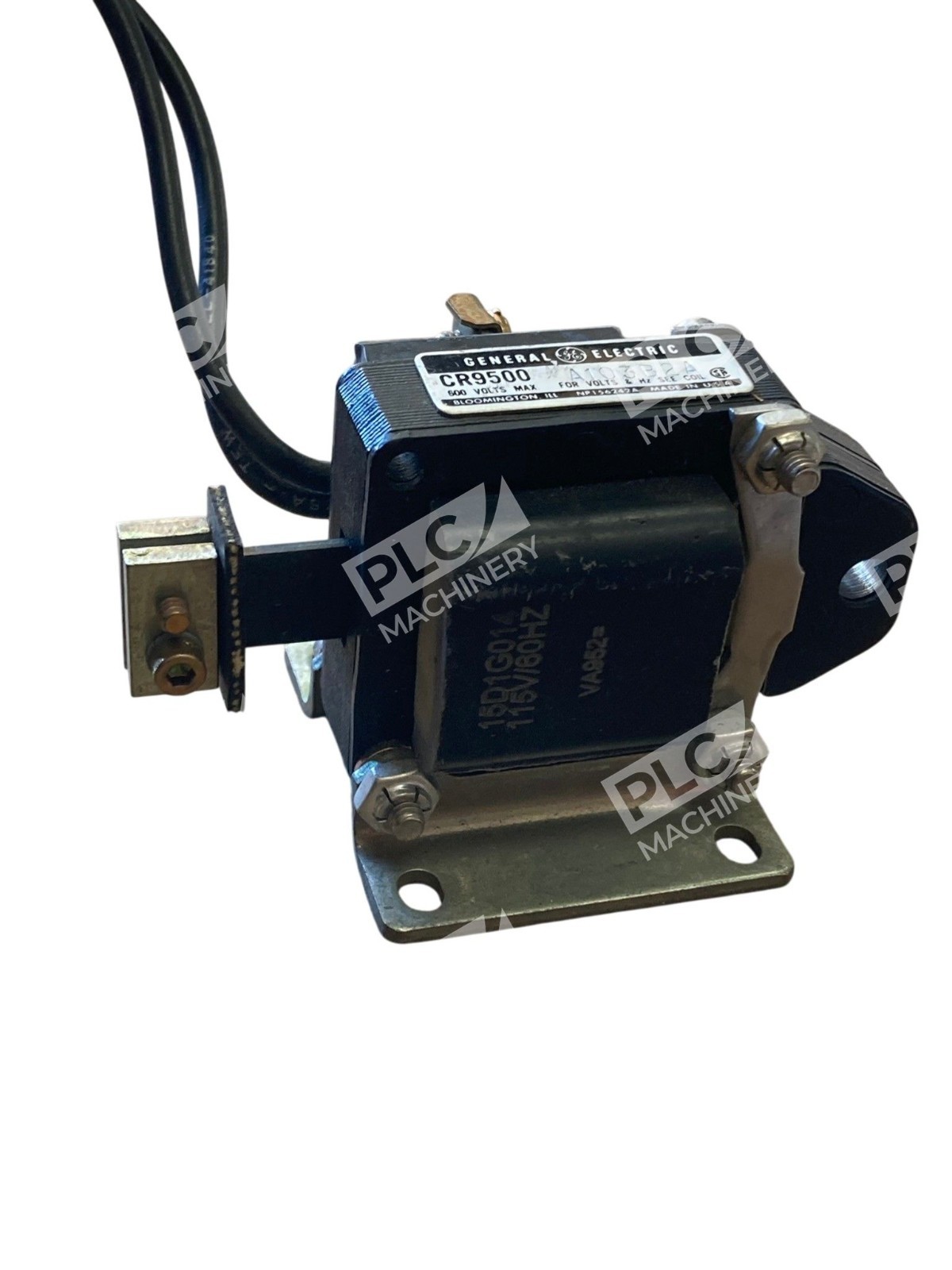

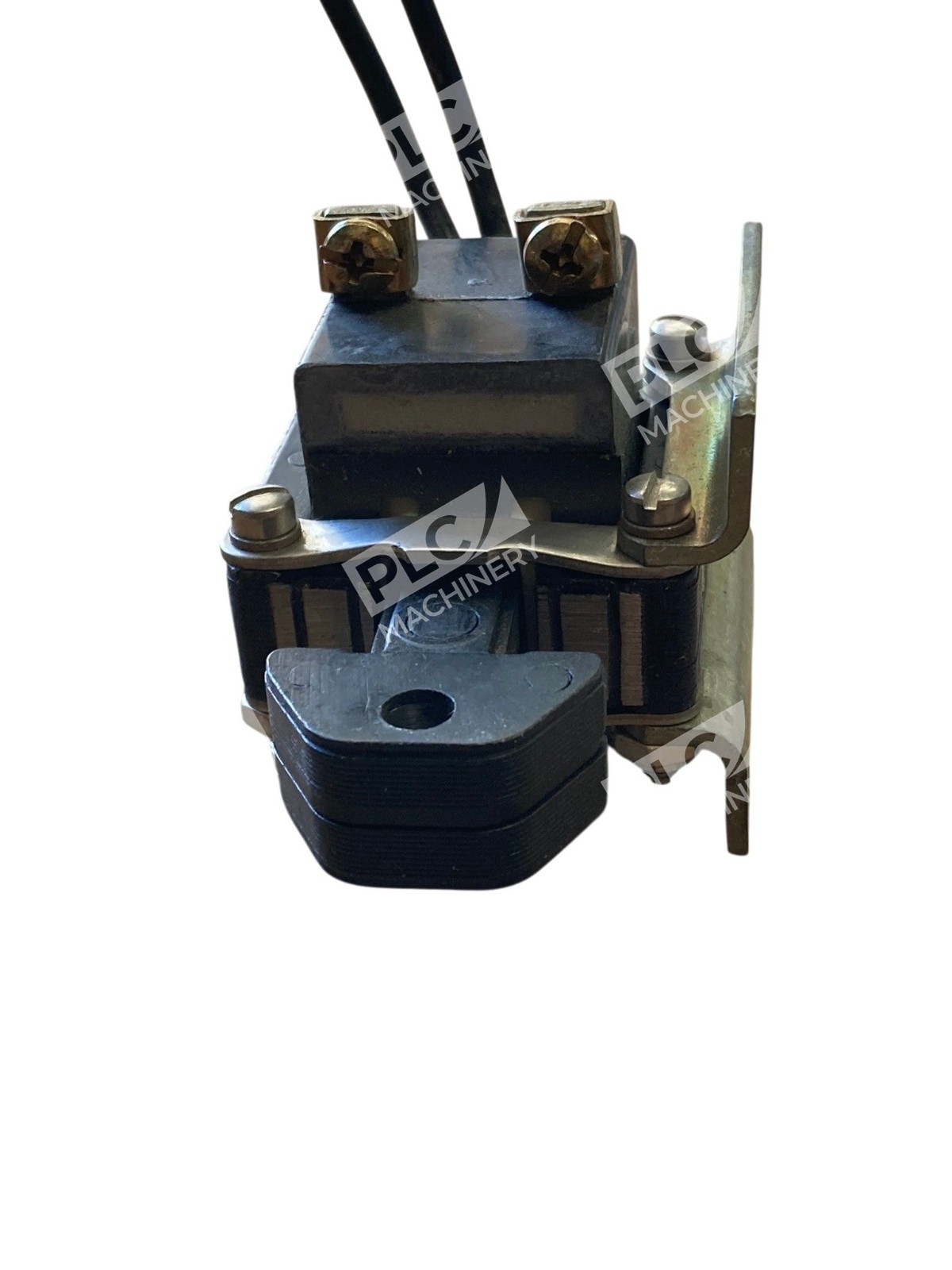

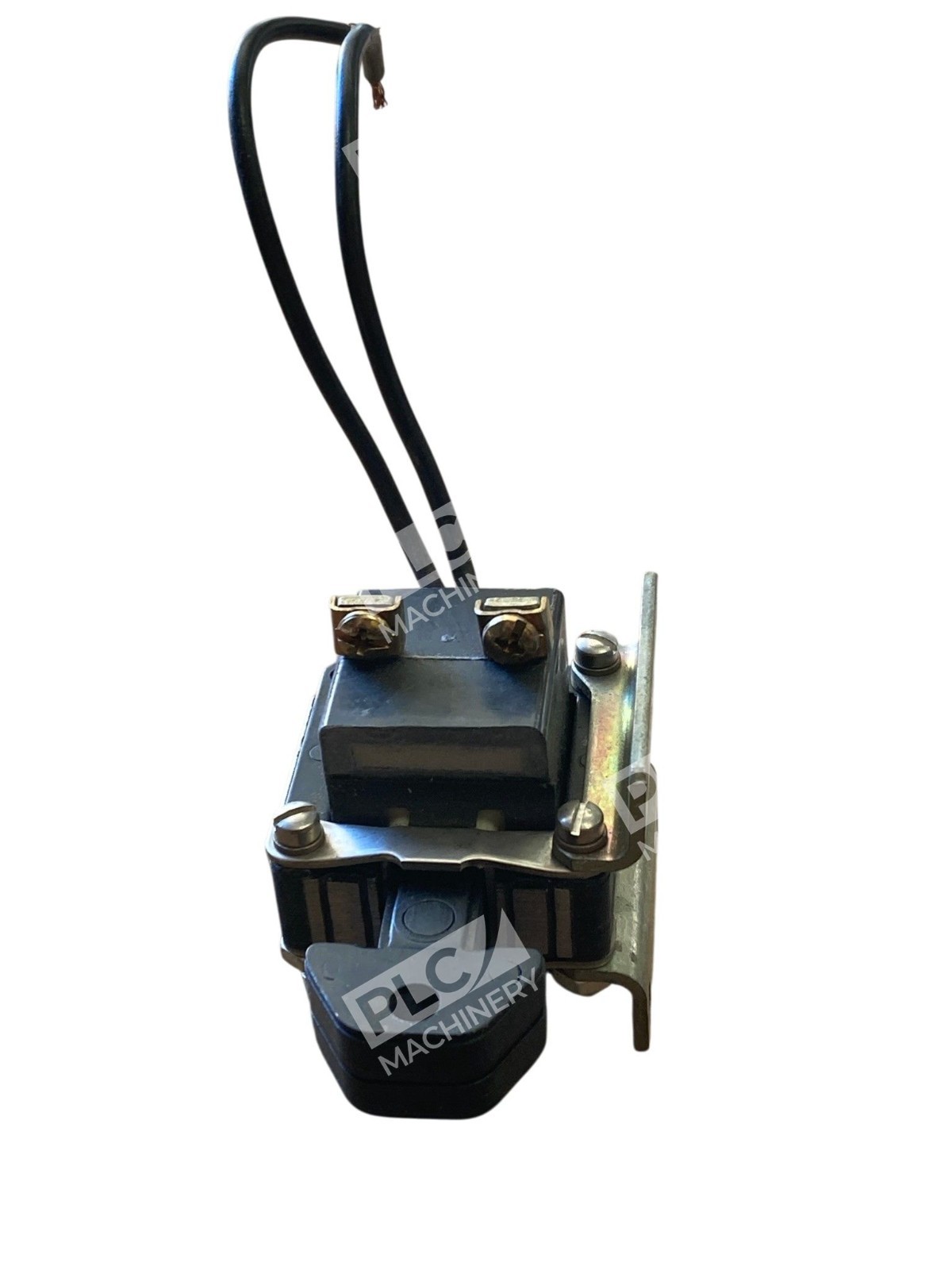

The GE CR9500-A103B2A is a 600V AC solenoid from General Electric’s CR9500 series, featuring a laminated frame design for reliable industrial automation and control applications. This pull-type solenoid is engineered to deliver consistent electromagnetic force in demand-response control circuits, making it suitable for contactors, starters, and valve control systems in manufacturing, HVAC, and process automation environments.
Key Features
- 600V AC rated for high-voltage industrial applications
- Pull-type operation with 1-inch stroke for positive positioning
- Laminated frame construction ensures durability and heat dissipation
- 60 Hz designed for North American industrial standards
- Side mounting configuration for flexible installation
- Proven General Electric quality and reliability
Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: CR9500-A103B2A
- Input Voltage: 600V AC
- Frequency: 60 Hz
- Operation Type: Pull-Type Solenoid
- Stroke: 1 inch
- Frame Design: Laminated Frame
- Mounting: Side Mounting, Right Side
- Series: CR9500
- Condition: New – No Box
Typical Applications
- AC contactor and starter coil replacement
- Industrial pump and compressor control circuits
- HVAC system valve actuation and damper control
- Manufacturing equipment electromagnetic clutches and brakes
- Conveyor and material handling automation
- Process control and locking mechanisms
Compatibility & Replacements
Compatible With
- GE industrial motor starters and contactors
- 600V AC three-phase electrical control systems
- North American (NEMA) industrial automation equipment
- Standard industrial control panel layouts with 60 Hz power
- Electromagnetic valve and clutch assemblies rated for 600V AC
Replaces / Drop-In Replacement For
- Other CR9500 series solenoids with identical mounting and stroke specifications
- Verify compatibility with your system integrator or original equipment documentation before ordering to ensure proper fit and electrical rating match.
Works With
- 60 Hz industrial power distribution systems
- NEMA 3R, 4X, and other standard control enclosures
- AC-rated contactors, relays, and control circuits
- Industrial automation PLC and drive systems with AC coil outputs
