Overview

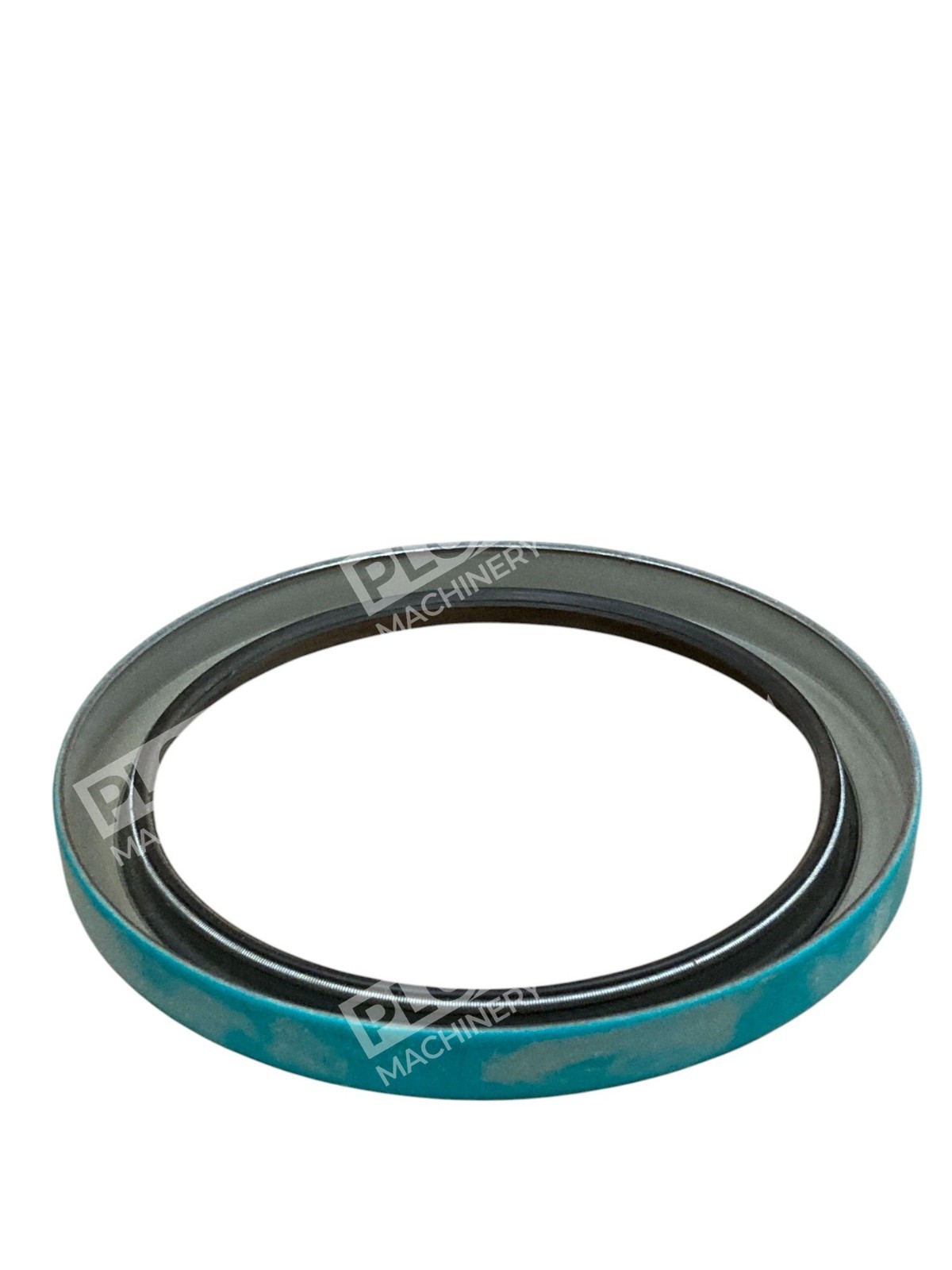

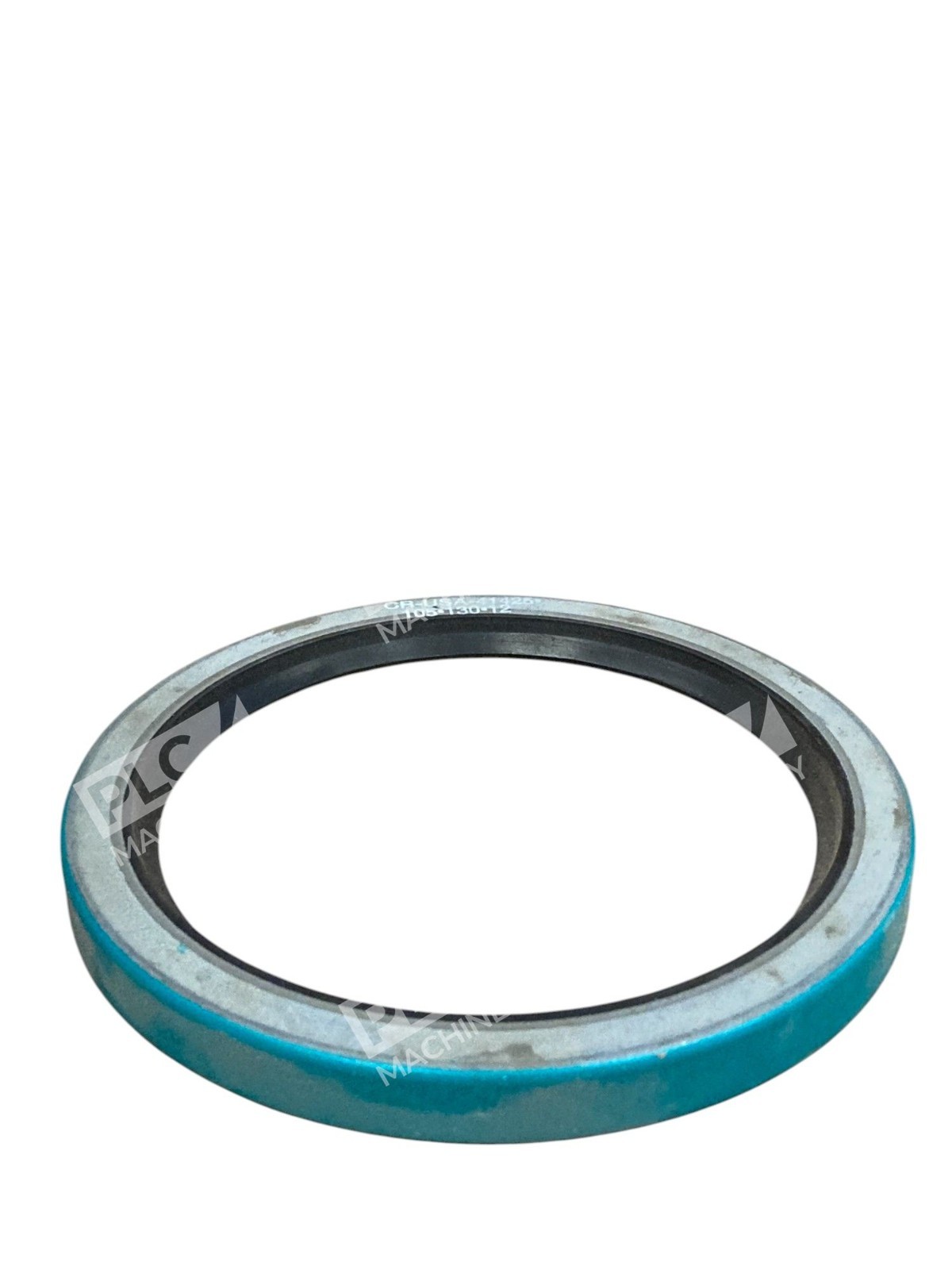

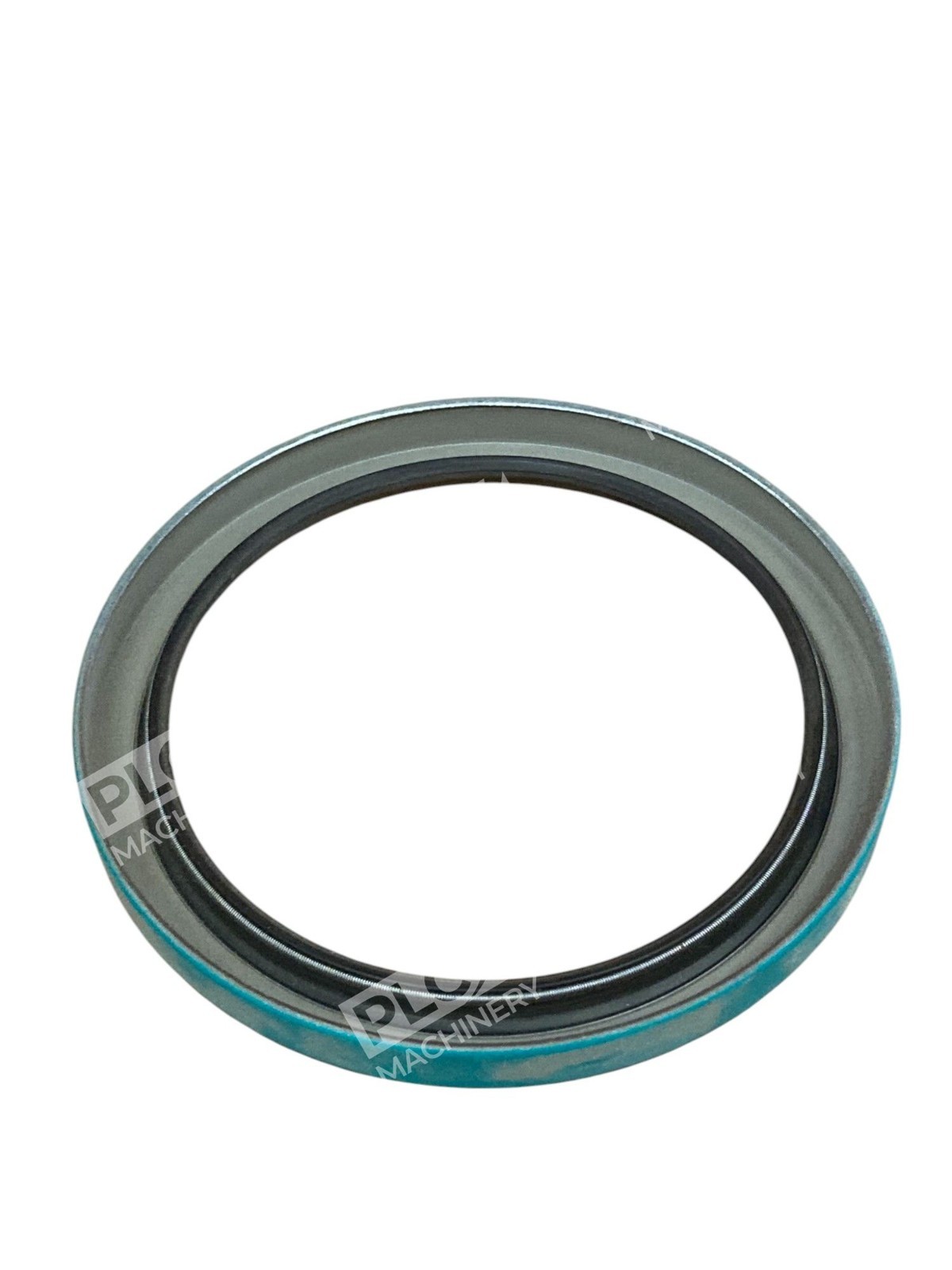

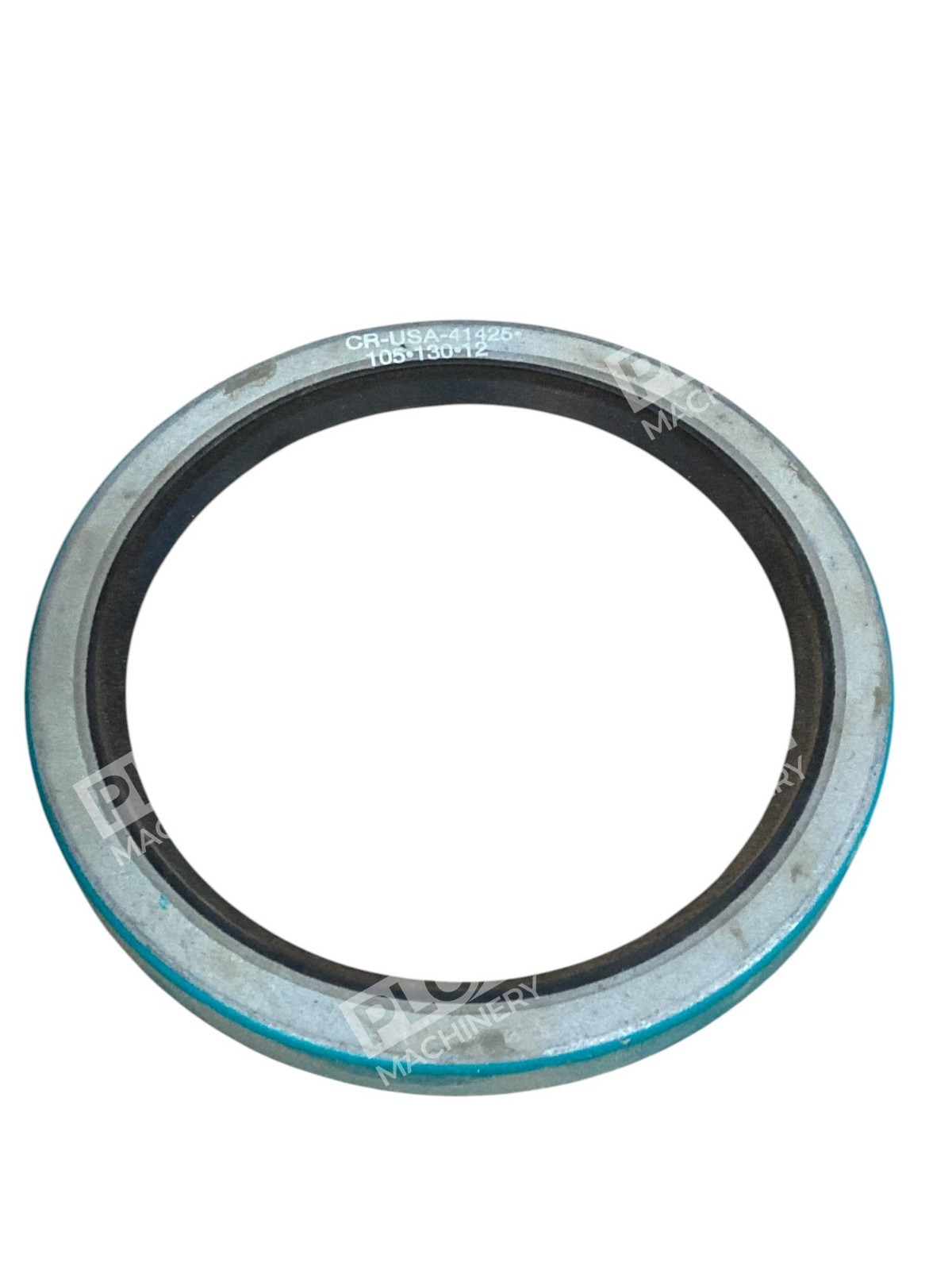

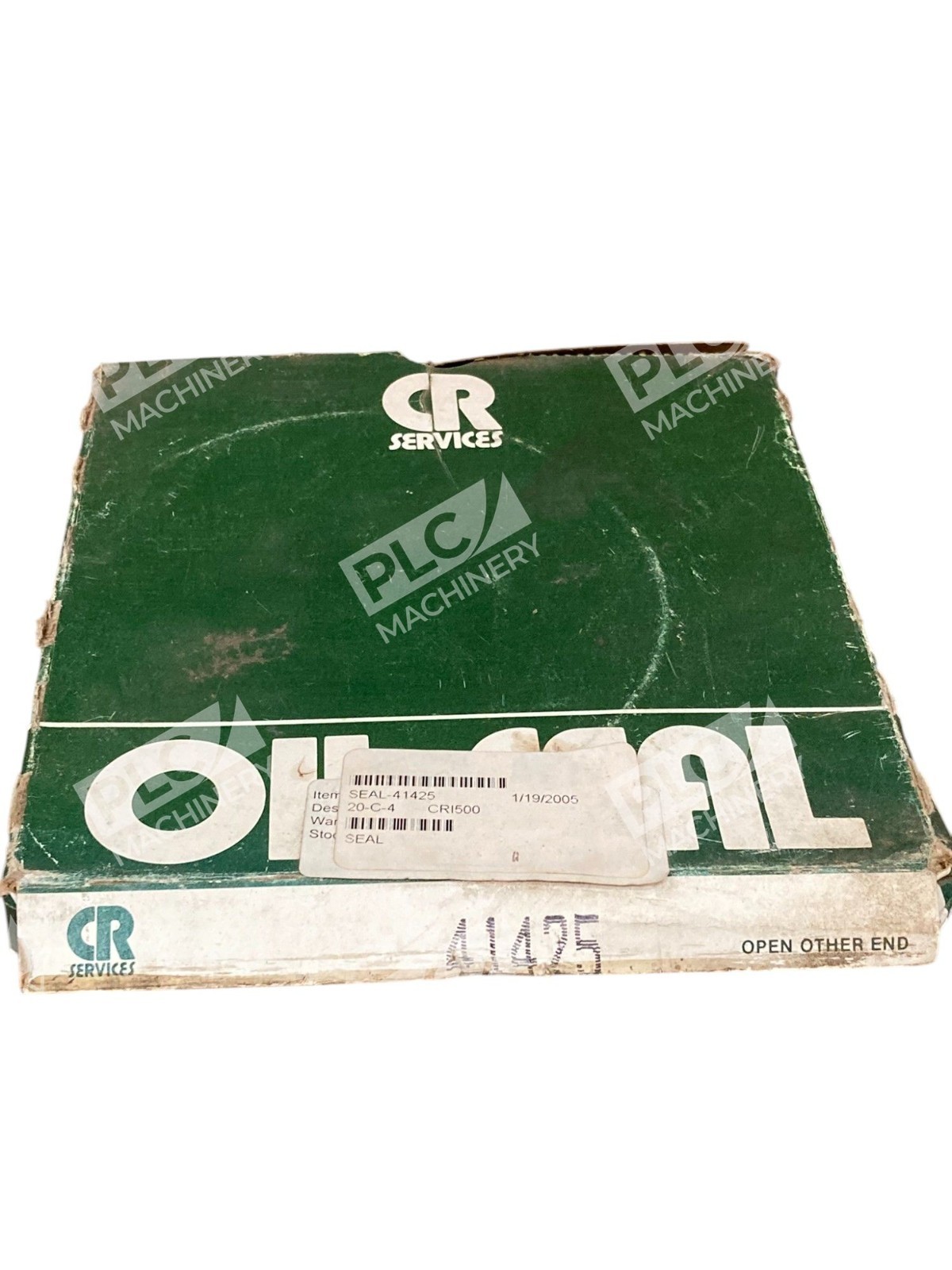

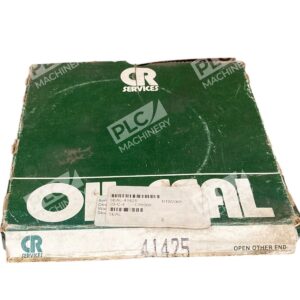

The CR 41425 is a single-lip radial oil seal manufactured by SKF Chicago Rawhide, engineered to retain lubrication and exclude contaminants in industrial drivetrain applications. With bore diameter of 105 mm, outer diameter of 130 mm, and thickness of 12 mm, this seal is a standard component for Hansen reducers, industrial gearboxes, and similar rotating equipment where shaft sealing is critical.
Key Features
- Single-Lip Design: Optimized for efficient sealing with minimal friction on shaft rotation
- Garter Spring: Included spring maintains consistent radial pressure for reliable contact
- Nitrile Rubber Construction: Chemical-resistant material suitable for oil-filled housings
- Compact Profile: 12 mm width fits standard mounting grooves without major redesign
- Hansen Reducer Compatibility: Factory-matched for Hansen brand speed reducers and similar industrial gearbox applications
Technical Specifications
- Bore Diameter (Shaft): 105 mm
- Outer Diameter: 130 mm
- Width/Thickness: 12 mm
- Lip Type: Single lip with garter spring
- Material: Nitrile rubber
- Pressure Rating: Typical operating pressure up to 3 bar
- Temperature Range: -40°C to +100°C (typical for nitrile seals)
- Part Number: CR 41425
Typical Applications
The CR 41425 seal serves in a wide range of industrial sectors:
- Hansen speed reducers (all series)
- Industrial gearboxes and gear motors
- Shaft-mounted drive equipment
- Heavy-duty pump housings
- Conveyor and material-handling systems
- Food processing and packaging machinery
Compatibility & Replacements
Compatible With
- Hansen speed reducers (all models with 105 mm bore shaft)
- Industrial gearboxes requiring 105x130x12 radial seals
- SKF Chicago Rawhide seal housings and seal chambers
- OEM equipment with matching bore/OD dimensions
Replaces / Drop-In Replacement For
- Original equipment Hansen reducer seals (model-specific)
- Competitive radial oil seals rated 105x130x12 mm
- Verify cross-compatibility with your equipment documentation before ordering
Works With
- Mineral and synthetic gear oils (ISO VG 32–220)
- Standard seal installation tooling for radial lip seals
- Industrial maintenance and bearing-replacement kits
