Overview

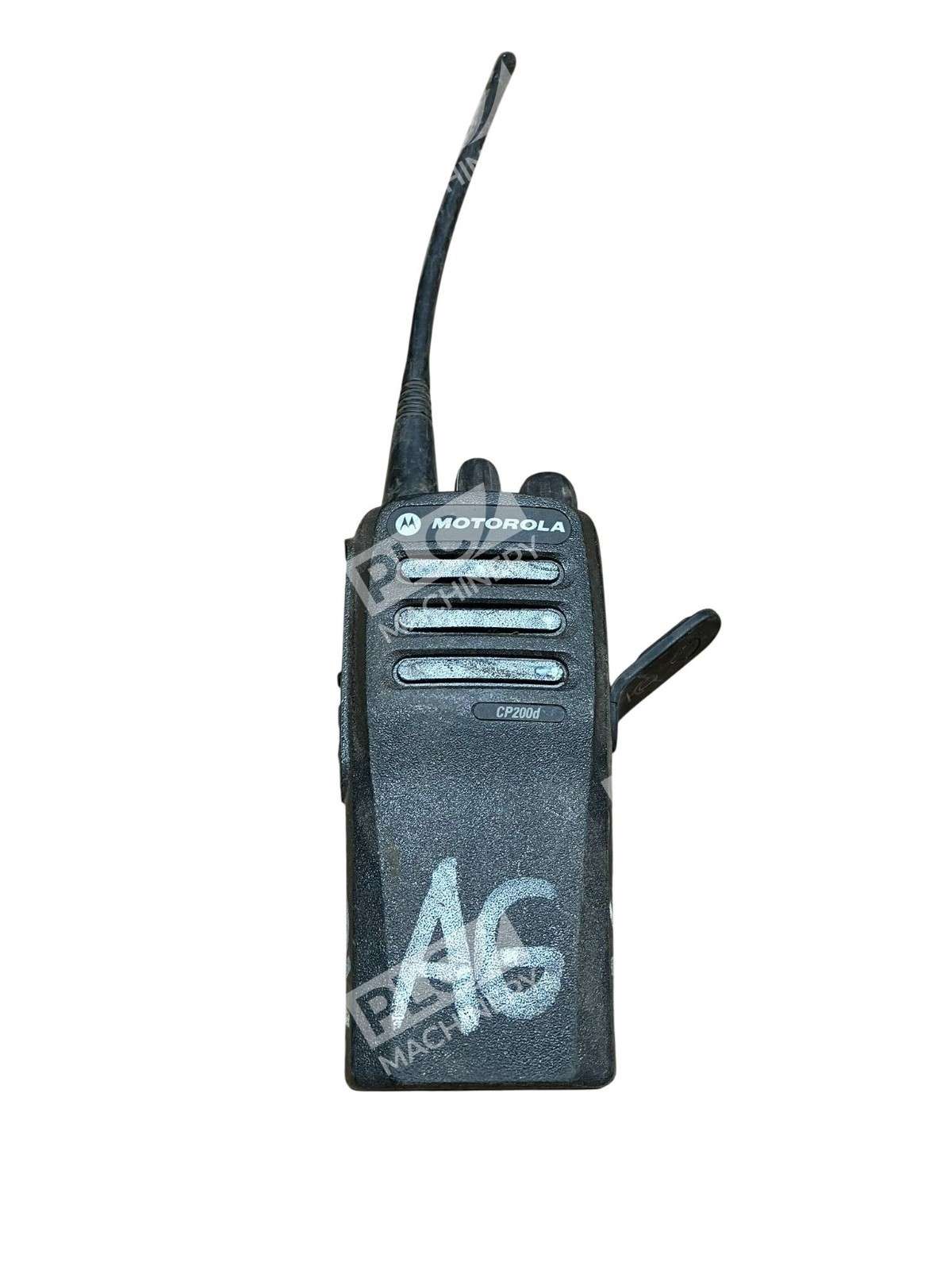

The Motorola CP200d AAH01QDC9JC2AN is a field-proven MOTOTRBO portable radio delivering analog and digital two-way communication for workforce connectivity. This UHF model operates on 403–470 MHz with 4-watt RF power, 16 channels, and 12.5/25 kHz bandwidth capability. The rugged design offers 14–16 hour talk time battery life, greater coverage, and superior audio. Meeting IP54 specifications for dust and water resistance and U.S. Military Standard 810C–G, the CP200d delivers exceptional durability.
Key Features
- Programmable with both analog and digital DMR for interoperability
- 14–16 hour battery runtime and twice the capacity of predecessors
- IP54 rated for dust and water protection
- 2-slot TDMA DMR standard doubles 12.5 kHz channel capacity without repeater requirement
- 2 programmable buttons for rapid access
- Fully compatible with the MOTOTRBO family of radios
Technical Specifications
Frequency band, power, and dimension information verified from manufacturer distributors and specification sheets:
Typical Applications
Key industries include Education, Hospitality, Retail, and Security. The CP200d is suited for construction and security applications. Common use cases include facility management, fleet coordination, warehouse operations, and event security where clear, reliable point-to-point and repeater-based coverage is required.
Compatibility & Replacements
Compatible With
- MOTOTRBO digital ecosystem and repeater systems
- Motorola Radio Management programming software
- UHF 403–470 MHz systems and networks
- DMR (Digital Mobile Radio) conventional and trunked modes
- Standard Motorola accessories (antenna, charger, belt clip)
Replaces / Drop-In Replacement For
- Motorola CP200d UHF Analog (AAH01QDC9JC2AN) — direct same model
- Legacy Motorola CP200 analog-only units (with software upgrade path to digital)
- Alternatives include Motorola CP100D, SL300, and XPR 3300e
Works With
- Motorola CPS (Customer Programming Software)
- Motorola Radio Management tool for batch programming
- DMR and analog conventional modes
- MOTOTRBO Connect Premium dispatch platform
- Standard UHF antenna connectors (PMAE4016 and compatible)
