Overview

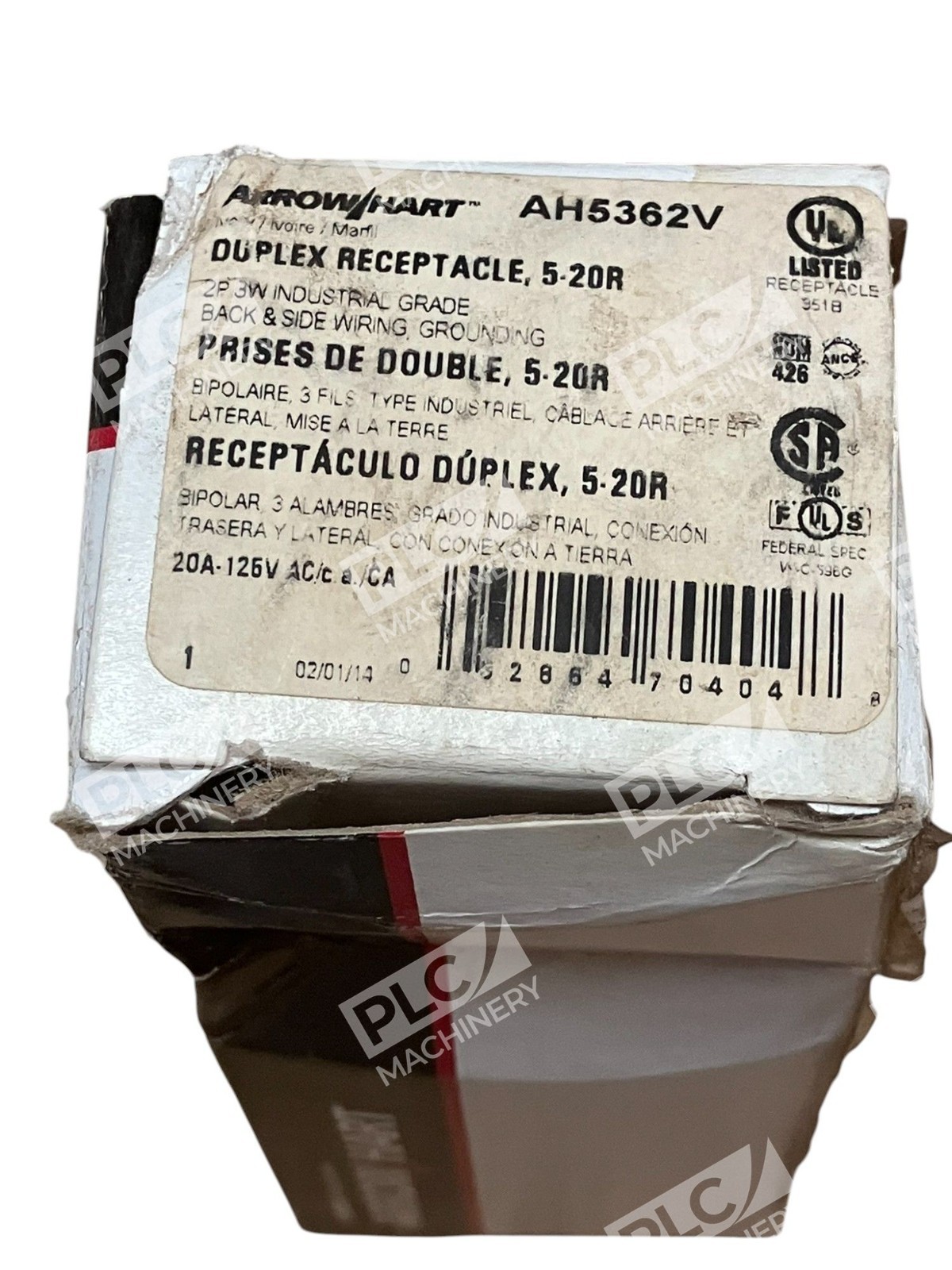

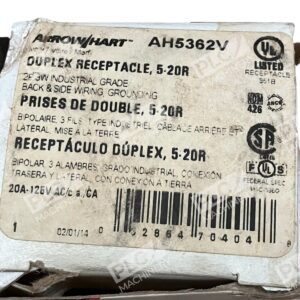

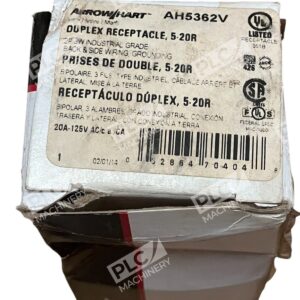

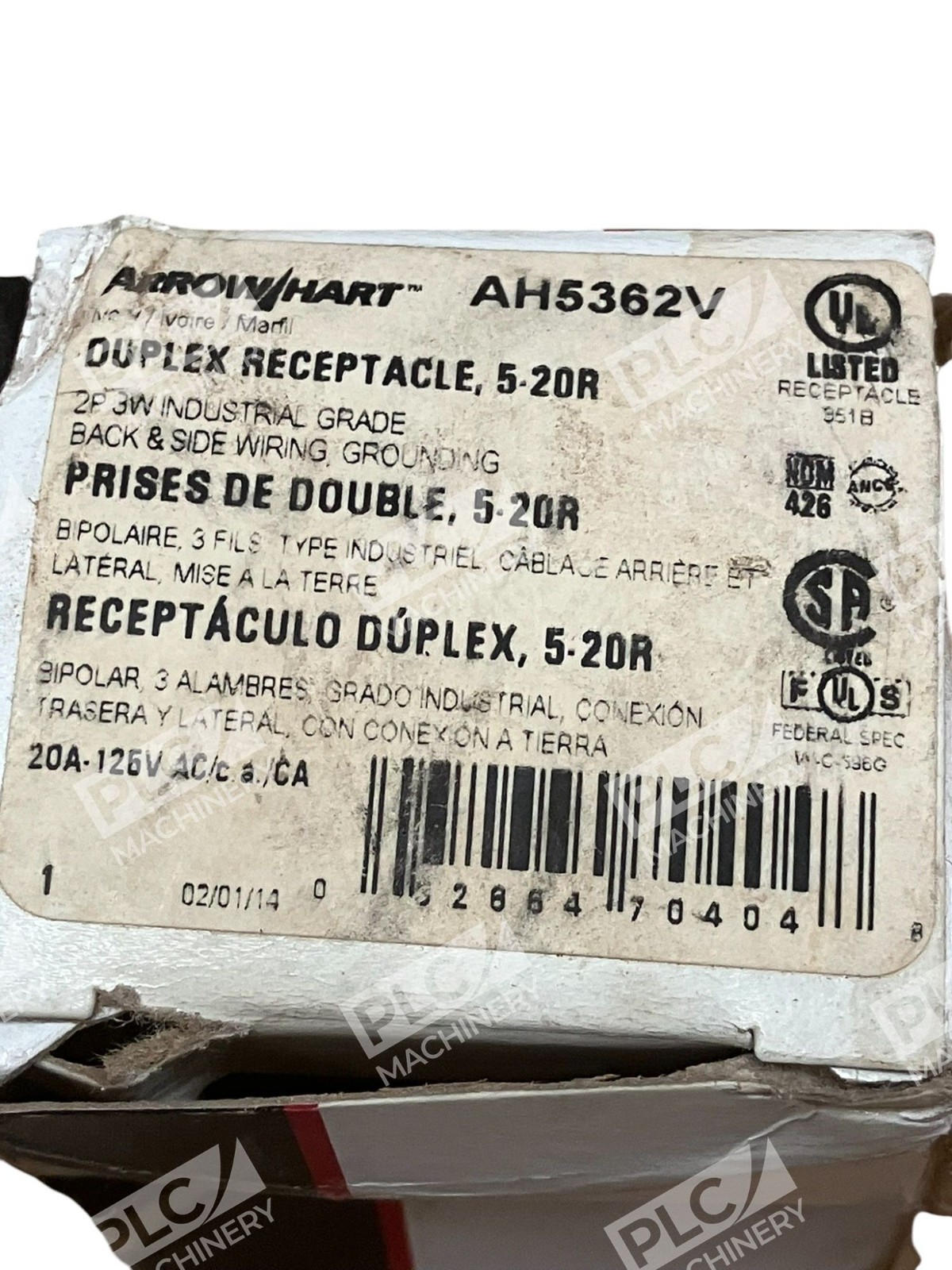

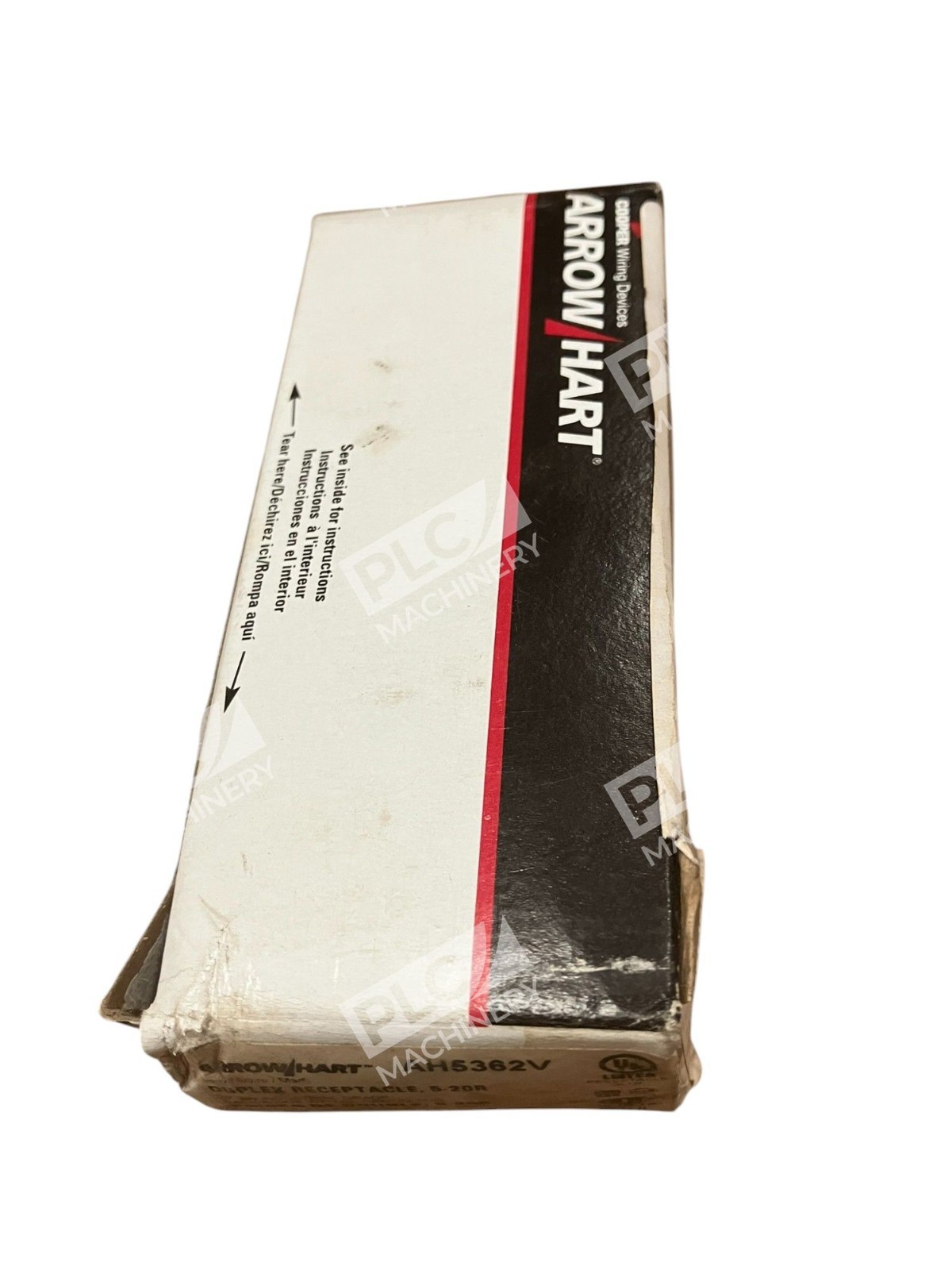

The Cooper AH5362V is a heavy-duty industrial duplex receptacle manufactured by Arrow Hart (Eaton). This 20-amp, 125-volt outlet features a 2-pole, 3-wire design conforming to NEMA 5-20R specifications. With its robust glass-filled nylon construction and brass terminals, the AH5362V delivers reliable performance in demanding electrical environments across industrial, commercial, and construction applications.
Key Features
- Industrial Specification Grade — Built to withstand heavy use in industrial and commercial installations
- Glass-Filled Nylon Construction — Durable nylon face with glass-filled nylon base for enhanced strength and heat resistance
- Flexible Wiring Options — Accepts both back and side wire connections for installation flexibility
- Wide Wire Gauge Range — Accommodates #14–10 AWG solid or stranded copper conductors
- Brass Terminals — Corrosion-resistant brass for secure, long-lasting electrical connections
- Ivory Color — Standard industrial finish
Technical Specifications
- Amperage Rating: 20A
- Voltage Rating: 125V AC
- Configuration: 2-Pole, 3-Wire (2P3W)
- NEMA Standard: NEMA 5-20R
- Wire Gauge: #14–10 AWG (solid or stranded copper)
- Mounting: Flush mount (standard outlet box)
- Terminal Type: Screw terminals (back and side wiring)
- Housing Material: Nylon face, glass-filled nylon base
- Contact Material: Brass
- Color: Ivory
- Grade: Industrial specification
Typical Applications
- Industrial manufacturing and plant facilities
- Commercial office and retail buildings
- Construction sites and temporary power installations
- Maintenance and service areas requiring frequent equipment swaps
- Commercial kitchens and food service operations
- Data centers and telecommunications rooms
- Warehouse and storage facilities
Compatibility & Replacements
Compatible With
- Standard U.S. electrical outlet boxes (2-gang, single-gang cutout configurations)
- 20-amp rated circuit breakers and panelboards
- NEMA 5-20P plugs and power cords rated 20A 125V
- Hardwired and cord-and-plug electrical systems
- Commercial and industrial wiring systems
Replaces / Drop-In Replacement For
- Earlier versions of Arrow Hart AH5362 series receptacles
- Cooper equivalent models in the industrial duplex receptacle line
- Verify specific model compatibility with your distributor or OEM documentation before ordering
Works With
- National Electrical Code (NEC) compliant installations
- Standard U.S. 120V single-phase power systems
- NEMA 5-20P straight-blade plugs and receptacles
- Back-wired or side-wired installation methods
- Industrial electrical systems and plant floors
