Overview
The Cooper OS310U is a wall-mounted occupancy sensor switch designed for automatic control of lighting in commercial and residential applications. Occupancy/Vacancy Sensor Switches use advanced Passive Infrared (PIR) technology to sense the movement of heat-emitting bodies. Occupancy Sensors provide Auto-on/Auto-off or Manual-on/Auto-off operation, making the OS310U ideal for spaces where automatic energy savings are a priority.
Key Features
- Auto-on/Auto-off Operation: The sensors automatically turn lights off after a space becomes vacant and a preset time delay elapses.
- Single-Pole and 3-Way Wiring: Both versions provide single-pole (single-location) and 3-way (multi-location) wiring and work with all lighting load types (INC, MLV, ELV, FLR, CFL, LED).
- LED Nightlight: A selectable and dimmable LED nightlight is provided.
- Ambient Light Override: Selectable ambient light override when there is acceptable natural light.
- Selectable Time Delays: The selectable time delays are 5 seconds (Test Mode), 5 minutes (factory default), 15 minutes and 30 minutes.
Technical Specifications

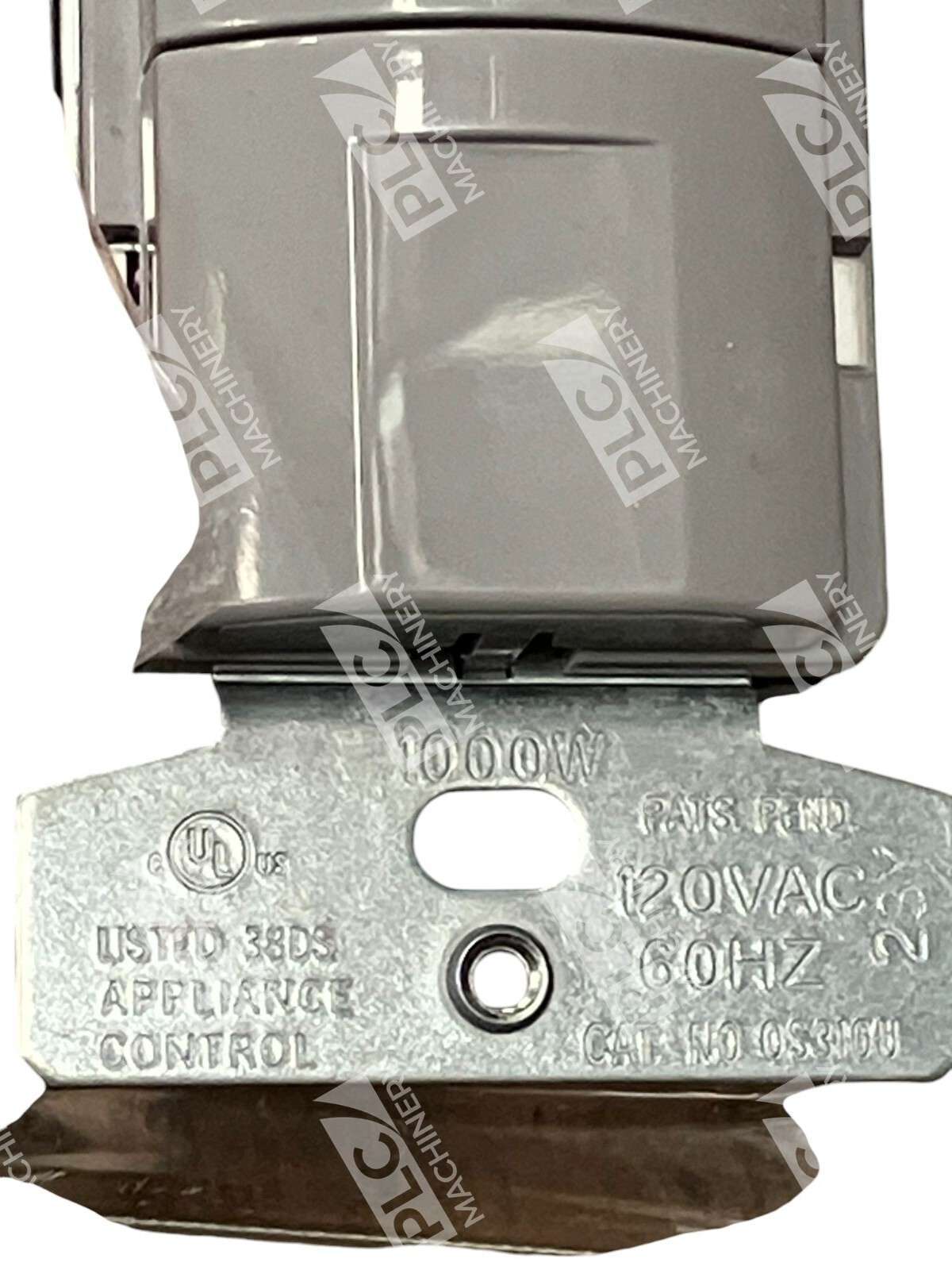

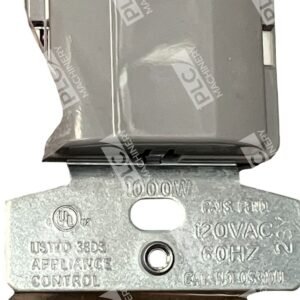

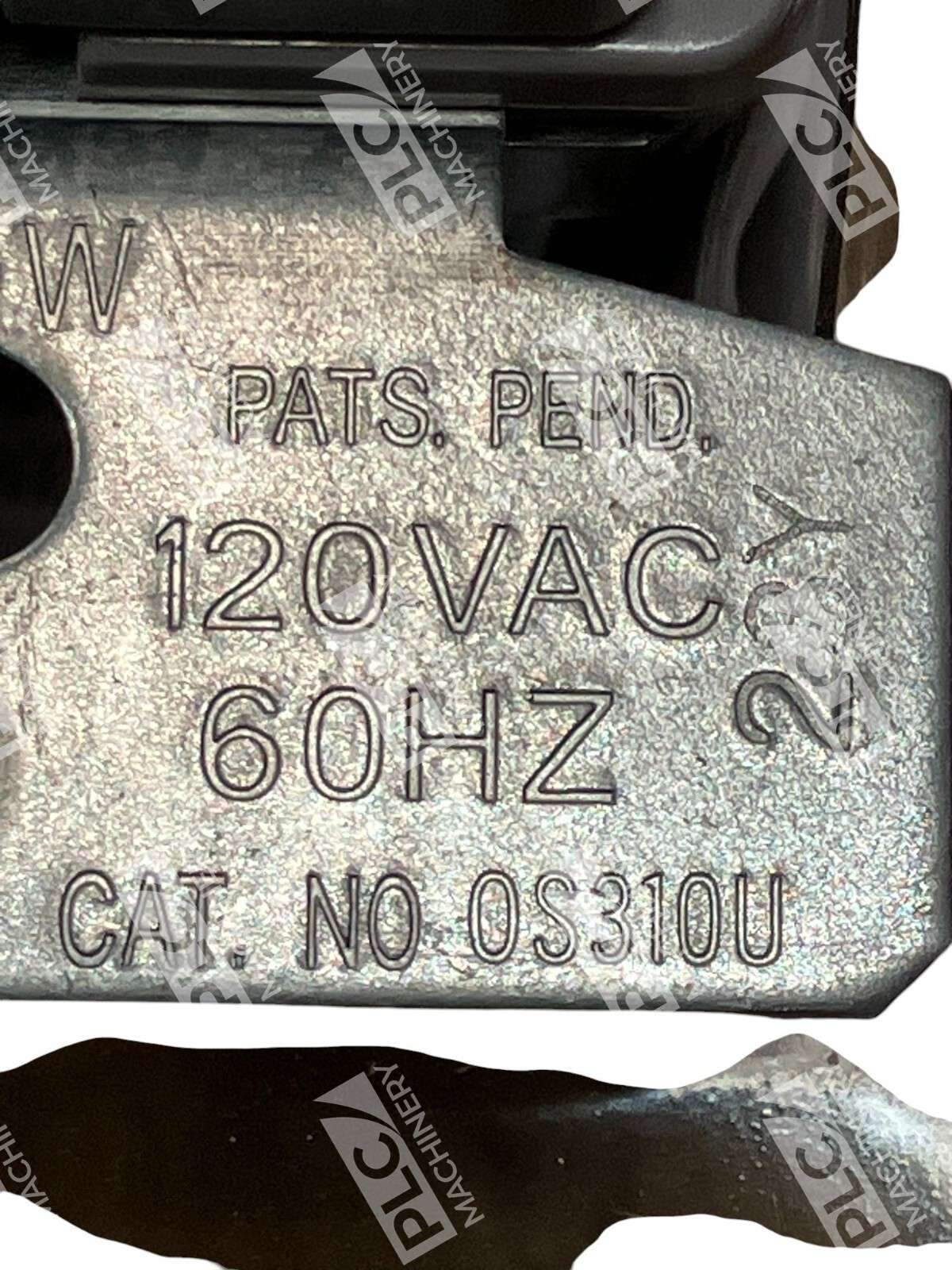

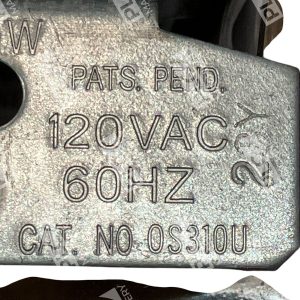

- Voltage/Frequency: 120V AC, 60 Hz
- Load Rating: 1000W (8.3A)
- Sensor Type: Passive Infrared (PIR)
- Wiring Configurations: Single-Pole and 3-Way
- Compatible Load Types: Incandescent, MLV, ELV, Fluorescent, CFL, LED
- Time Delay Options: 5 seconds (test), 5 minutes (default), 15 minutes, 30 minutes
- Nightlight: Selectable ON/OFF with dimming
- Coverage Area: Typically 1000 sq ft
- Finish Options: Available in ivory, white, black, gray, and light almond
- Mounting Type: Wall-mounted, flush installation
- Warranty: 2-year limited warranty
Typical Applications
The Cooper OS310U is commonly used in:
- Office spaces and conference rooms
- Restrooms and storage areas
- Hallways and corridors
- Low-traffic residential rooms
- Energy management and occupancy-based lighting control systems
Compatibility & Replacements
Compatible With
- Standard 120V AC 60Hz electrical systems
- Single-pole light switches and circuits
- 3-way switch configurations
- All common lighting load types: incandescent, halogen, fluorescent, CFL, and LED fixtures
- Dimmable and non-dimmable lighting circuits
Replaces / Drop-In Replacement For
The Cooper OS310U is available in multiple finish variants that are direct replacements for one another in the same electrical installation:
- OS310U-V (ivory)
- OS310U-W (white)
- OS310U-BK (black)
- OS310U-GY (gray)
- OS310U-LA (light almond)
Works With
- Standard wallbox installations (single-gang and multi-gang configurations)
- Wire nuts and standard electrical connections
- Eaton/Cooper electrical wiring infrastructure
- CA Title 24 compliant lighting control applications
- Both maintained-closure and momentary-contact circuits
