Overview

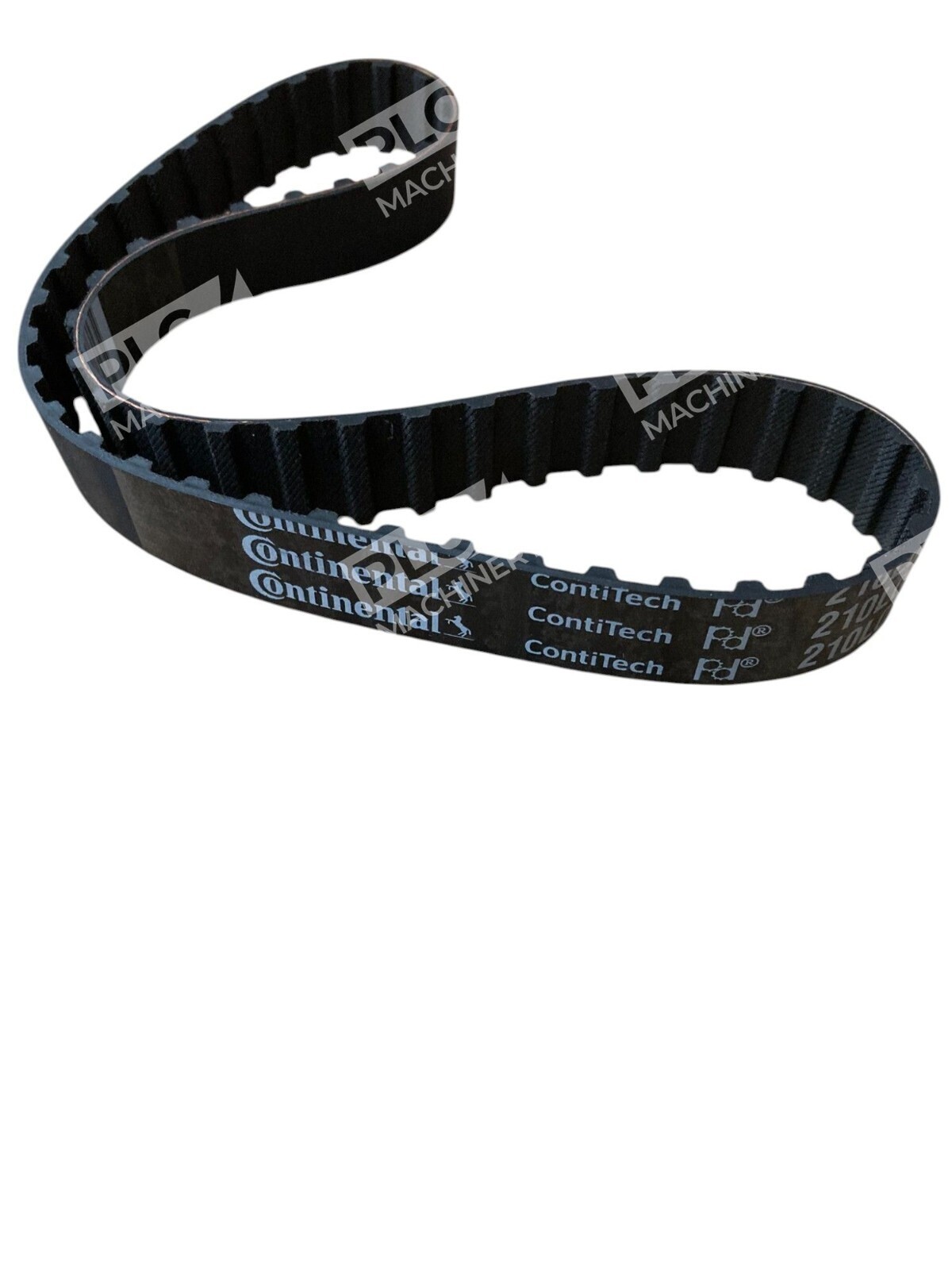

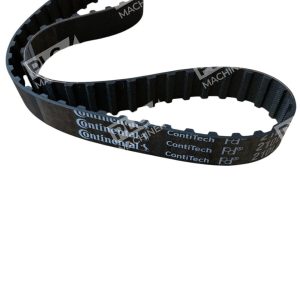

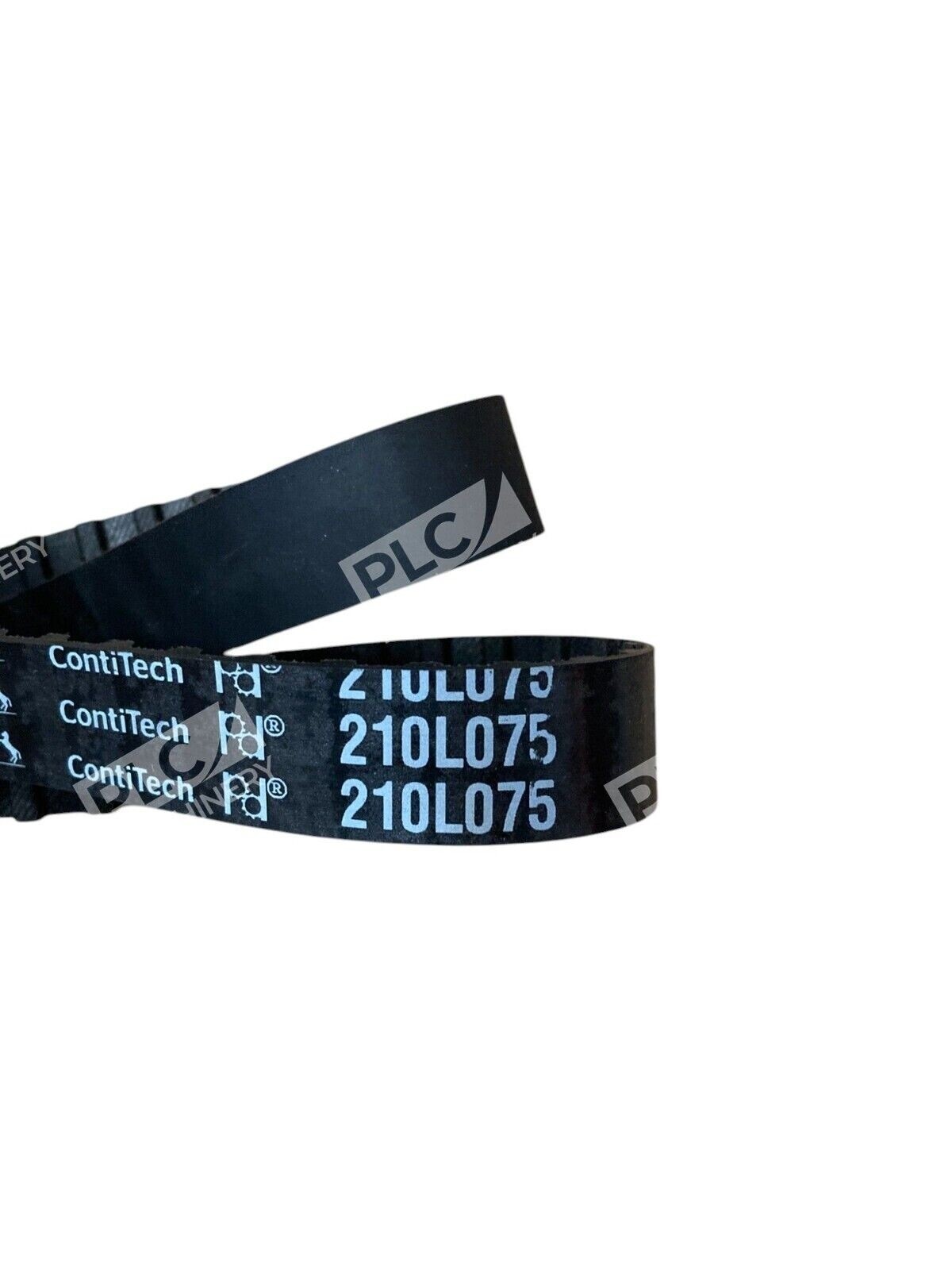

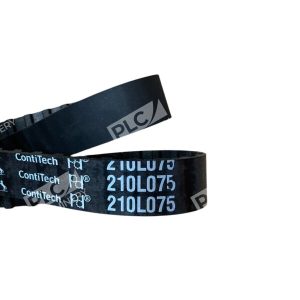

The Continental 210L075 is a premium synchronous timing belt from ContiTech’s Conti Synchroforce line, designed for low and mid-power industrial drive applications. This positive drive timing belt delivers precise synchronization and reliable power transmission across diverse industrial equipment, machinery, and automation systems where dependable belt performance is critical.
Key Features
- Trapezoidal Tooth Profile — ensures secure tooth engagement and minimal slip during operation
- Chloroprene Material — provides durability, wear resistance, and flexibility in demanding environments
- Industrial-Grade Construction — engineered with high-quality polyamide fabric and reinforced tensile members for extended service life
- Temperature Resilience — rated for operation between -20°C and +100°C, accommodating diverse application environments
- Environmental Resistance — exhibits ozone resistance, aging resistance, and moderate oil resistance for tropical and harsh climates
- Reverse Flexing Capability — designed to accommodate reverse tensioning and reversible idler applications
Technical Specifications
- Pitch Length: 21 inches
- Cross-Section Width: 0.75 inches
- Pitch: 0.375 inches (L-section profile)
- Number of Teeth: 56
- Tooth Profile: Trapezoidal
- Material: Chloroprene (elastomer base) with polyamide fabric and fiberglass tensile member reinforcement
- Operating Temperature Range: -20°C to +100°C (-4°F to +212°F)
- Outer Circle Diameter: 21 inches
- Tooth Location: Standard
- Drive Class: Low to mid-power transmission
Typical Applications
The Continental 210L075 timing belt is widely used in:
- Industrial machinery requiring synchronized power transmission and precise timing control
- Conveyor systems, pump drives, and motor-coupled equipment
- Automation and control systems where belt slippage cannot be tolerated
- Equipment operating in temperature-variable or corrosive environments
- Systems requiring reverse flexing or bidirectional operation
- Aftermarket replacement and OEM component applications
Compatibility & Replacements
Compatible With
- Pulleys and sheaves designed for 0.375-inch pitch L-section timing belts
- Industrial drive systems using 0.75-inch width synchronous belt configurations
- Equipment requiring trapezoidal tooth profile engagement
- Systems rated for 56-tooth belt geometries (21-inch pitch length)
Replaces / Drop-In Replacement For
- Browning 210L075
- Dodge 210L075 Dyna synchronous belt
- Jason Industrial 210L075
- Standard 210L075 L-section timing belts from other manufacturers
Works With
- Any L-section (0.375-inch pitch) timing belt drive system
- Trapezoidal tooth profile pulleys and sheaves
- Industrial control and automation platforms requiring synchronized mechanical drive
- OEM and aftermarket timing drive kits incorporating 210L075 belt specifications
