Overview

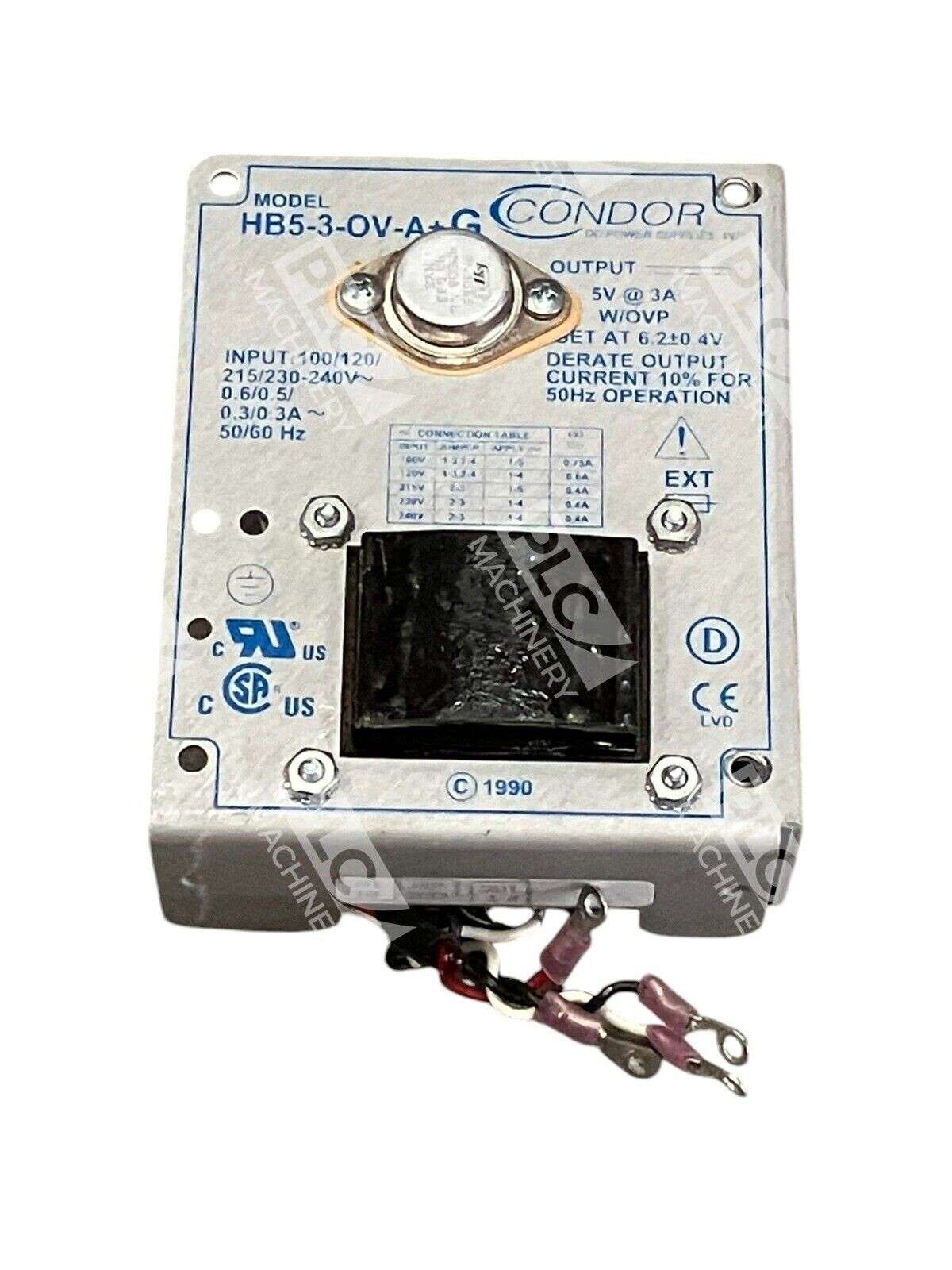

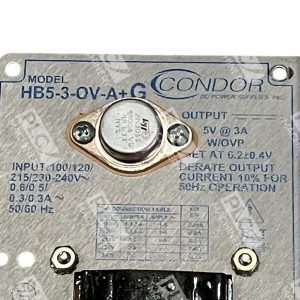

The Condor HB5-3-OV-A+G is a compact linear AC-DC power supply engineered for reliable performance in industrial and commercial equipment. Built by Condor (SL Power / Advanced Energy), this 15W unit converts universal AC input (100–240V worldwide range) to regulated 5V DC at 3A continuous output. The open-frame, panel-mount design meets ITE (Commercial) specifications and is widely used in embedded control systems, instrumentation, and OEM platforms.
Key Features
- Single 5V output, 3A continuous (15W total power)
- Universal 100–240V AC input for worldwide operation
- Linear topology with low noise and minimal ripple
- Adjustable output and remote sense capabilities
- Open-frame, chassis/panel-mount construction
- UL1950, TÃœV, CSA, and VDE/IEC 950 approvals
- Rated for 0–70°C operating temperature
- MTBF >200,000 hours per MIL Handbook 217D
Technical Specifications
- Input Voltage: 100–240V AC (50/60 Hz)
- Output Voltage: 5V DC
- Output Current: 3A continuous
- Power Rating: 15W
- Topology: Linear
- Efficiency: ~45%
- Isolation: 3 kV (transformer isolated)
- Number of Outputs: 1
- Operating Temperature: 0–70°C (with derating)
- Dimensions: 4.88″ L × 4.00″ W × 1.63″ H (124.0 mm × 101.6 mm × 41.4 mm)
- Mounting Type: Chassis mount / Panel mount
- Case Style: Open frame, Type B
- Certifications: UL1950, TÃœV, CSA, VDE/IEC 950
Typical Applications
The Condor HB5-3-OV-A+G is suitable for:
- Industrial control panels and PLC power distribution
- Embedded instrumentation and test equipment
- OEM equipment requiring compact regulated DC supplies
- Commercial / ITE applications (medical, networking, telecom)
- Laboratory and bench-top power requirements
Compatibility & Replacements
Compatible With
- Standard 19″ industrial DIN rail enclosures (panel-mount orientation)
- Any system requiring isolated 5V DC, up to 3A load
- Equipment rated for 100–240V AC main power input
- Industrial control systems using low-voltage digital logic (TTL, CMOS)
Replaces / Drop-In Replacement For
- HB5-3-OV-A (base model without +G suffix)
- HB5-3/OVP-A+ (alternative variant)
- Other Condor HB5 series 5V/3A units with compatible footprint
Works With
- Universal AC mains (100–240V, 50/60 Hz)
- Standard IEC 60320 C14 AC input connectors
- Industrial power distribution standards (IEC, CSA, UL)
- Isolated DC systems requiring low-ripple 5V rails
