Overview

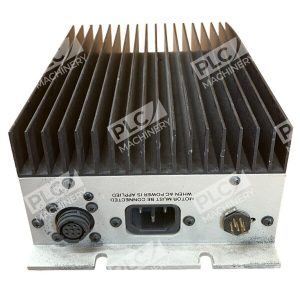

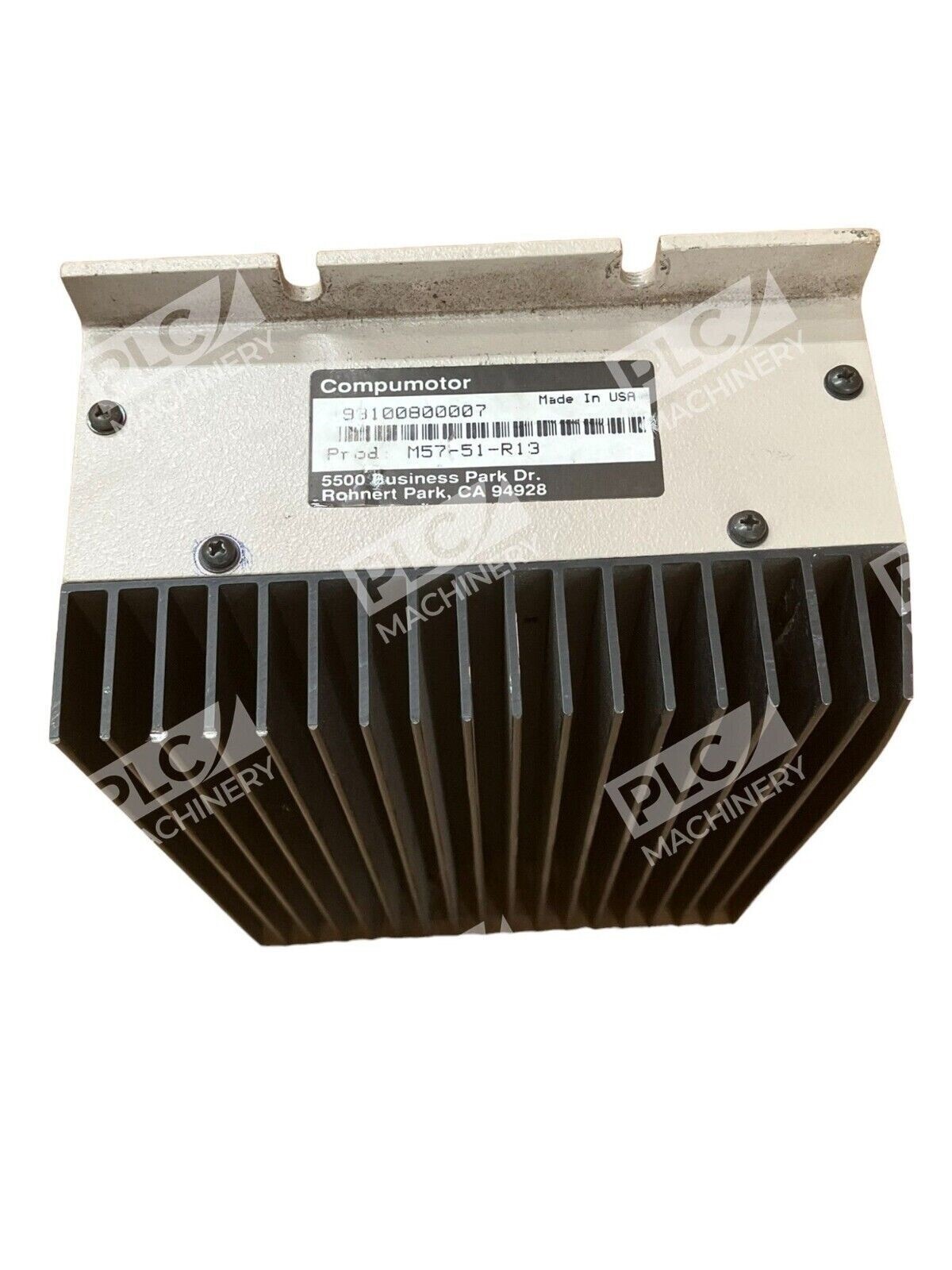

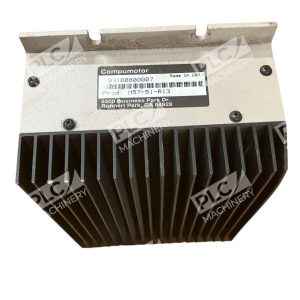

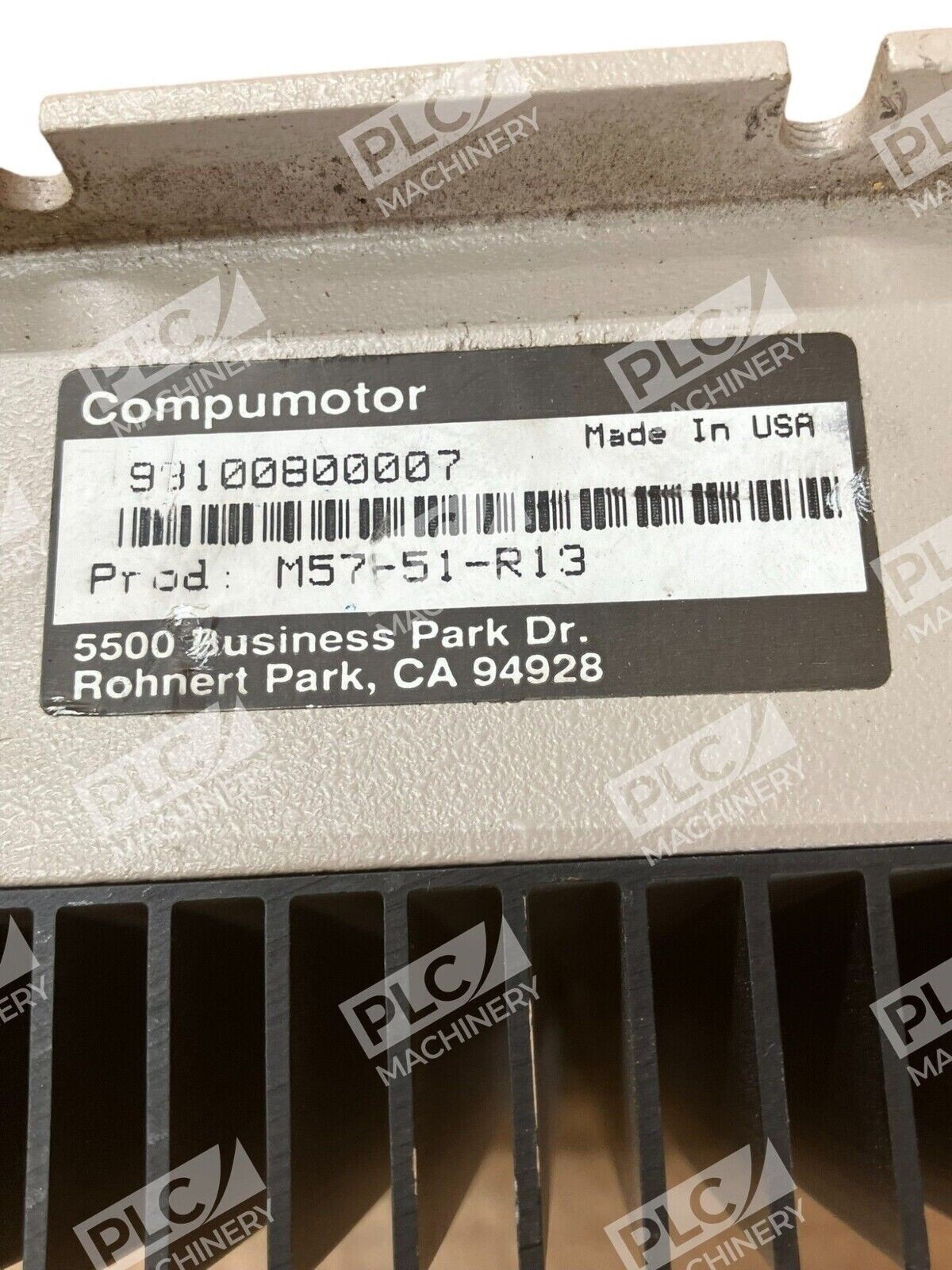

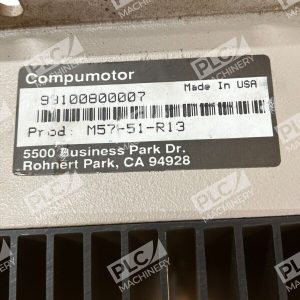

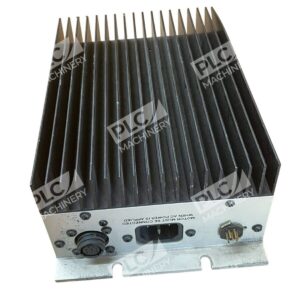

The Compumotor M57-51-R13 is a servo amplifier and motor drive from Parker Compumotor’s M57 series. It provides digitally-controlled proportioning for precise motor control in motion-critical applications. This unit combines hybrid permanent magnet stepper motor technology with a 20 kHz bi-polar chopper power amplifier to deliver stable torque output across variable speeds.
Key Features
- Digital current proportioning for smooth torque delivery at low speeds
- Wave-shaping circuitry compensates for mechanical and electrical imbalances
- Open-loop operation with repeatability and accuracy
- Compact form factor suitable for OEM and retrofit installations
- Robust hybrid servo technology for reliable industrial use
Technical Specifications
- Input Voltage: 120 VAC
- Series: M57 (57 mm frame, 51 mm length)
- Motor Type: Hybrid permanent magnet stepper motor
- Drive Technology: 20 kHz bi-polar chopper amplifier
- Control Method: Digital proportioning current
- Static Torque: 40 oz-in
- Maximum Driver Current: 0.8 A
- Frame Size: NEMA 23 (57 mm)
Typical Applications
- CNC machinery positioning and control
- Precision XY axis tables and stages
- Industrial motion control systems
- Automated assembly equipment
- Laboratory and test equipment motion systems
- OEM motion control retrofits
Compatibility & Replacements
Compatible With
- Parker Compumotor M57 series motors
- NEMA 23 (57 mm frame) hybrid stepper motors
- 120 VAC single-phase power supplies
- Standard motion control PLC and motion controller interfaces
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. M57-51 variants in the Parker Compumotor product family may share common mounting and pinouts, but the exact R13 configuration requires confirmation of your existing motor and control interface.
Works With
- Parker motion control software and programming tools
- Standard stepper motor control protocols
- 120 VAC industrial power systems
- Pulse-direction and parallel interface control methods
