Overview

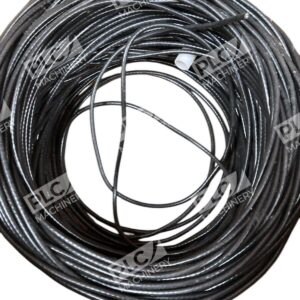

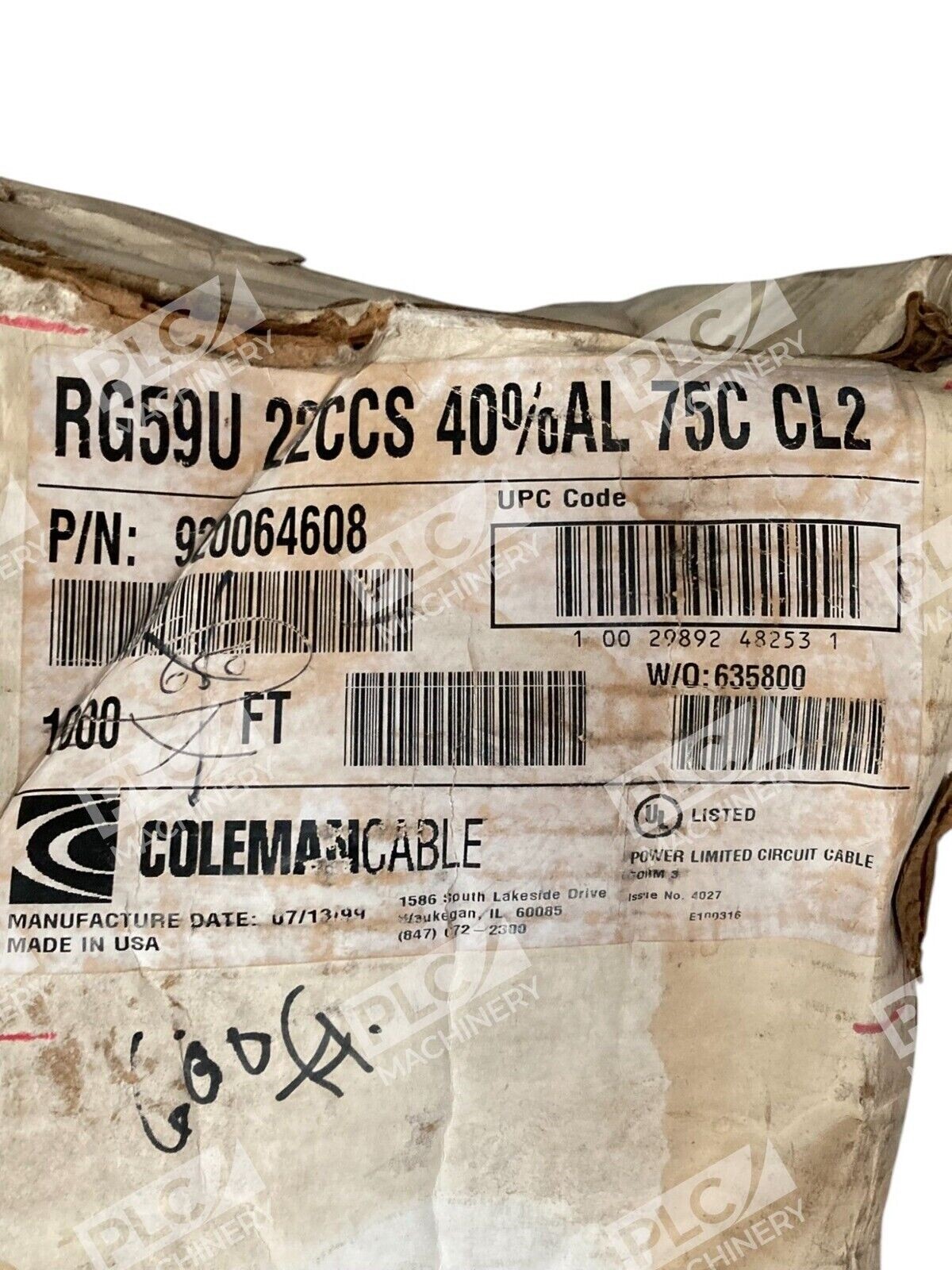

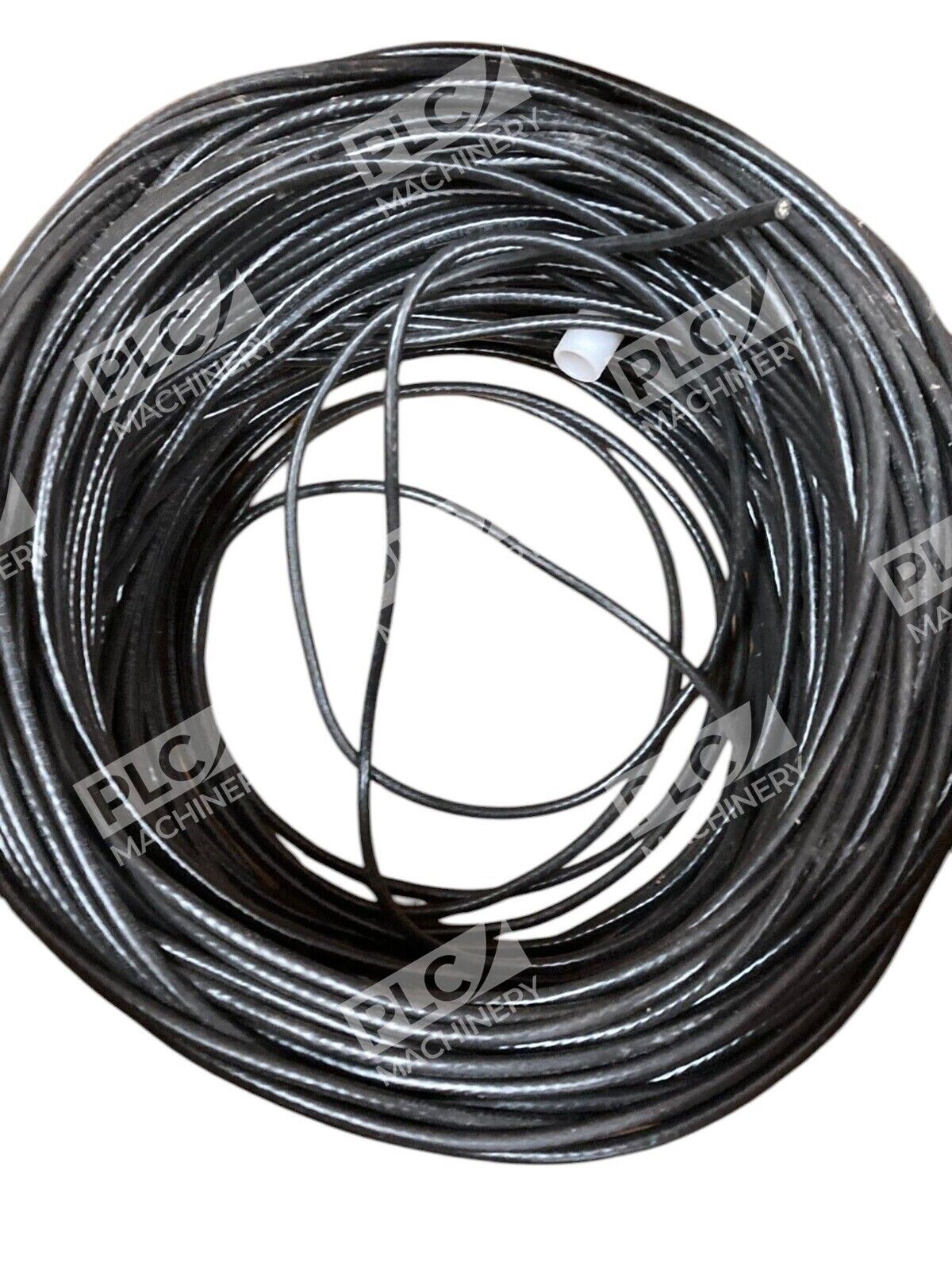

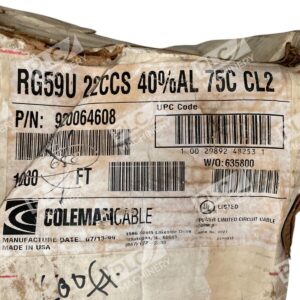

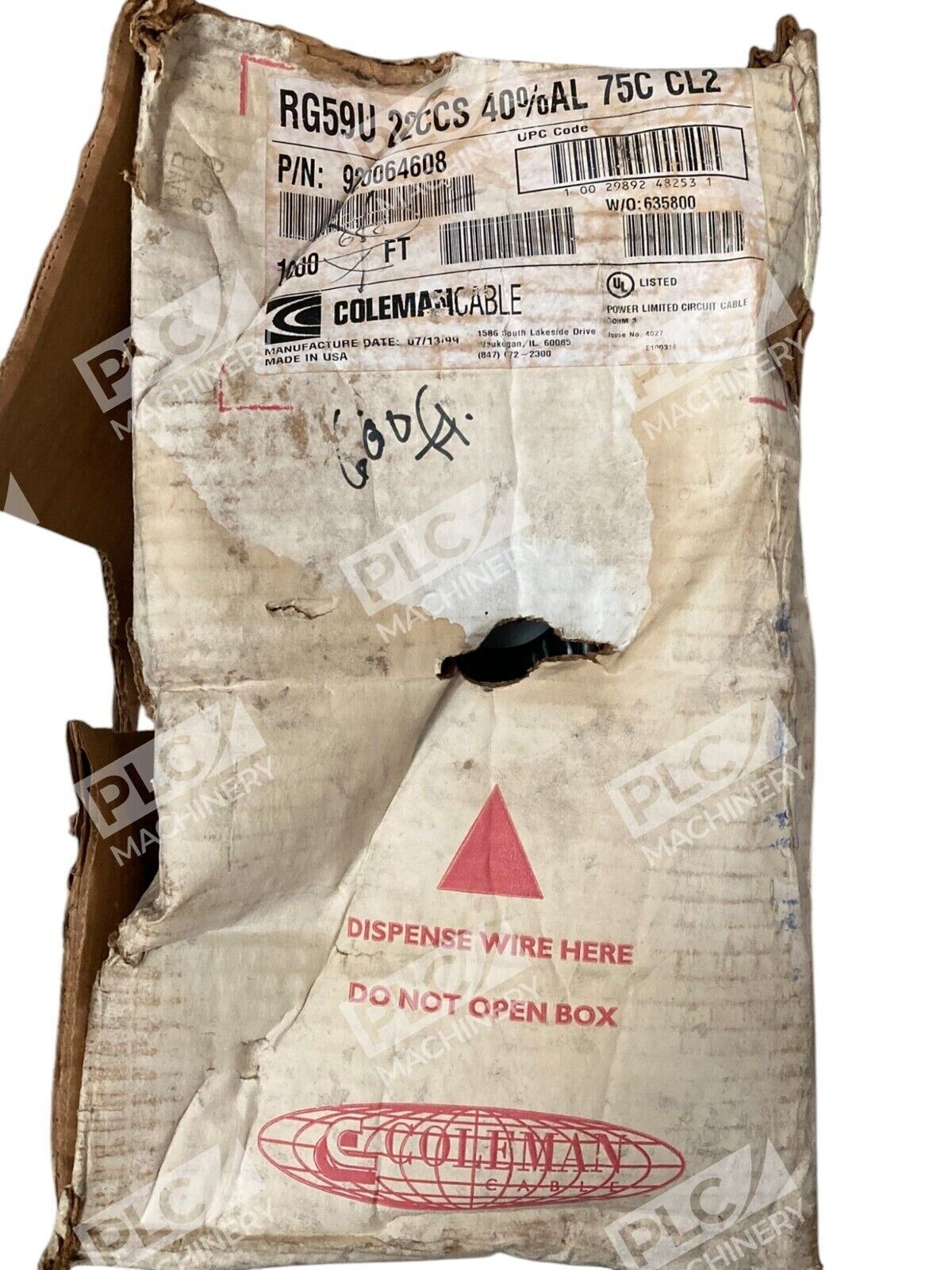

The Coleman 920064608 RG59/U coaxial cable is engineered for dependable audio and video signal transmission across professional installation environments. This 600-foot spool features industry-standard RG59/U construction with 22 AWG copper-clad steel center conductor, foam polyethylene dielectric, and bonded aluminum/polyester/aluminum tape plus 40% aluminum braid shielding. The PVC white jacket provides durability and a professional appearance while meeting CL2 75C fire-rating requirements for both residential and commercial installations.
Key Features
- 22 AWG (1/0.025) copper-clad steel center conductor for reliable current-carrying capacity
- Bonded aluminum/polyester/aluminum tape plus 40% aluminum braid shielding minimizes signal interference and EMI
- Foam polyethylene dielectric maintains consistent impedance and signal quality
- White PVC jacket offers durability and professional installation appearance
- CL2 75C fire rating suitable for in-wall residential and commercial AV applications
- 600-foot spool reduces installation complexity on larger projects
Technical Specifications
The following specifications ensure this cable meets RG59/U standards for standard-definition video, CATV, and low-frequency audio applications:
- Center Conductor: 22 AWG (1/0.025) copper-clad steel
- Dielectric: Foam polyethylene, natural
- Shielding: Bonded aluminum/polyester/aluminum tape plus 40% aluminum braid
- Jacket: PVC, white
- Length: 600 feet per spool
- Fire Rating: CL2 (UL-rated for use in residential dwellings)
- Temperature Rating: 75°C
- Impedance: 75 ohms (RG59/U standard)
Typical Applications
The Coleman 920064608 is suitable for:
- Cable television (CATV) headend and distribution systems
- Analog video interconnects (composite video, CVBS)
- Commercial security camera installations
- Residential AV system installations
- Test and measurement equipment connections
- General-purpose low-frequency audio and control signal routing
Compatibility & Replacements
Compatible With
- Standard 75-ohm coaxial connectors (BNC, RCA, F-type)
- CATV distribution systems
- Video surveillance equipment
- Analog audio and video mixers
- Standard AV receiver and amplifier inputs
- Cable television set-top boxes
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering for specific legacy cable models.
Works With
- 75-ohm BNC connectors
- RCA coaxial connectors
- F-type connectors
- Standard analog video equipment
- CATV infrastructure
