Overview

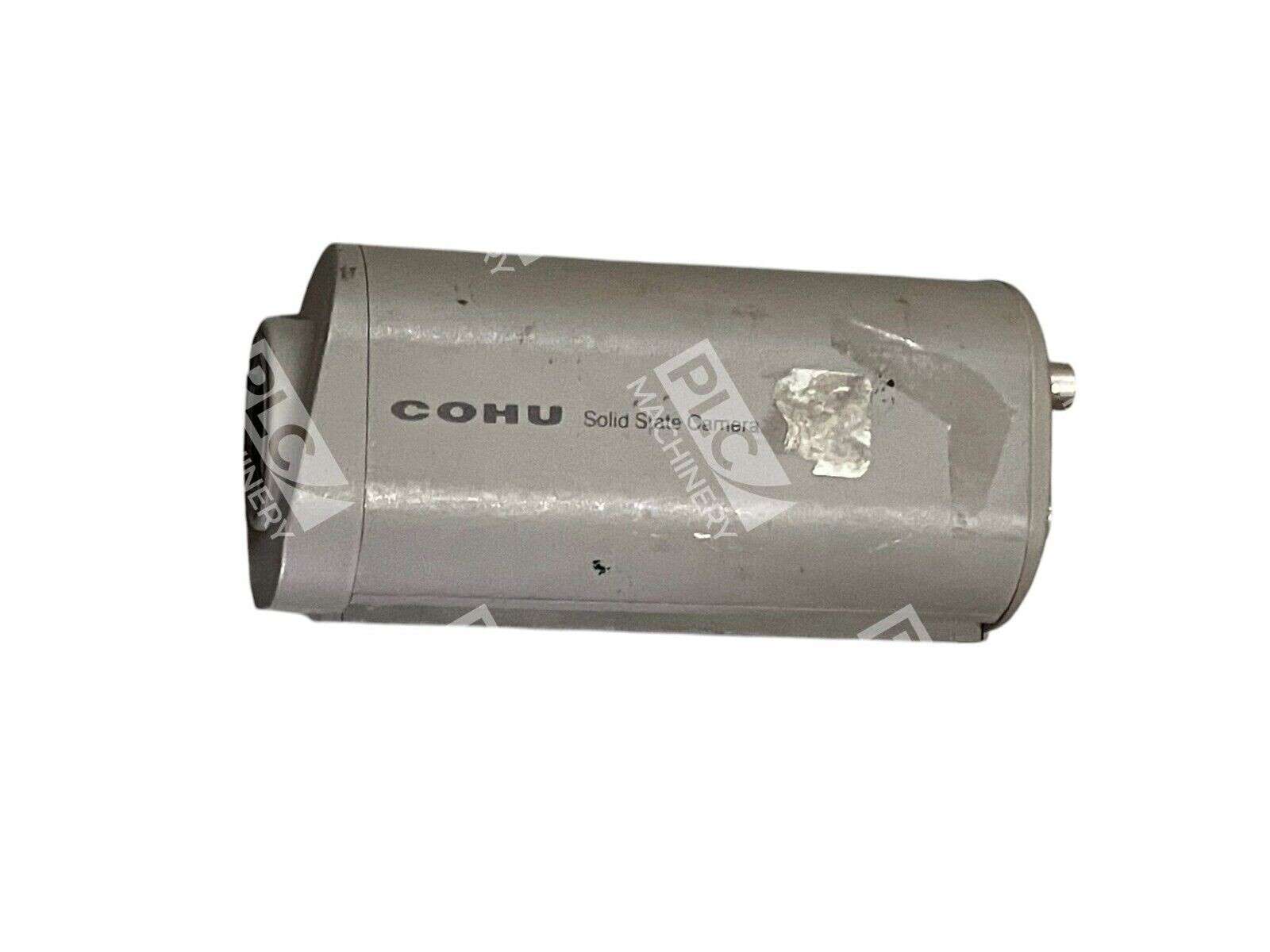

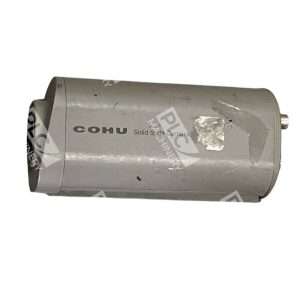

The Cohu 4815-2000/AL50 is a solid state monochrome CCD camera engineered for demanding industrial surveillance and imaging tasks. Operating at 12VAC/DC, 60Hz with a low 4.2W power draw, this frame transfer CCD design delivers high resolution, blemish-free imagery with superior signal-to-noise characteristics and extended UV/near-IR response. Cohu’s 4815 series cameras are recognized throughout the industry for solid construction, high sensitivity, and reliability in machine vision, scientific imaging, and security applications.
Key Features
- Frame transfer CCD technology for high-resolution, blemish-free monochrome imaging
- 12VAC/DC, 60Hz operation with minimal 4.2W power consumption
- Extended UV and near-infrared response for versatile lighting conditions
- High signal-to-noise ratio and superior light sensitivity
- Solid construction and proven reliability in industrial environments
- Compact solid state design—no moving parts or vidicon tube degradation
Technical Specifications

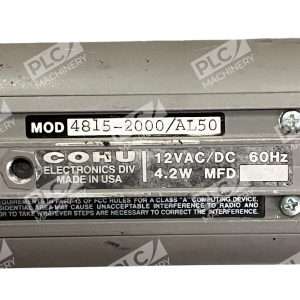

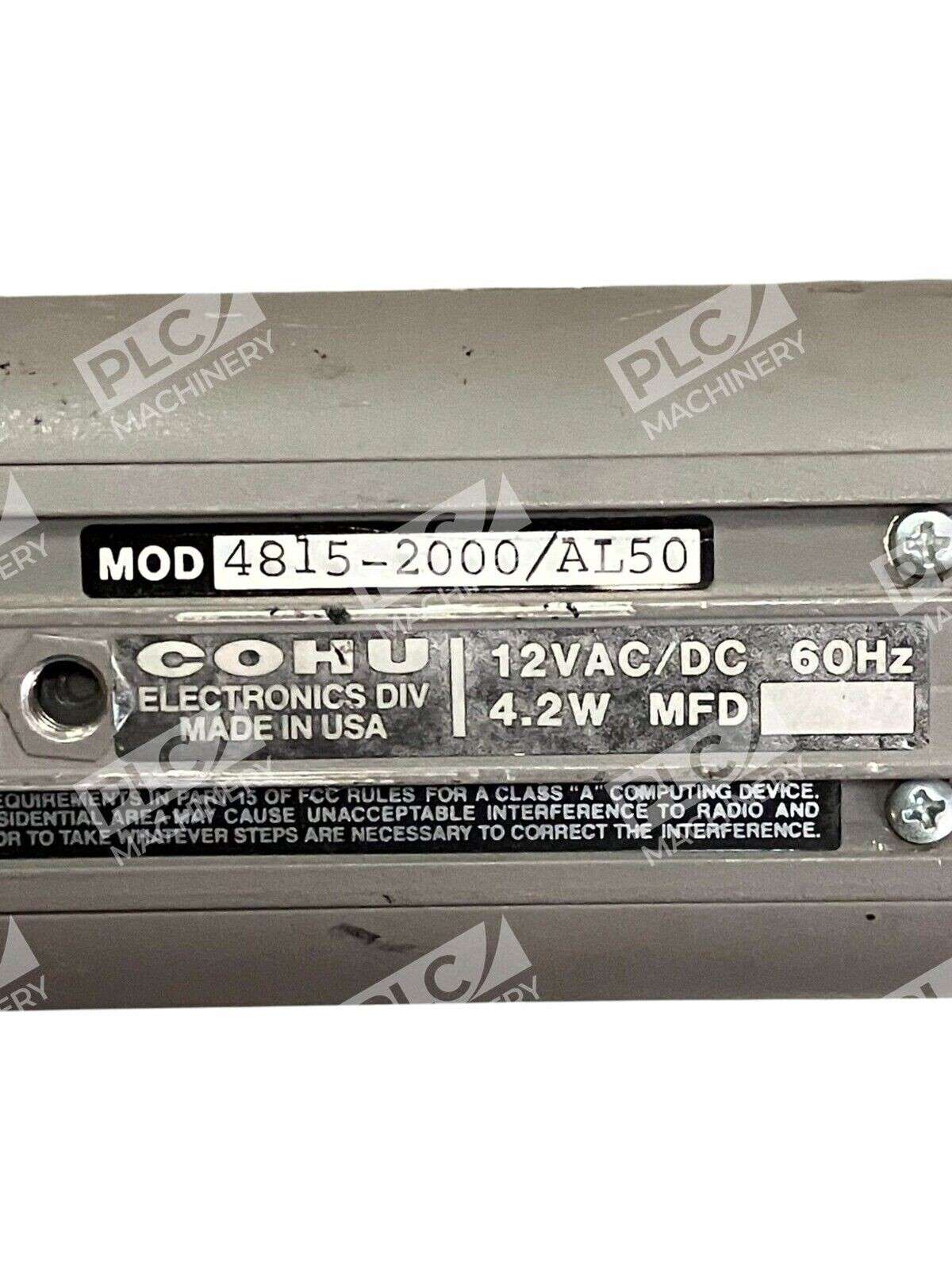

- Part Number: 4815-2000/AL50
- Manufacturer: Cohu, Inc.
- Camera Type: Monochrome Frame Transfer CCD
- Power Input: 12VAC or 12VDC
- Frequency: 60Hz
- Power Consumption: 4.2W
- Video Output: Composite (NTSC compatible)
- Sensor Technology: Solid State CCD (no tube degradation)
- Manufacturing Origin: United States
- Certification: ISO-9001 (Cohu manufacturing standard)
Typical Applications
- Industrial machine vision and quality control inspection
- Scientific research and laboratory imaging
- Legacy surveillance and monitoring system retrofit
- Medical microscopy and document imaging
- Automated systems where low power consumption is critical
- UV and near-IR sensitive imaging tasks
Compatibility & Replacements
Compatible With
- Standard composite video monitors and frame grabbers
- NTSC video display systems
- 12VAC or 12VDC regulated power supplies
- Any surveillance or imaging system accepting composite video input
Replaces / Drop-In Replacement For
The Cohu 4815-2000 is part of the 4815 series family. Related models in this series include 4815-5000 and 4815-2100 variants. For exact interchangeability, verify lens and connector specifications with your system integrator before ordering.
Works With
- Composite video capture boards and frame grabbers
- Legacy CCTV and surveillance systems
- 12V DC regulated power supplies (or 12VAC with internal bridge rectification)
- Standard BNC, RCA, or industrial camera connectors
