Overview

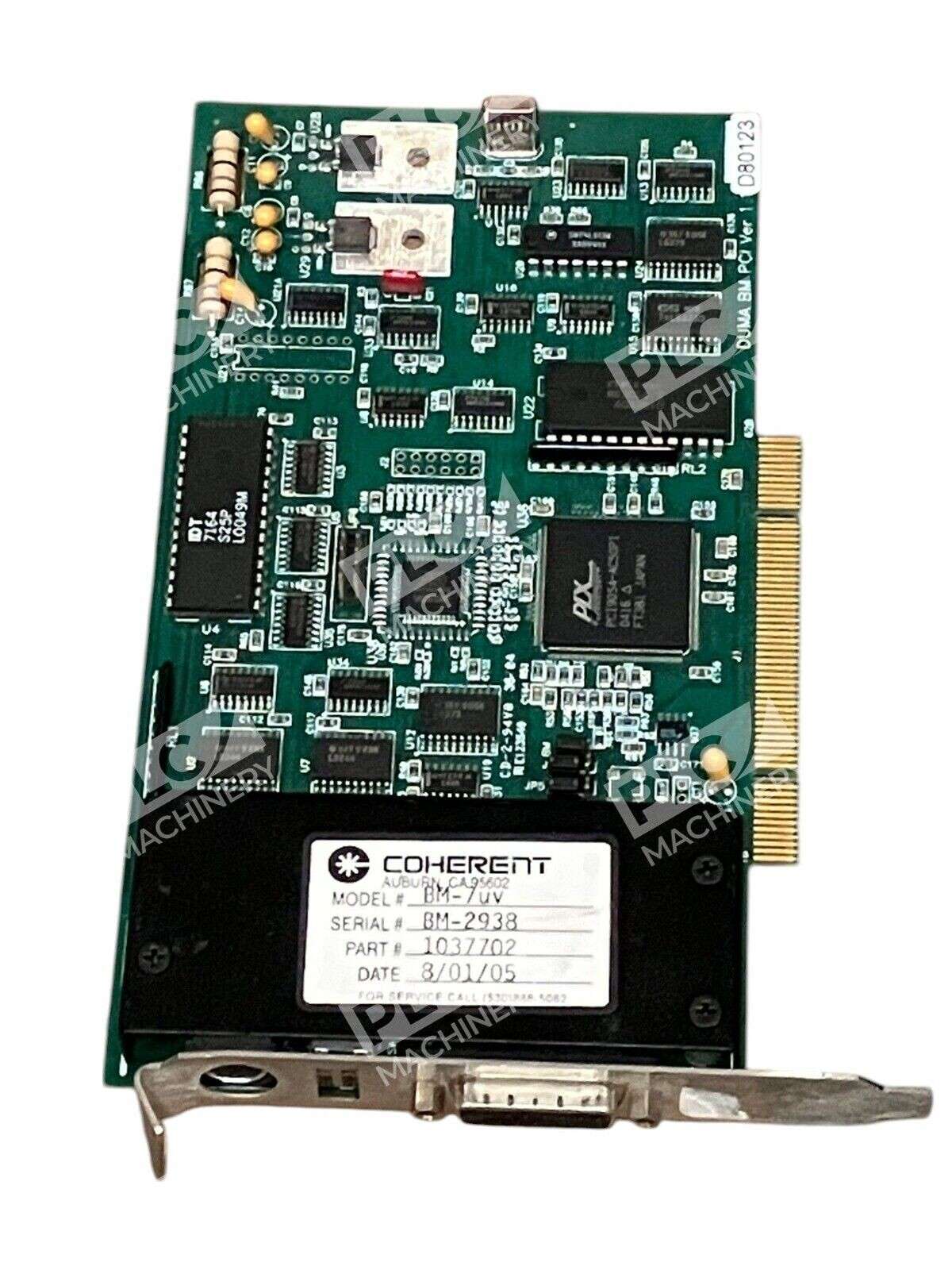

The Coherent 1037702 BM-7uv PCB card is a circuit board component designed for Coherent’s BeamMaster-USB beam profiler systems, specifically the UV-capable BM-7 model. This printed circuit board (PCB) handles control and signal processing functions within the beam measurement and diagnostic framework. The BM-7uv system is engineered to profile UV laser beams down to 15 micrometers using a 9 mm square aperture with enhanced silicon detection across the 190–1100 nm spectral range.
Key Features
- OEM PCB component for BeamMaster-USB BM-7uv beam profiler
- Supports UV laser measurement and beam diagnostics
- Compatible with Coherent’s laser measurement instrumentation
- Tested used condition; fully functional
- Direct replacement for original equipment assemblies
Technical Specifications
Product Type: Printed Circuit Board (PCB) Card
Model: BM-7uv

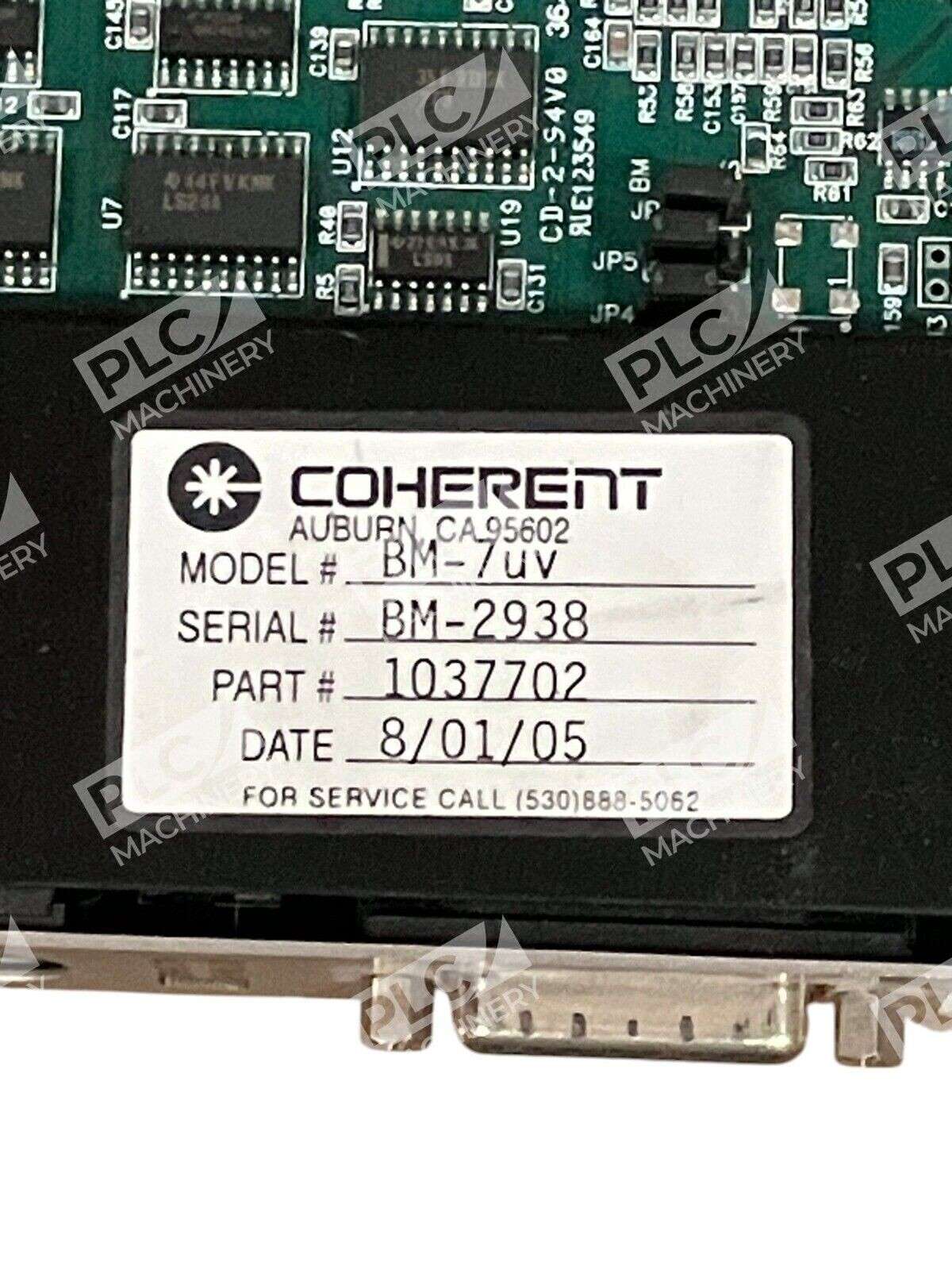

Part Number: 1037702
Manufacturer: Coherent
Condition: Used
System: BeamMaster-USB Beam Profiler
Application: UV laser measurement and beam diagnostics
Spectral Range: 190–1100 nm (with enhanced silicon detector)
Beam Resolution: Down to 15 µm
Typical Applications
- Laser research and development (R&D) laboratories
- Industrial laser system characterization and quality control
- Beam diagnostic and profiling in UV wavelength ranges
- OEM equipment repair and refurbishment
- Instrumentation and measurement system upgrades
Compatibility & Replacements
Compatible With
- Coherent BeamMaster-USB BM-7 (UV) system
- Coherent laser measurement and beam diagnostic instruments
- OEM assemblies using BM-7uv control modules
Replaces / Drop-In Replacement For
This Coherent 1037702 PCB card is the OEM component for BeamMaster-USB BM-7uv systems. Verify compatibility with your original equipment documentation before ordering.
Works With
- Coherent BeamMaster-USB software and firmware
- USB-based laser measurement and data acquisition interfaces
- Standard laboratory instrumentation platforms supporting beam profiling
