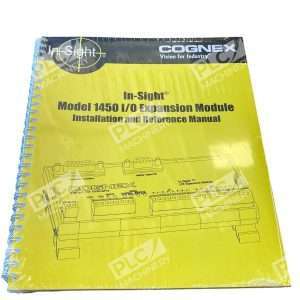

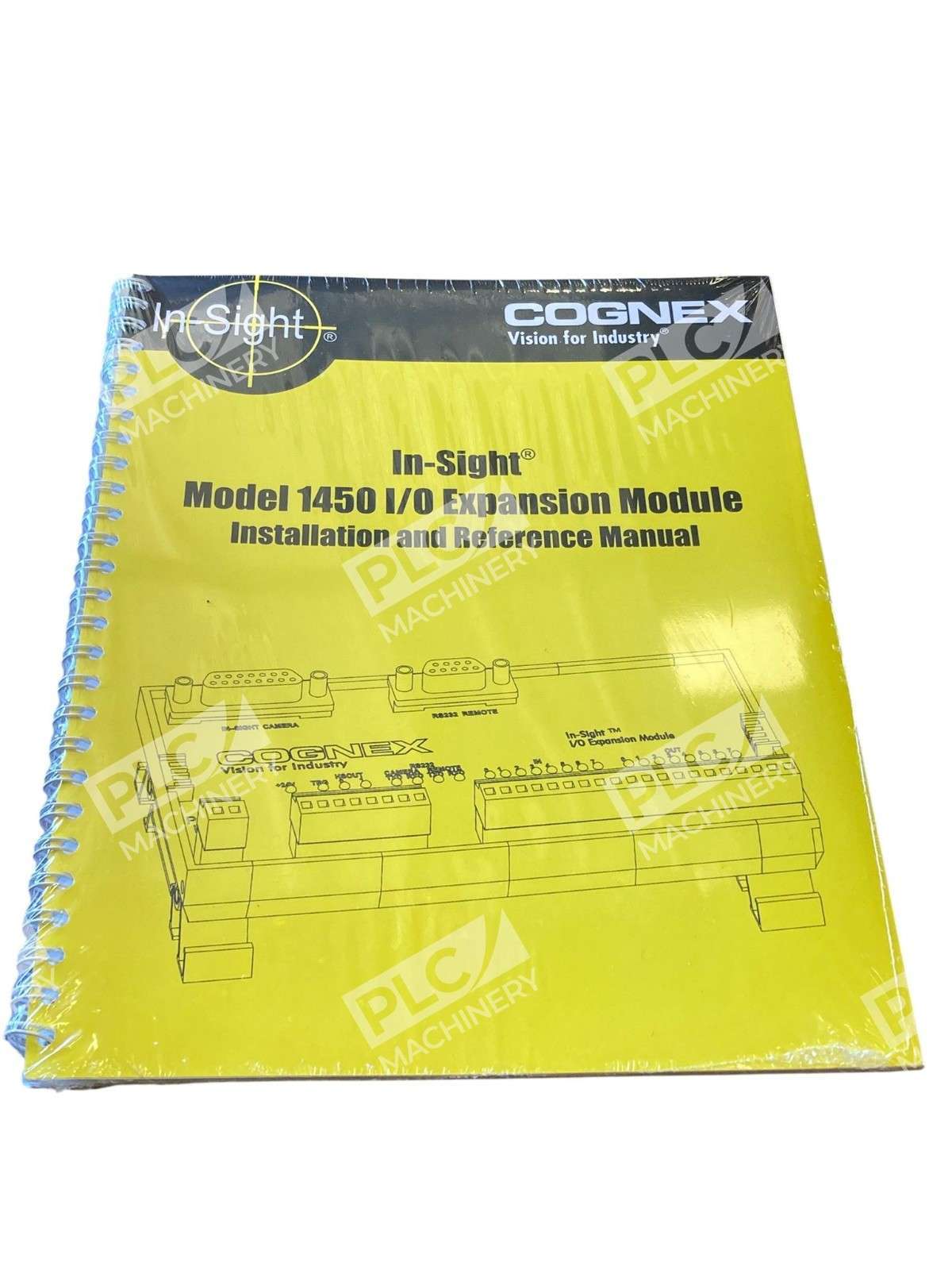

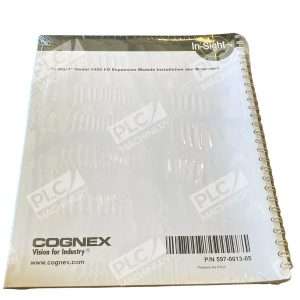

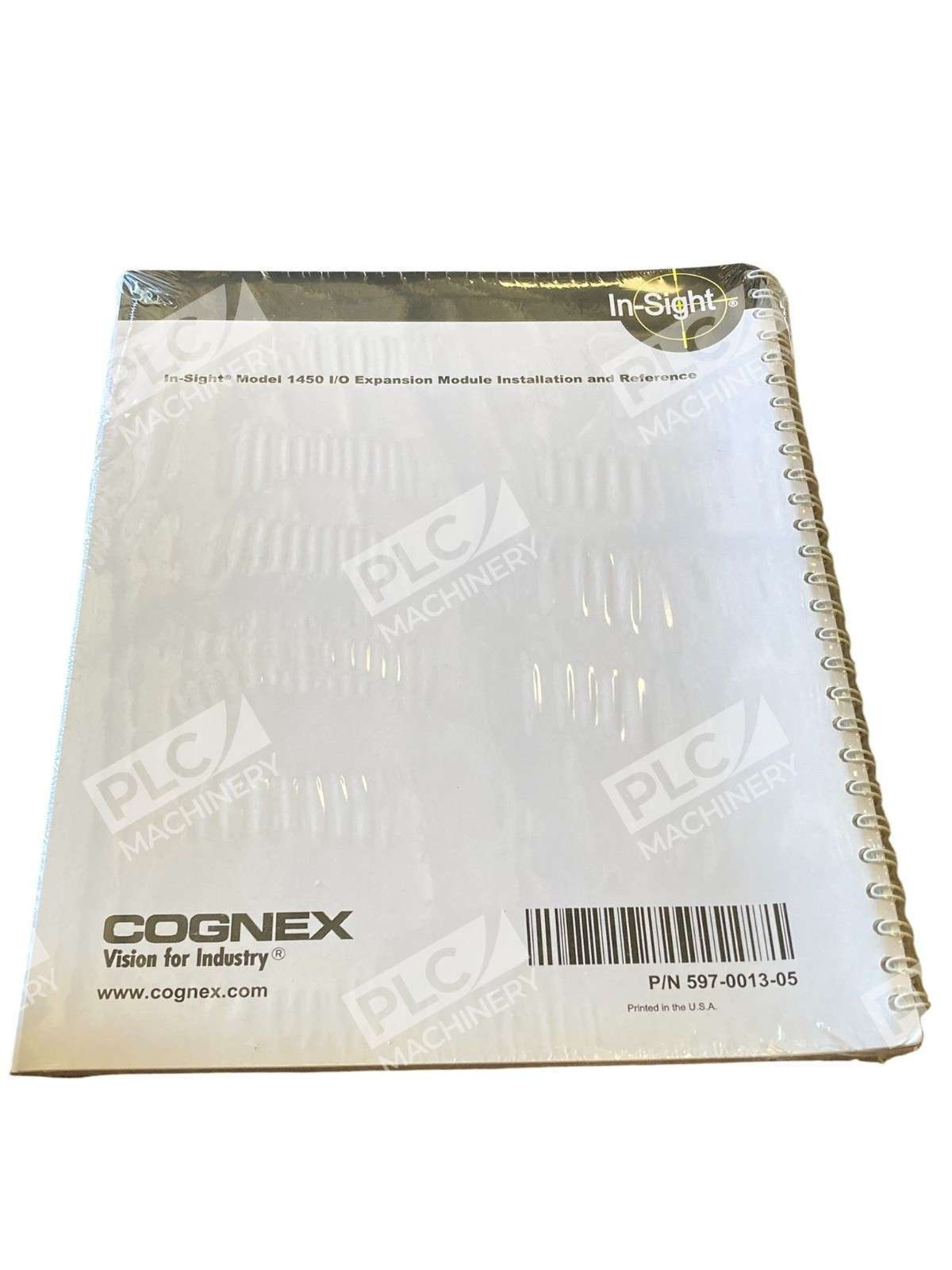

Cognex In-Sight Model 1450 I/O Expansion Module Installation / Reference Manual
The Cognex In-Sight Model 1450 I/O Expansion Module Installation and Reference Manual is a comprehensive guide designed to assist users in the setup, configuration, and operation of the Model 1450 I/O Expansion Module. This module enhances the functionality of In-Sight vision systems by providing additional discrete input and output capabilities, facilitating more complex automation tasks.
Key Features
- Expanded I/O Capacity: The module offers eight independent discrete inputs and eight independent discrete outputs, all optically isolated to ensure reliable signal processing.
- Flexible Voltage Range: Operates within a field-side voltage range of 5V to 24V DC, accommodating various industrial power standards.
- Seamless Integration: Designed for compatibility with In-Sight 5000 series vision systems, ensuring straightforward integration and communication.
- DIN Rail Mounting: Equipped with a DIN rail mount for secure and convenient installation within control panels.
Installation and Configuration
The manual provides detailed instructions on connecting the I/O Expansion Module to the In-Sight processor, including:
- Proper wiring techniques for input and output terminals.
- Configuring input and output lines using the In-Sight Explorer software.
- Enabling hardware handshaking for serial communications.
Additionally, it includes connector pin assignments, terminal block pin assignments, and schematics to assist in accurate setup and troubleshooting.
Specifications
The manual outlines the general specifications of the I/O Expansion Module, such as:
- Operating voltage and current requirements.
- Input and output signal characteristics.
- Environmental operating conditions.
These specifications ensure users can assess the module’s suitability for their specific application needs.
Support and Resources
For further assistance, the manual directs users to Cognex’s technical support resources, including:
- Online documentation and mechanical drawings.
- Training materials and tutorials.
- Contact information for regional support centers.
These resources are invaluable for troubleshooting, obtaining software updates, and enhancing user proficiency with the In-Sight system.
In summary, the Cognex In-Sight Model 1450 I/O Expansion Module Installation and Reference Manual serves as an essential resource for users seeking to expand the capabilities of their In-Sight vision systems through additional I/O functionality, providing clear guidance on installation, configuration, and operation.
