Overview
The Cognex 200-0035 video mixer is an ISA-based video acquisition and processing module designed for industrial machine vision applications. This PCB card provides analog video input conditioning and mixing capabilities essential for vision systems that require multi-source video integration. The Cognex 200-0035 has been widely deployed in manufacturing inspection, print quality control, and vision-guided automation equipment.
Key Features
- ISA bus interface for legacy industrial PC integration
- Analog video input mixing and switching
- Multiple video source support for multi-camera vision systems
- Compact PCB form factor for system integration
- Established compatibility with MPM/Speedline screen printing systems
- Revision 3 (REV.3) and later iterations available
Technical Specifications
| Part Number | 200-0035 |
| Manufacturer | Cognex |

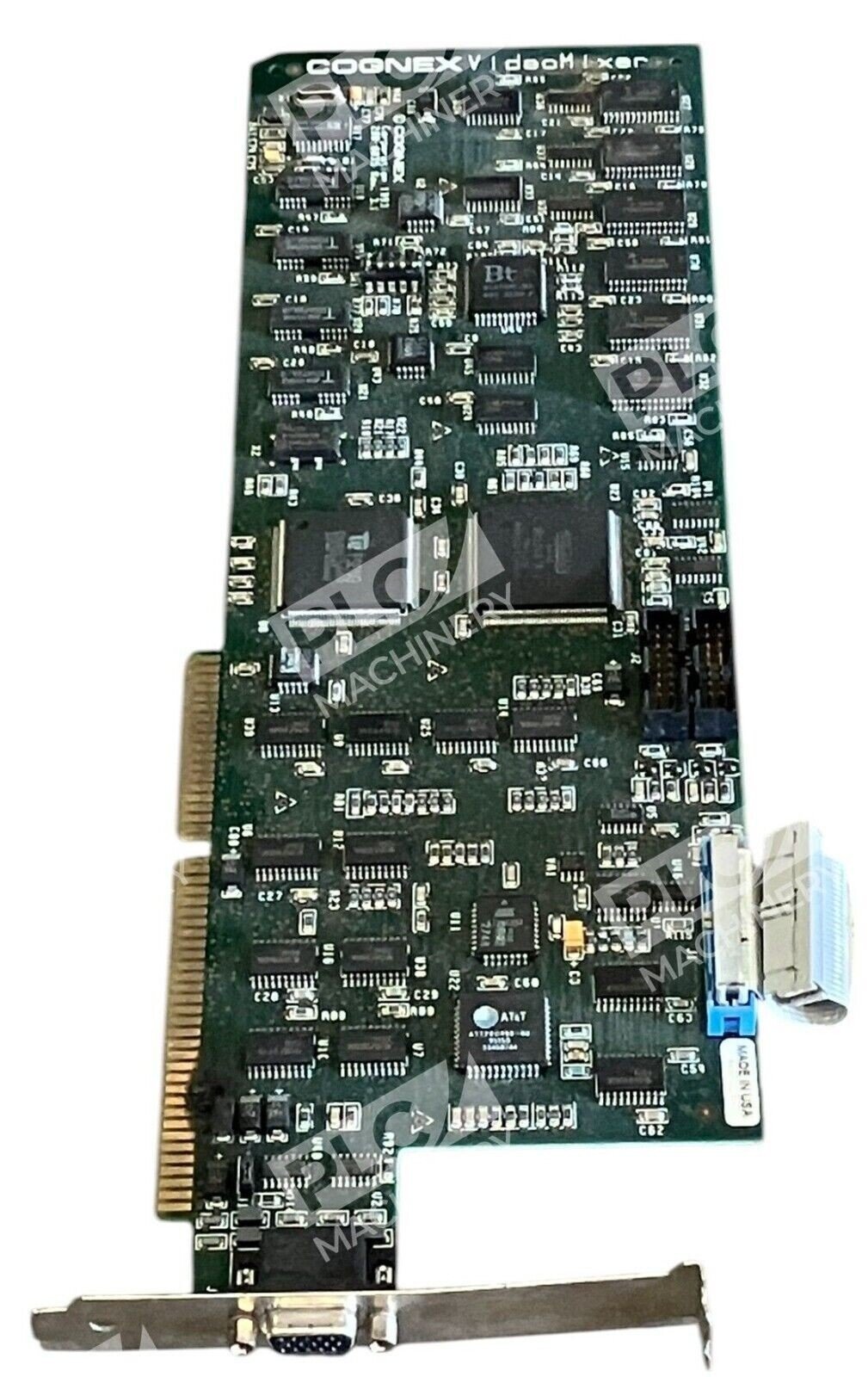

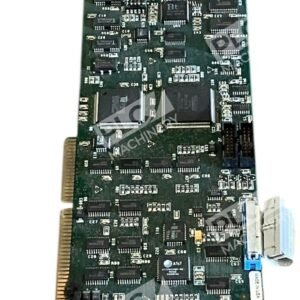

| Product Type | Video Mixer ISA PCB Card |
| Interface | ISA Bus |
| Revision Level | REV.3 (most common) |
| Format | PCB Card Module |

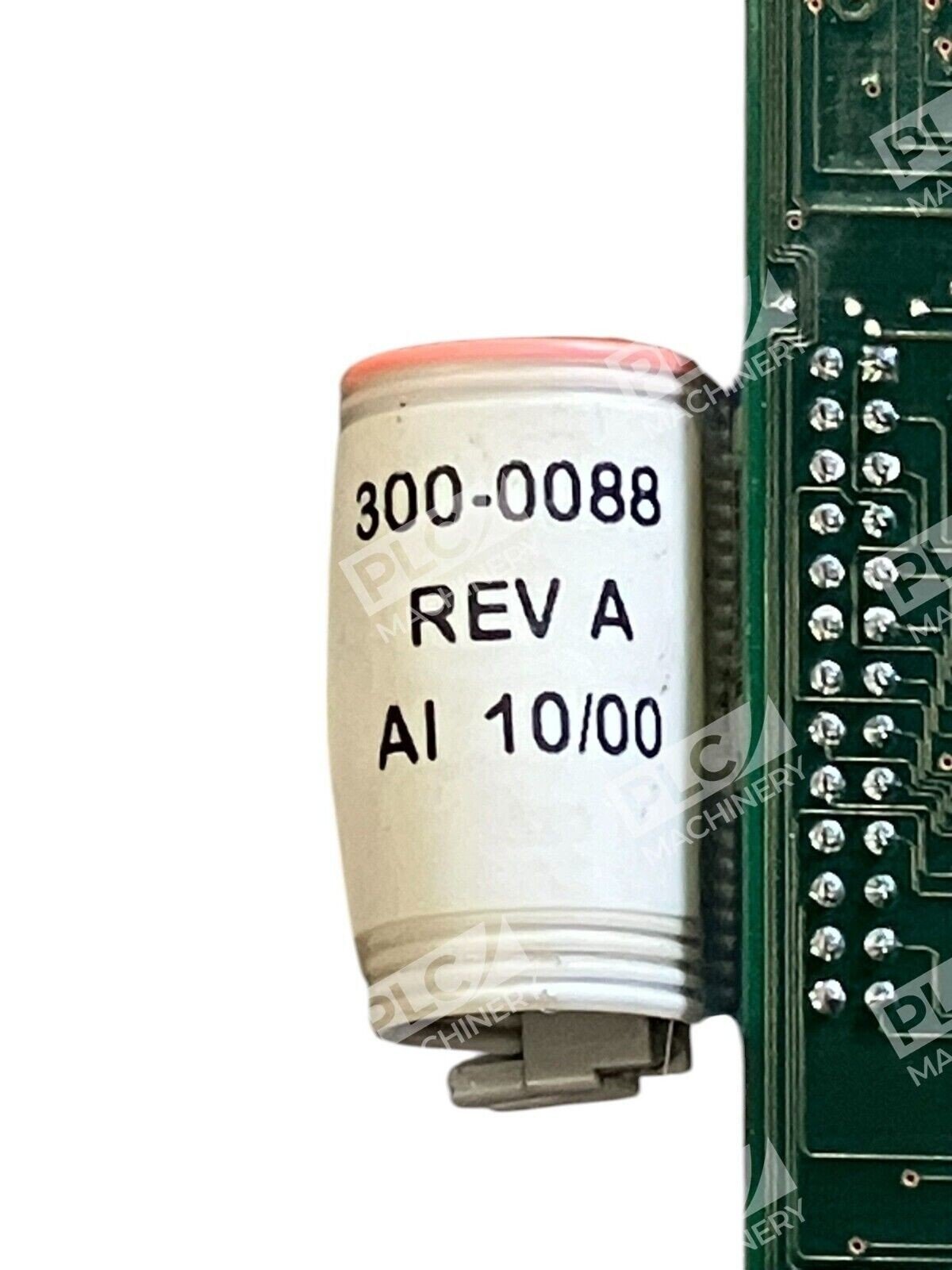

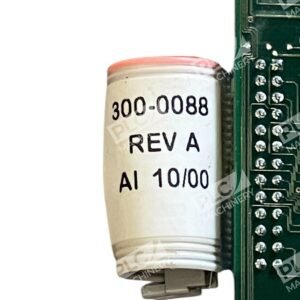

| Associated Cable | 300-0088 (METZ ribbon cable) |
| Application | Machine Vision, Industrial Imaging, Screen Printing Equipment |
| Condition | Used |
Typical Applications
- Multi-camera vision system integration requiring video source selection
- Print quality inspection systems (solder paste, component placement, print registration)
- Manufacturing automated optical inspection (AOI)
- Vision-guided robotic systems requiring video input conditioning
- Industrial imaging systems requiring analog video mixing
- Legacy machine vision systems with ISA-based host computers
Compatibility & Replacements
Compatible With
- ISA bus-equipped industrial PC platforms
- Cognex vision systems software and imaging libraries
- MPM Speedline screen printing equipment
- Legacy automated optical inspection (AOI) systems
- Multi-camera analog video environments
Replaces / Drop-In Replacement For
The 200-0035 serves as a direct replacement for equivalent Cognex video mixer modules in compatible ISA-based systems. Verify the revision level and cable compatibility (300-0088 ribbon cable) with your original configuration before ordering.
Works With
- ISA expansion slot systems and industrial controllers
- Analog video sources (NTSC/PAL or composite video inputs)
- Cognex image processing libraries and vision software
- Legacy automation environments pre-2000s era PC architecture
- 300-0088 METZ ribbon interconnect cable
