Overview

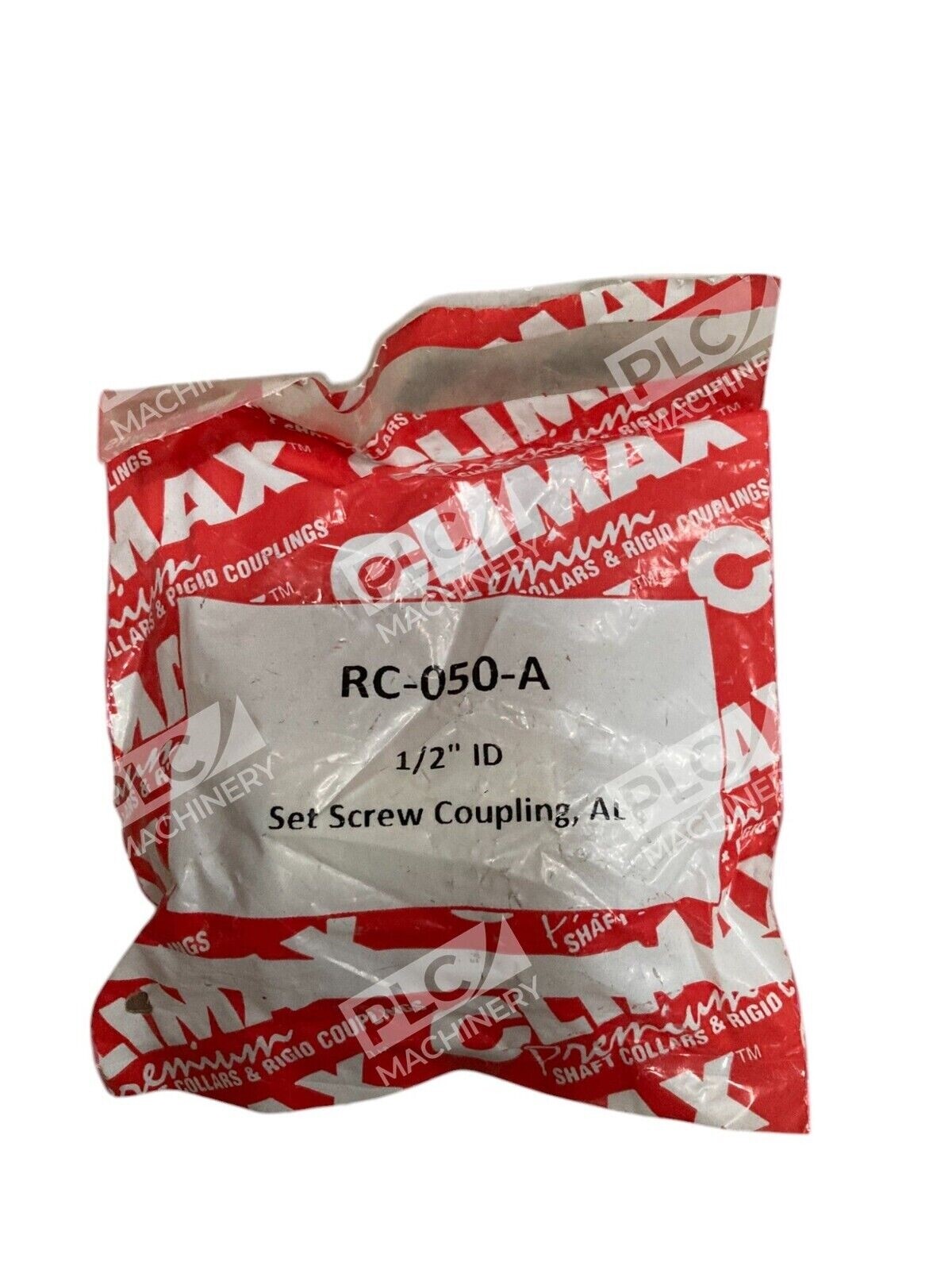

The Climax RC-050-A is a rigid set screw coupling engineered for direct shaft-to-shaft power transmission in industrial and machinery applications. Manufactured from durable aluminum, this coupling combines lightweight construction with proven torque-handling performance. The RC series set screw design delivers cost-effective reliability without sacrificing accuracy or assembly simplicity.
Key Features
- Aluminum construction—lightweight and corrosion resistant
- One-piece rigid coupling design for precise alignment and zero backlash
- Dual set screws (1/4-20 x 1/4) for secure shaft grip and vibration resistance
- Precision-machined bore and OD to close tolerances
- No keying or keyway required—simple installation and removal
- Suitable for moderate torque and speed applications
Technical Specifications
- Bore Diameter (ID): 1/2 inch
- Outside Diameter (OD): 1 inch
- Length: 1-1/2 inches
- Set Screw Size: 1/4-20 x 1/4 inch (dual screws)
- Material: Aluminum alloy
- Coupling Type: Rigid set screw (RC series)
- Tolerance: +.0005/+.0025 inch
- Weight: Lightweight (aluminum)
- Surface Finish: Natural aluminum
Typical Applications
The RC-050-A suits general industrial machinery where shafts are well-aligned and moderate torque is required. Common uses include:
- Motor-to-pump shaft coupling
- Conveyor drive systems
- Compressor and fan assemblies
- Gearbox input/output shafts
- Machine tool spindle applications
- Light-duty power transmission
Compatibility & Replacements
Compatible With
- 1/2 inch shaft diameters (standard industrial shafts)
- Motors, pumps, and gearboxes with matching bore sizes
- Standard industrial machinery (no special adapters required)
- Applications requiring rigid (non-flexible) alignment
Replaces / Drop-In Replacement For
- Climax RC-050-KW (mild steel black oxide version with equivalent bore/OD)
- Other aluminum rigid couplings with 1/2″ bore and 1″ OD
- Verify your existing coupling dimensions before ordering to confirm direct replacement
Works With
- Standard 1/2″ shaft applications across industrial automation and machinery
- No software, firmware, or network requirements—mechanical coupling only
- Compatible with any motor, gearbox, or drive with 1/2″ bores
- Set screw installation requires only standard hex key or screwdriver
