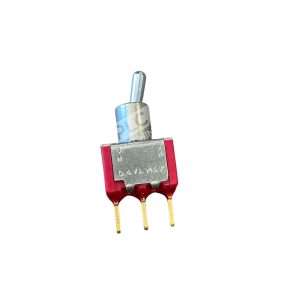

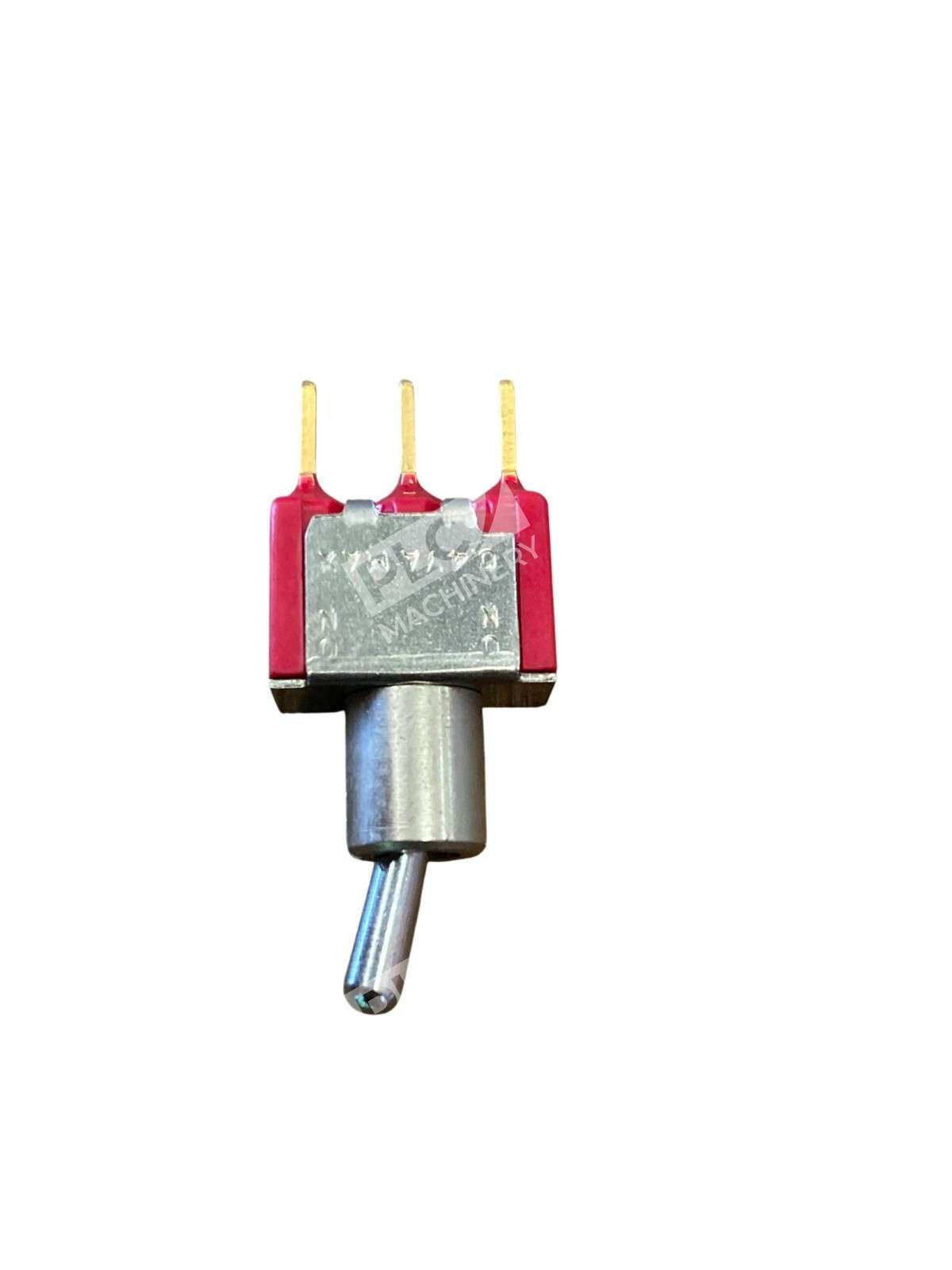

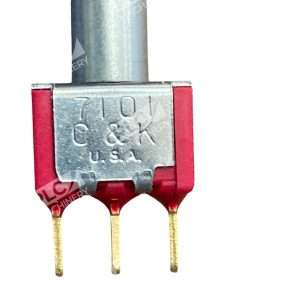

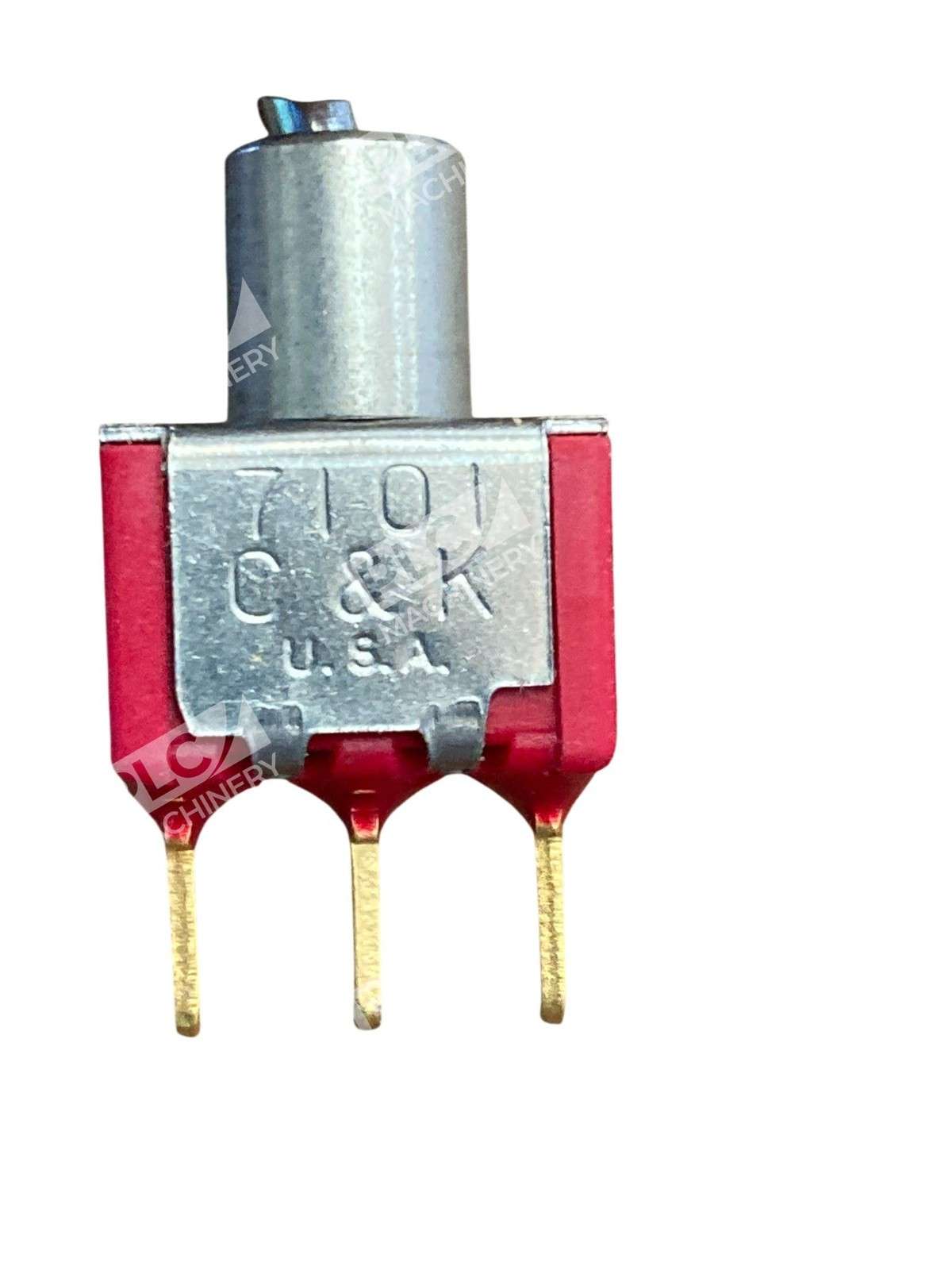

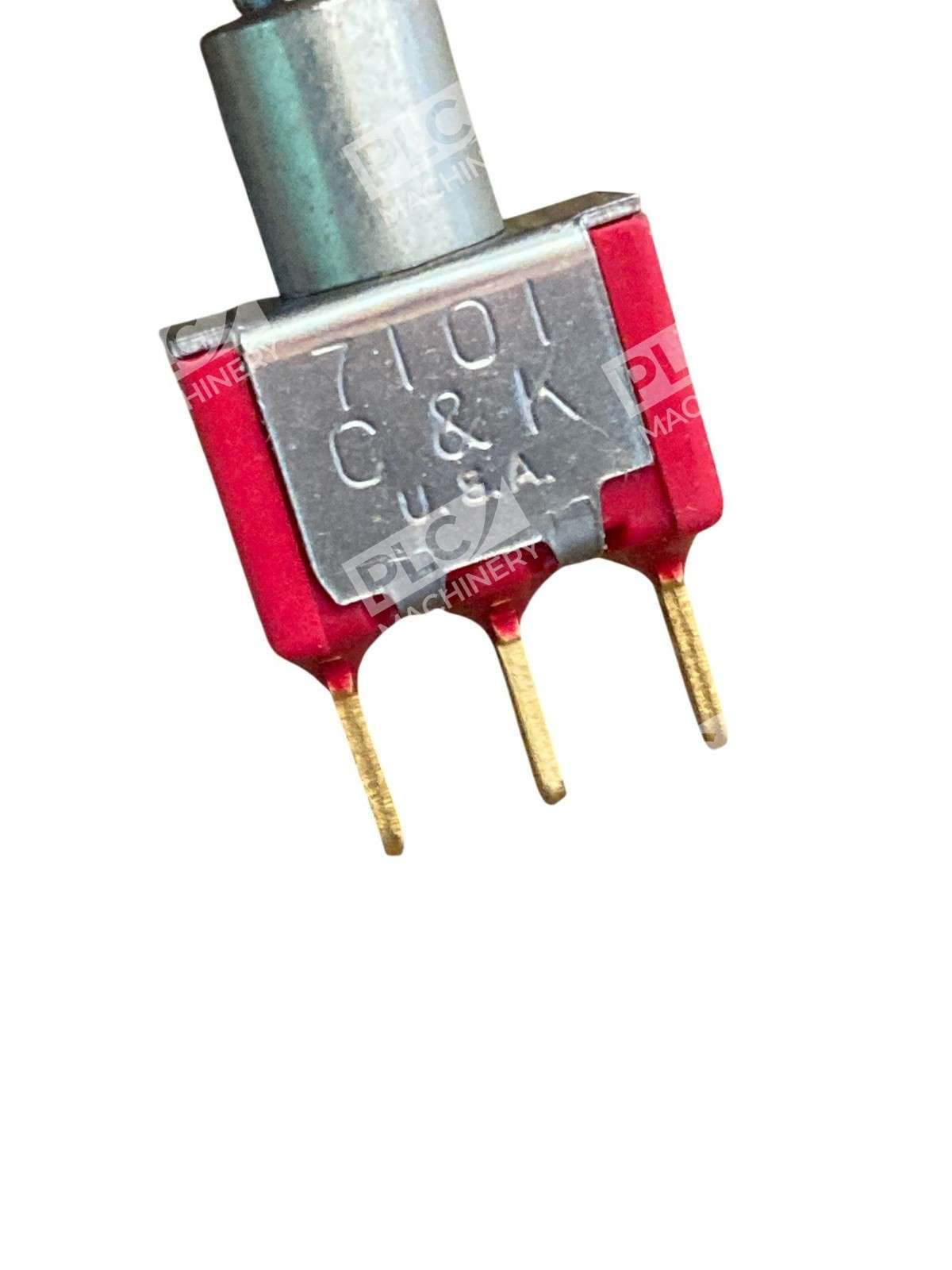

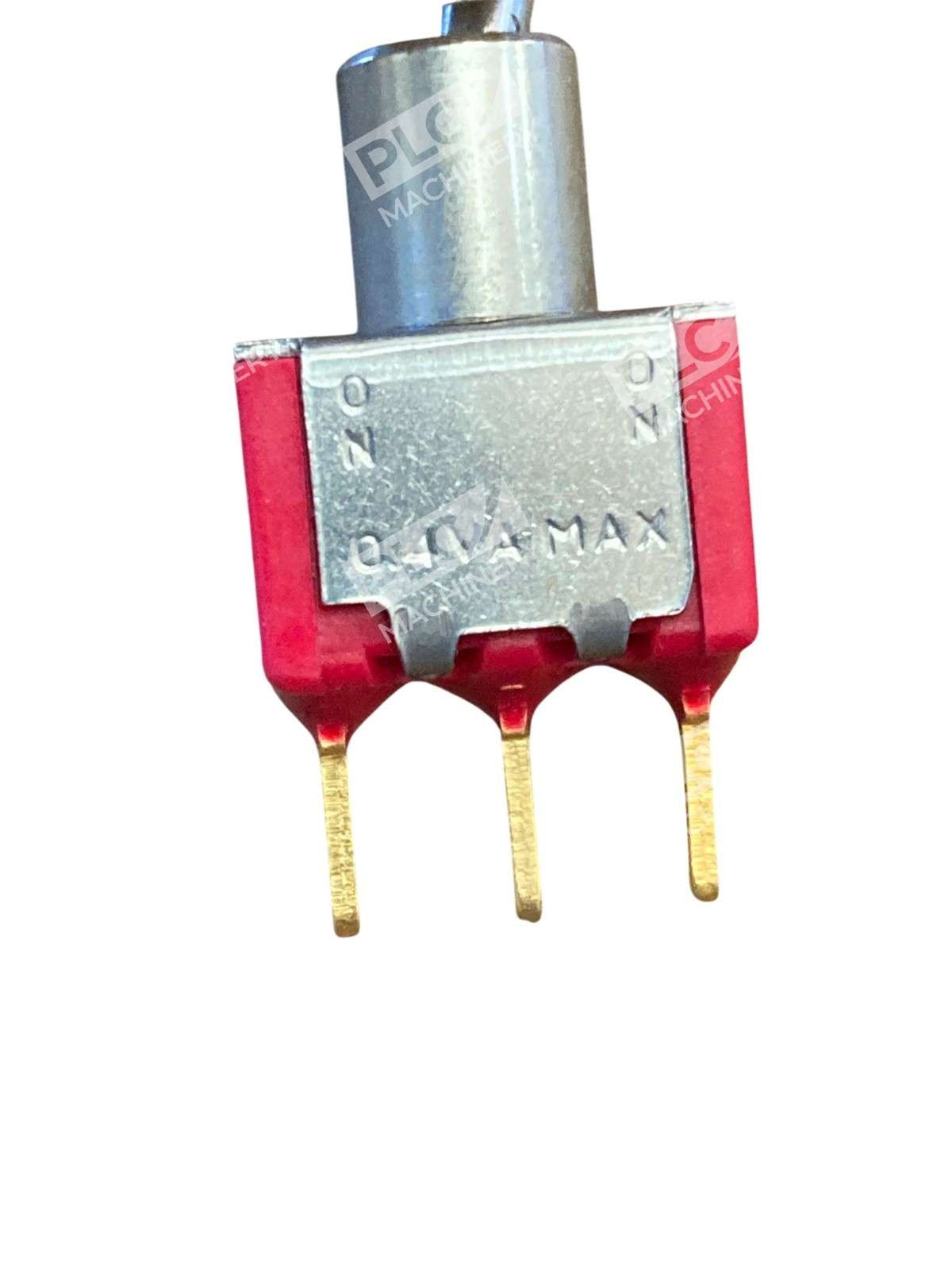

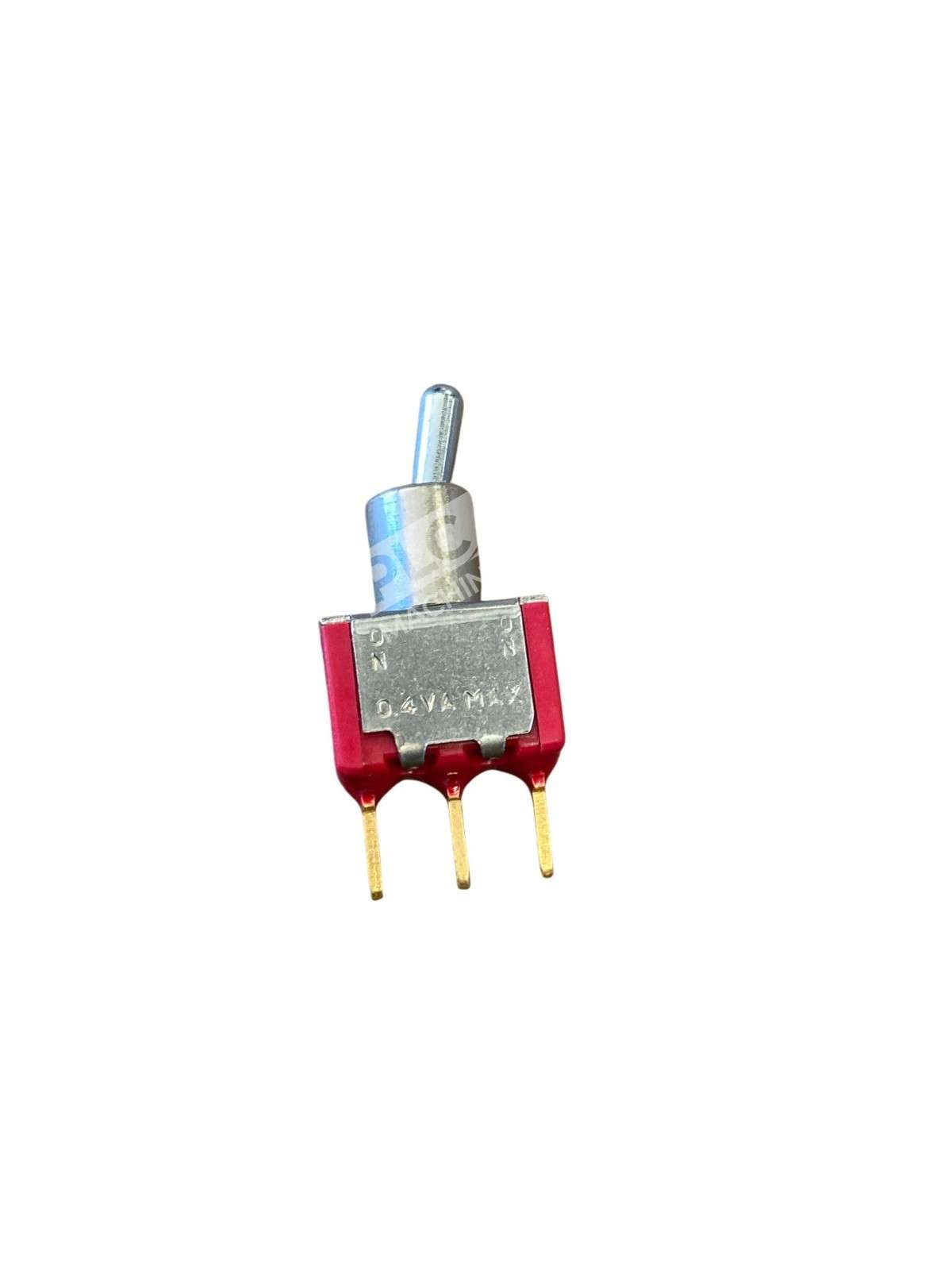

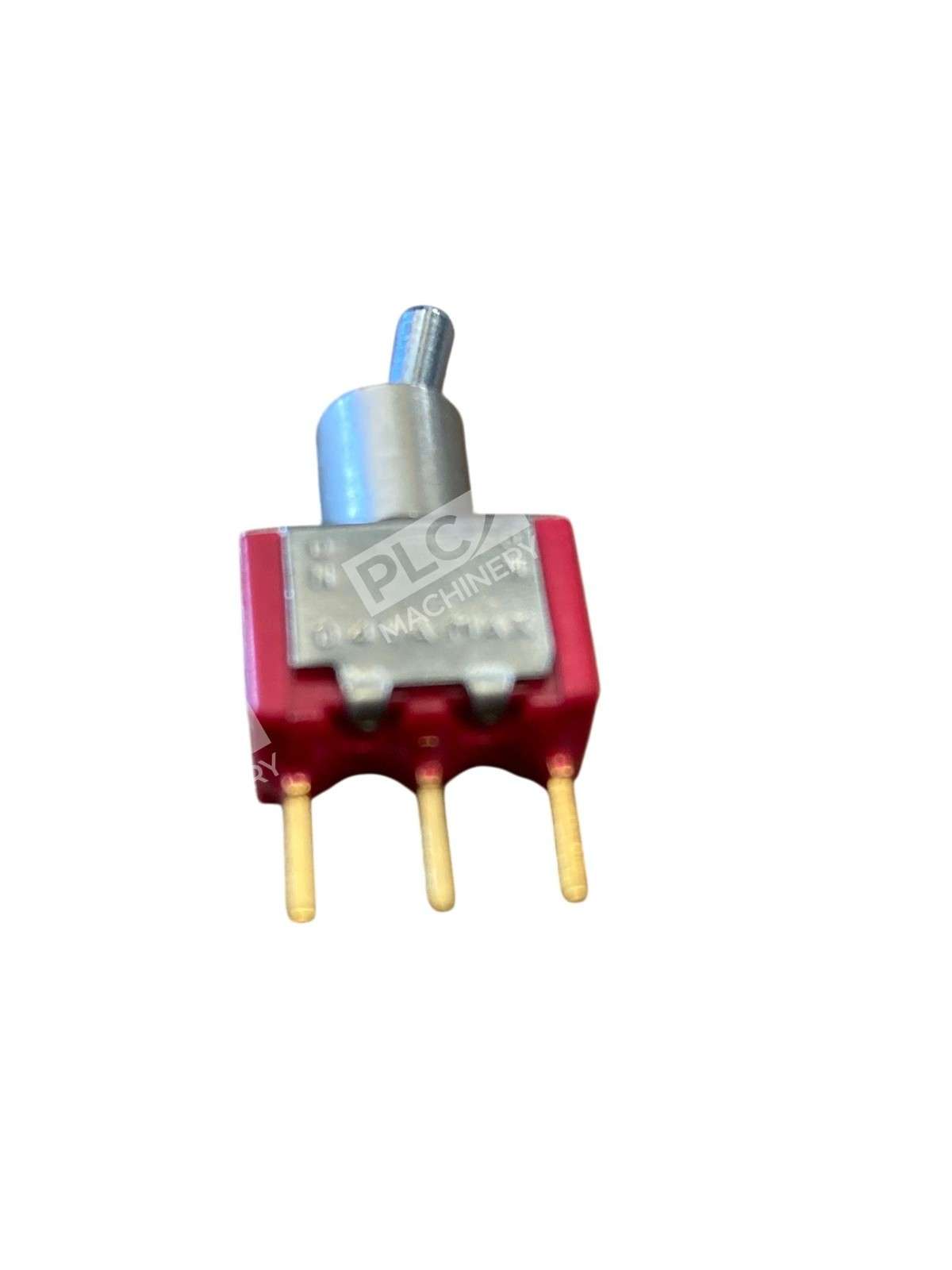

C&K 7101 SPDT Mini Toggle Switch ON-ON with Solder Lug Terminals
The C&K 7101 is a Single Pole Double Throw (SPDT) miniature toggle switch designed for reliable performance in various applications. This switch features an ON-ON operation, allowing seamless toggling between two circuits.
Key Features
- Switch Function: ON-ON
- Contact Configuration: SPDT
- Current Rating: 5A at 120V AC or 28V DC
- Voltage Rating: 120V AC; 28V DC
- Actuator Type: Round lever, 0.42 inches high
- Mounting Type: Panel mount with threaded bushing
- Termination Style: Solder lug terminals
- Operating Temperature Range: -30°C to +85°C
- Electrical Life: 100,000 cycles
Design and Construction
The 7101 series toggle switch is constructed with a stainless steel housing and a chrome-plated brass actuator, ensuring durability and resistance to environmental factors. The switch’s bushing is threaded, facilitating secure panel mounting. Additionally, the epoxy terminal seal is compatible with bottom-wash cleaning processes, enhancing the switch’s longevity and reliability.
Applications
Due to its robust design and reliable performance, the C&K 7101 toggle switch is suitable for a wide range of applications, including:
- Telecommunications equipment
- Instrumentation devices
- Medical equipment
- Industrial controls
Package Details

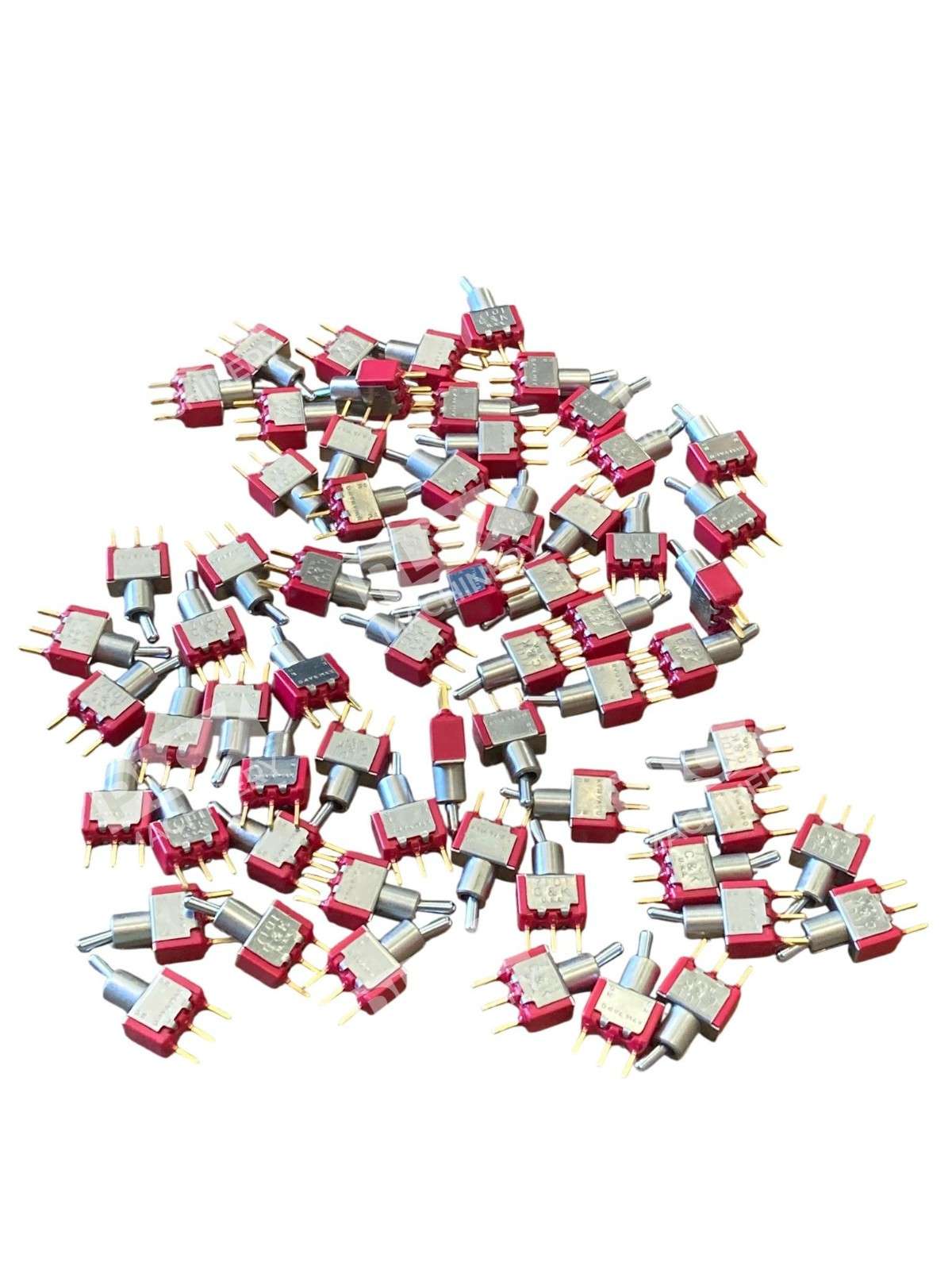

This offering includes a lot of 65 units of the C&K 7101 SPDT Mini Toggle Switches, making it an ideal choice for bulk requirements in manufacturing or large-scale projects.
For detailed specifications and customization options, please refer to the manufacturer’s datasheet or contact customer support.
