Overview

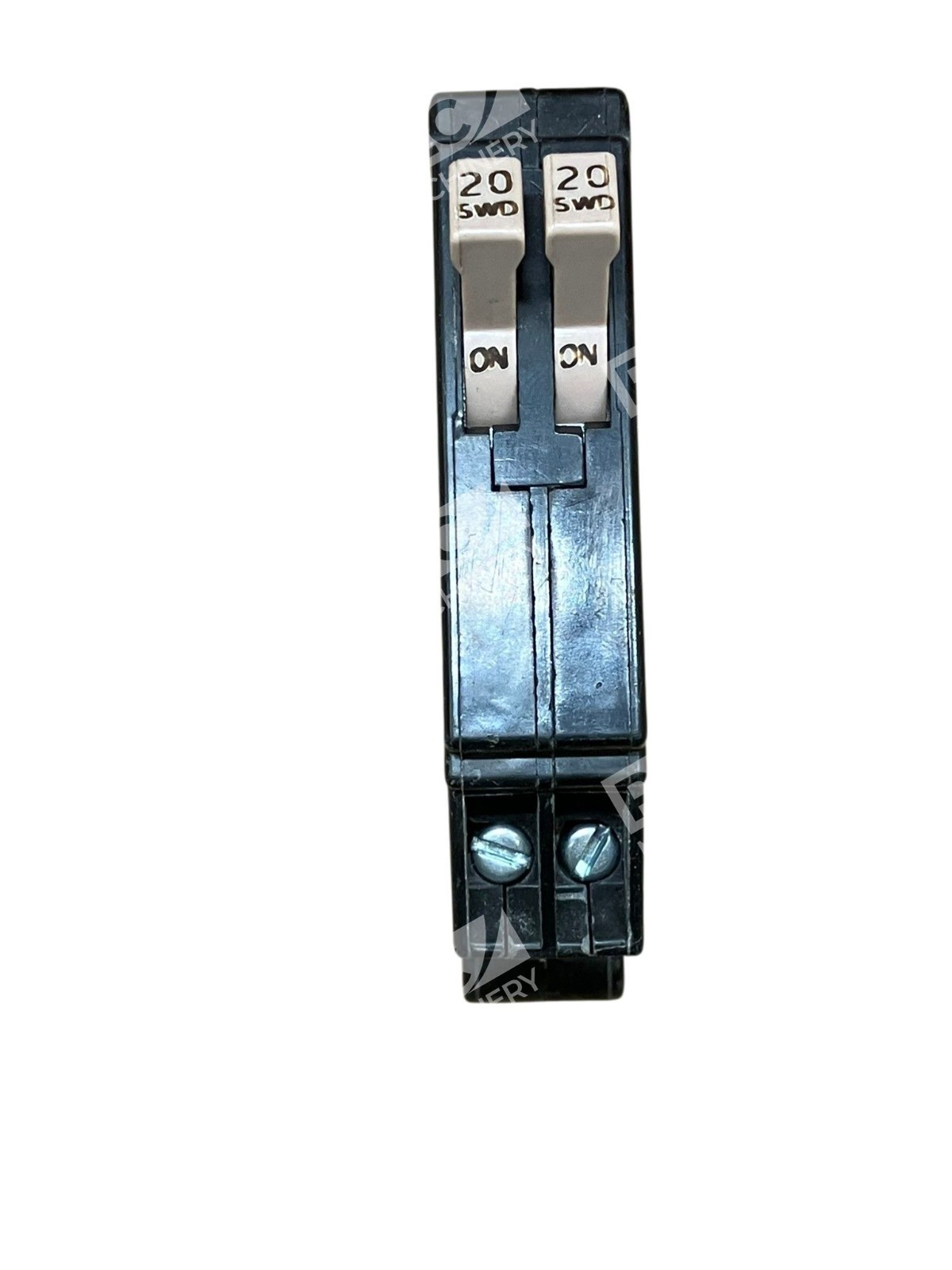

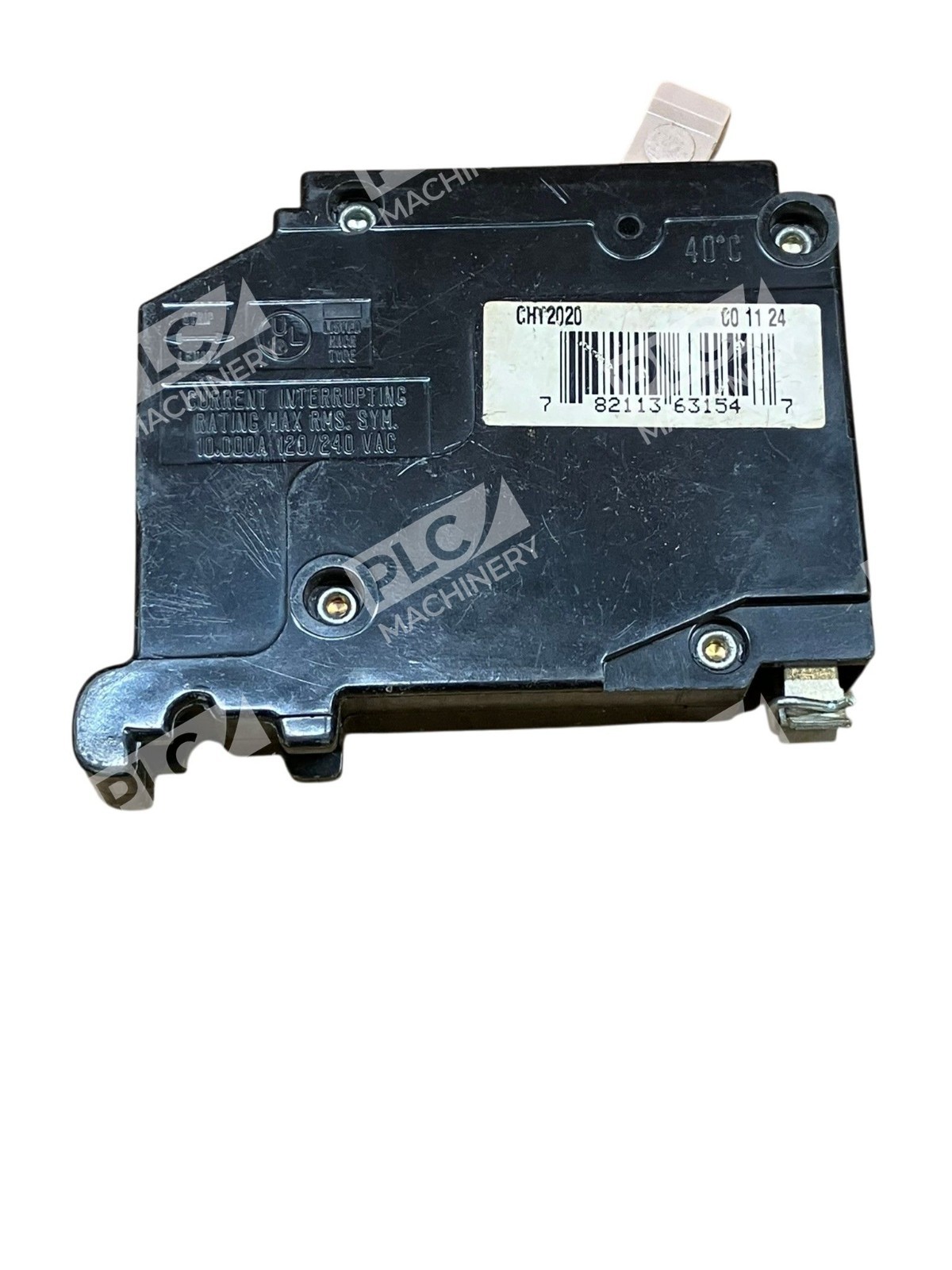

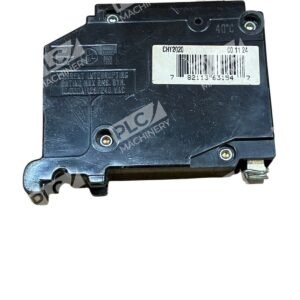

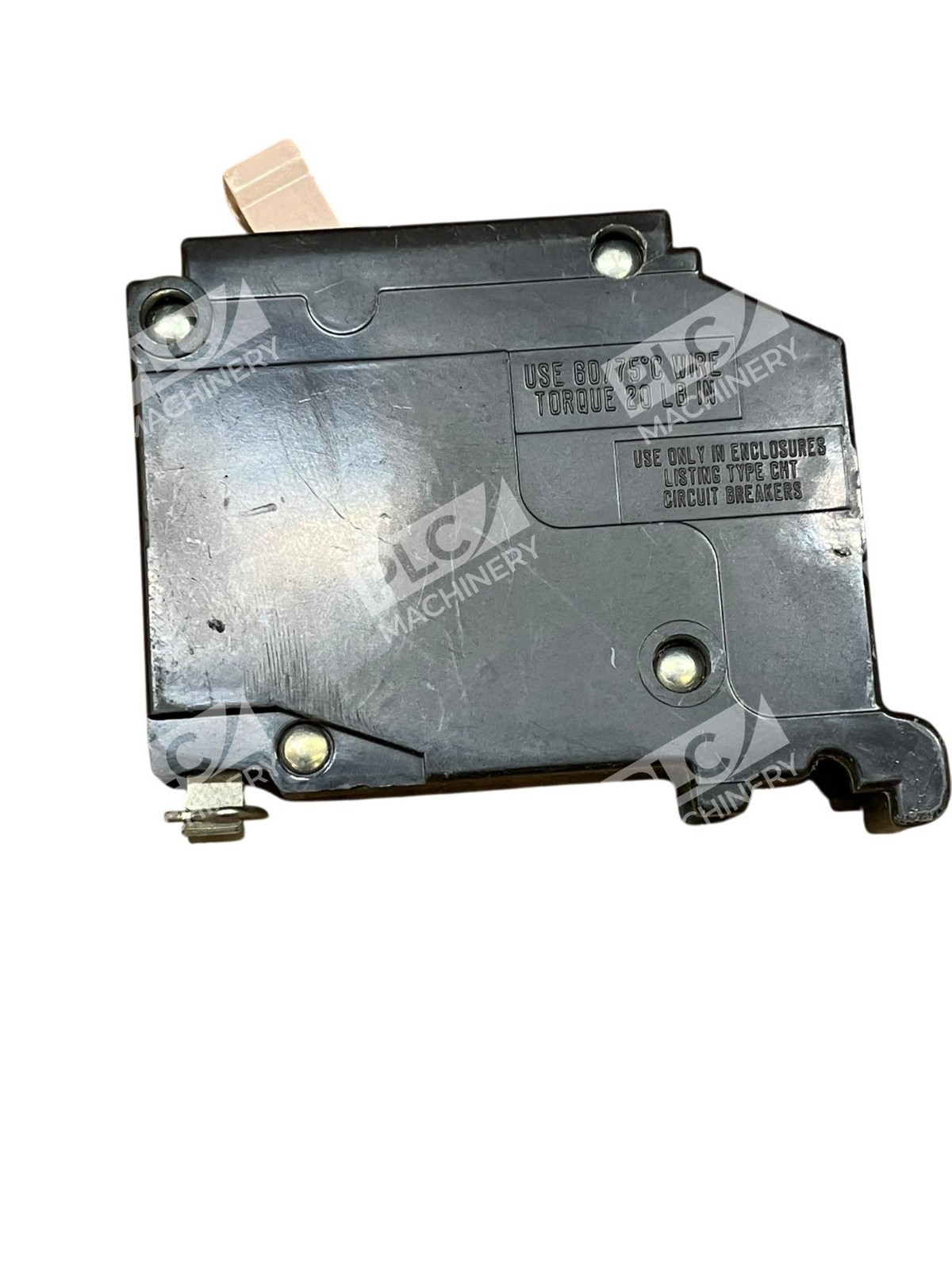

The Eaton Cutler-Hammer CHT2020 is a Type CHT twin circuit breaker offering a compact, space-efficient solution for residential and light commercial panel expansions. This 20A/20A dual-pole tandem breaker plugs directly into Type CH Eaton loadcenters, maximizing circuit capacity without requiring a subpanel. With thermal-magnetic trip technology and 10 kA interrupting capacity at 240VAC, it delivers reliable protection for general-purpose branch circuits and HVAC/lighting control applications.
Key Features
- Space-saving 3/4-inch twin design accommodates two 20A circuits in one panel slot
- Two-position handle eliminates the need to reset the breaker
- Thermal-magnetic trip provides overload and short-circuit protection
- Switching duty (SWD) and HACR rated for HVAC equipment and fluorescent lighting
- Accepts 14–8 AWG copper or aluminum wire
- UL 489 listed and CSA certified
Technical Specifications
- Amperage: 20A / 20A (dual)
- Voltage: 120/240VAC, 50–60 Hz
- Interrupting Rating: 10 kA @ 240VAC
- Trip Type: Thermal-Magnetic, Fixed
- Mounting: Plug-On (snap-in)
- Wire Size: 14–8 AWG (Copper/Aluminum)
- Operating Temperature: −31 to +66°C
- Dimensions: 2.98" L × 0.74" W × 3.16" D
- Poles: 1 phase, 2-position handle
- Certifications: UL 489, CSA, HACR, SWD
Typical Applications
- Residential branch circuit protection
- HVAC equipment control circuits
- Fluorescent lighting control
- General-purpose load expansion in existing Type CH panels
- Panel upgrades where space is limited
Compatibility & Replacements
Compatible With
- Eaton Type CH residential and commercial loadcenters
- Eaton Type CTL loadcenters (where CTL is available)
- Standard plug-on breaker positions in Type CH frames
- 50/60 Hz AC systems rated 120/240VAC
Replaces / Drop-In Replacement For
- Eaton Cutler-Hammer CHT2020 (OEM equivalent)
- Direct replacement for installed CHT2020 units
- Interchangeable with other CHT2020 inventory
Works With
- Eaton CH panel wiring and bussing systems
- Standard single-phase residential AC power distribution
- Thermal-magnetic protection circuits and relay logic
- NEMA and NEC-compliant installation practices
