<h2>Overview</h2>

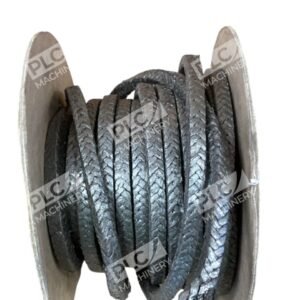

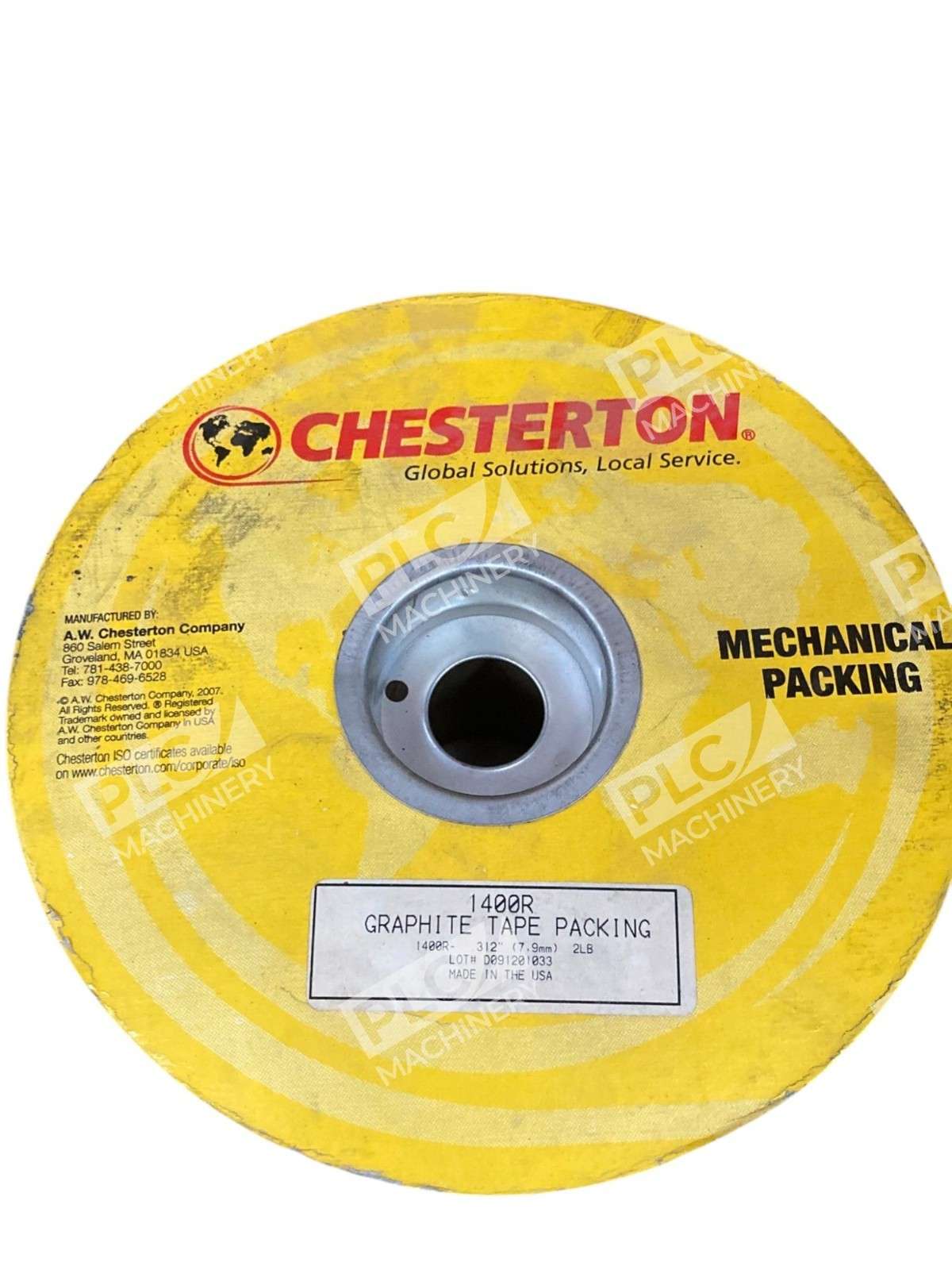

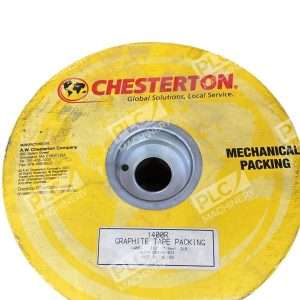

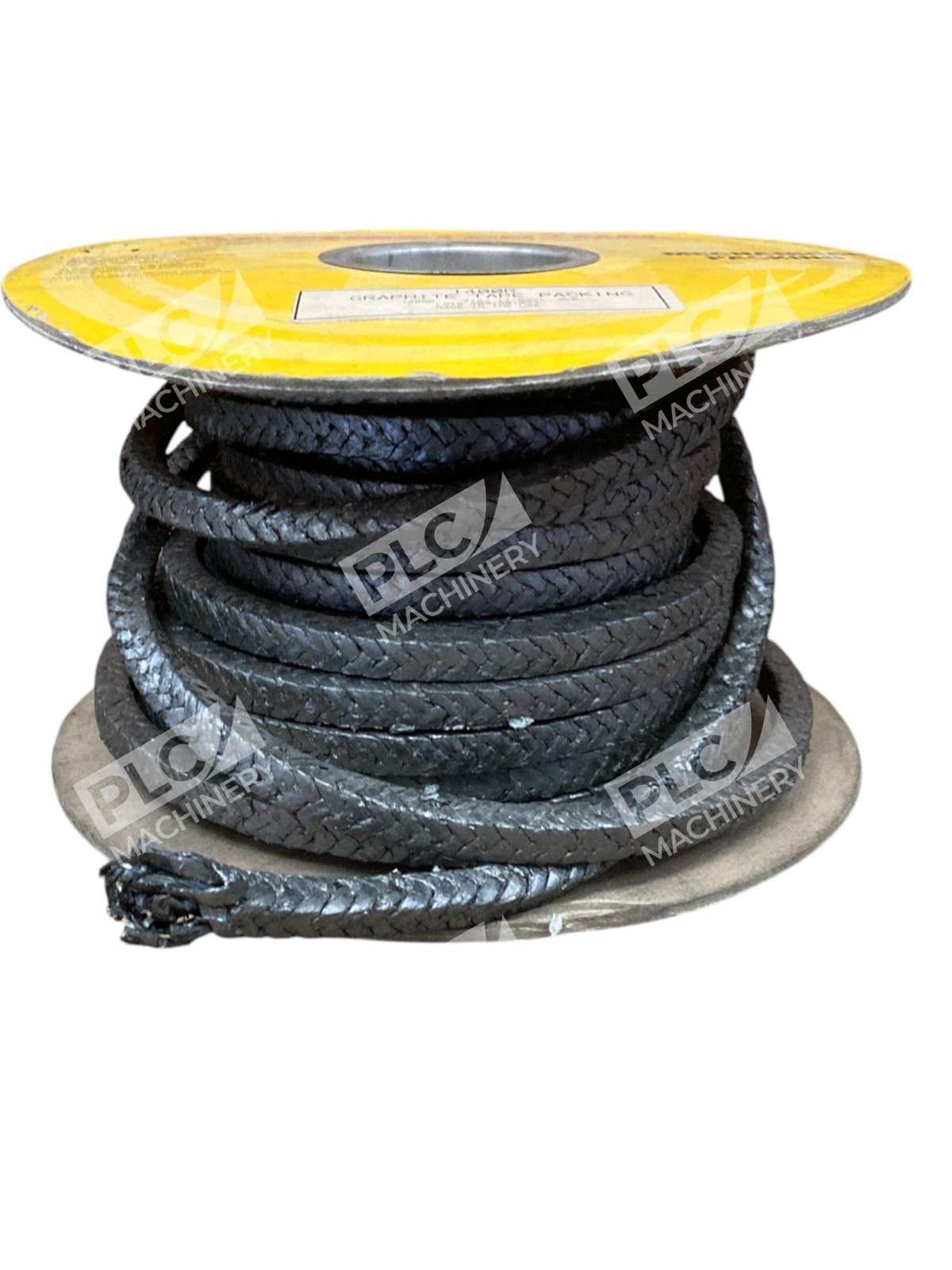

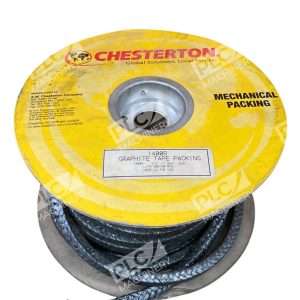

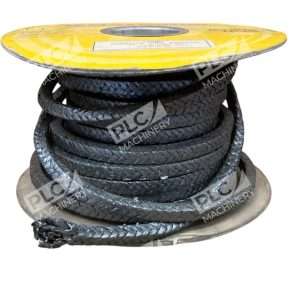

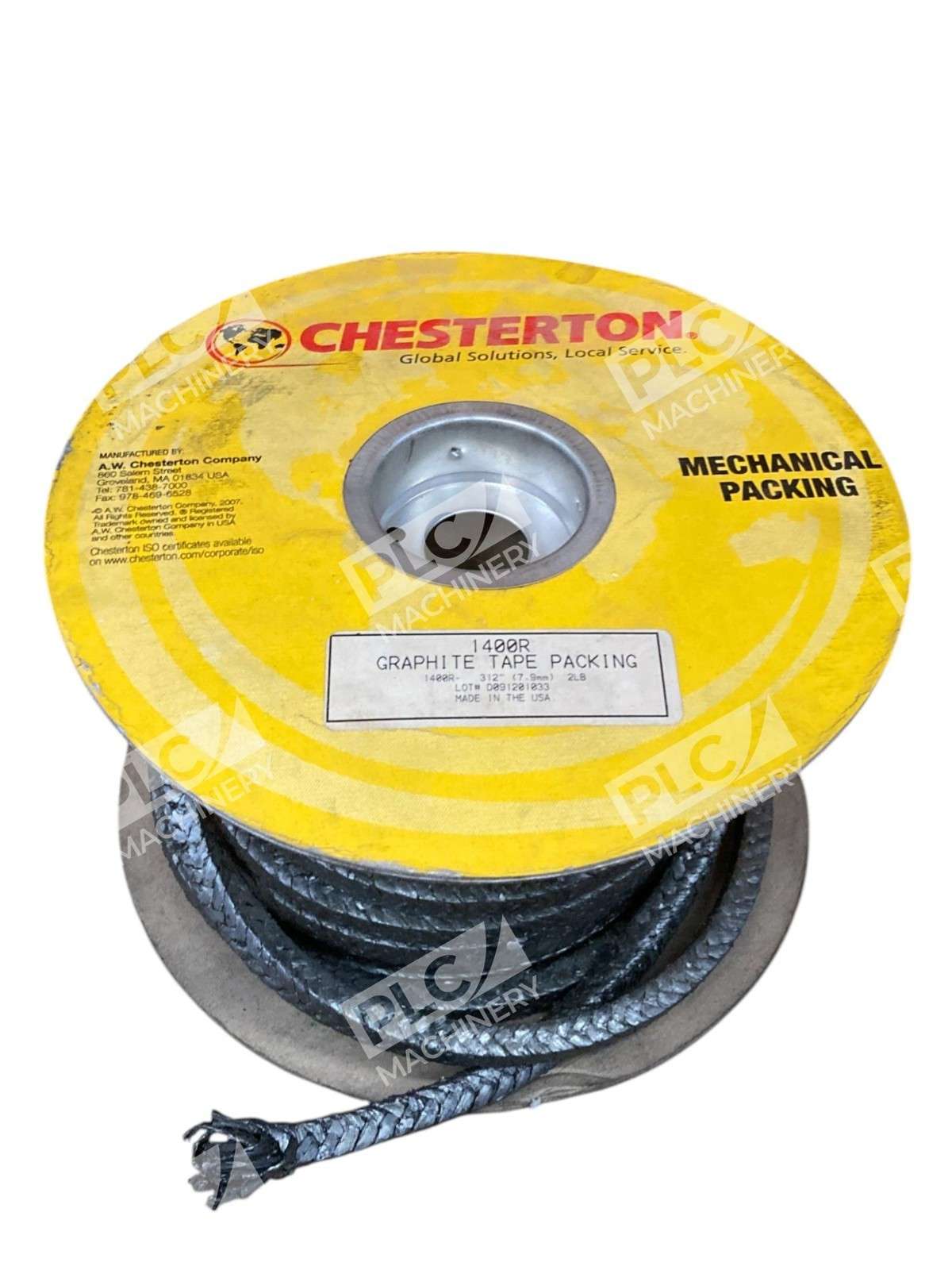

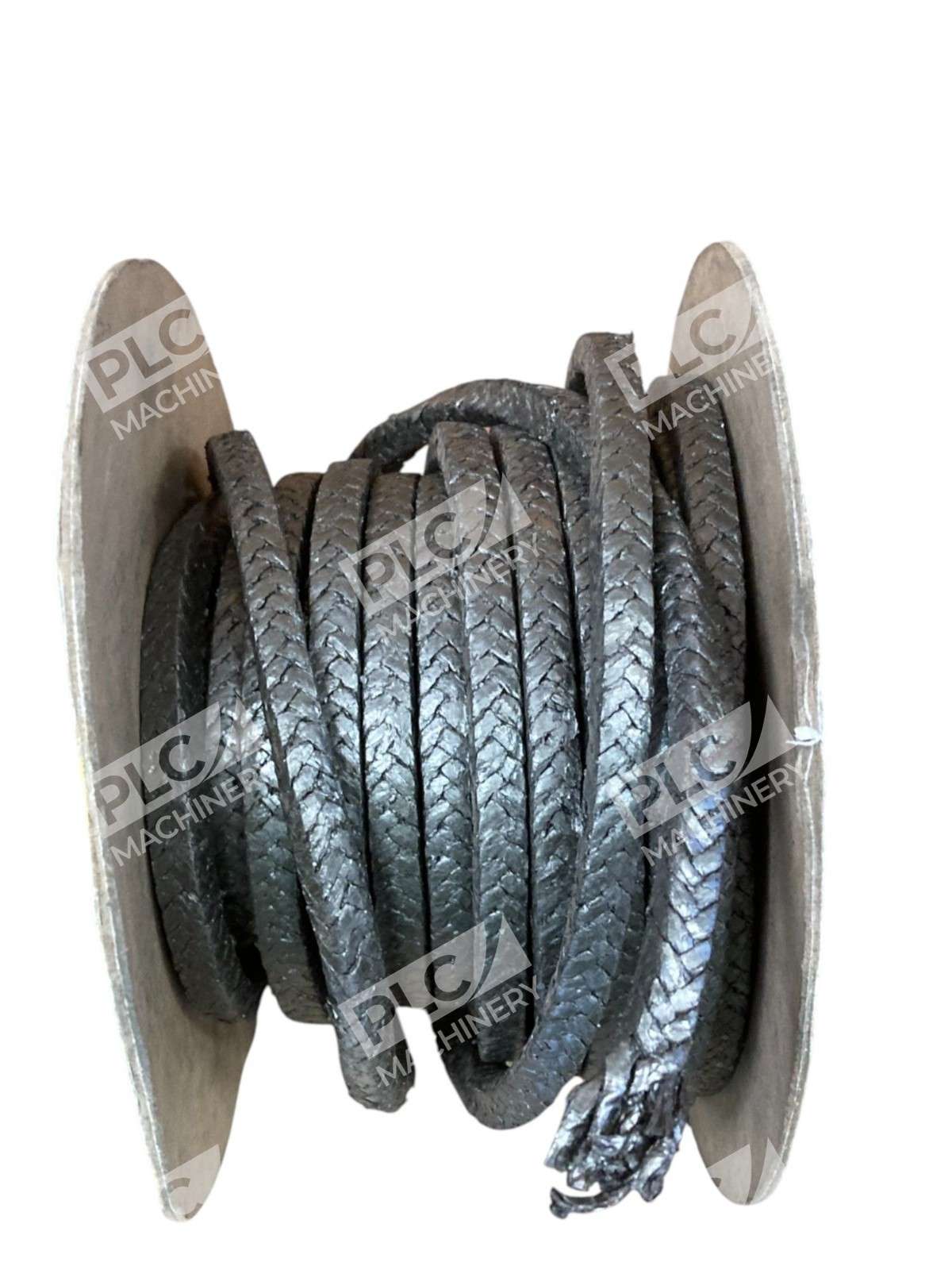

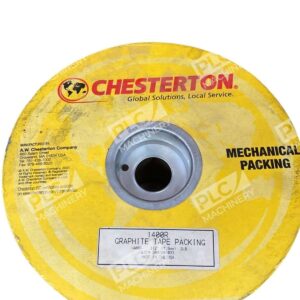

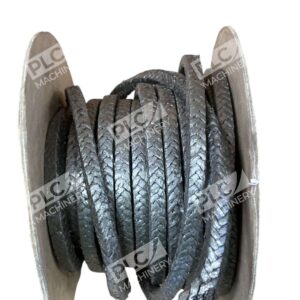

<p><cite index="3-1">Chesterton 1400R is a unique, reinforced, braided, graphite tape packing with a corrosion inhibitor.</cite> The Chesterton 1400R 0.312" spool (part 001054) is a universal mechanical packing suited for both rotating shaft equipment and static valve stem applications. <cite index="3-3,3-4">The carbon yarn reinforcement is provided within the graphite tape yarn as well as the braided construction.</cite></p>
<h2>Key Features</h2>
<ul>
<li><cite index="3-5">Forms a homogeneous mass under gland pressure, so that leakage is minimized in the packing set</cite></li>
<li><cite index="3-6">All-carbon/graphite set withstands higher shaft speeds while limiting shaft/stem friction</cite></li>
<li><cite index="3-7">Structural carbon fiber reinforcement drastically lowers extrusion when installed in valves at higher pressures</cite></li>
<li><cite index="3-10">Self-lubricating to reduce shaft or stem scoring and extend packing life</cite></li>
<li><cite index="3-9">Dual purpose design makes it a truly universal mechanical packing</cite></li>
</ul>
<h2>Technical Specifications</h2>
<ul>

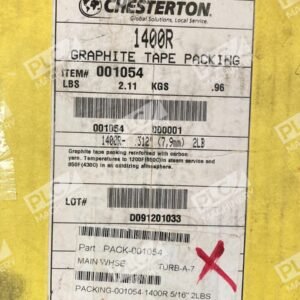

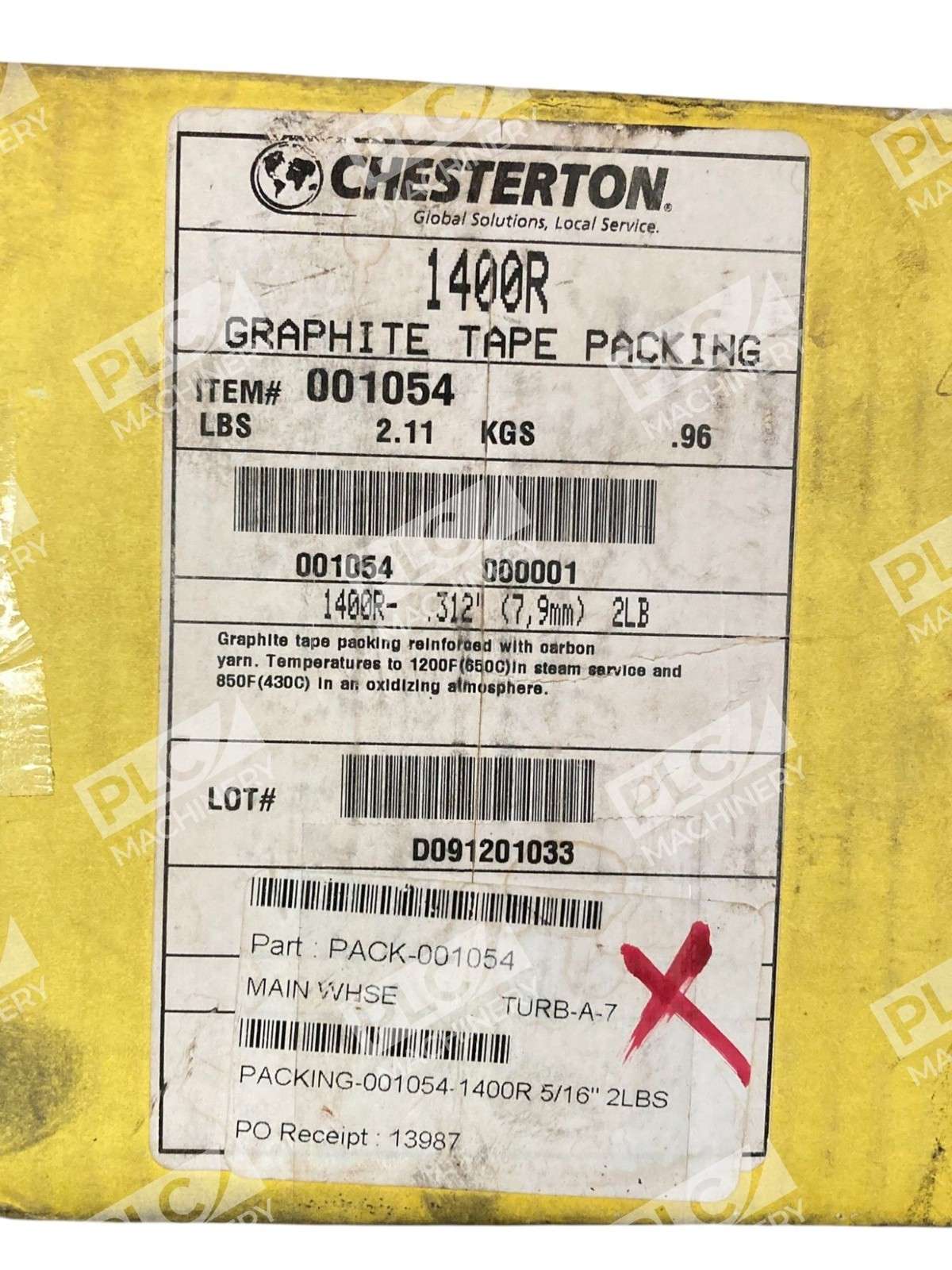

<li><cite index="6-9,6-10">Temperature Limit: 1200°F (650°C) for steam service; 850°F (430°C) for oxidizing atmosphere</cite></li>
<li><cite index="6-11,6-12">Pressure Limit: 4000 psi (275 bar) for valves; 200 psi (15 bar) for pumps</cite></li>
<li><cite index="6-15">Chemical Resistance: pH 0–14 except oleum, fuming nitric acid, and aqua regia</cite></li>

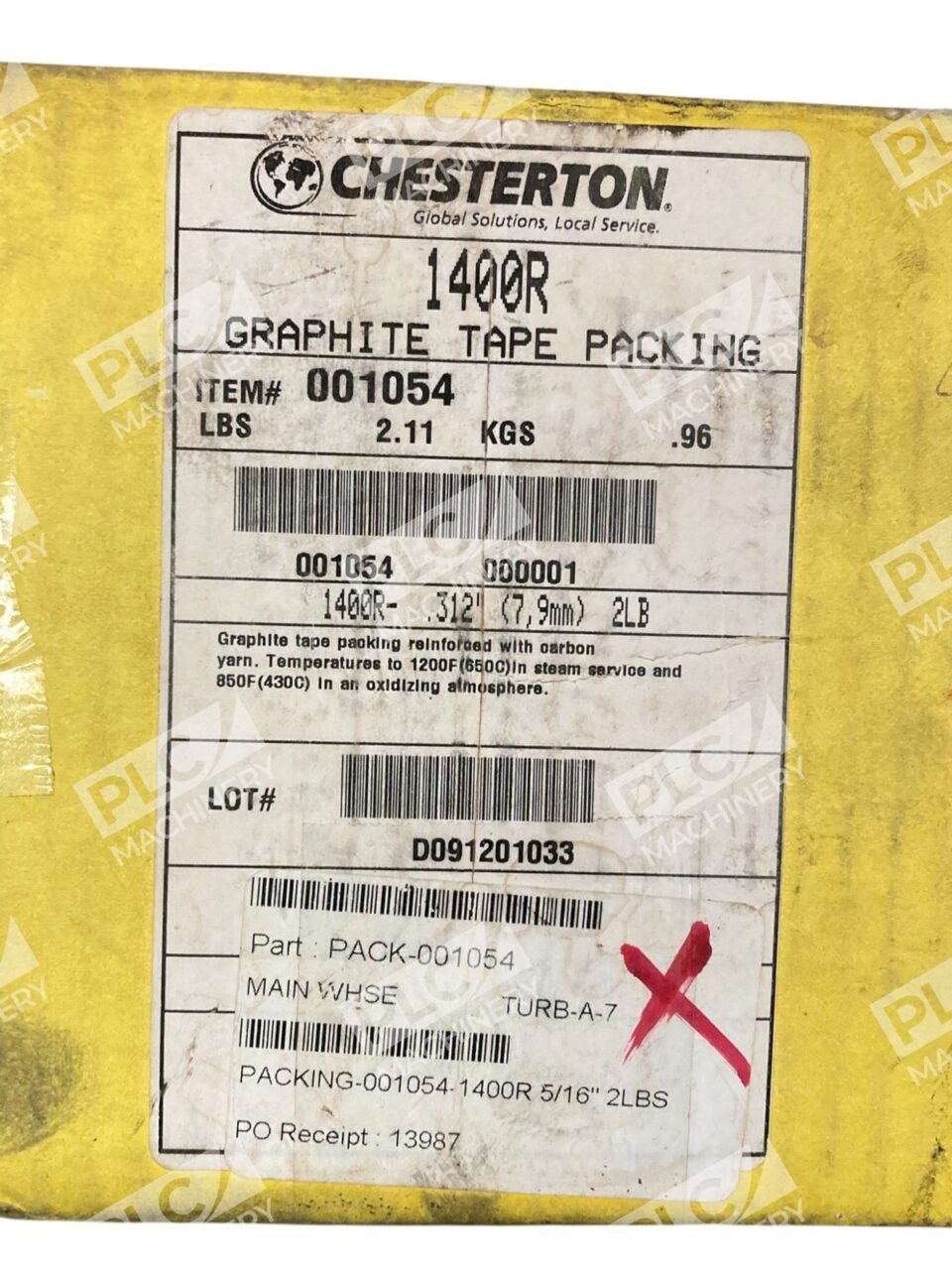

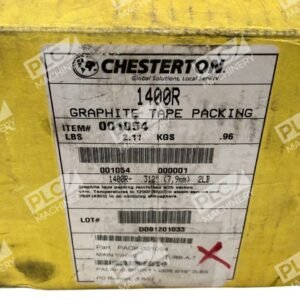

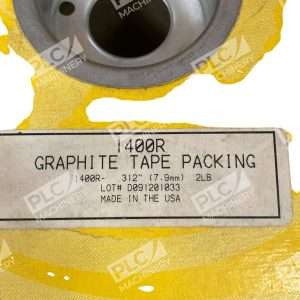

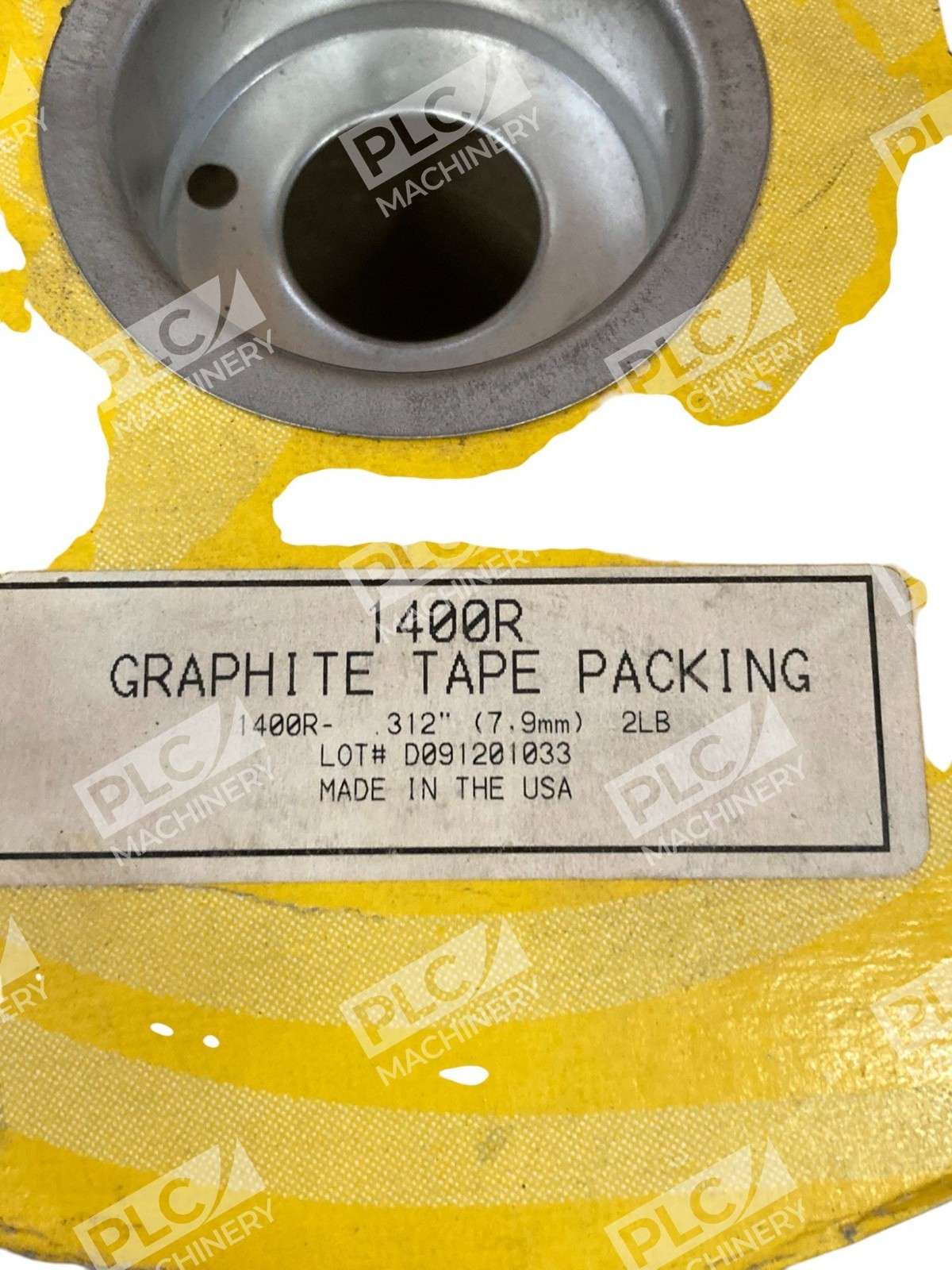

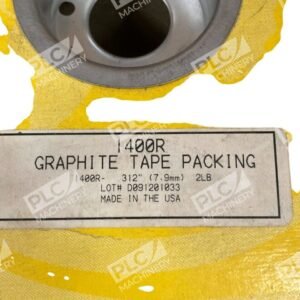

<li>Packing Width: 0.312 inches</li>
<li>Spool Weight: 2.11 lbs</li>
</ul>
<h2>Typical Applications</h2>
<p>The Chesterton 1400R is engineered for demanding industrial service in both rotating and static applications:</p>
<ul>
<li><strong>Power Generation:</strong> Boiler feed, condensate, and hot water circulation pumps; turbine lube oil and steam valves</li>
<li><strong>Pulp & Paper:</strong> White and green liquor systems; refiners, agitators, and mixers; high and low pressure feeders</li>
<li><strong>Chemical Processing:</strong> Heavy-duty pumps and valve stem sealing across wide pH ranges</li>
<li><strong>Emissions Control:</strong> Block valve stem packing for fugitive emissions reduction</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Centrifugal pump gland assemblies</li>
<li>Valve stern packing boxes</li>
<li>Rotating shaft sealing applications</li>
<li>Static valve sealing applications</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>Verify compatibility with your system integrator or equipment manufacturer before ordering. The Chesterton 1400R supersedes or complements earlier graphite packing generations; consult OEM documentation for direct replacement compatibility.</p>
<h3>Works With</h3>
<ul>
<li>Standard mechanical packing gland hardware (brass followers, springs, nuts)</li>
<li>Flush water systems for cooling under high-speed conditions</li>
<li>Compatible across standard packing box configurations in pumps and valves</li>
</ul>
