Overview

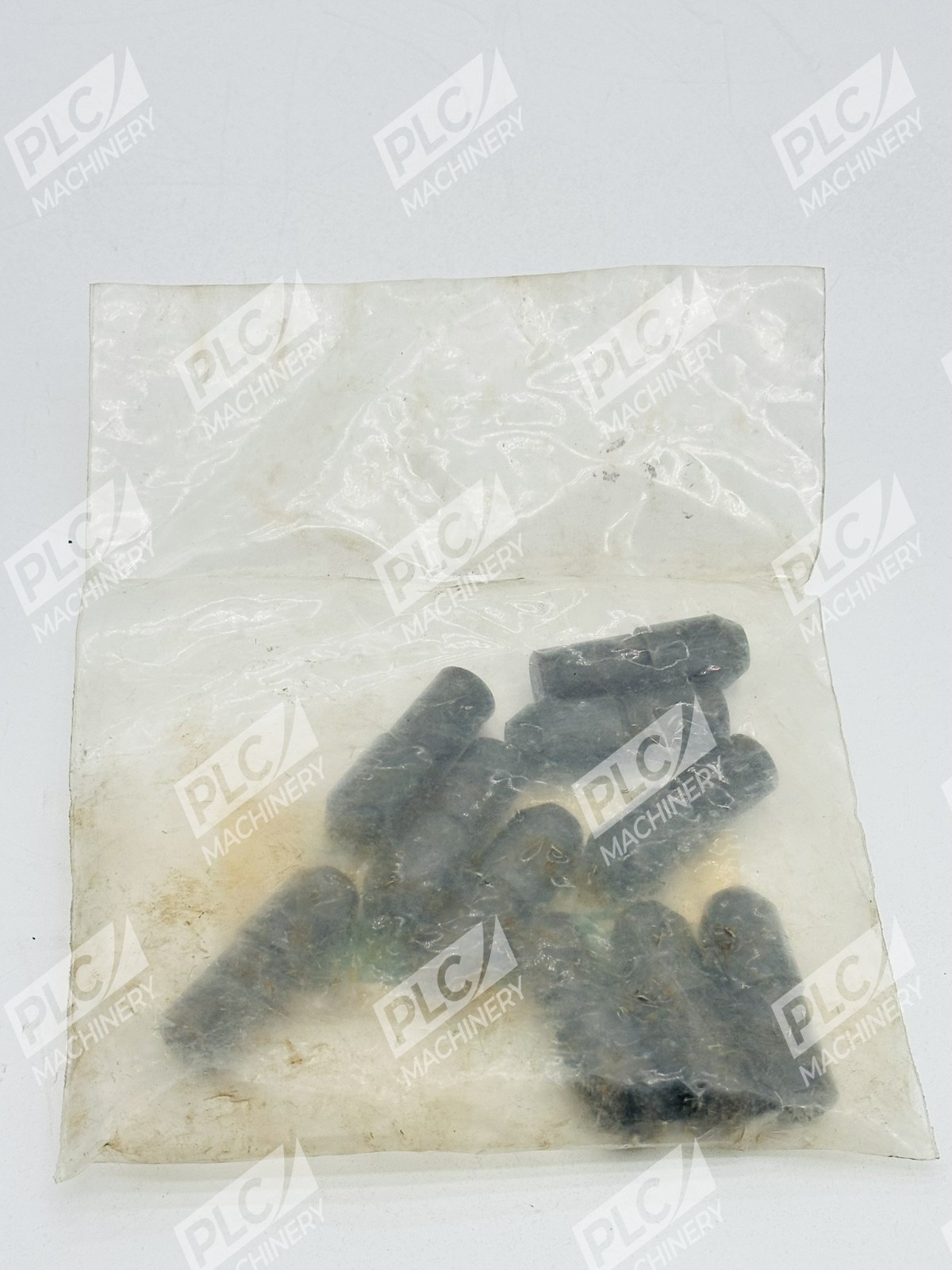

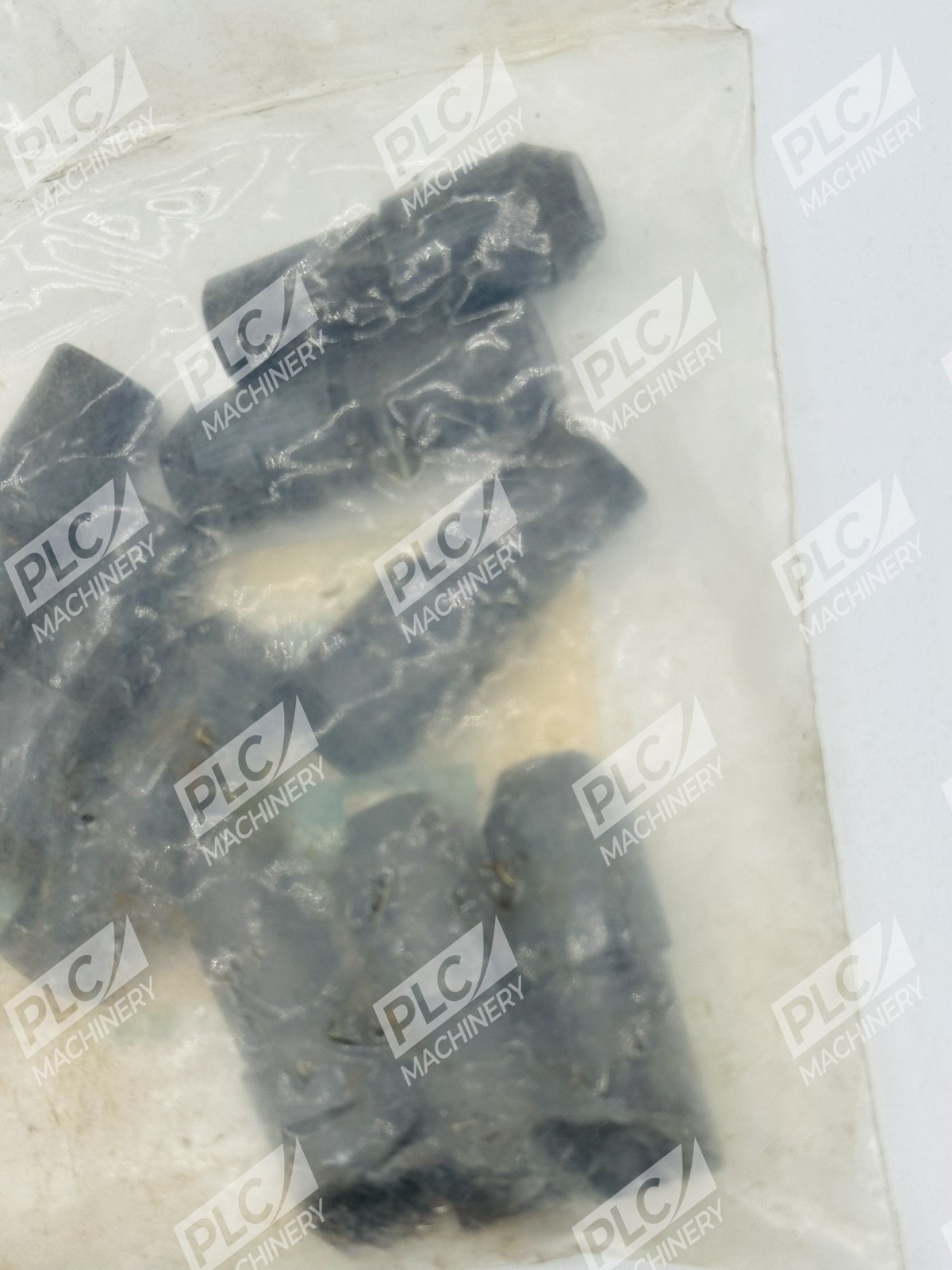

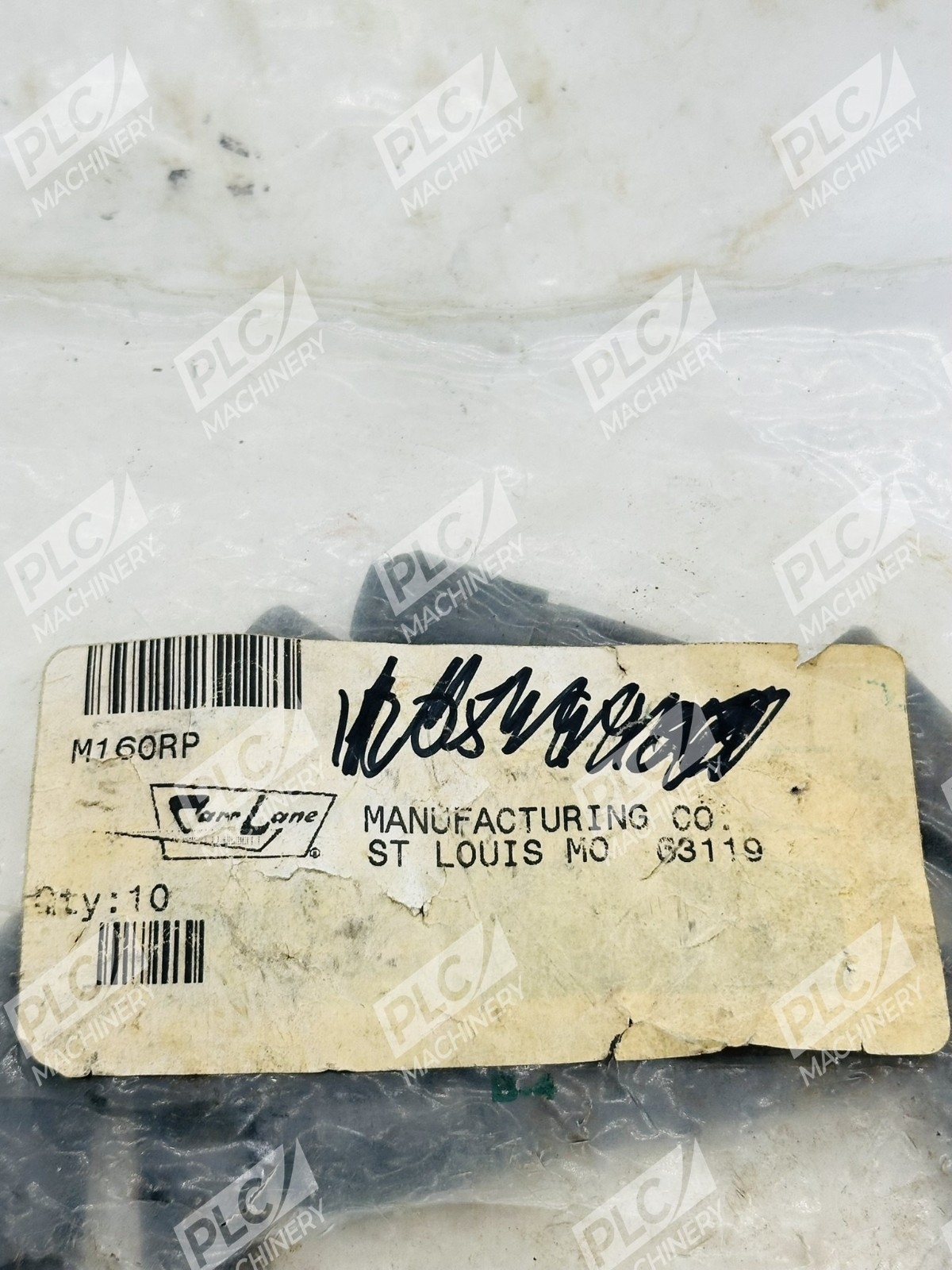

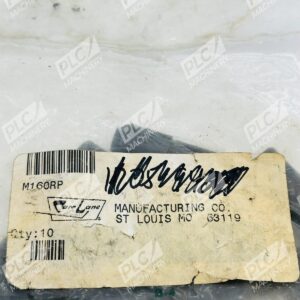

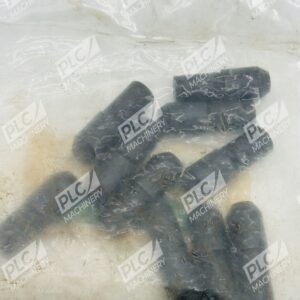

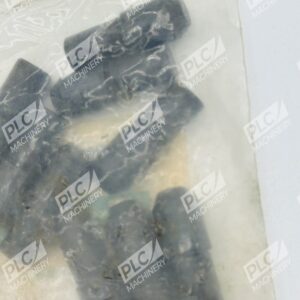

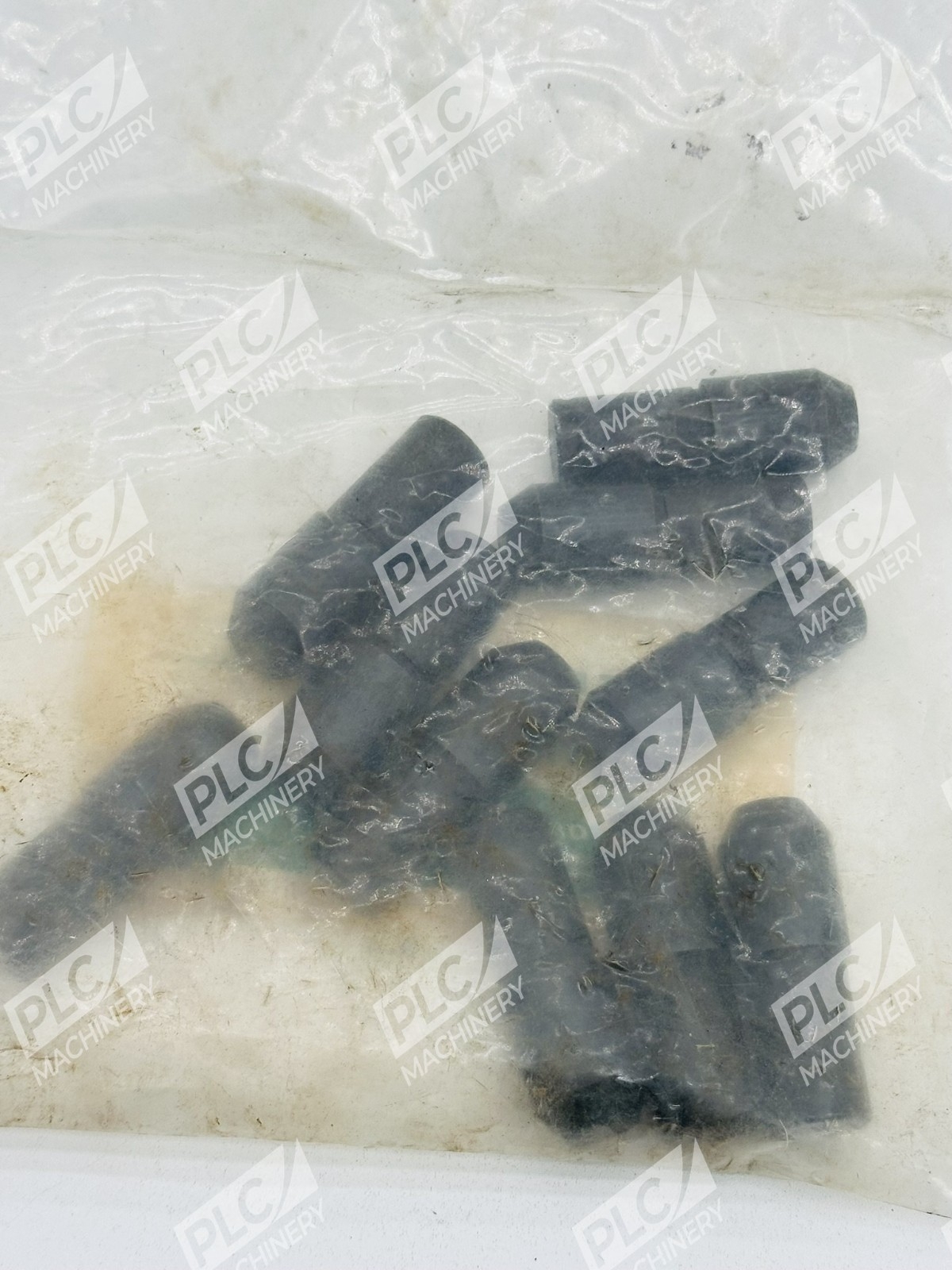

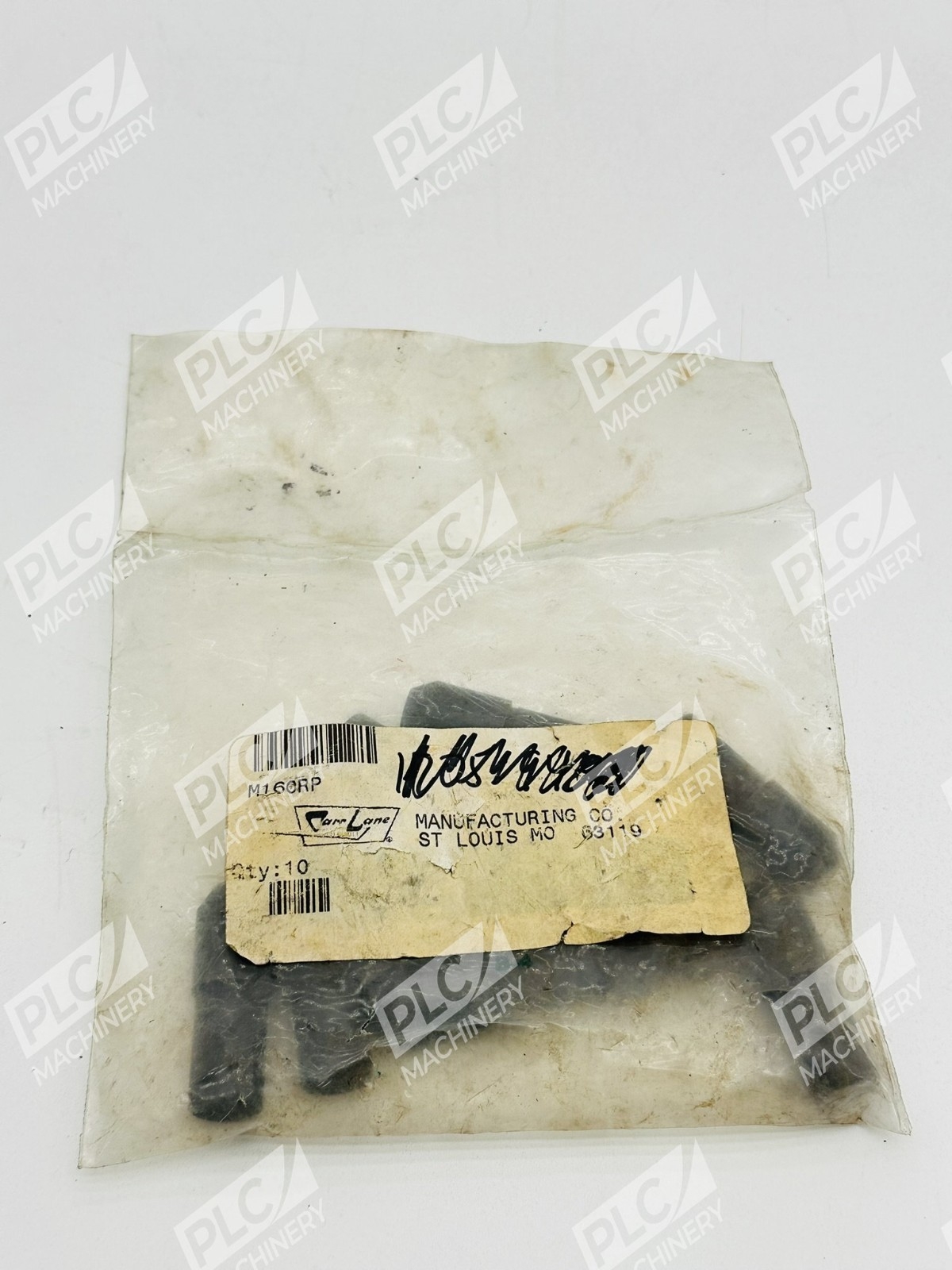

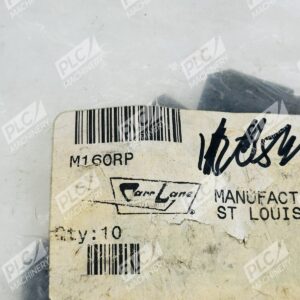

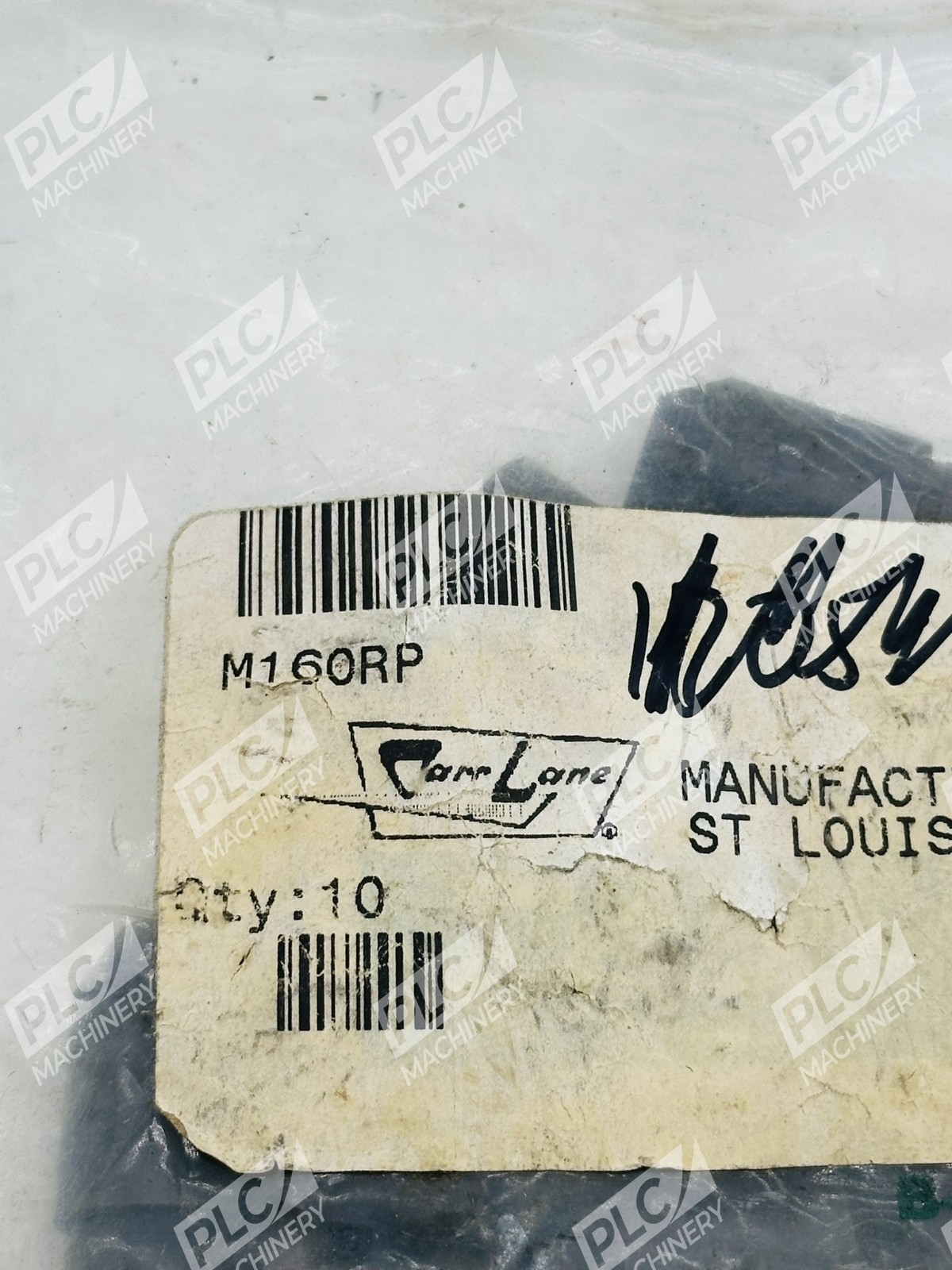

The Carr Lane M160RP Round Pin is a precision-engineered locating pin used in fixture design, workholding, and assembly applications. Round pins provide accurate part positioning with concentricity within 0.0005″ TIR, making them essential for repeatability and consistency in production. This pack of 10 supplies multiple pins for comprehensive fixture designs or maintenance stock.
Key Features
- Concentricity within 0.0005″ TIR for precision alignment
- Chamfered tip for easy part loading and reduced wear
- Shoulder design resists downward forces better than standard dowel pins
- Heat-treated 1144 steel construction for durability
- Black oxide finish for corrosion resistance
- Made in USA manufacturing
Technical Specifications
Exact dimensional specifications for the M160RP model should be verified against the current Carr Lane catalog or technical documentation, as locating pins are available in multiple configurations across their product line.
Typical Applications
- Precision fixture design for CNC machining centers
- Workholding assemblies for automated production
- Part location and alignment in manufacturing fixtures
- Jigs and fixture components for repetitive manufacturing
- Foolproofing workholder orientation to prevent improper part loading
Compatibility & Replacements
Compatible With
- Carr Lane fixture components and modular systems
- Standard fixture plates and clamping systems
- CNC machine tool fixtures and workholding assemblies
Replaces / Drop-In Replacement For
The M160RP is a standard catalog item. For specific interchangeability with other Carr Lane models or competitor products, verify compatibility with your system integrator or Carr Lane technical support before ordering.
Works With
- Carr Lane diamond pins for dual-pin location systems
- Standard Carr Lane clamping and positioning components
- Custom fixture designs and modular workholding solutions
