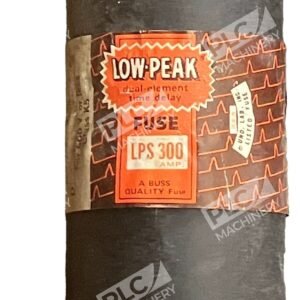

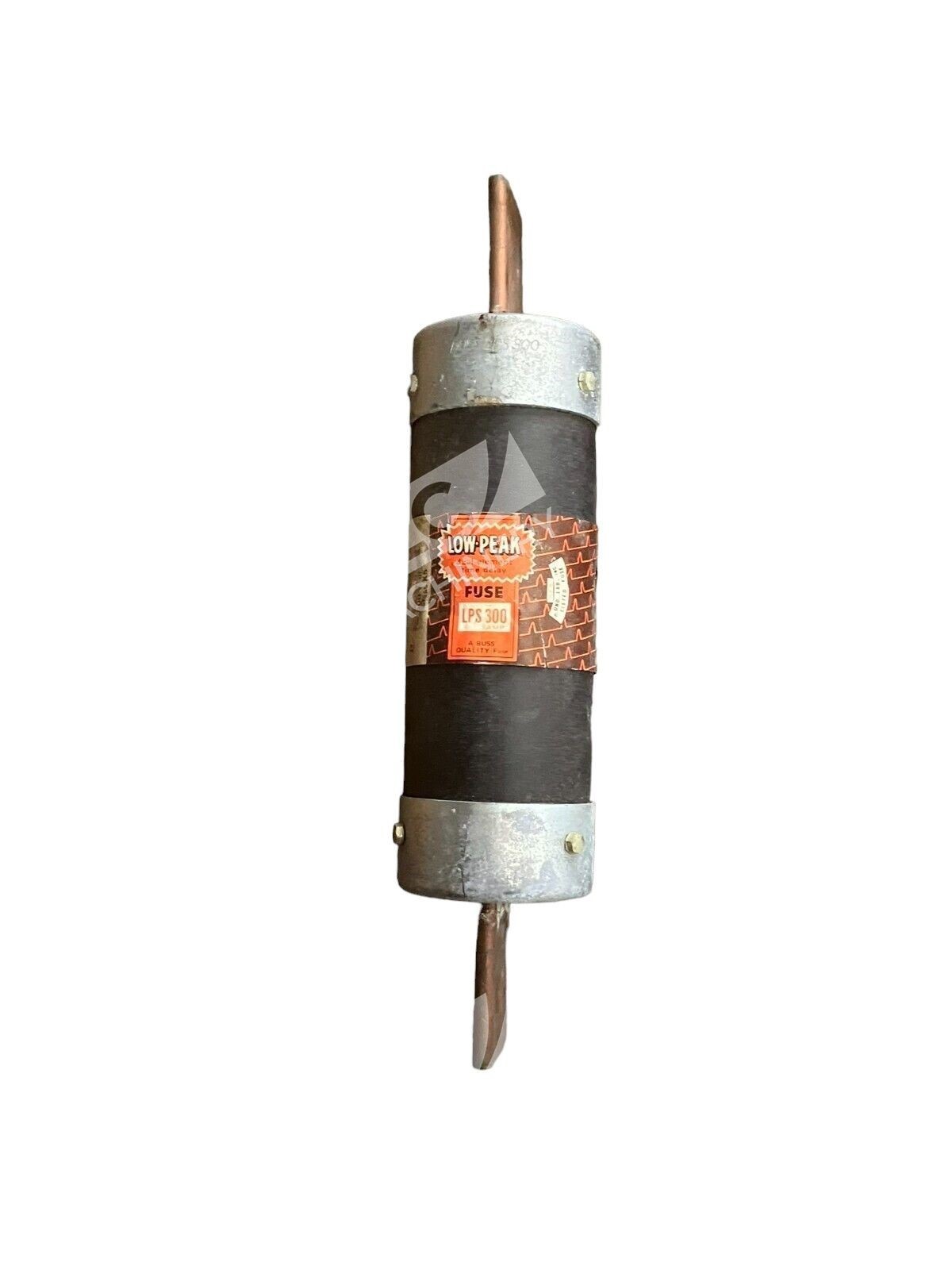

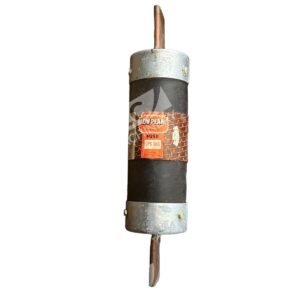

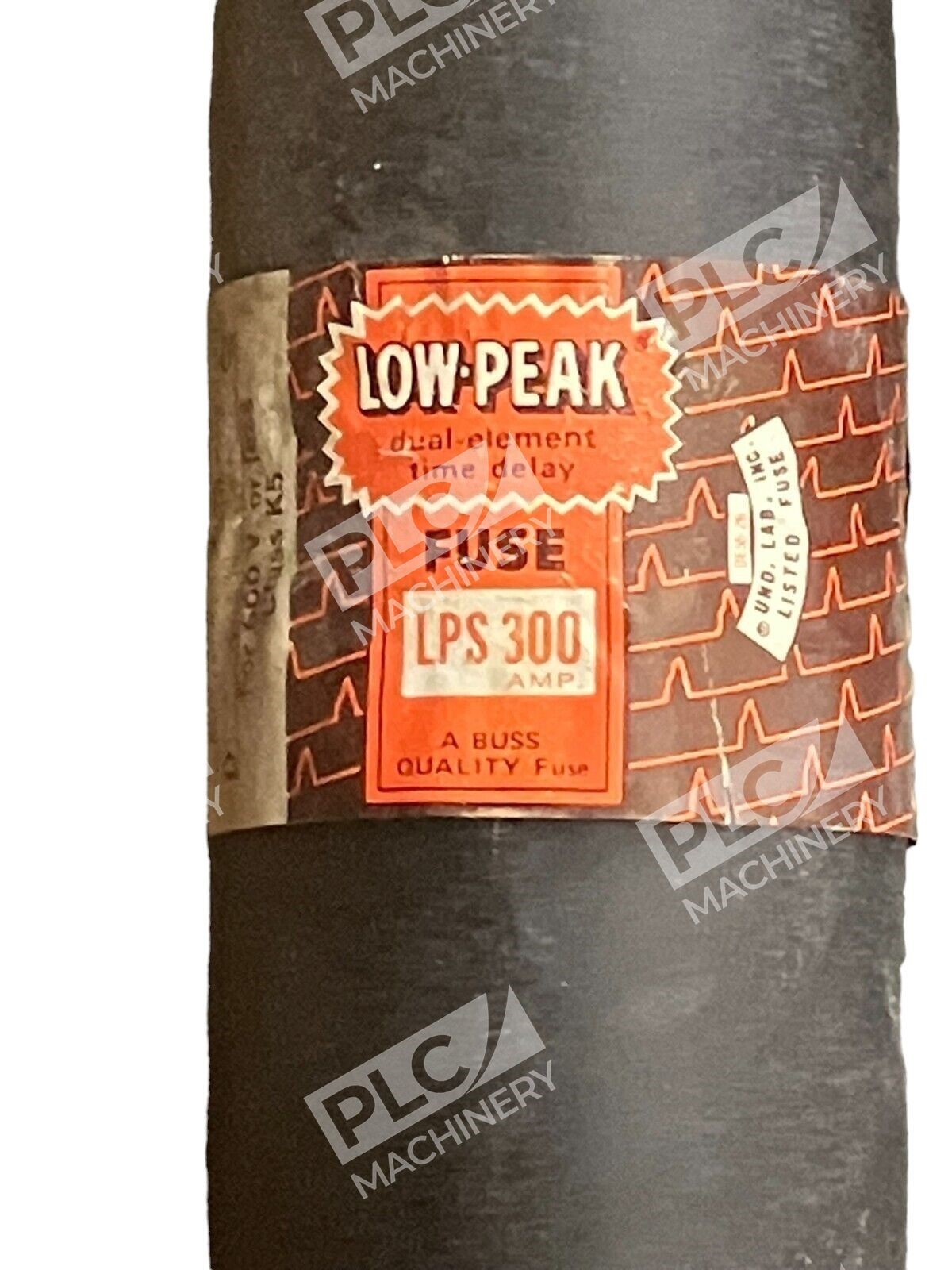

Bussmann Low-Peak LPS300 300 Amp Dual Element Time Delay (lot of 2)

Bussmann Low-Peak LPS300 300 Amp Dual Element Time Delay Fuse (Lot of 2)

The Bussmann Low-Peak LPS300 is a 300 Amp, dual-element, time-delay fuse designed to provide superior protection for electrical circuits. This lot includes two fuses, ensuring reliable performance and safety for your applications.

Key Features

• Dual-Element Design: Offers both overload and short-circuit protection, enhancing system reliability.
• Time-Delay Capability: Allows for a minimum of 10 seconds delay at 500% of rated current, accommodating temporary inrush currents without unnecessary fuse operation.

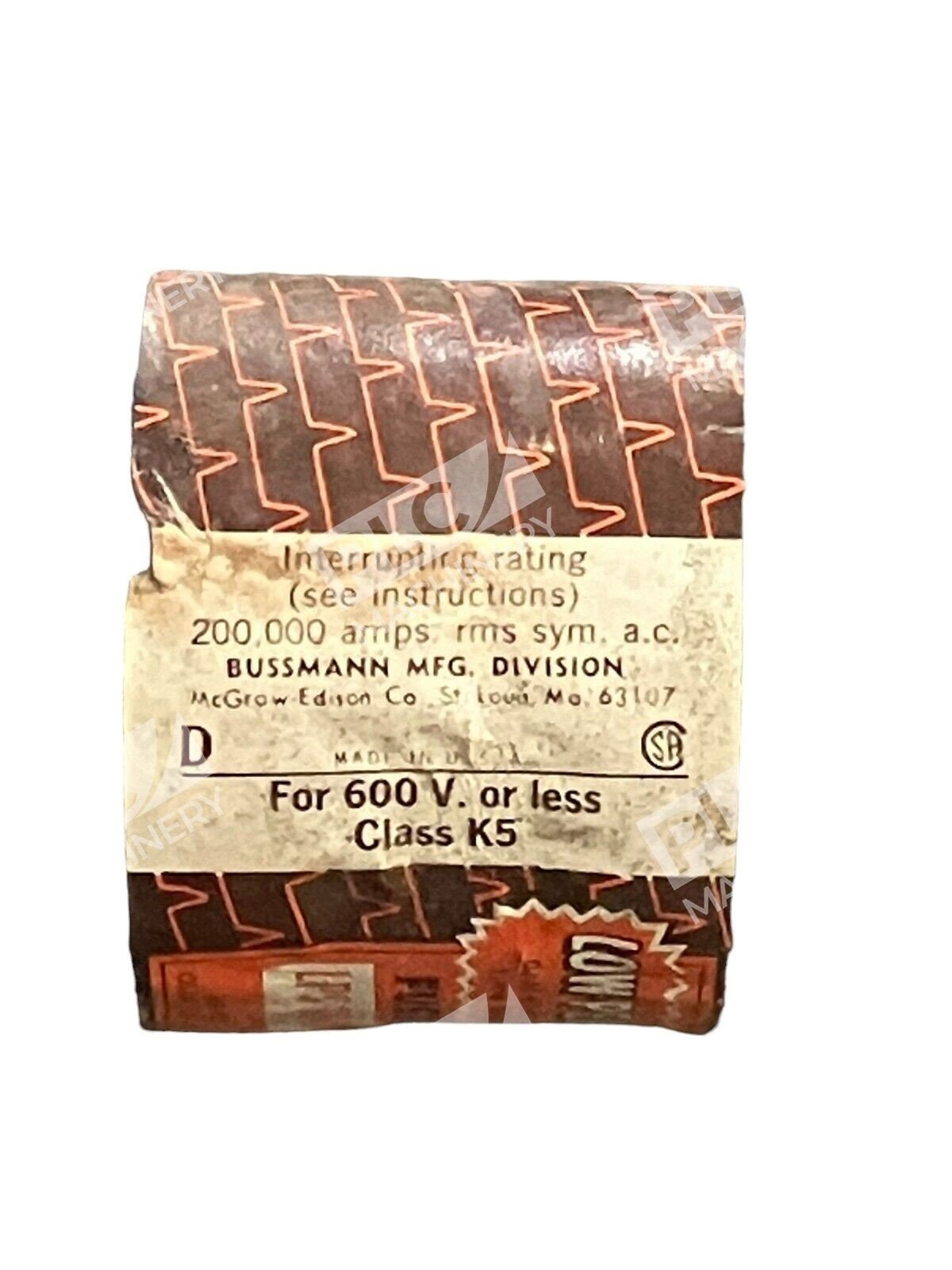

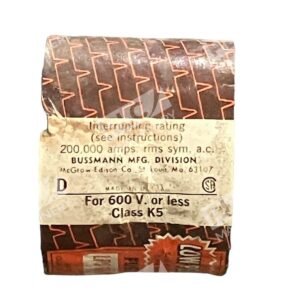

• High Interrupting Rating: Rated at 200,000 Amps RMS Symmetrical at 600 VAC, providing robust protection against high fault currents.
• Class K5 Classification: Ensures compatibility with a wide range of industrial applications.
• Current Limiting: Reduces the let-through energy during fault conditions, protecting downstream equipment from damage.

Specifications

• Amperage Rating: 300 Amps
• Voltage Rating: 600 VAC
• Interrupting Rating: 200,000 Amps RMS Symmetrical
• Fuse Class: K5
• Body Type: Cartridge
• Mounting Type: Holder
• Material: Melamine
• Dimensions: 2.11 inches in diameter x 7.126 inches in length

Applications

The LPS300 fuses are ideal for protecting branch circuit breaker panelboard mains, industrial control systems, machinery disconnects, and power panelboards. Their time-delay feature makes them suitable for circuits with high inrush currents, such as motors and transformers.

Compliance and Standards

These fuses comply with UL Guide No. JDDZ, File No. E4273, and CSA Class 1422-02, File No. 53787, ensuring adherence to industry safety standards.

Invest in the Bussmann Low-Peak LPS300 fuses to enhance the safety and reliability of your electrical systems.
