Overview

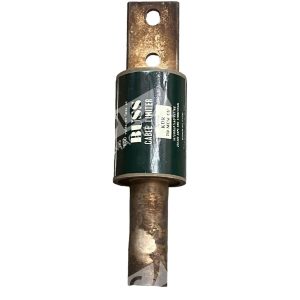

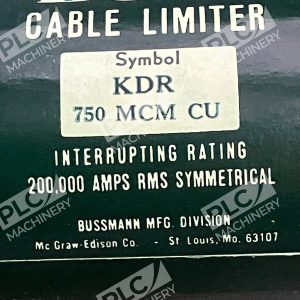

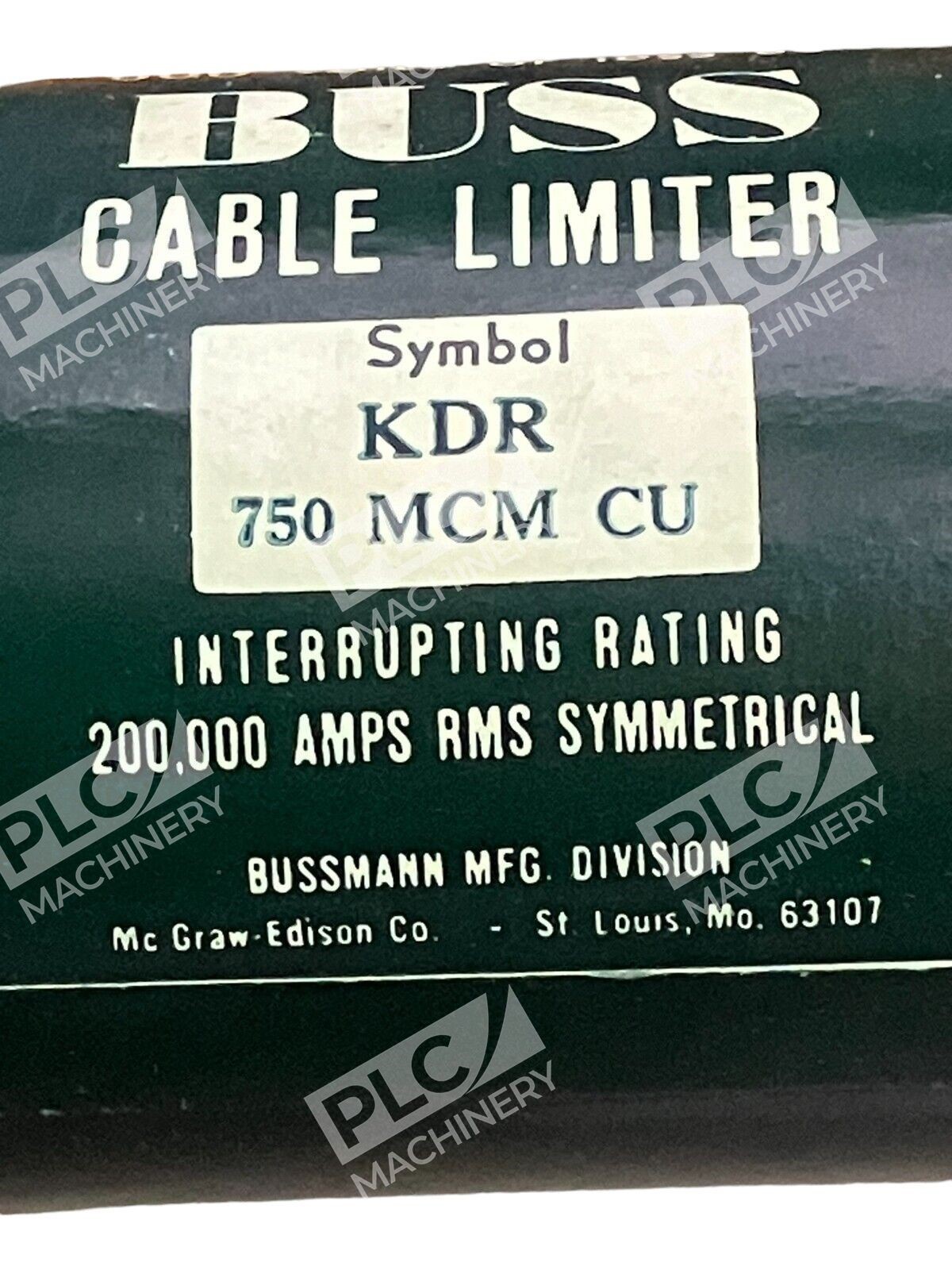

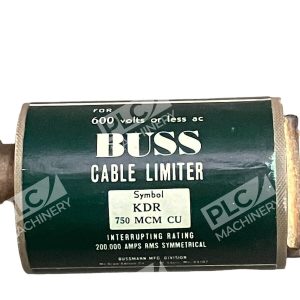

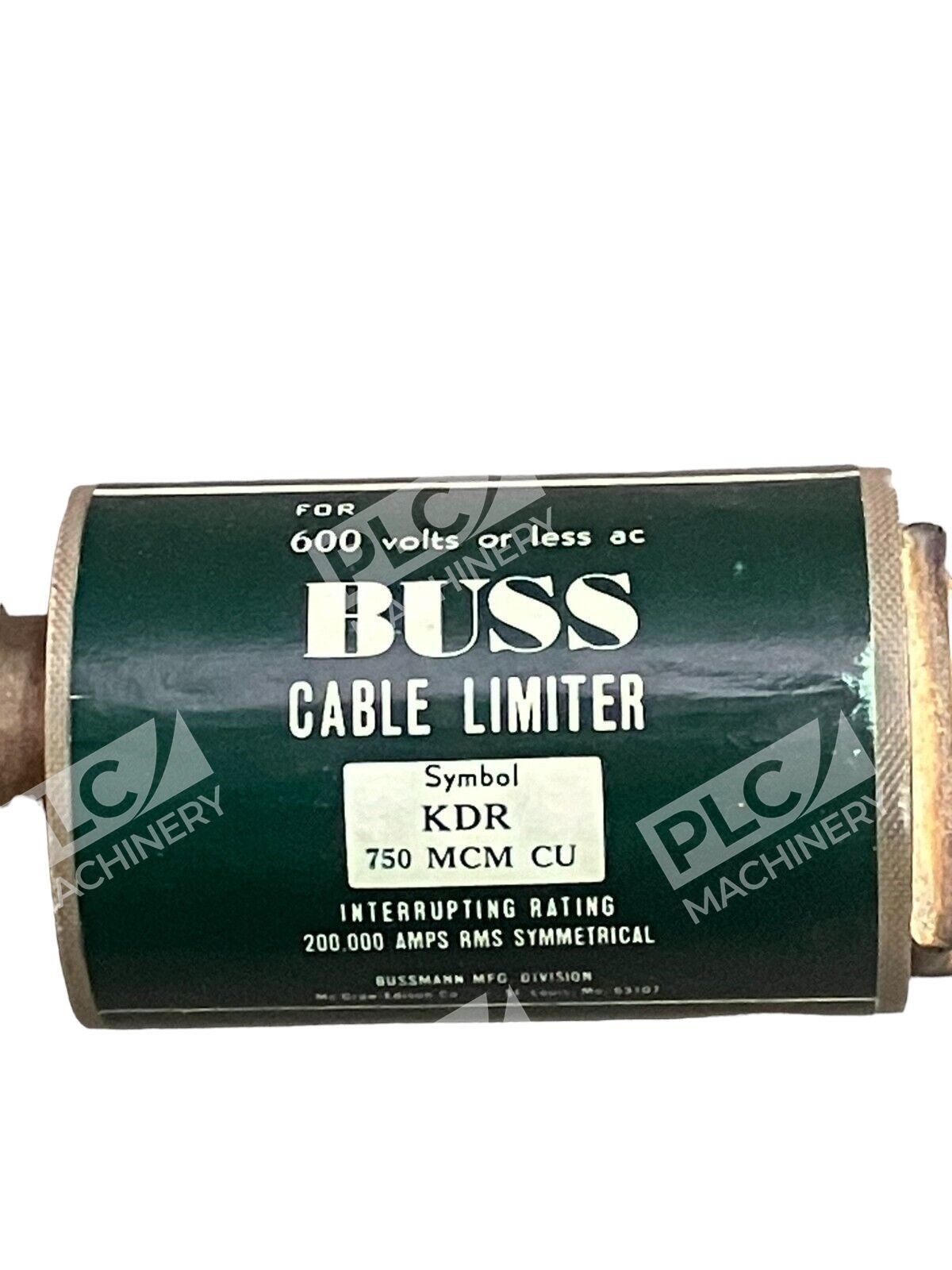

The Bussmann KDR 750 MCM CU cable limiter is a non-indicating, current-limiting protective device engineered for 750 kcmil copper cables operating at 600V AC. Manufactured by Eaton Bussmann, this cable limiter provides short-circuit protection and isolates faulted conductors in multi-conductor electrical systems. The KDR series is rated for 200 kAIC (kilo-amperes interrupting capacity), making it suitable for industrial power distribution and service entrance applications.
Key Features
- 200 kAIC interrupting capacity for reliable fault protection
- 600V AC rated for industrial electrical systems

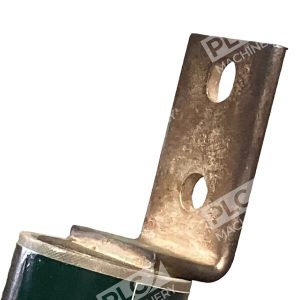

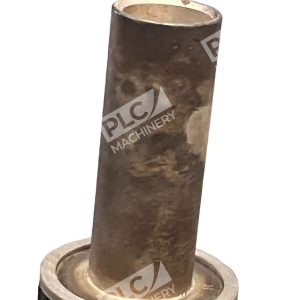

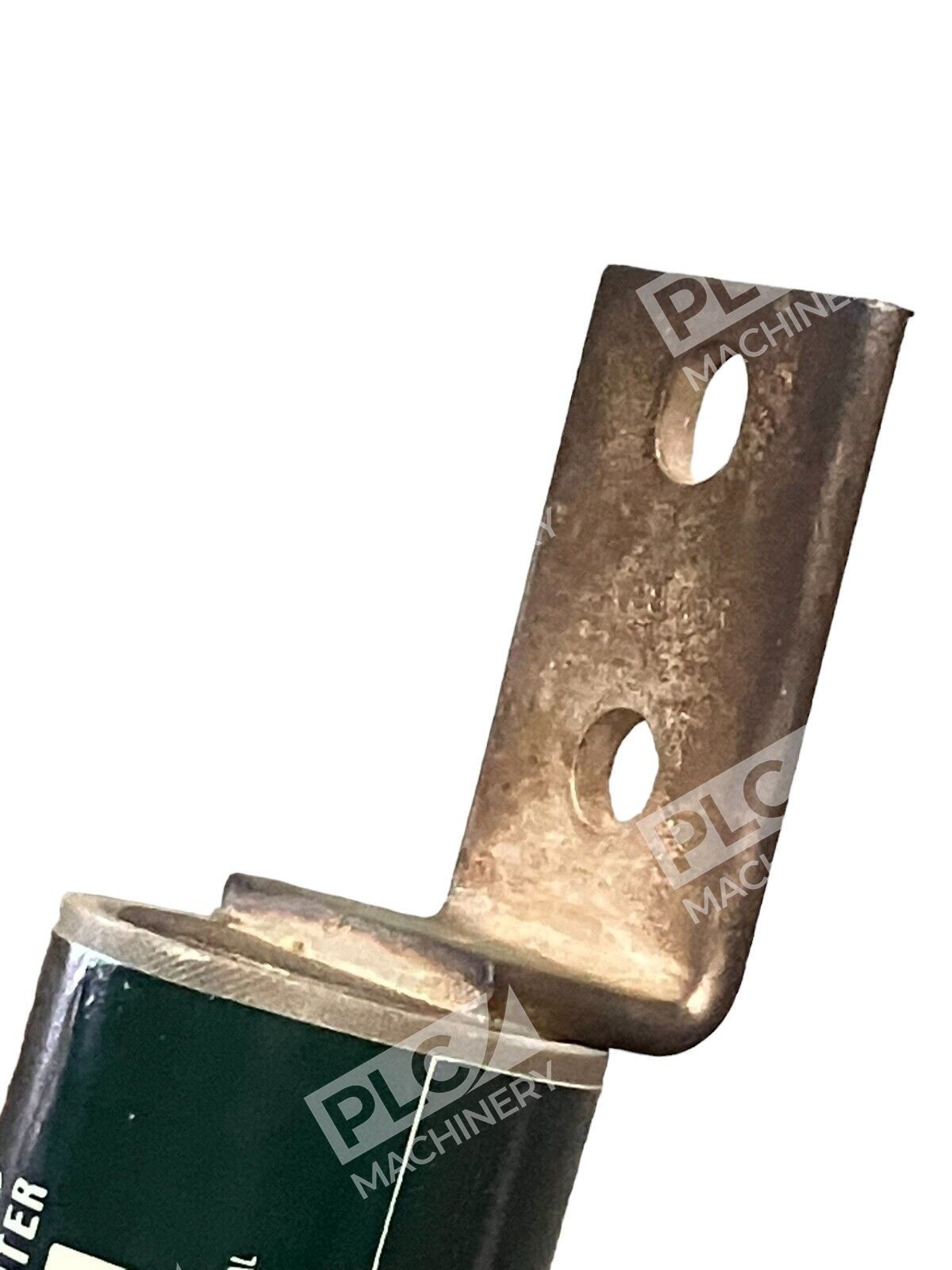

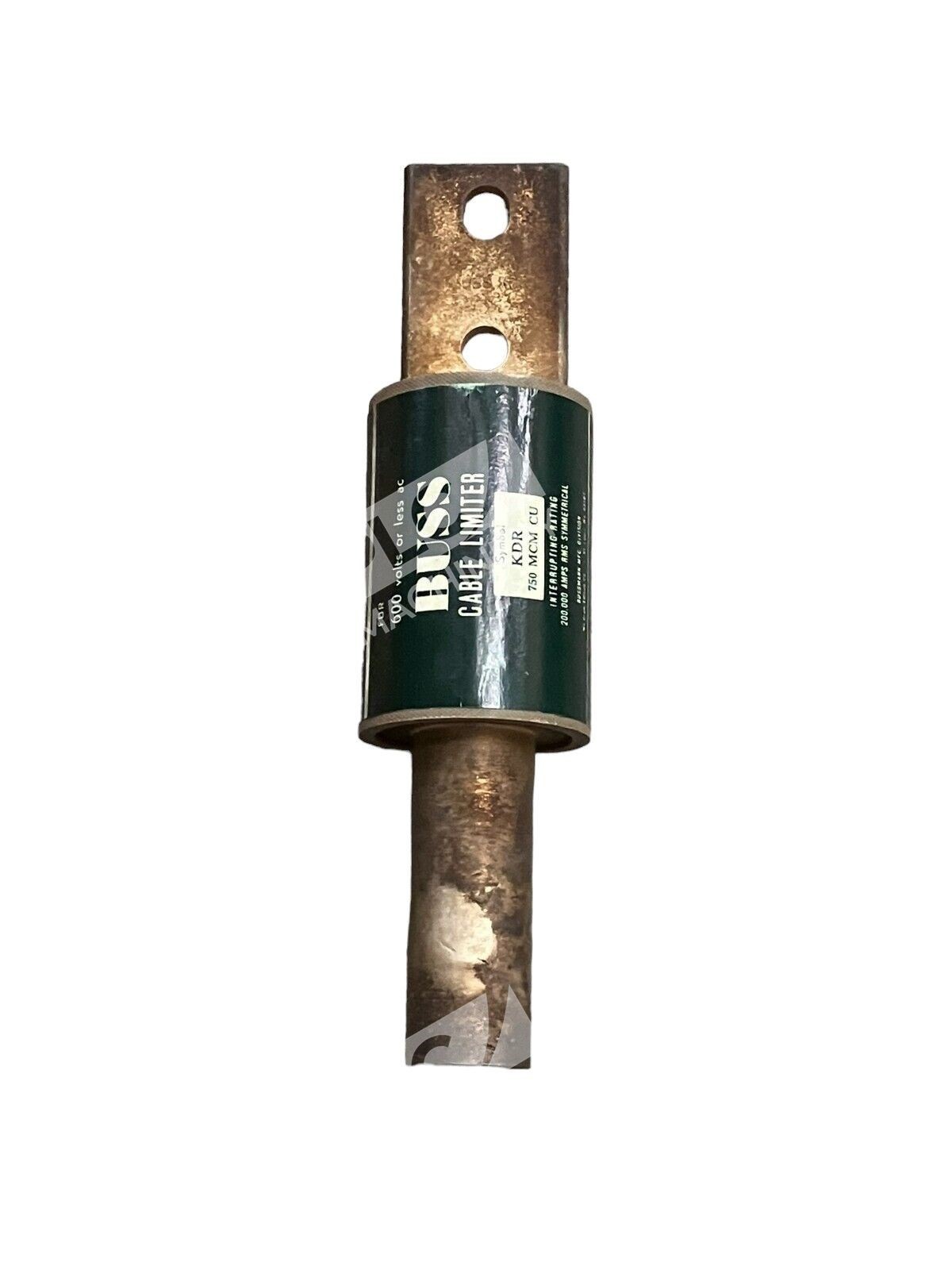

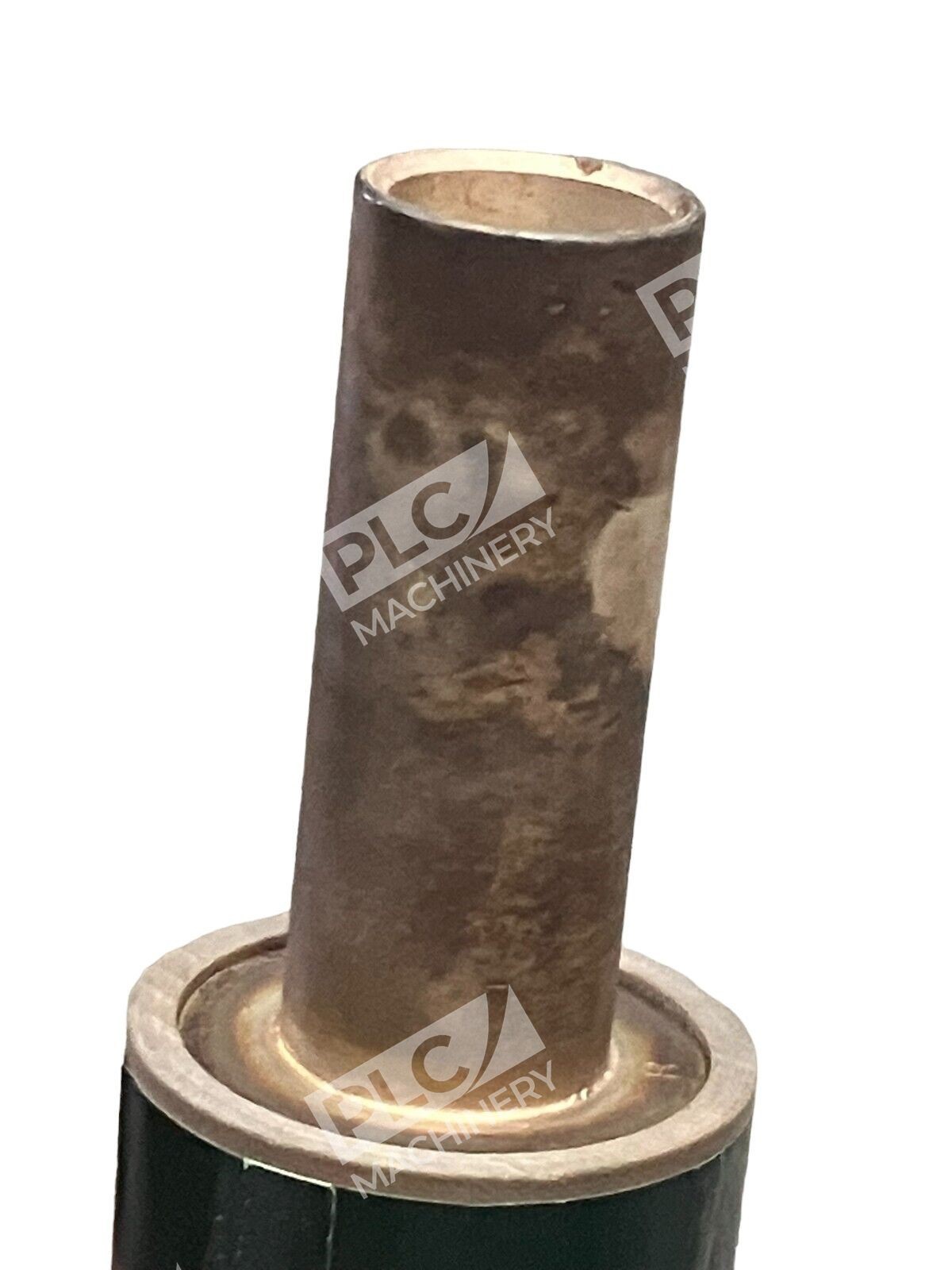

- Tubular end with offset bolted end terminal configuration
- Copper conductor rated for 750 kcmil cable applications
- Non-indicating design—compact, reliable operation
- Isolates faulted conductors and removes them from service
Technical Specifications
The KDR 750 MCM combines compact dimensions with robust current-limiting performance. Its offset bolted end design accommodates standard cable termination methods used in power distribution and control installations.
Typical Applications
- Service entrance conductor short-circuit protection
- Multi-conductor system reliability enhancement
- Industrial power distribution panels
- Feeder cable protection on 277/480V, 120/208V, and 120/240V systems
- Equipment protection in non-residential installations
Compatibility & Replacements
Compatible With
- Industrial electrical panels rated for 600V AC
- Service entrance terminals and bus configurations
- Standard copper conductor termination hardware
Replaces / Drop-In Replacement For
- Earlier versions of the Bussmann K-series cable limiters
- Verify compatibility with your system integrator before ordering
Works With
- 600V AC industrial electrical systems
- Standard NEC (National Electrical Code) installations
- NFPA 70 compliant electrical designs
