Overview

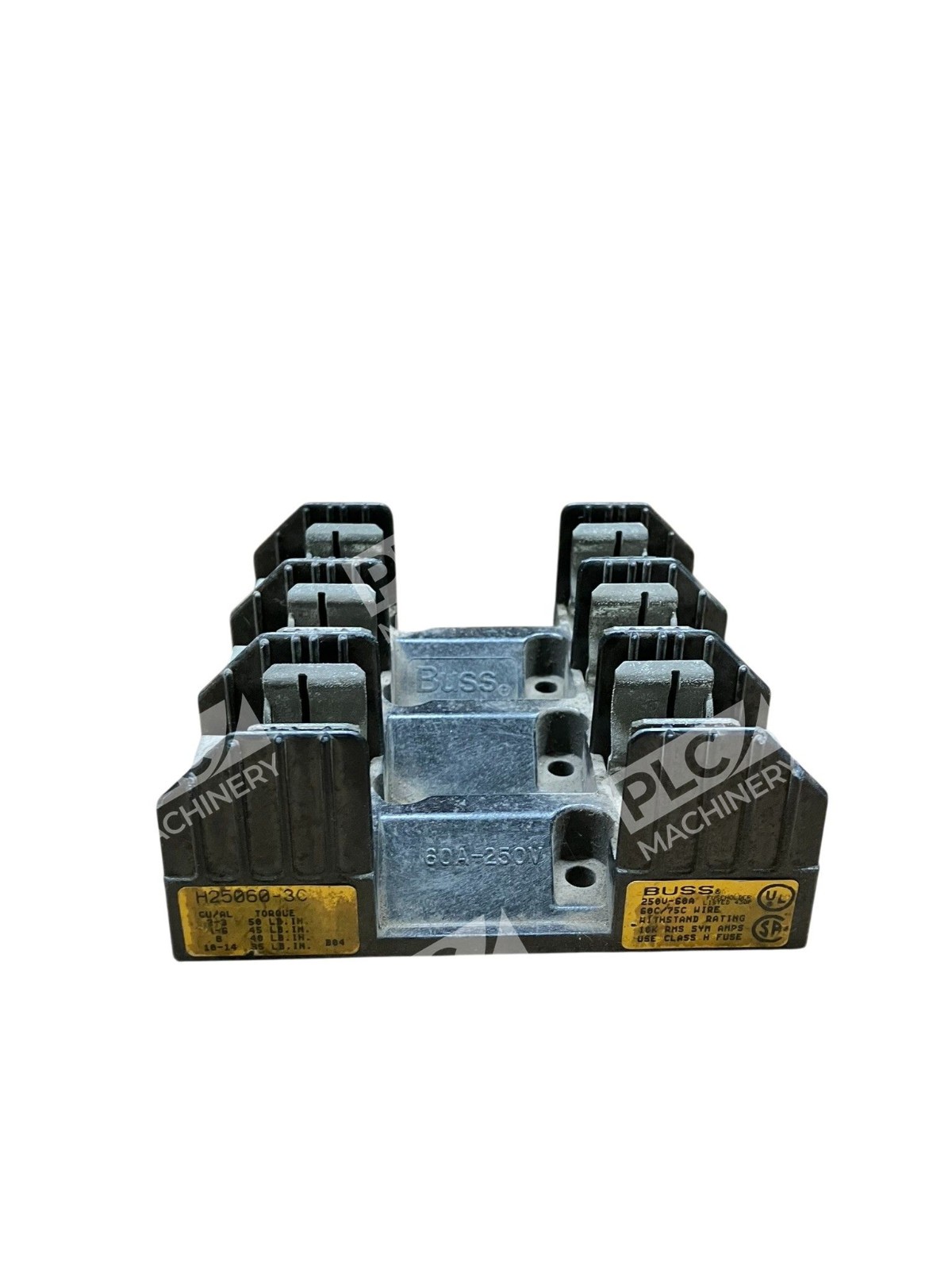

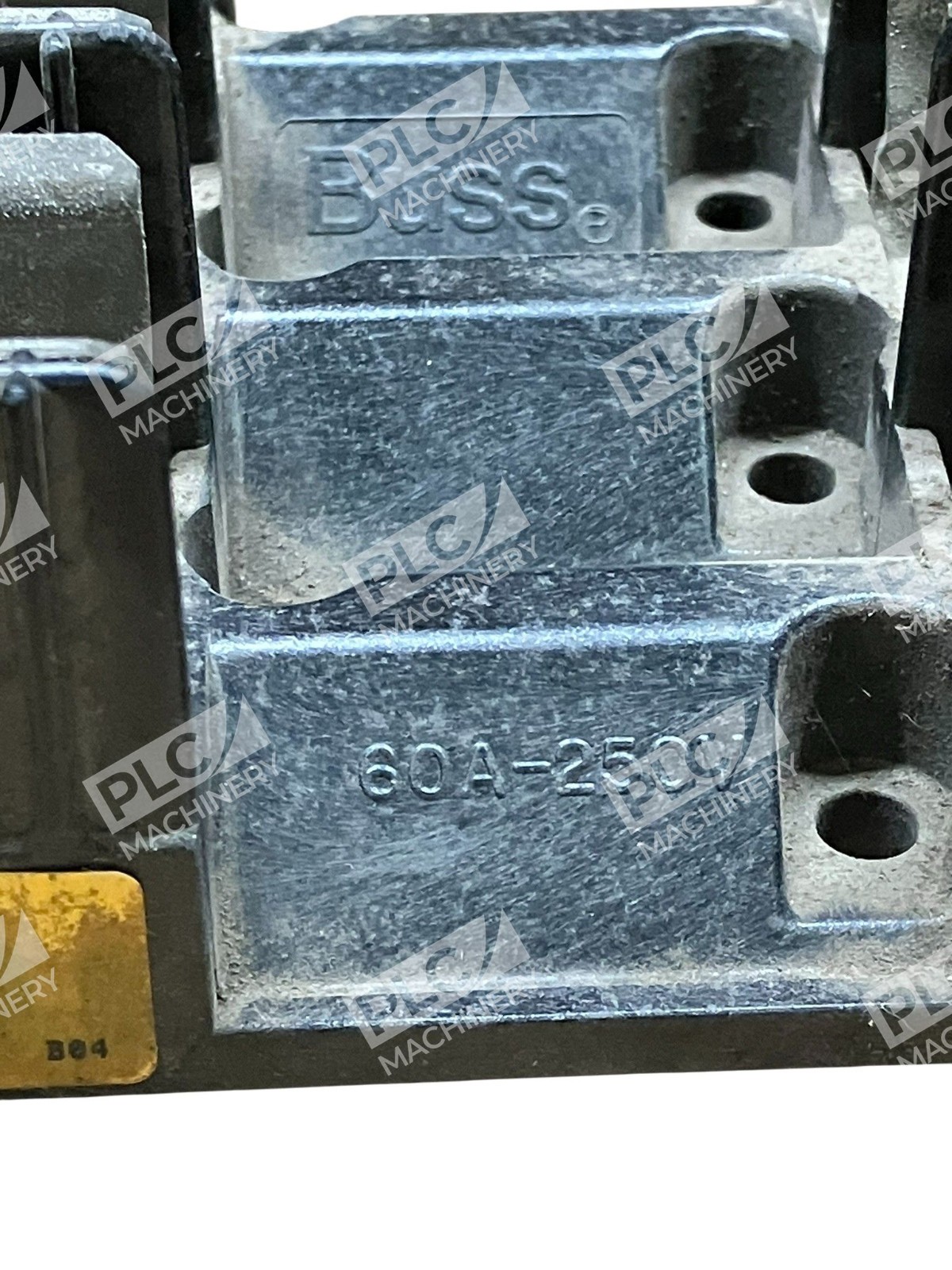

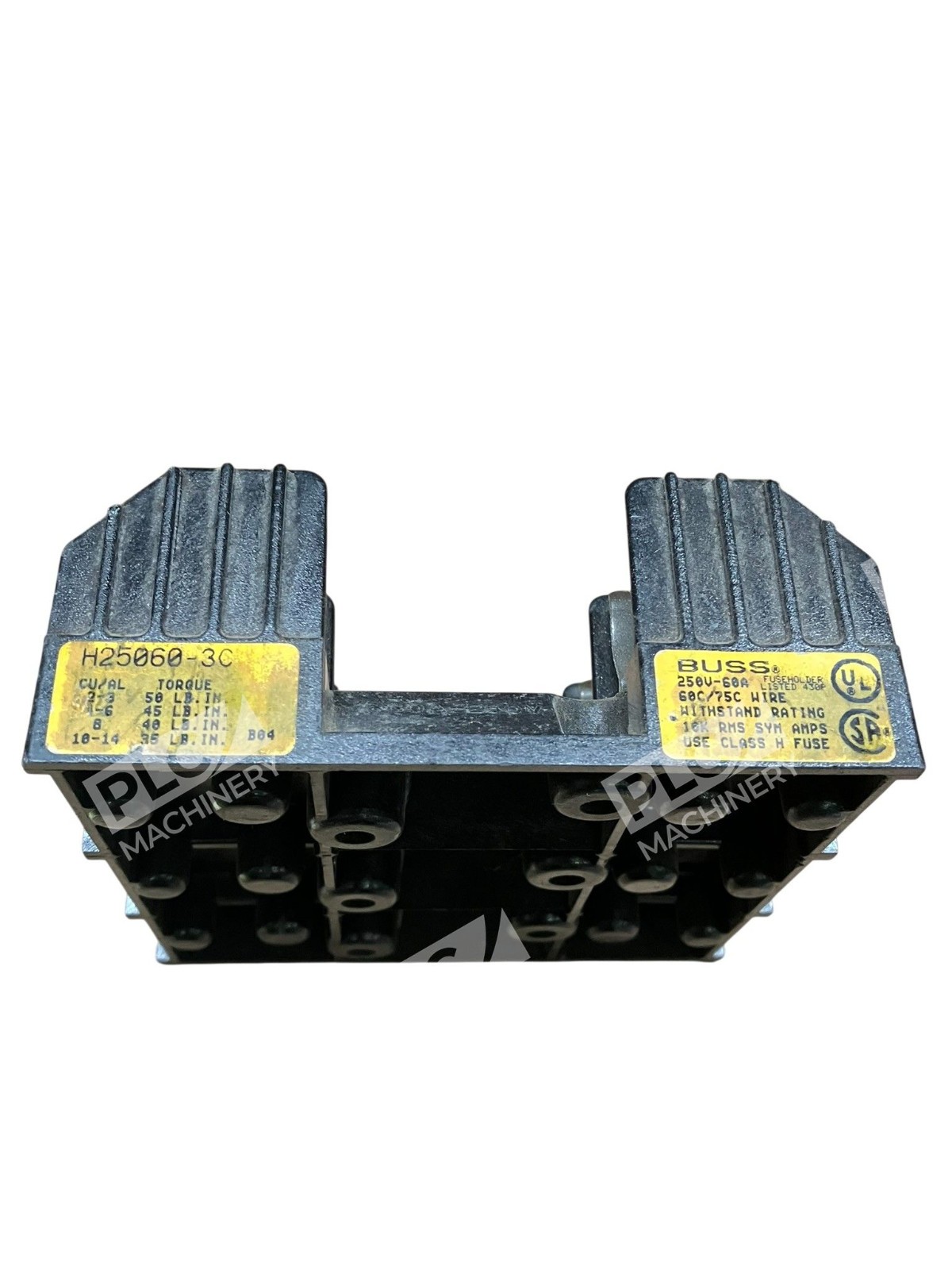

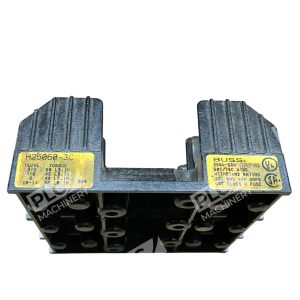

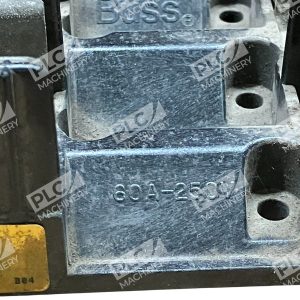

The Bussmann H25060-3C is an industrial-grade 3-pole fuse block holder designed for Class H fuses in 250VAC control systems. This H250 series fuse block provides reliable overcurrent protection in industrial control circuits, panel applications, and AC/DC control systems. Built with thermoplastic construction and UL-certified design, the H25060-3C delivers durability and safety-rated electrical protection for equipment up to 60A.
Key Features
- 3-pole configuration — accommodates three independent Class H fuses for multi-circuit protection
- 60A rated — supports fuse capacities from 31–60A (Class H NON and REN fuses)
- 250VAC/125VDC — suitable for 250VAC primary applications with 125VDC auxiliary control circuits
- Box lug terminal — accepts copper wire 14–2 AWG and aluminum wire 8–2 AWG for secure screw-lug connections
- Bolt-down mount — chassis or DIN rail mounting for compact control panel layouts
- UL/CE/CSA certified — meets industry standards (UL 248, CSA File 47235) with 10kA RMS short-circuit withstand rating
Technical Specifications
- Voltage Rating: 250VAC / 125VDC
- Current Rating: 60A (31–60A fuse range)
- Number of Poles: 3
- Fuse Class: H (Class H NON, REN)
- Fuse Dimensions: 3 in. length × 13/16 in. diameter

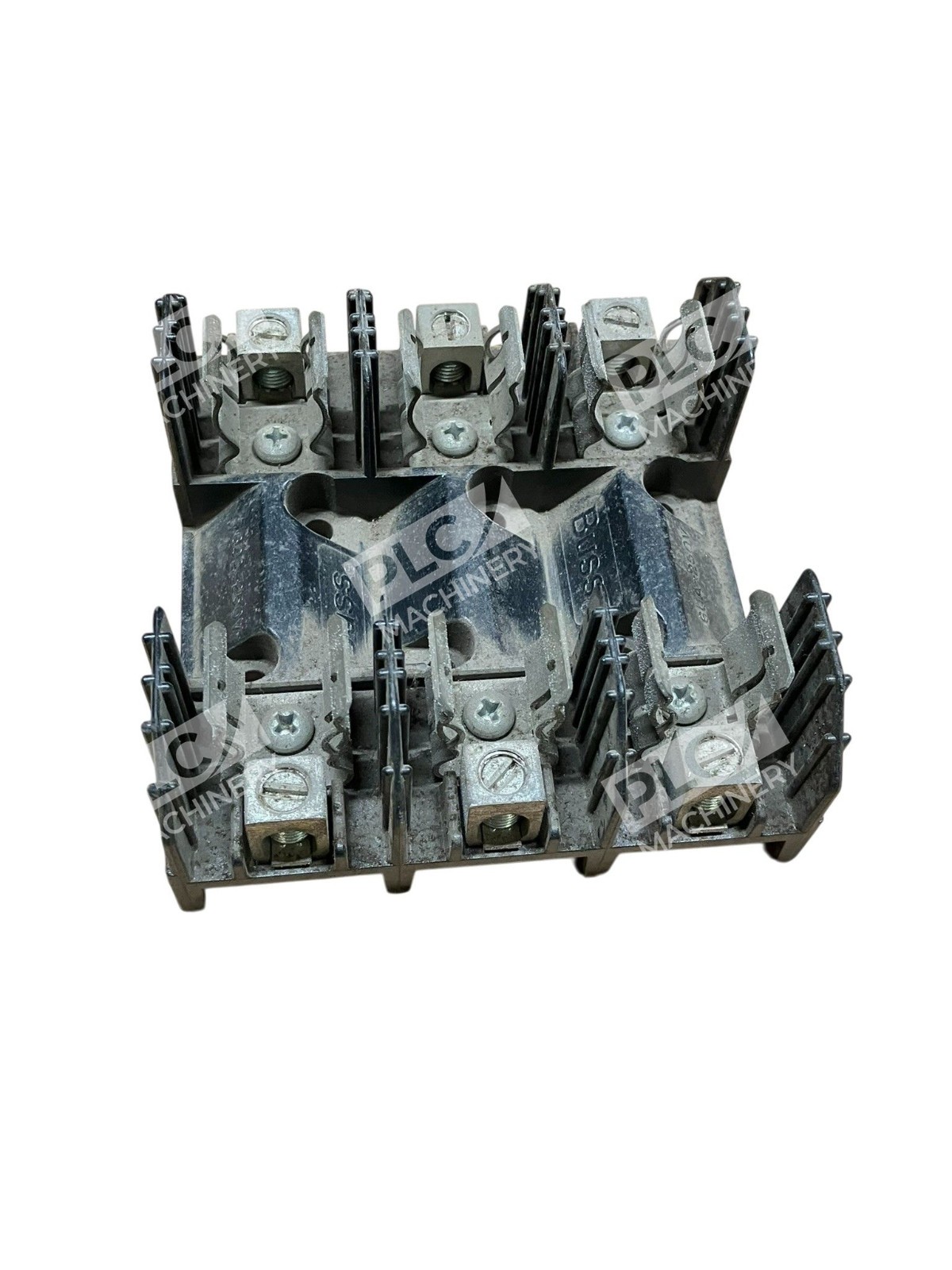

- Terminal Type: Box lug (screw-down)
- Wire Size: Copper 14–2 AWG; Aluminum 8–2 AWG

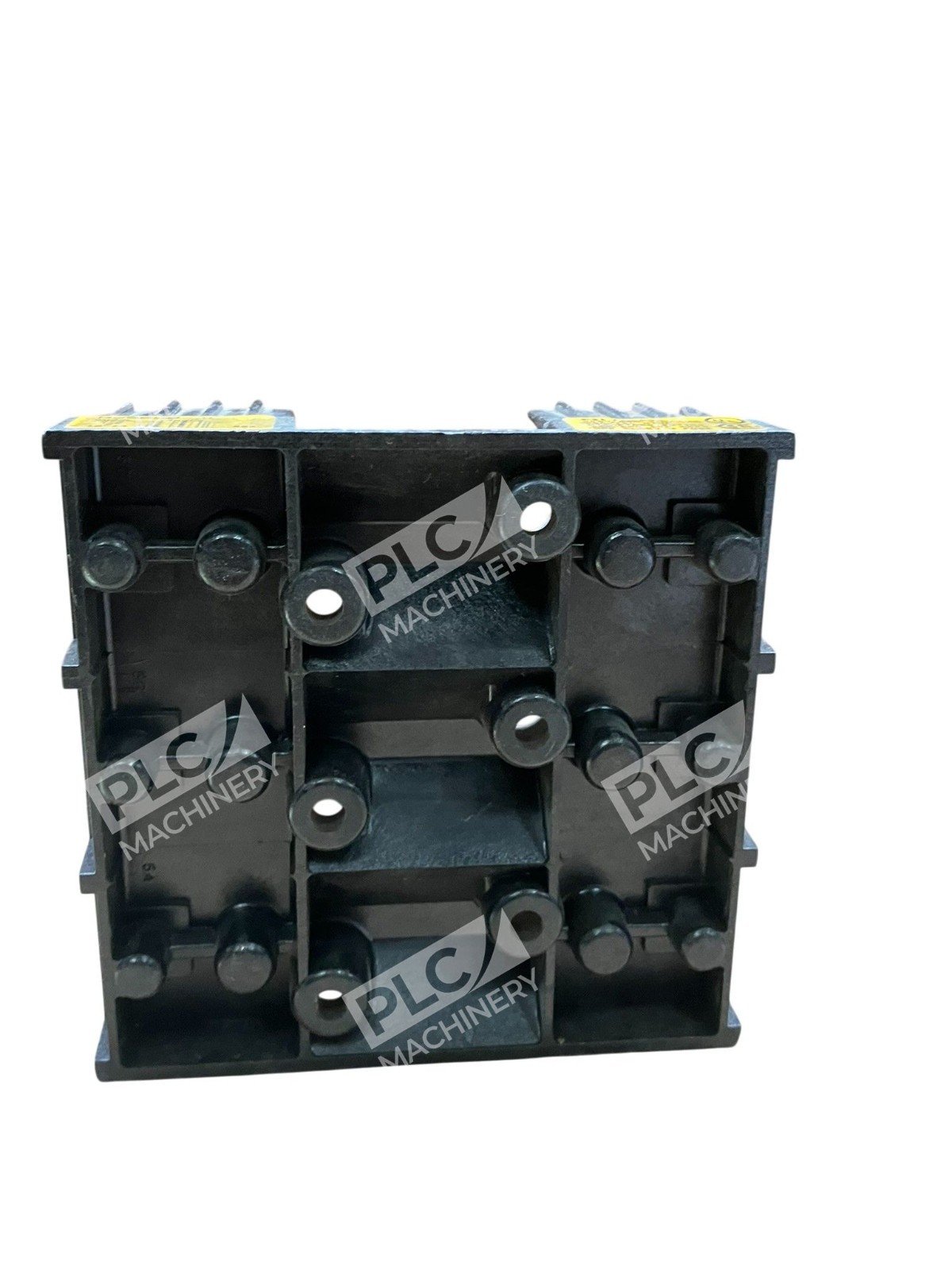

- Mounting: Bolt-down (chassis or enclosure)
- Construction: Thermoplastic, flammability rated UL 94V0
- Dimensions: 4.25 in. (L) × 4.125 in. (W) × 1.73 in. (D)
- Short-Circuit Rating: 10,000A RMS symmetrical
- Certifications: UL 248 listed, CSA certified, CE marked
Typical Applications
- Industrial machine control panels and distribution enclosures
- 250VAC/DC control circuits and auxiliary power protection
- Motor control centers and power distribution units
- HVAC systems, industrial lighting circuits, and process equipment protection
- Legacy control system retrofits and maintenance replacements
Compatibility & Replacements
Compatible With
- Class H NON and REN cartridge fuses (31A, 45A, 60A ratings)
- Industrial control systems operating at 250VAC or less
- Standard electrical enclosures with bolt-down mounting provisions
- Copper and aluminum conductors rated 14–2 AWG and 8–2 AWG respectively
Replaces / Drop-In Replacement For
- H25060-3C — original Bussmann specification
- Other H250 series 3-pole, 60A 250VAC fuse blocks with equivalent Class H ratings
- Note: Verify terminal type and wire gauge compatibility before substitution
Works With
- Bussmann LPN, FRN, DLN, and KTN Class H cartridge fuses
- Standard electrical fuse pullers and extraction tools
- Panel-mount and bolt-on enclosure assemblies
- Legacy and modern industrial control architectures
