Overview

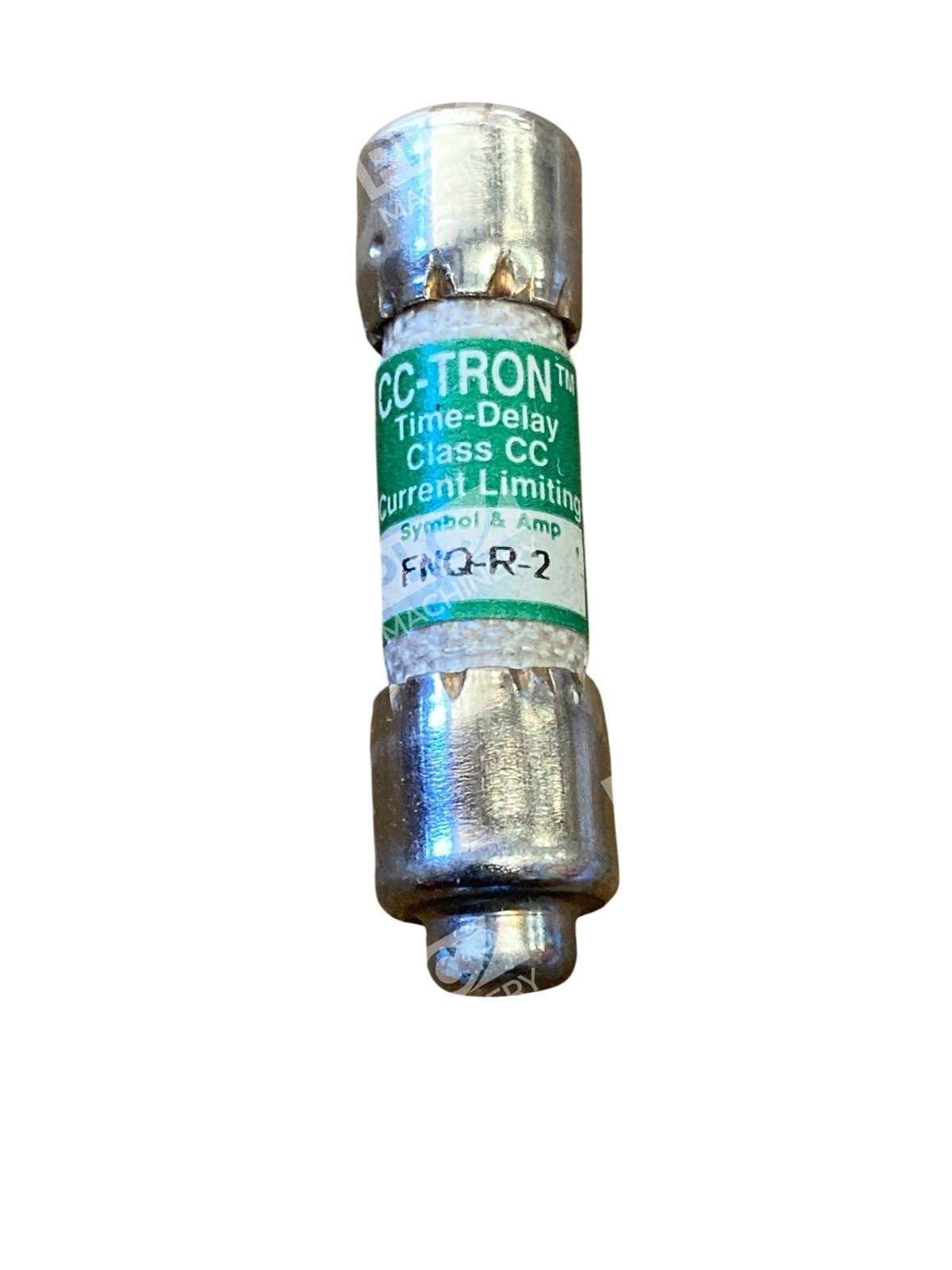

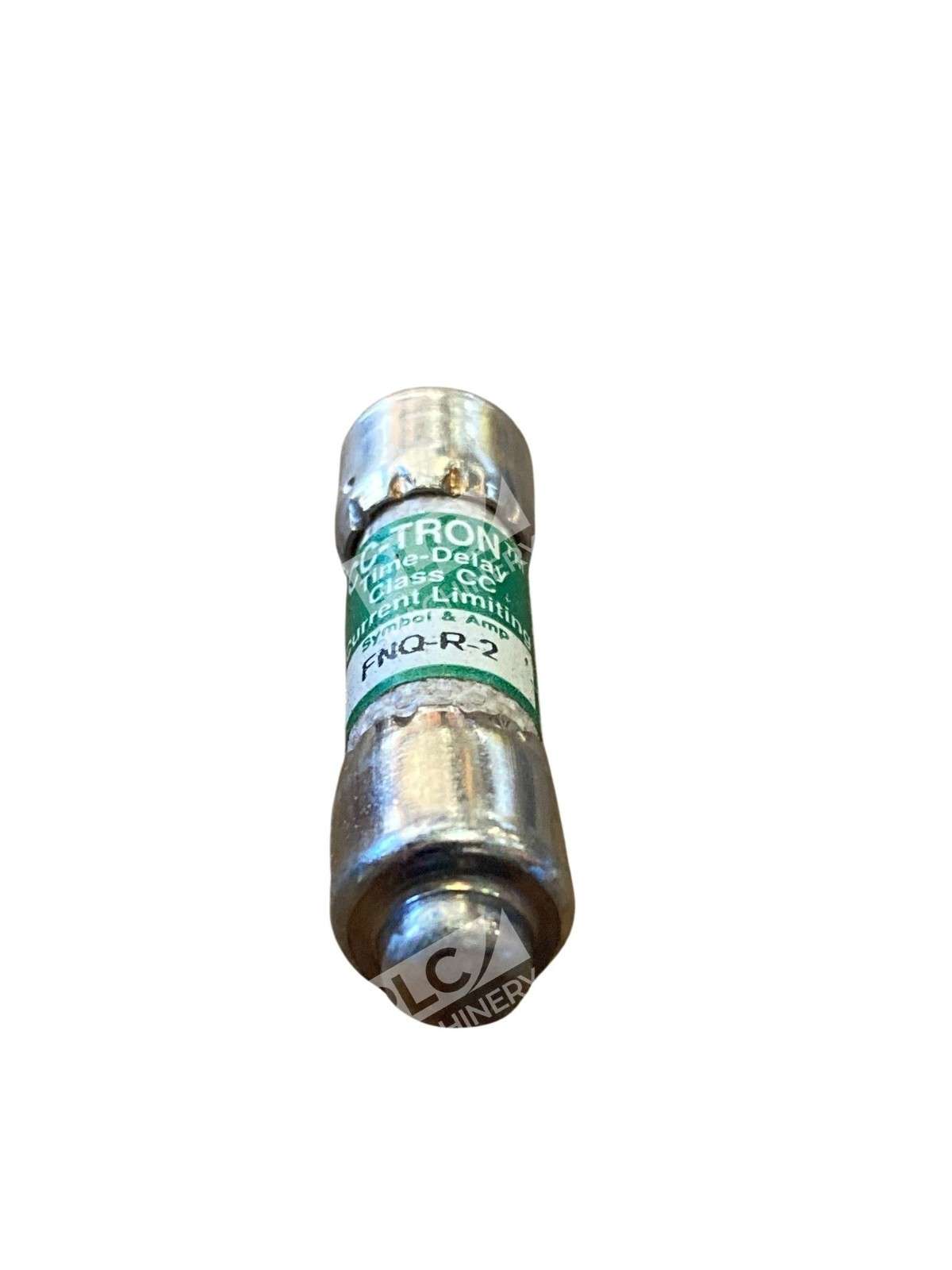

The Bussmann FNQ-R-2 is a Class CC time-delay, dual-element current limiting fuse engineered for industrial control circuits and transformer protection. Rated 2A at 600V with a 200 kA interrupt capacity, rejection type, dual-element melamine construction, this fuse combines rapid short-circuit response with inrush tolerance for equipment compatibility.
Key Features
- Time-delay design with 12-second response at 200% current for compatibility with inrush loads like small control transformers
- Current-limiting performance providing 10X faster short-circuit protection than standard circuit breakers, UL and CSA listed
- Rejection-style cartridge body fits both standard and rejection-type holders with ferrule terminals
- Compact 13/32″ diameter × 1-1/2″ length cylindrical design for space-constrained panels
- Non-indicating fuse; status determined by visual cartridge inspection
- Meets UL 248-4 and CSA standards; CE approved
Technical Specifications

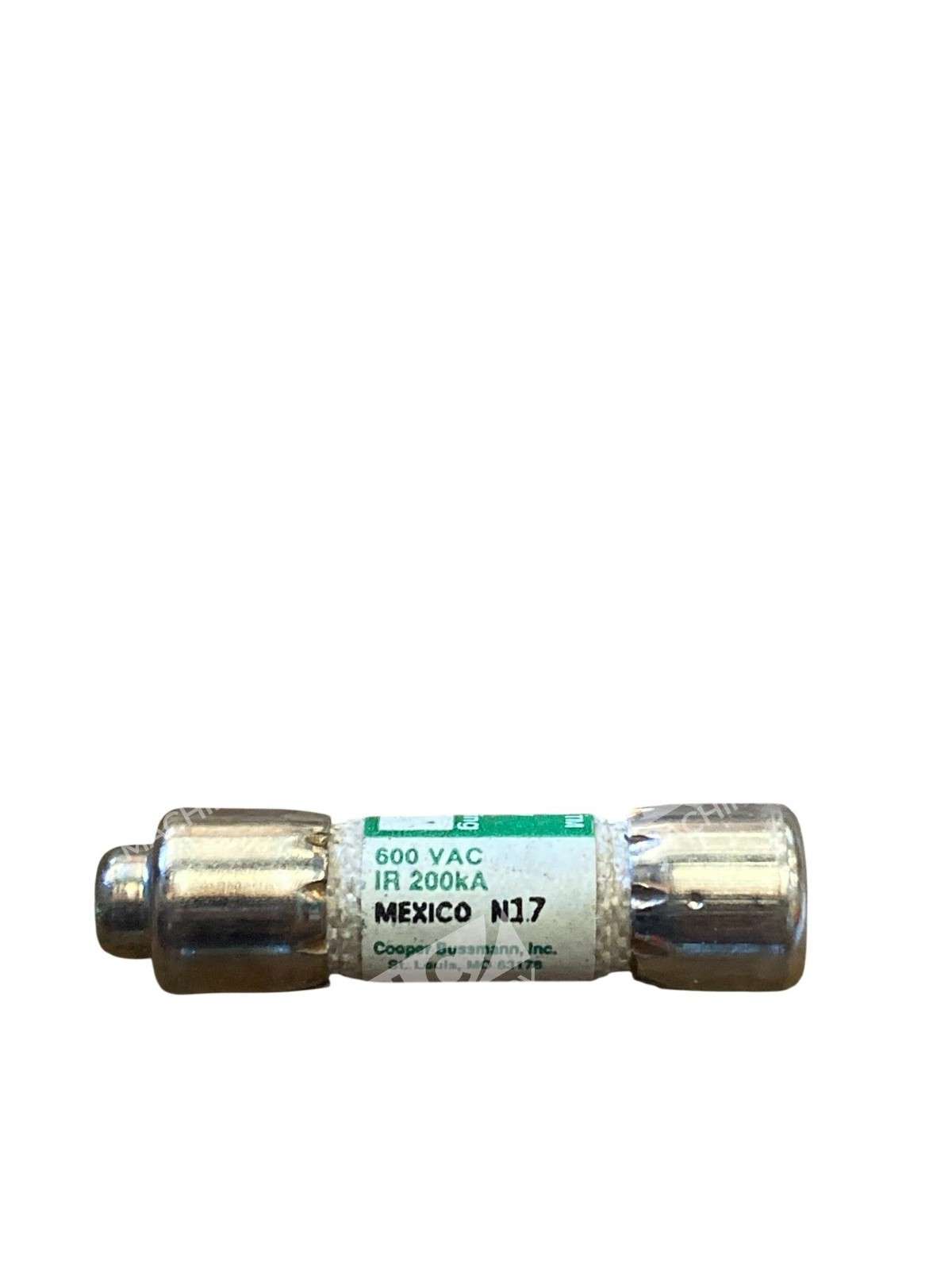

The FNQ-R-2 is a Bussmann Limitron Class CC fuse with a current rating of 2A, voltage rating of 600V, and 200kA interrupting rating. The cartridge features a dual-element melamine tube body measuring 13/32 in diameter by 1-1/2 in length with ferrule end terminals. This design supports rejection-type fuse holders and clip termination.
Typical Applications
- Line protection for small control transformers and branch circuits
- Industrial control system circuit protection
- Isolated and in-line fuse holder applications
- Safety and security system power distribution
- Machine tool control circuits with high inrush requirements
Compatibility & Replacements
Compatible With
- Standard Class CC rejection-type fuse holders
- Isolated and in-line fuse holders with ferrule clip terminals
- Small industrial control transformers rated up to 2A primary current
Replaces / Drop-In Replacement For
- Limitron FNQ-R-2
- Cooper Bussmann FNQ-R-2
- OEM equivalent Class CC 2A time-delay fuses
Works With
- UL 248-4 and CSA B144 compliant installations
- NEC Section 110.9 compliant systems
- Control transformer circuits rated for 2A maximum inrush
