Burndy AYPO250 AYPO300 AYPO350 Compression Equipment Adapter Offset AYPO Hyplug

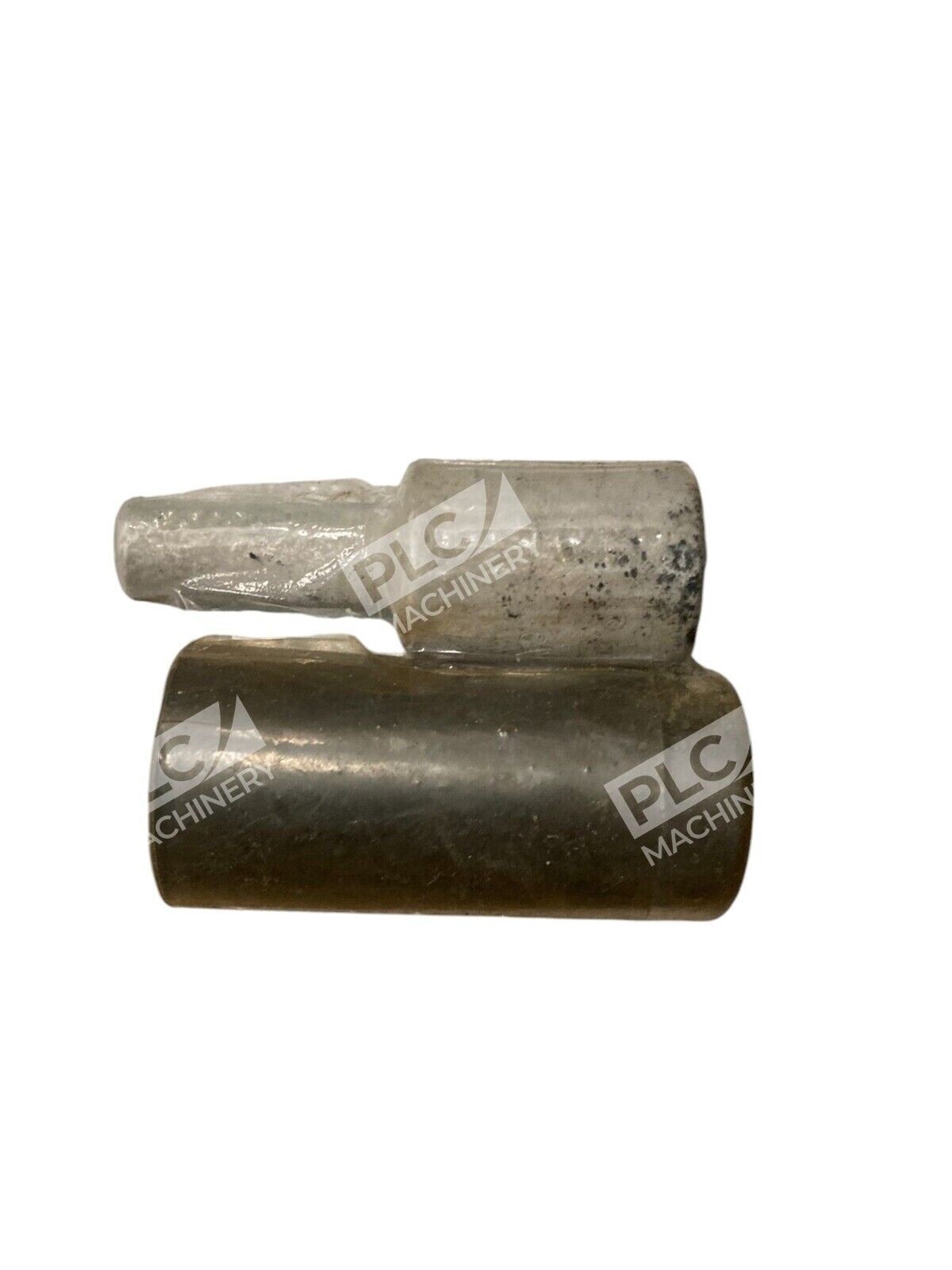

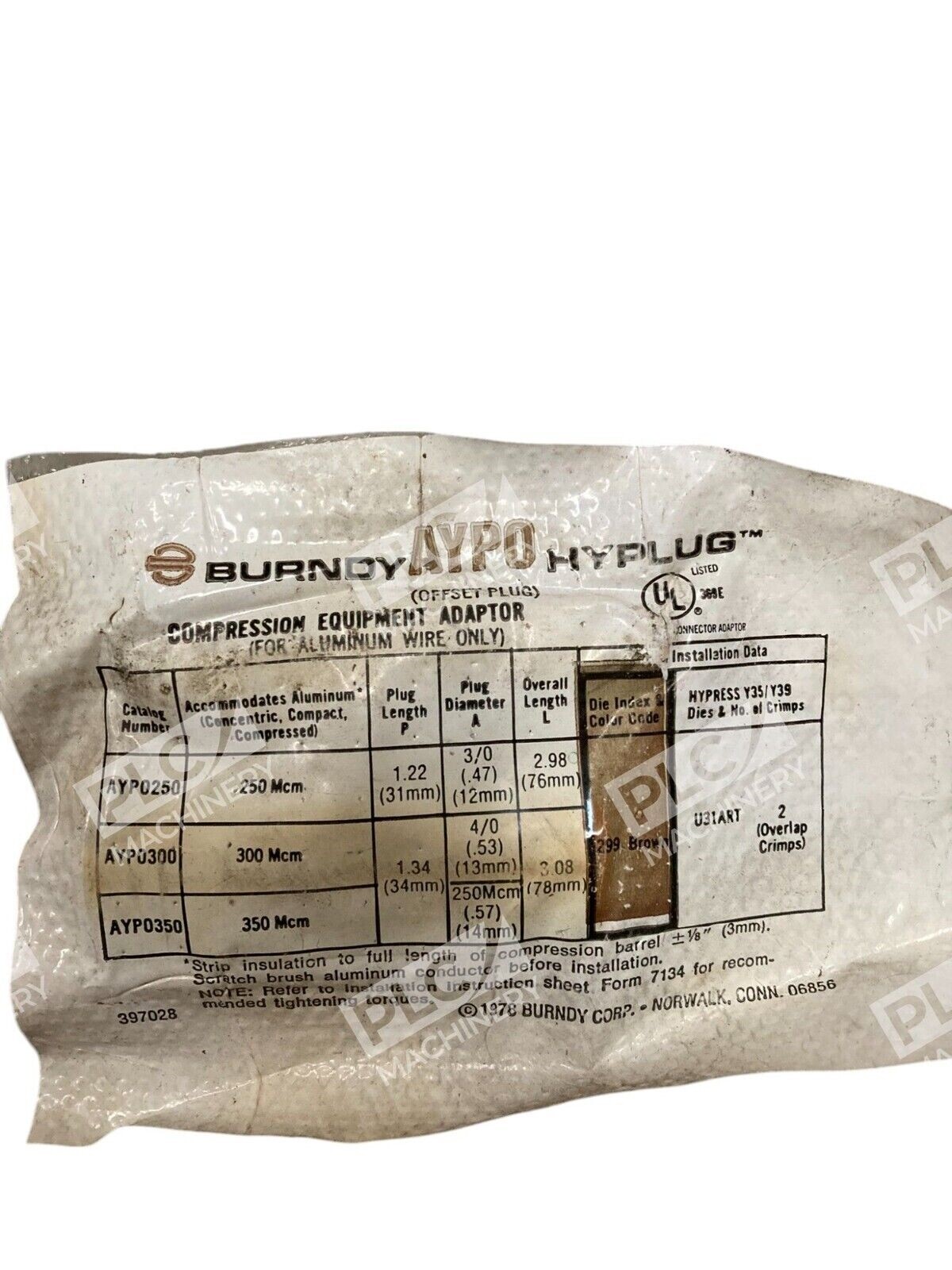

Burndy AYPO250, AYPO300, and AYPO350 Compression Pin Adapters

The Burndy AYPO series, including models AYPO250, AYPO300, and AYPO350, comprises high-quality aluminum compression pin adapters designed for efficient wire termination in electrical systems. These adapters are part of the HYPLUG™ line, known for their reliability and ease of installation.

Key Features

• Material and Plating: Constructed from all-aluminum and electro-tin plated to prevent bi-metallic corrosion, ensuring durability and longevity.
• Compact Design: Engineered for minimal connector length, facilitating installation in confined spaces without compromising performance.
• Solid Plug Construction: Features a solid electro-tin plated aluminum plug that matches the cross-sectional area of equivalent copper wire, allowing the use of larger aluminum wires for equipment connections.
• Offset Plug Design: Available in sizes ranging from 2/0 to 750 kcmil, the offset design enhances flexibility and maximizes space utilization, reducing interference between conductors and equipment.
• Corrosion Resistance: Electro-tin plating offers robust resistance to corrosion, maintaining electrical integrity over time.
• Pre-Filled with Oxide Inhibitor: Factory pre-filled with PENETROX oxide inhibiting compound containing conductive metallic particles, which penetrate aluminum oxide layers to form airtight connections.
• Insulation Covers: Supplied with EPDM rubber covers rated for 600V, eliminating the need for additional taping and providing added safety.
• Efficient Installation: Only five die sets are required to install the complete line from #6 to 750 kcmil, reducing inventory requirements and simplifying the installation process.
• Clear Markings: Each connector is clearly marked with the catalog number, wire size, and a color-coded die index, providing straightforward and easy-to-use information for installers.

Specifications

These adapters are suitable for both aluminum and copper conductors, making them versatile for various applications. Their design ensures a secure and efficient electrical connection, addressing common installation challenges such as limited space and potential corrosion issues.

By incorporating the Burndy AYPO series into your electrical systems, you can achieve reliable and long-lasting wire terminations that meet industry standards and enhance overall system performance.
