Overview

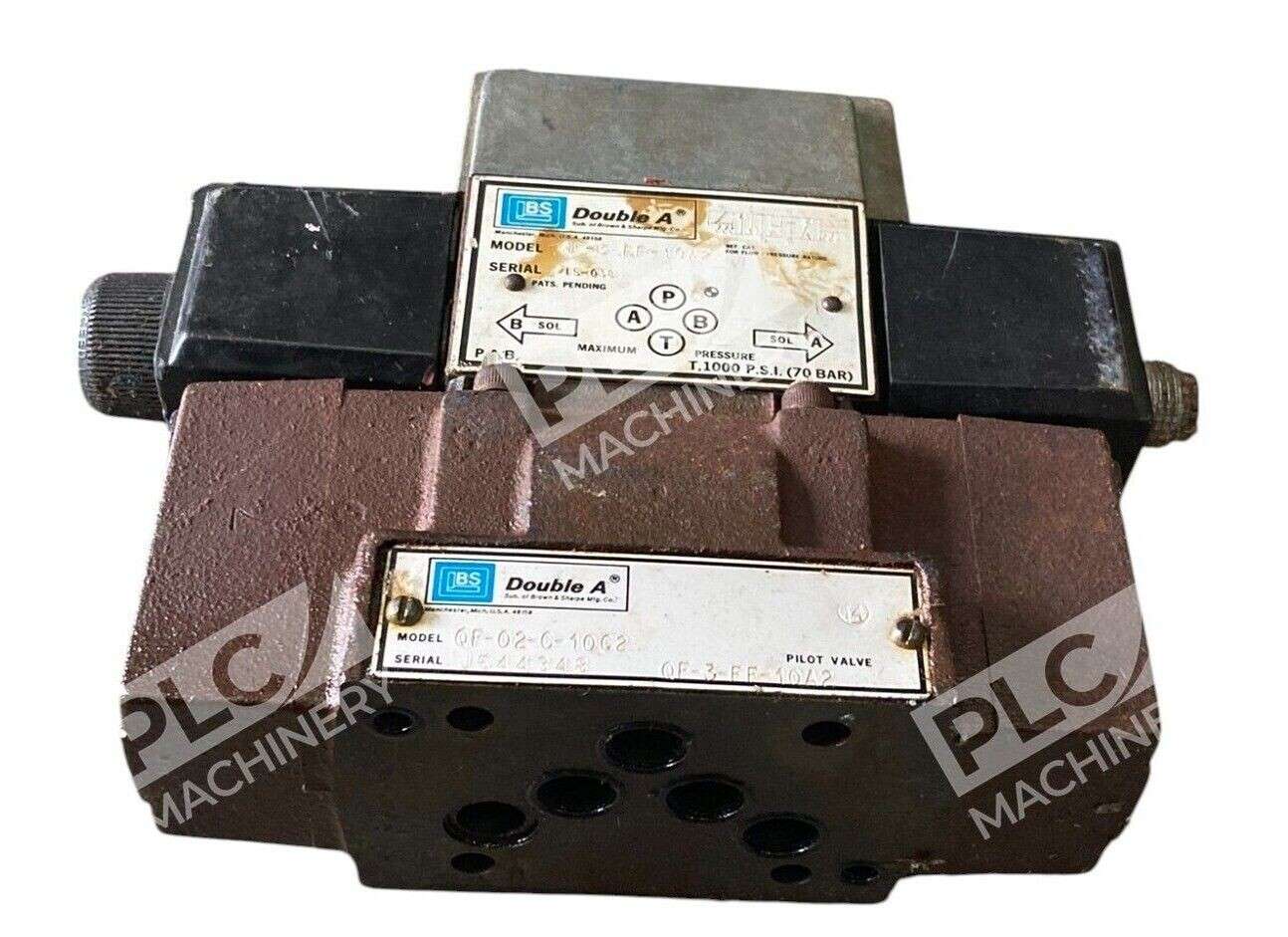

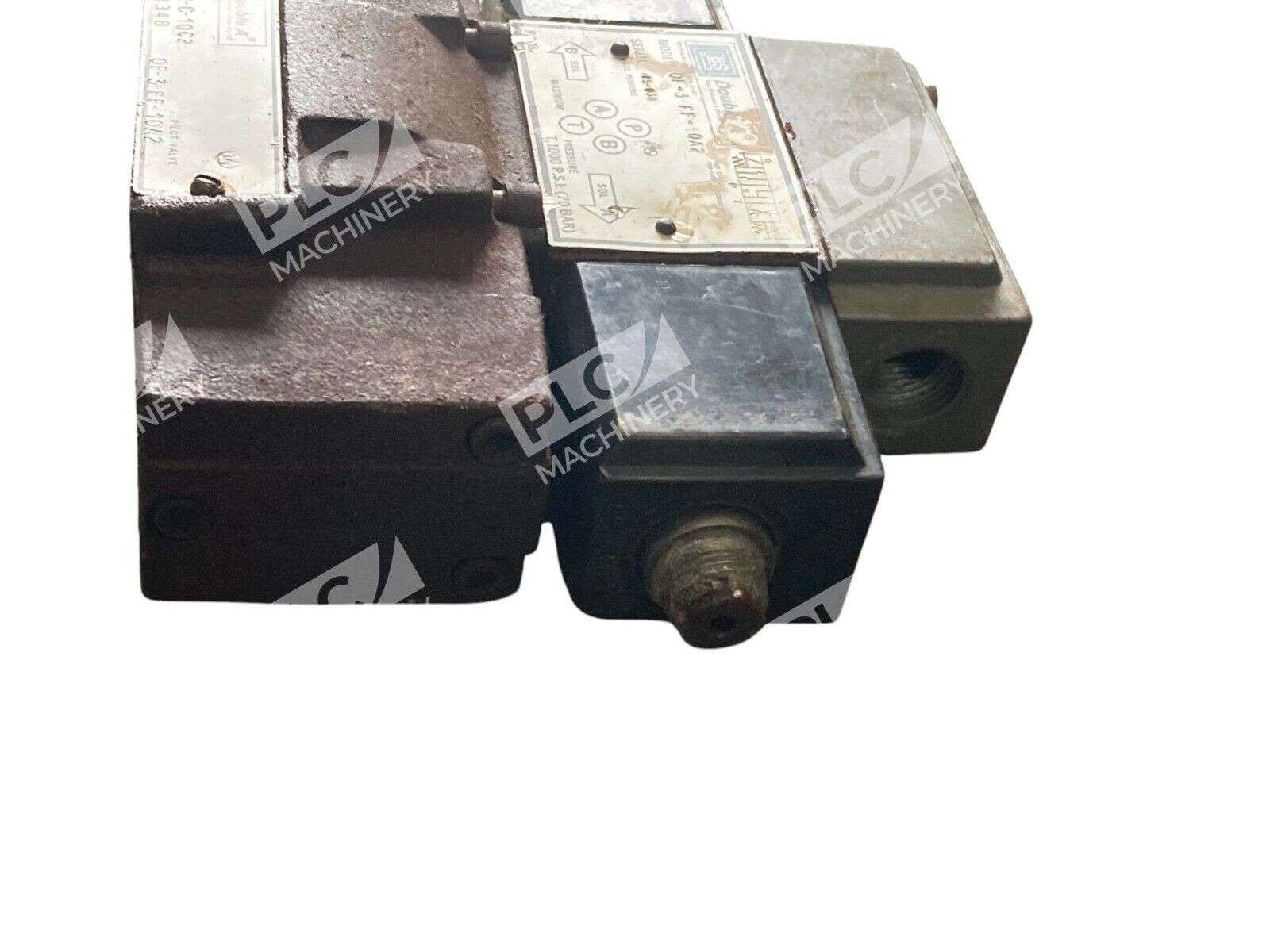

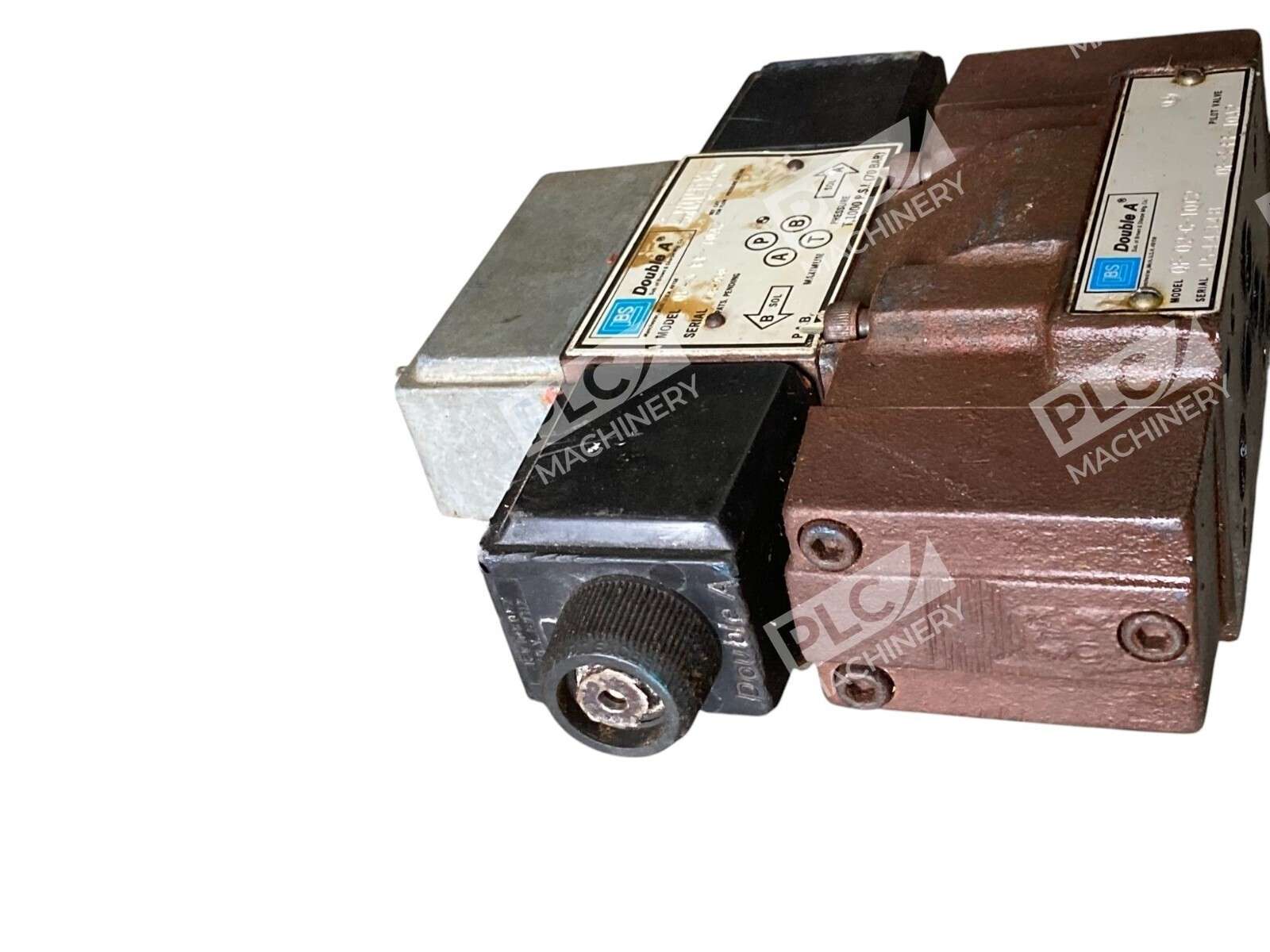

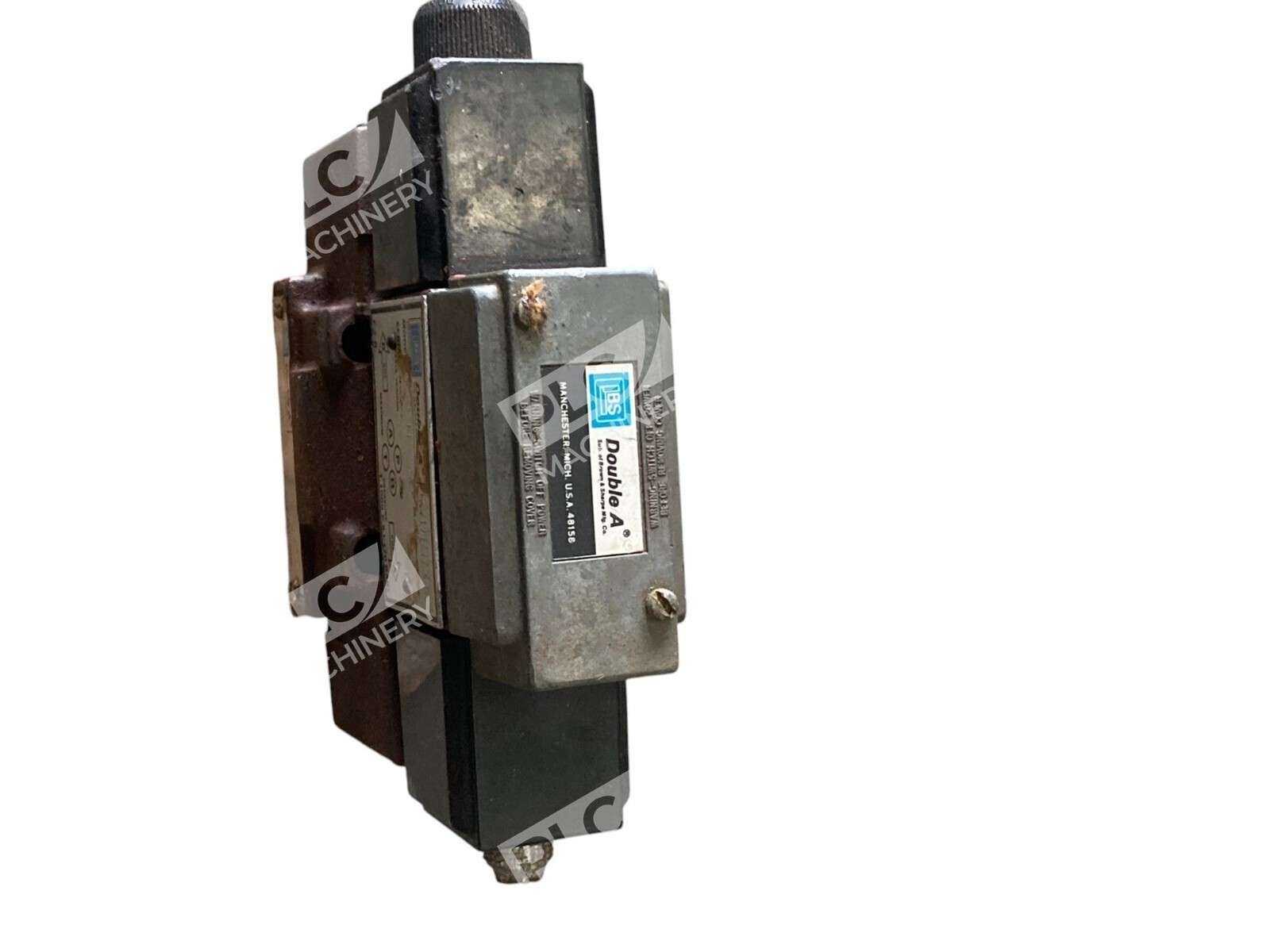

The Brown Sharpe QF-02-C-10C2 pilot valve paired with the Double A QF-3-FF-10A2 directional control valve represents a classic combination for hydraulic pressure and flow control in industrial automation systems. This dual-valve assembly is engineered to manage complex fluid circuits with precision pilot actuation, ensuring stable and accurate control across demanding applications. The pilot valve design minimizes energy loss while maintaining responsive pressure regulation, making it suitable for machinery requiring consistent performance under variable load conditions.
Key Features
- Pilot-operated control design for precise fluid regulation and pressure management
- Double A series engineering — proven reliability in industrial hydraulic systems
- QF cavity mounting — compatible with standard manifold and block assemblies
- Direct replacement for legacy automation equipment and servo-driven machinery
- Used condition — fully inspected and tested for immediate deployment
Technical Specifications
Detailed specifications for this assembly can be verified with the manufacturer or your system integrator. Key parameters to confirm before installation include nominal flow rating, pilot pressure requirements, cavity configuration, and fluid compatibility standards.
| Specification | Value |
|---|---|
| Manufacturer | Brown & Sharpe / Double A |

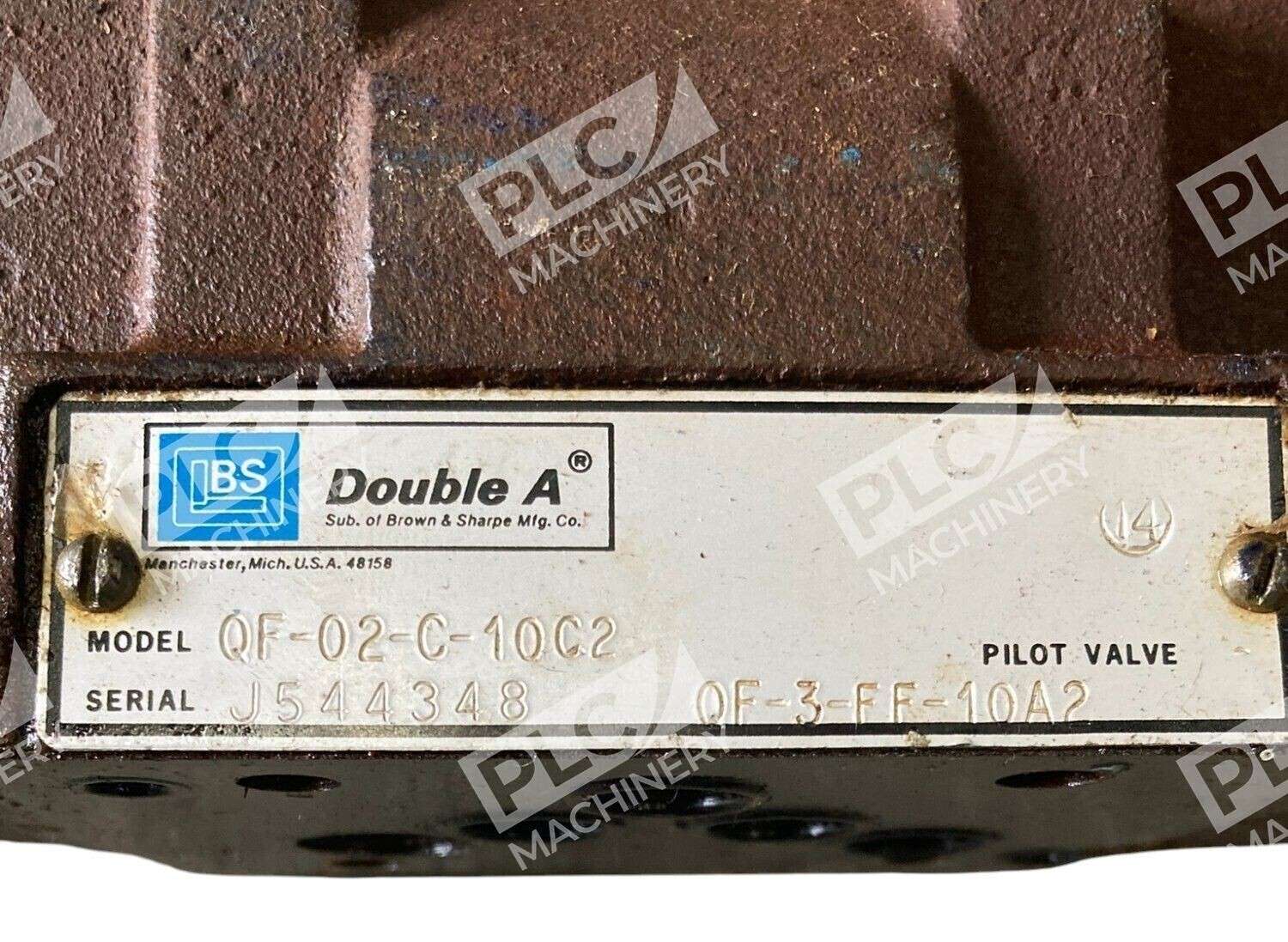

| Primary Part Number | QF-02-C-10C2 |
| Valve Type | Pilot-Operated Directional Control |

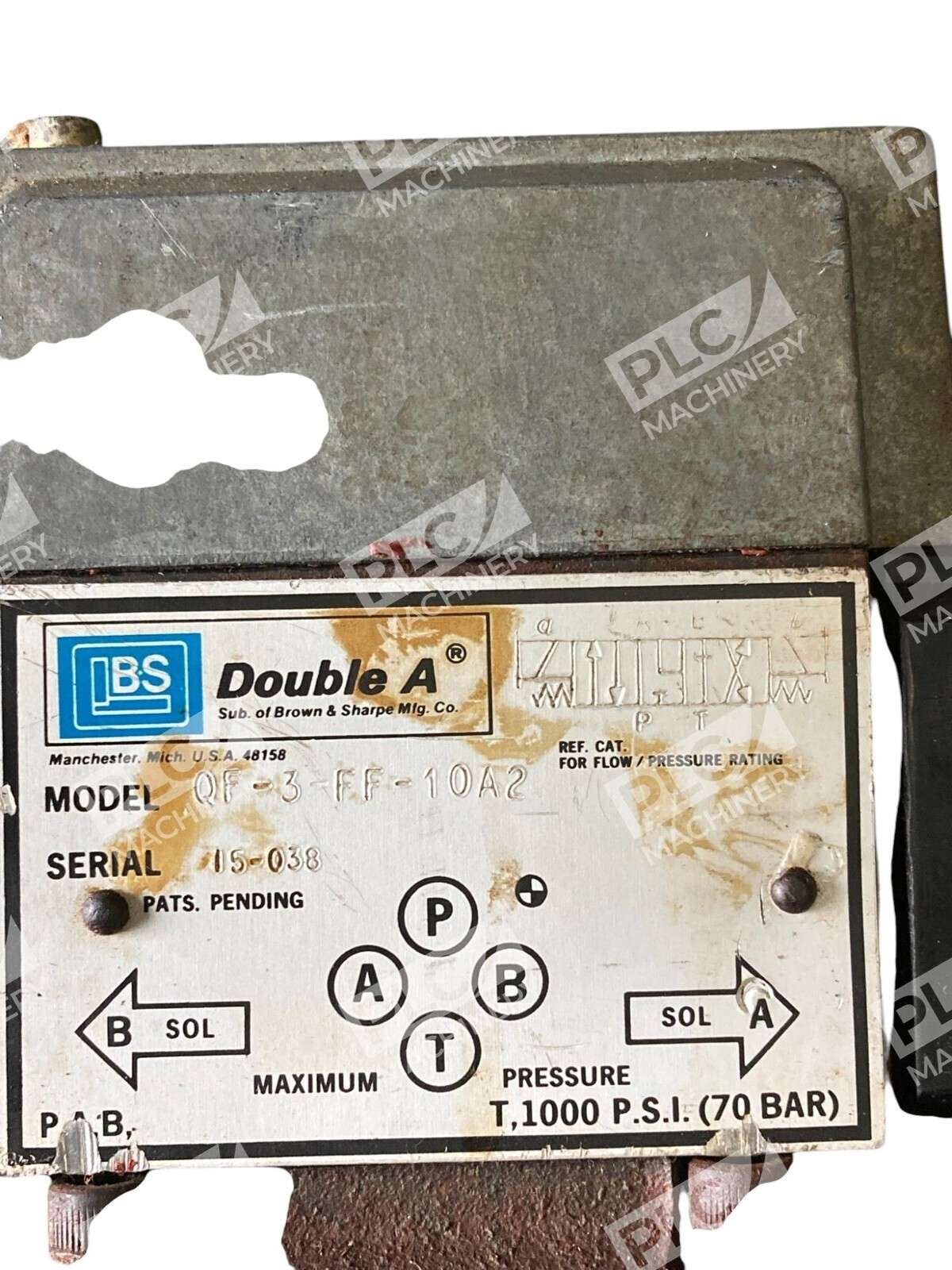

| Secondary Part Number | QF-3-FF-10A2 |
| Cavity Class | QF / C-10 Series |
| Mounting Style | Cavity Mount |
| Actuation | Pilot Pressure |
| Application Class | Industrial Hydraulic Control |
| Condition | Used, Tested & Functional |
Typical Applications
- Precision industrial machinery and servo-driven equipment
- Legacy CNC and automated production systems requiring pilot-operated control
- Hydraulic press applications with stable pressure regulation
- Flow direction management in multi-function industrial circuits
- Replacement components for established manufacturing plant equipment
Compatibility & Replacements
Compatible With
- Standard QF cavity manifold blocks and sub-base assemblies
- C-10 series cavity configurations in hydraulic manifolds
- Industrial hydraulic systems rated for pilot-operated directional control
- Legacy Brown & Sharpe automation platforms and control assemblies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or controls engineer before ordering. The QF-02-C-10C2 and QF-3-FF-10A2 combination is designed as a direct replacement for equivalent Brown & Sharpe / Double A pilot valve assemblies in matching cavity configurations. Consult original equipment documentation for approved substitutions.
Works With
- Hydraulic manifold blocks with QF cavity mounting provisions
- Pilot pressure supply systems rated to component specifications
- ISO NG10 (CETOP-05) subbase configurations where cavity spacing permits
- Industrial control systems using proportional or directional spool valve logic
