Overview

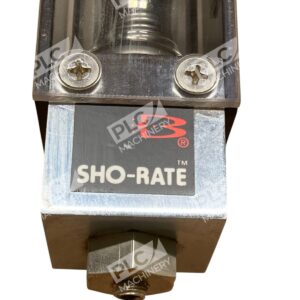

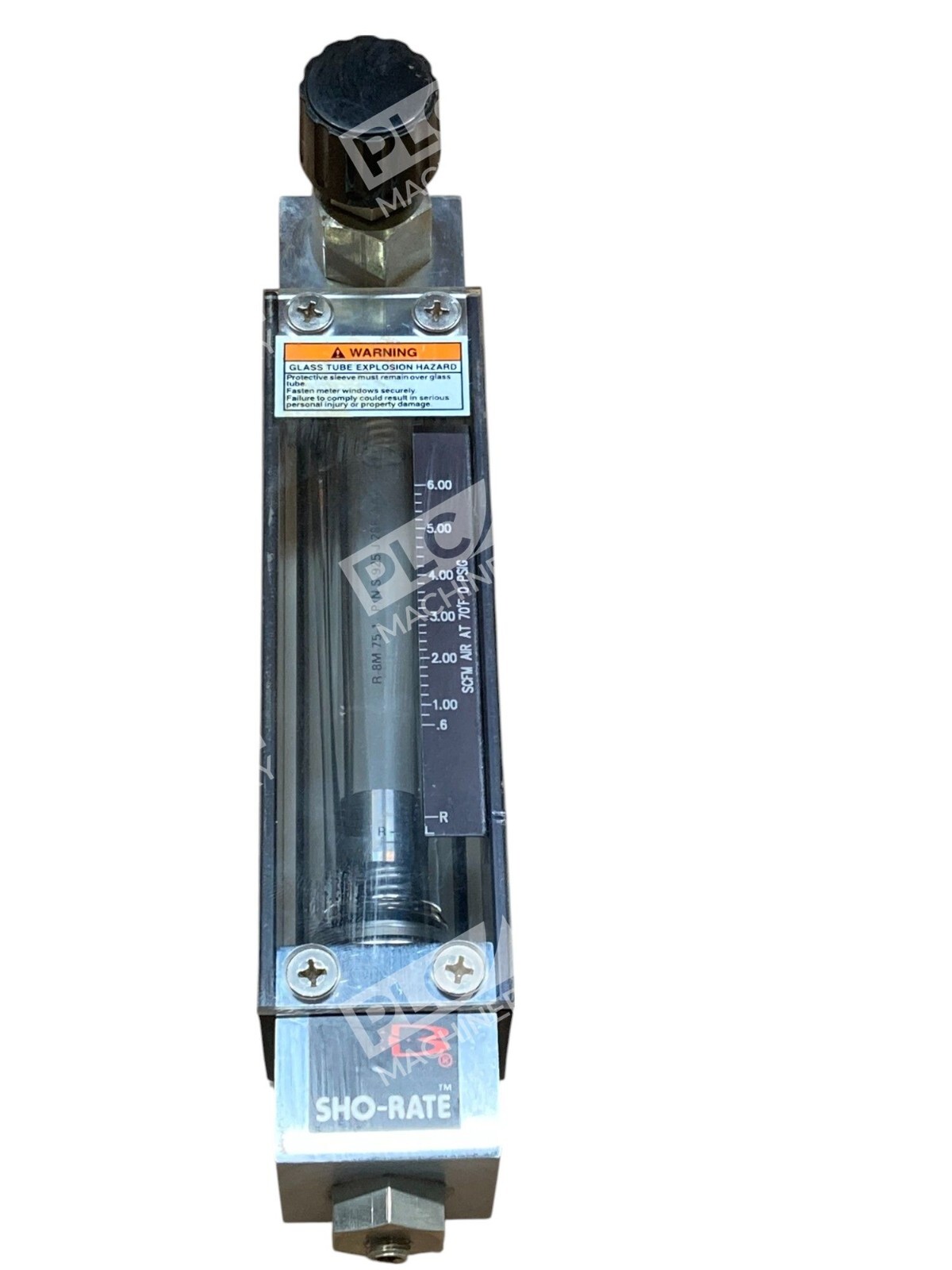

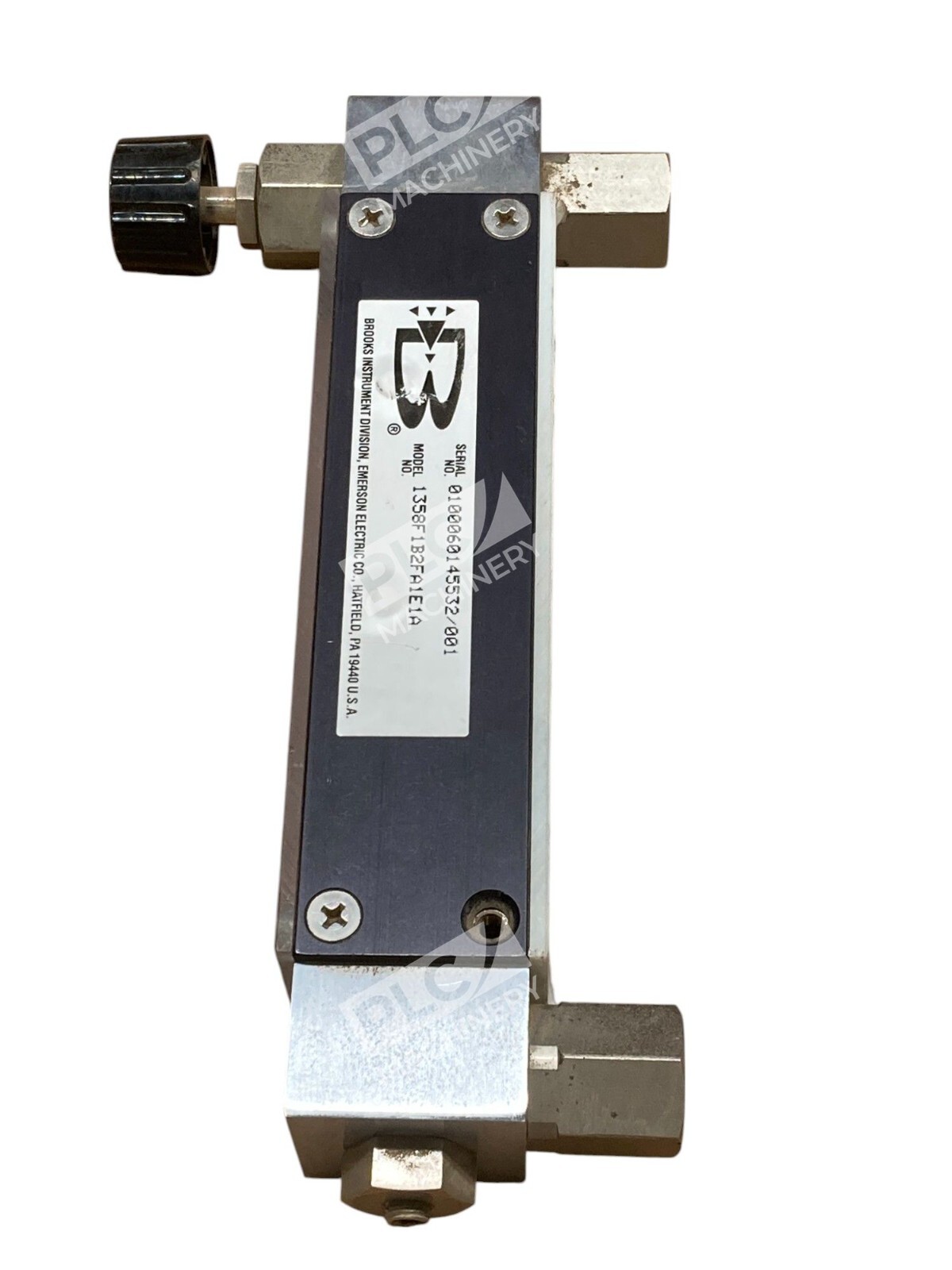

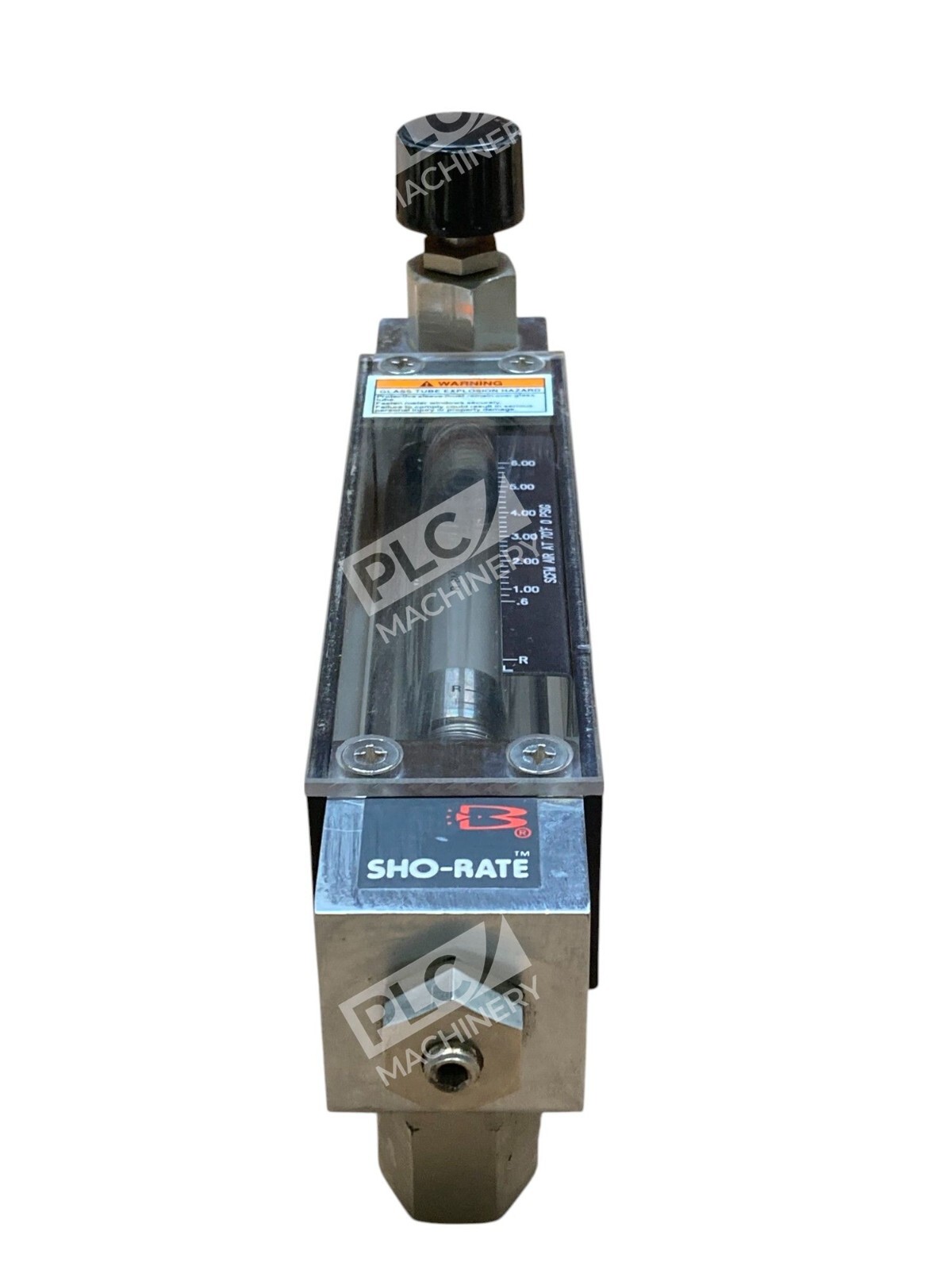

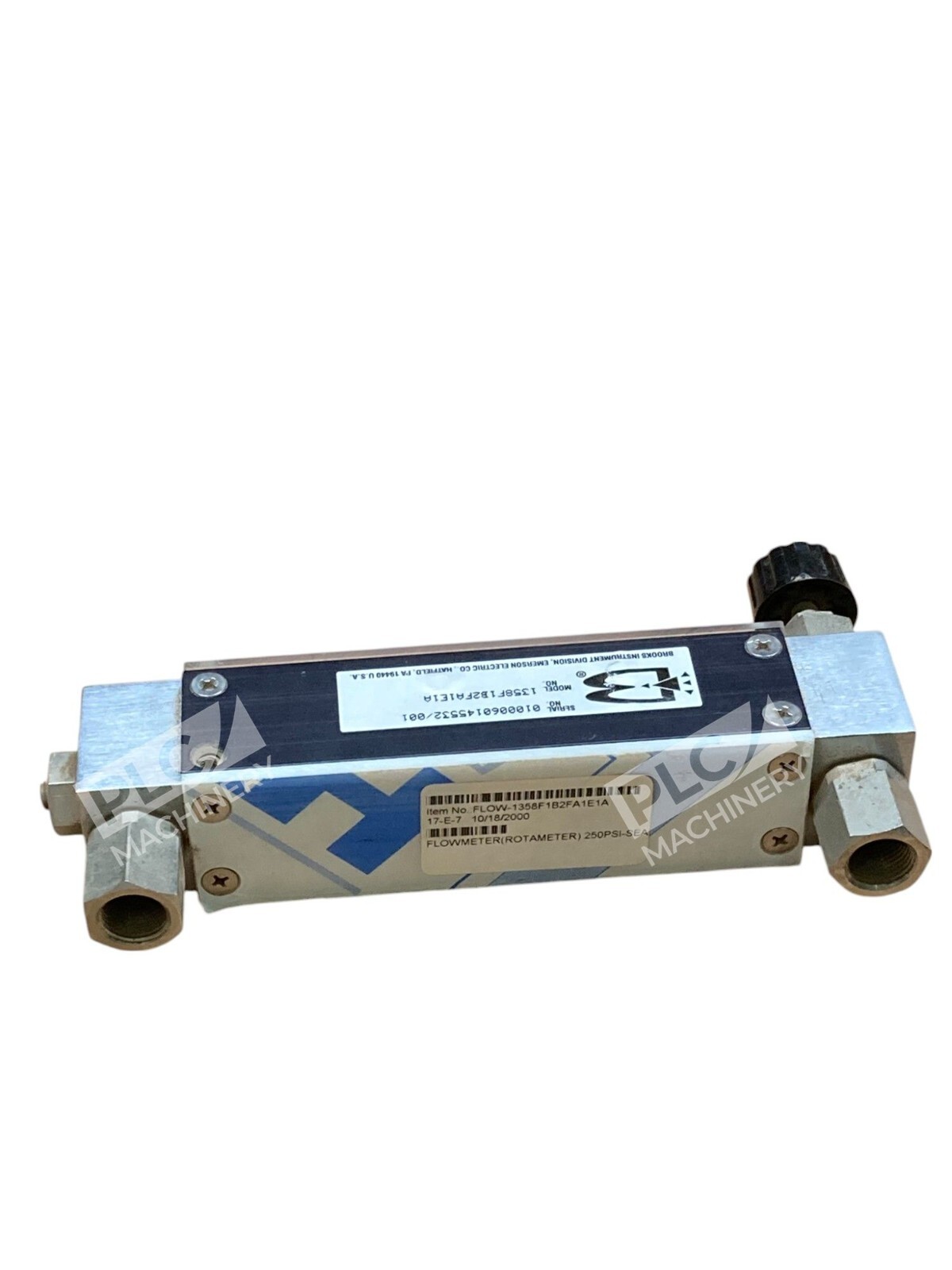

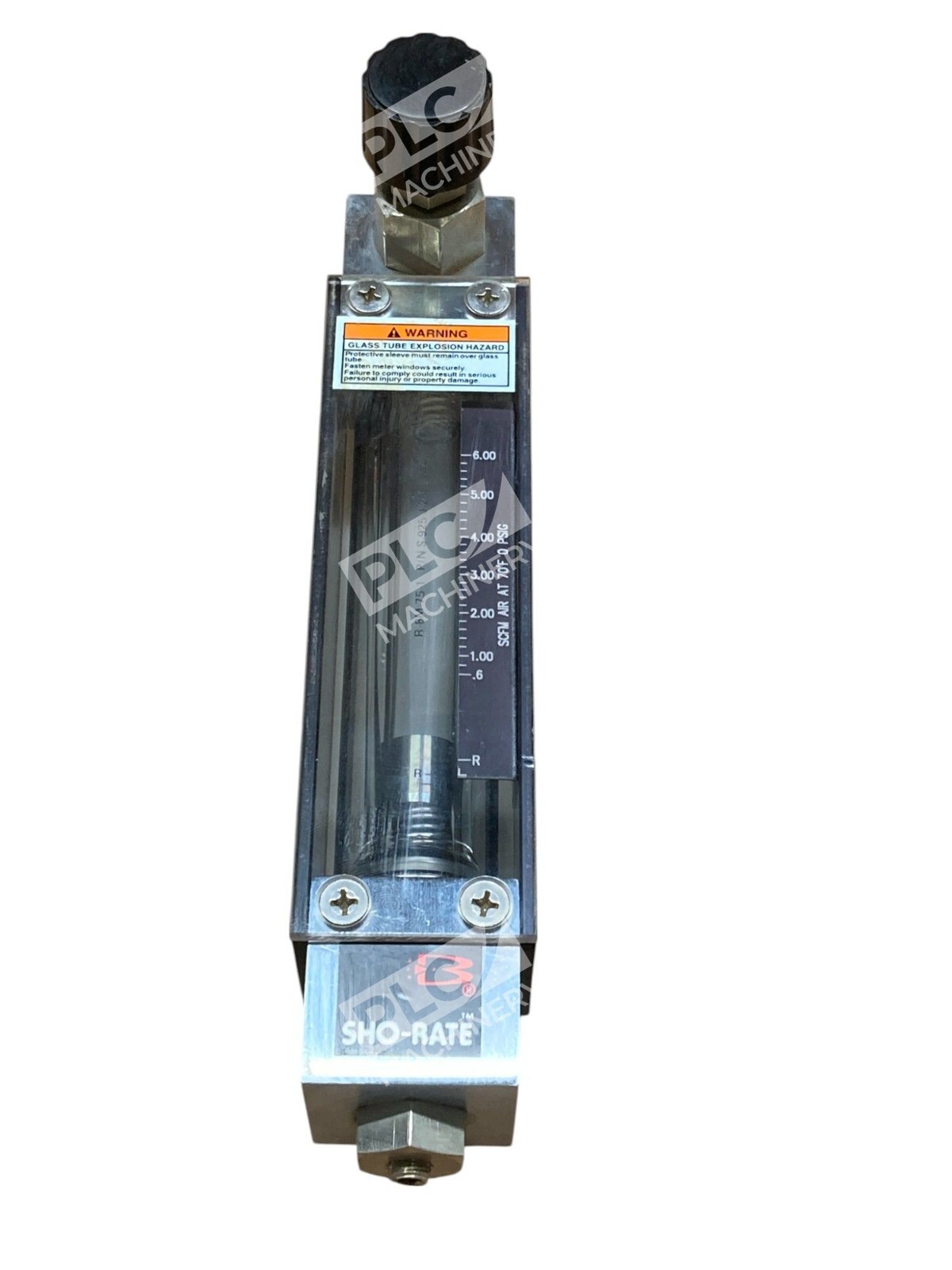

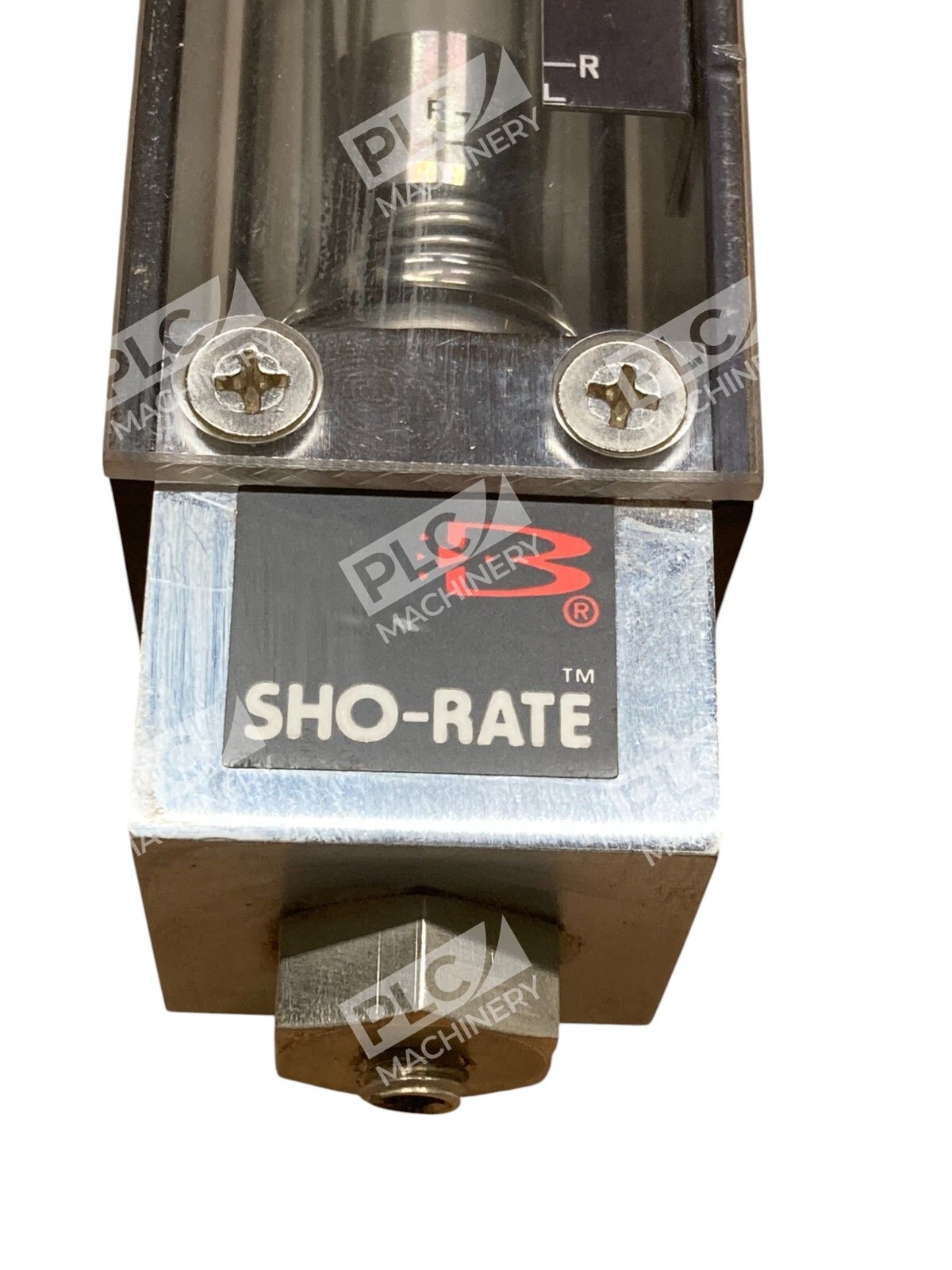

The Brooks Instrument 1358F1B2FA1E1A is a Sho-Rate Series glass tube variable-area rotameter flowmeter designed for industrial flow measurement applications. Operating at pressures up to 250 PSI, this unit provides accurate, direct visual indication of flow rates across a 0–6 range. Sho-Rate flowmeters are widely used in chemical, petrochemical, and analytical processes where cost-effective, reliable flow monitoring is essential.
Key Features
- Glass tube design: Direct visual read-out with built-in magnifier for clear scale visibility
- 250 PSI rated: Suitable for moderate to high-pressure applications
- 10% accuracy: Standard accuracy typical of Model 1358 high-flow rotameters
- 0.5% full-scale repeatability: Ensures consistent measurement performance
- Robust construction: Industrial-grade materials for demanding process environments
Technical Specifications
| Manufacturer | Brooks Instrument |

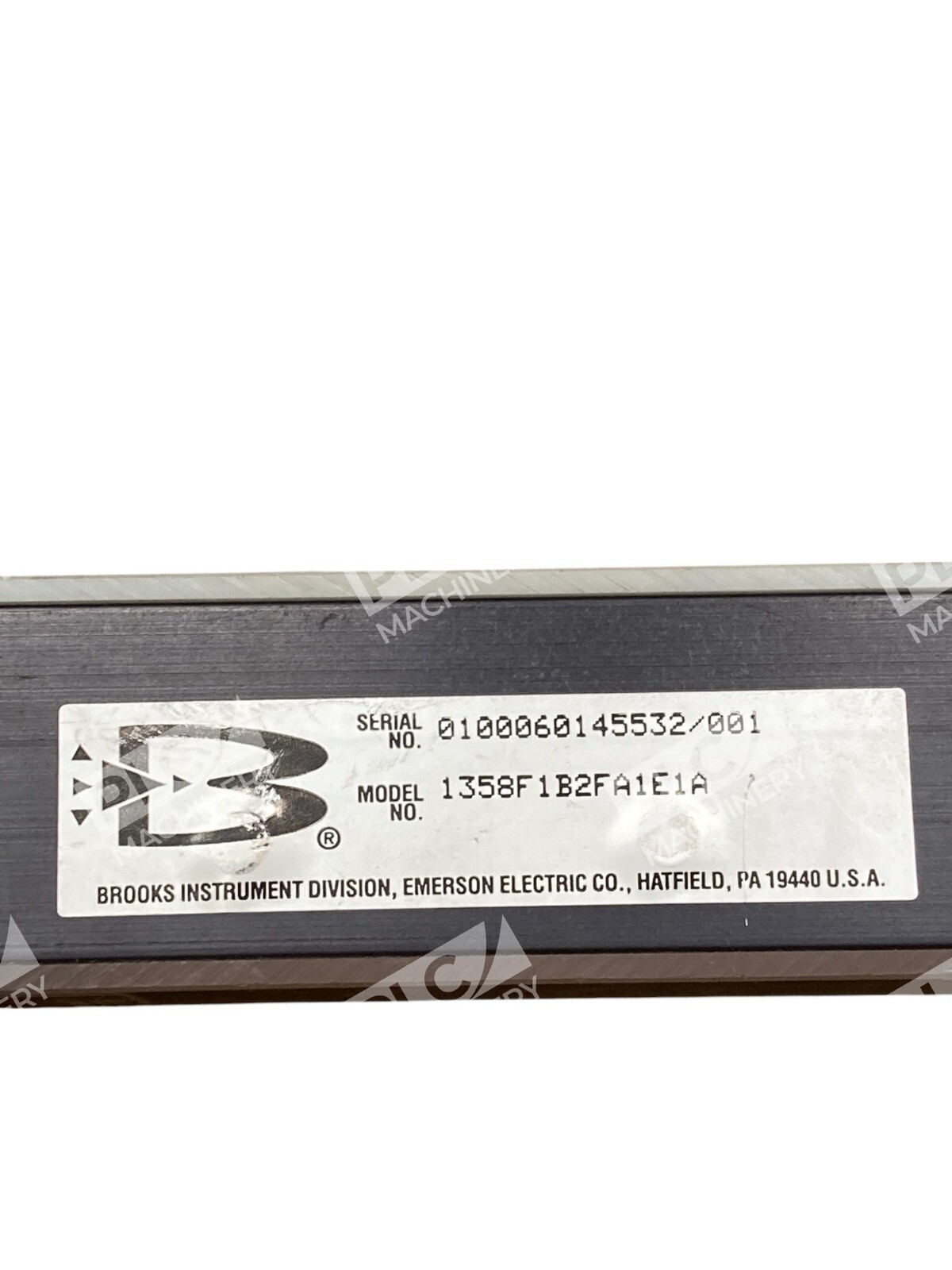

| Model Number | 1358F1B2FA1E1A |
| Product Series | Sho-Rate Glass Tube Variable-Area Flowmeter |
| Maximum Pressure Rating | 250 PSI |
| Flow Range | 0–6 (units vary by configuration) |
| Accuracy | Standard 10% |
| Repeatability | 0.5% Full Scale |
| Indicator Type | Glass tube with float; scale with built-in magnifier |
| Flow Measurement Type | Variable-area (rotameter) |
| Compatible Fluids | Liquids and gases (verify chemical compatibility) |
| Condition | Used |
Typical Applications
- Chemical and petrochemical processing
- Gas flow monitoring in analytical instruments
- Liquid metering in laboratory and pilot-scale systems
- Industrial automation and process control
- OEM equipment integration requiring visual flow indication
Compatibility & Replacements
Compatible With
- Moderate to high-pressure systems (up to 250 PSI)
- Vertical inline piping configurations
- Standard NPT/BSP connection fittings (verify exact port size from documentation)
- Chemical, petrochemical, and analytical process applications
- Gas and liquid measurement in industrial OEM equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Specific replacement models depend on exact flow range, pressure rating, and connection port specifications of the original unit.
Works With
- Standard manual flow control systems (no electronics required)
- Gravity-feed and pressurized distribution lines
- Compatible with optional Brooks integral needle control valves (inlet or outlet)
- Can be integrated with external dataloggers or monitoring systems via visual inspection
