Overview

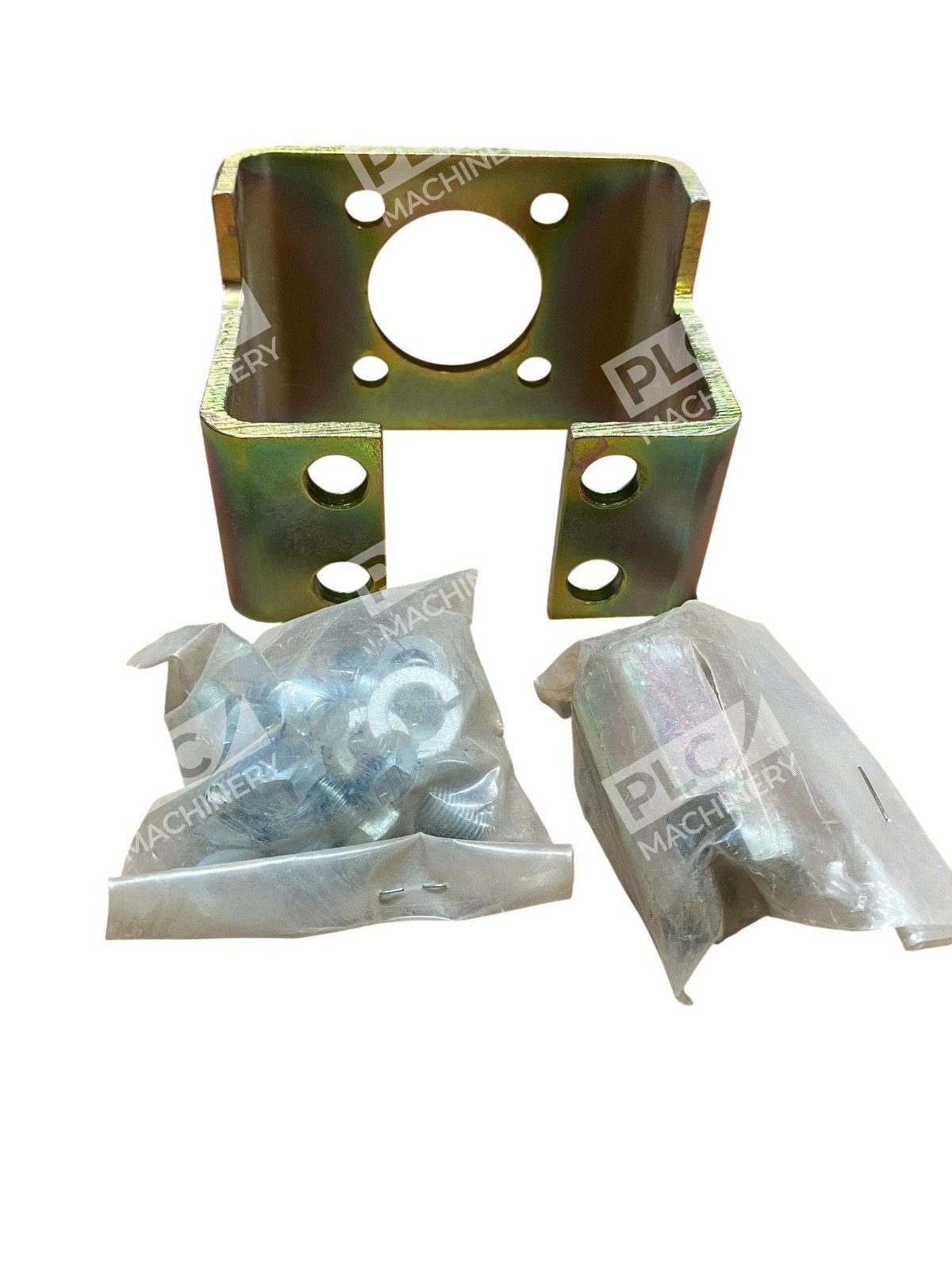

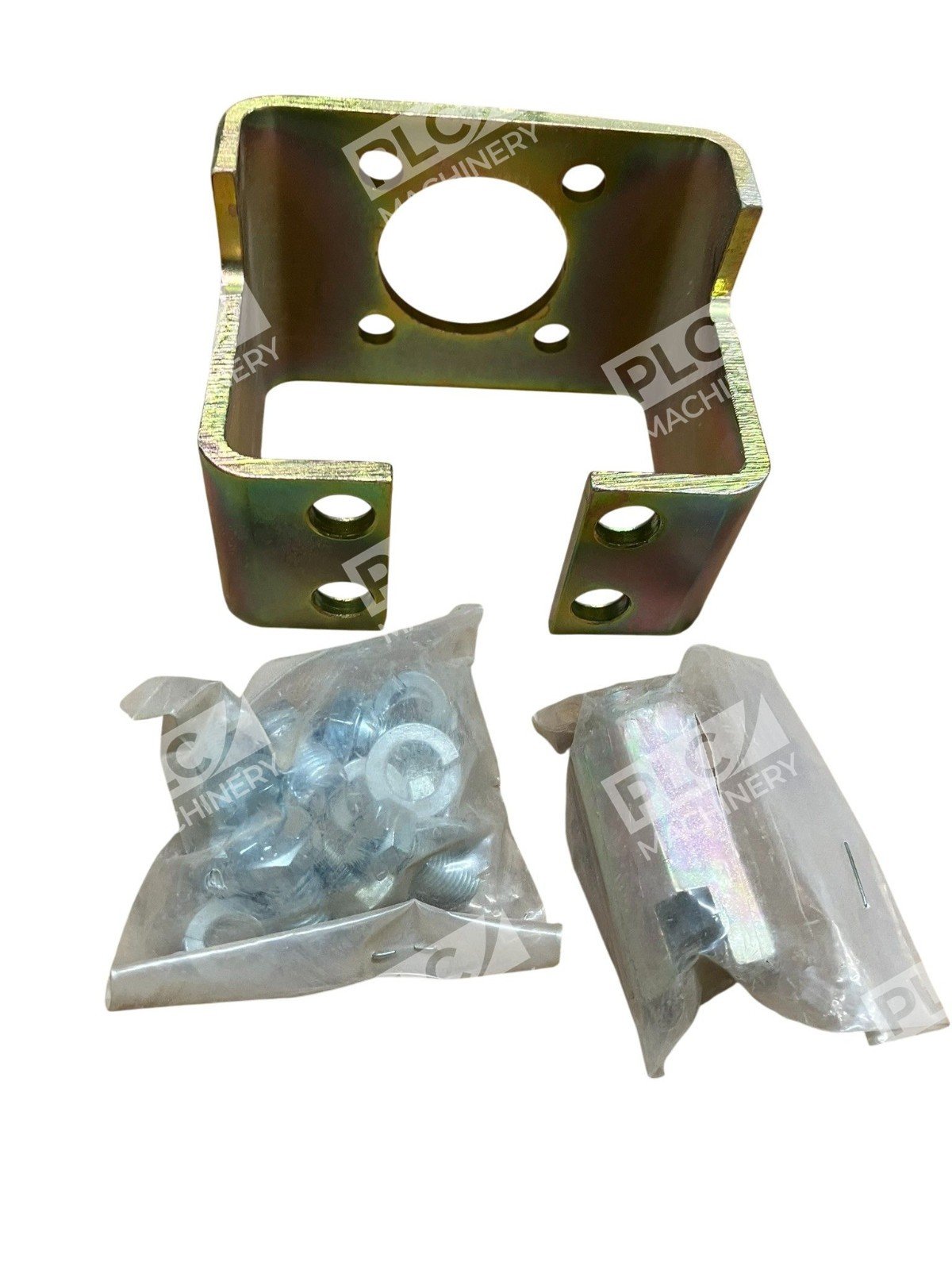

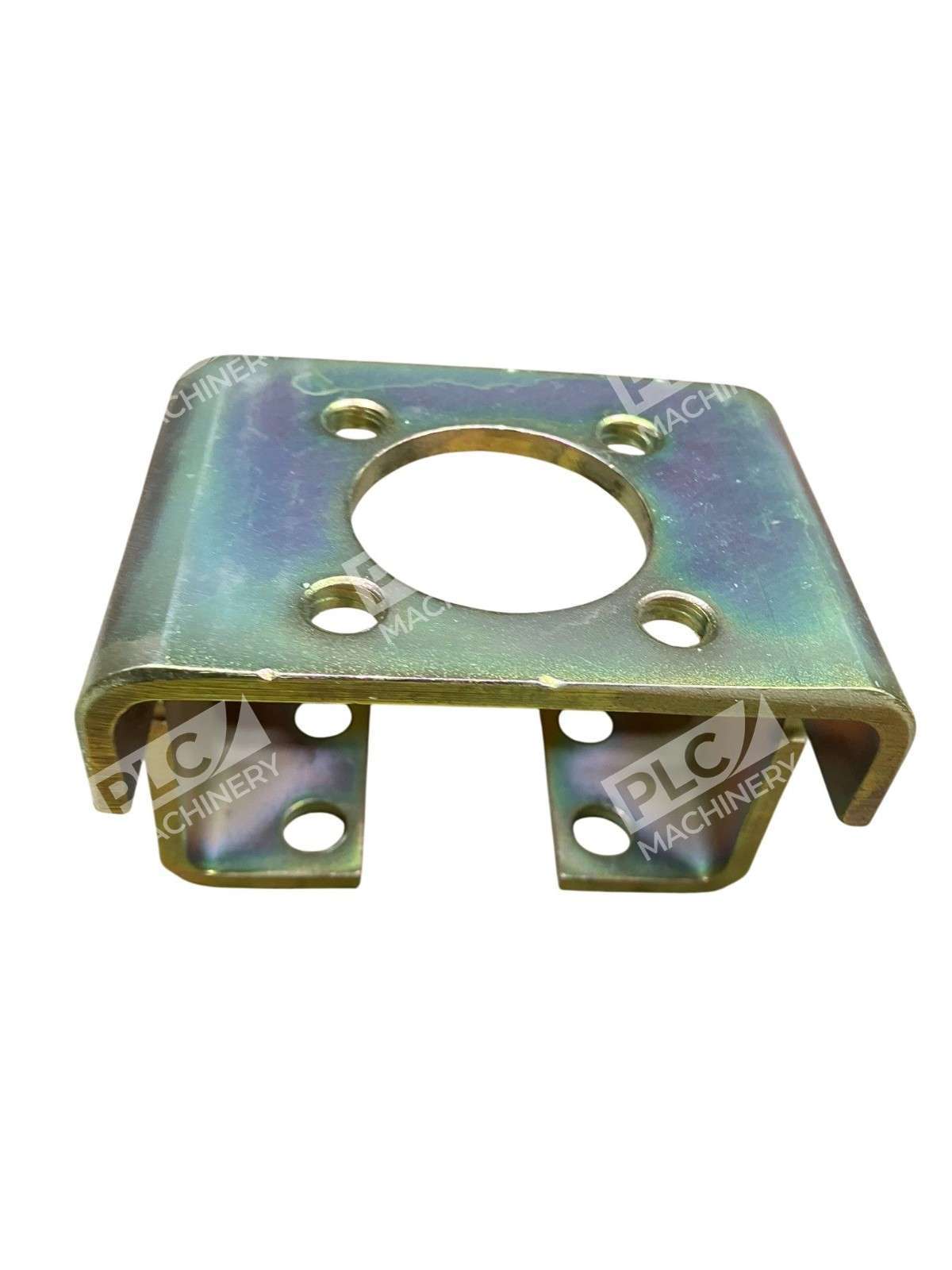

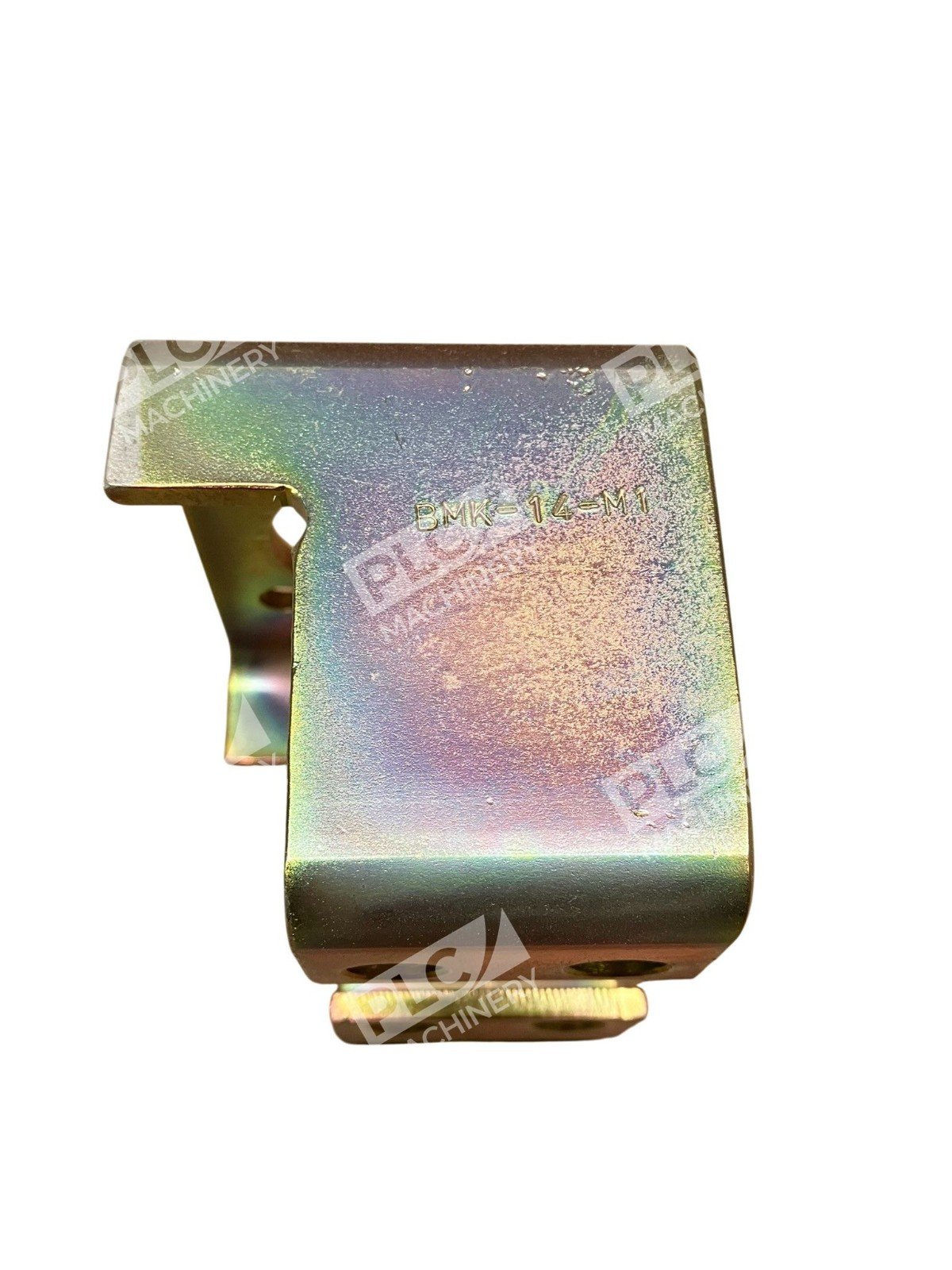

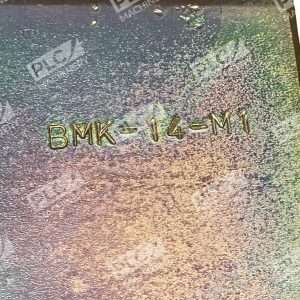

The BMK-14-M1 is an industrial-grade U/L-type mounting bracket engineered for reliable encoder positioning in machine automation, motion control, and precision feedback systems. U/L-type brackets are configured with vertical mounting surfaces that provide lateral and vertical support, making them ideal for shaft-mounted rotary encoder applications where alignment stability is critical.
Key Features
- U/L-type bracket design for stable lateral and vertical encoder support
- Durable industrial-grade construction suitable for manufacturing and machine tool environments
- Straightforward mounting with standard fastener compatibility
- Compact footprint for integration into space-constrained automation layouts
- Designed to maintain encoder alignment and minimize vibration-induced signal drift
Technical Specifications
Specifications for the BMK-14-M1 include the following details. For complete dimensional drawings and material certifications, verify compatibility with your system integrator before ordering.
- Bracket Type: U/L-type (vertical mounting)
- Application: Rotary encoder mounting and positioning
- Mounting Configuration: Standard industrial fastener holes
- Material: Industrial-grade steel construction
- Surface Finish: Standard protective coating
Typical Applications
- Machine tool feedback systems and CNC spindle monitoring
- Conveyor and material handling speed feedback
- Motor shaft position and velocity feedback in motion control
- Industrial automation encoder mounting and alignment
- Precision measurement systems requiring stable encoder positioning
Compatibility & Replacements
Compatible With
- Standard rotary encoder mounting applications
- Shaft-mounted incremental and absolute encoder types
- Industrial automation and motion control systems
- Machine tool spindle and feed drive feedback assemblies
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The BMK-14-M1 may replace other U/L-type encoder brackets in similar industrial applications, but specific OEM part cross-references should be confirmed with technical support.
Works With
- Allen-Bradley and Rockwell Automation encoder feedback modules
- Siemens TIA Portal and STEP 7 encoder integration
- Mitsubishi MELSEC encoder positioning systems
- Omron motion control and encoder feedback networks
- EtherNet/IP and PROFINET industrial automation protocols
