Overview

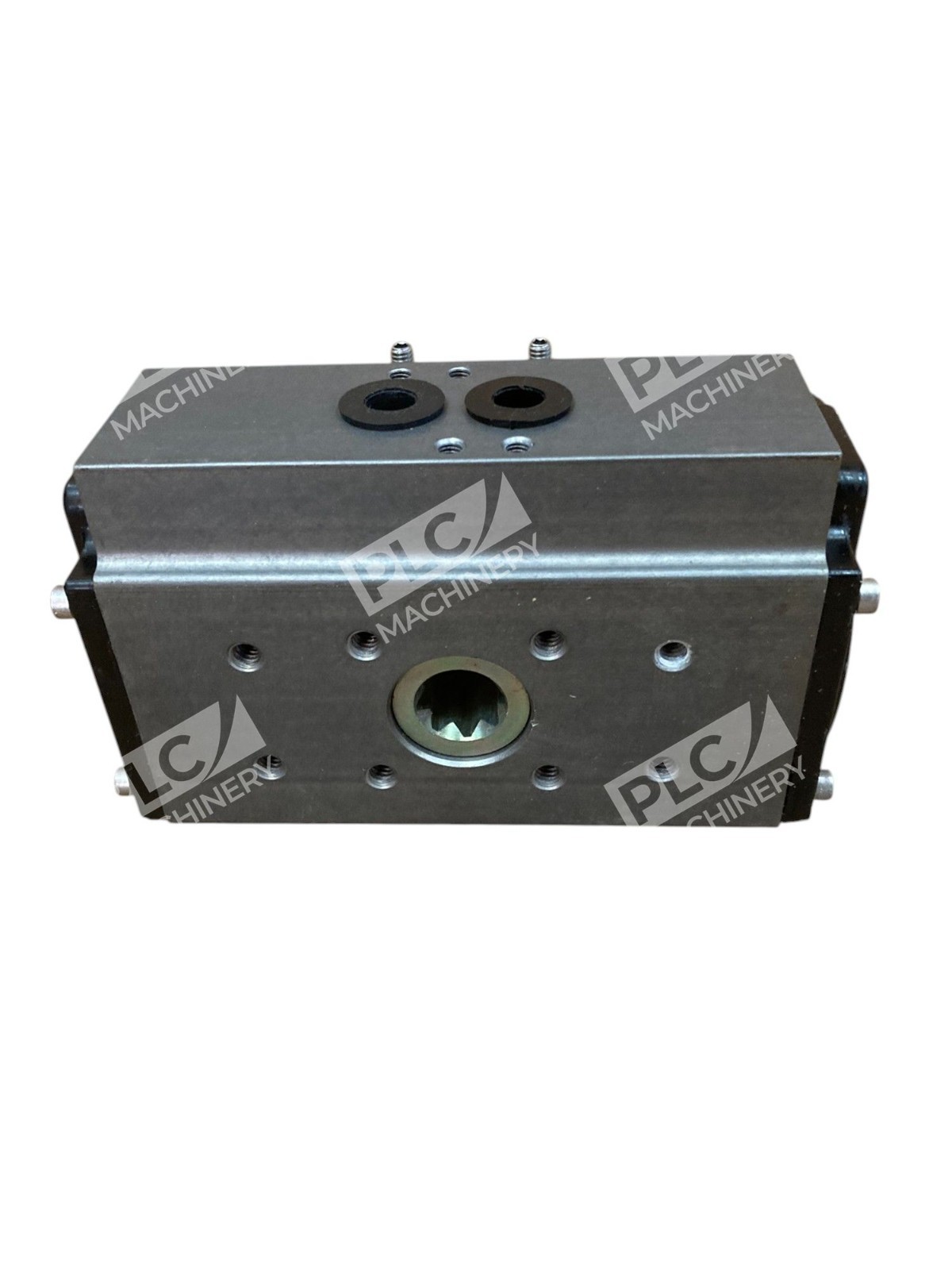

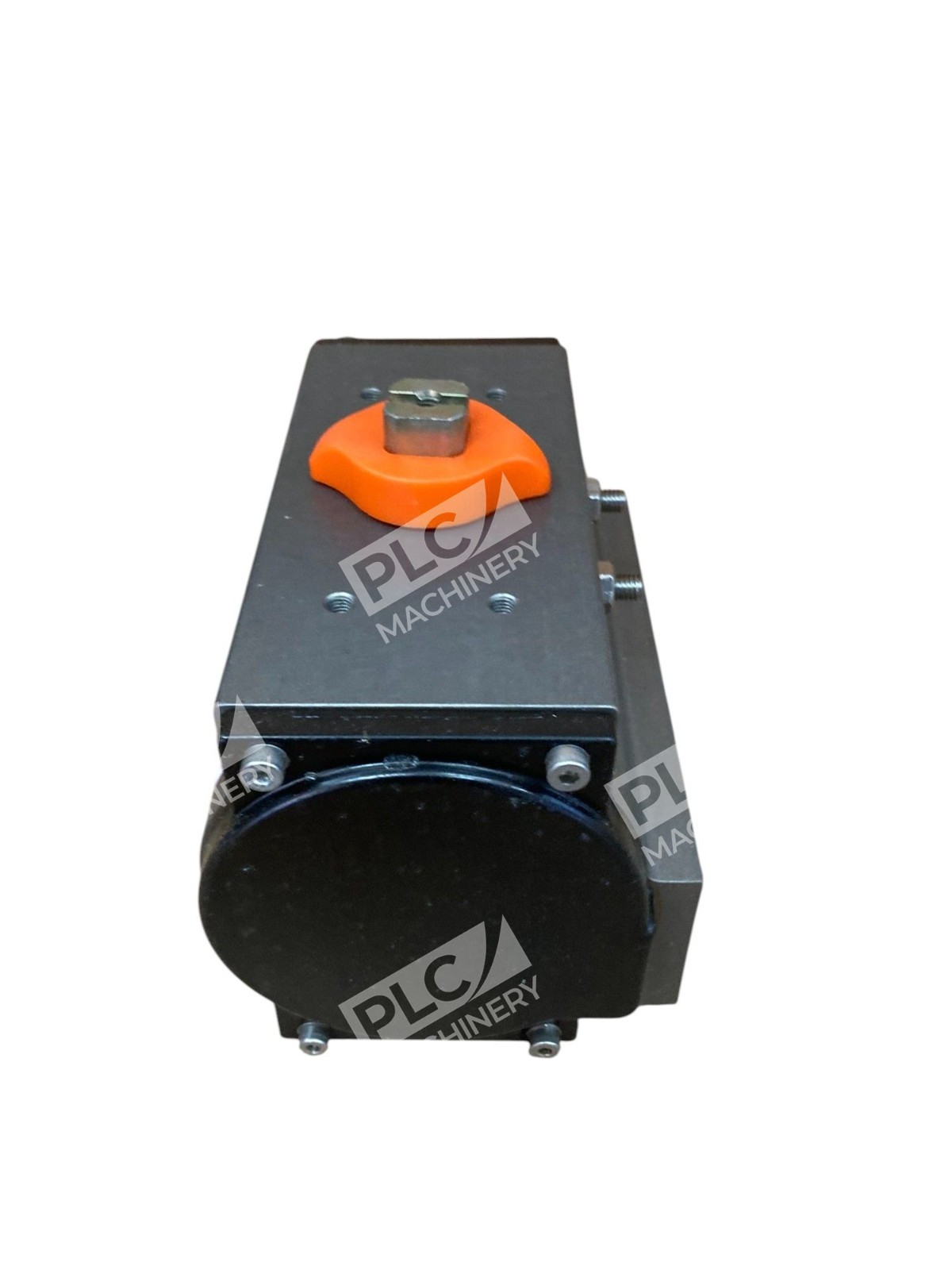

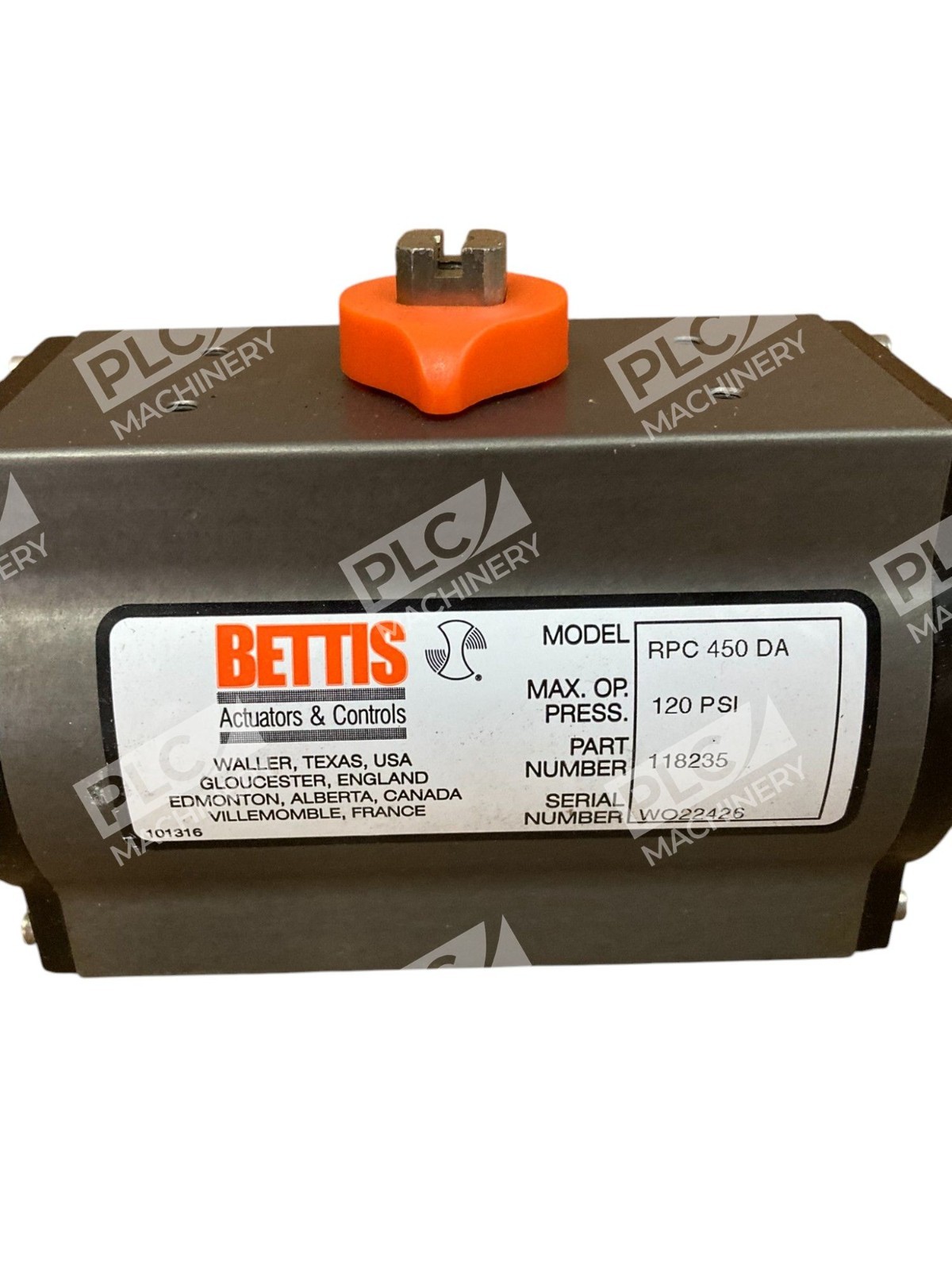

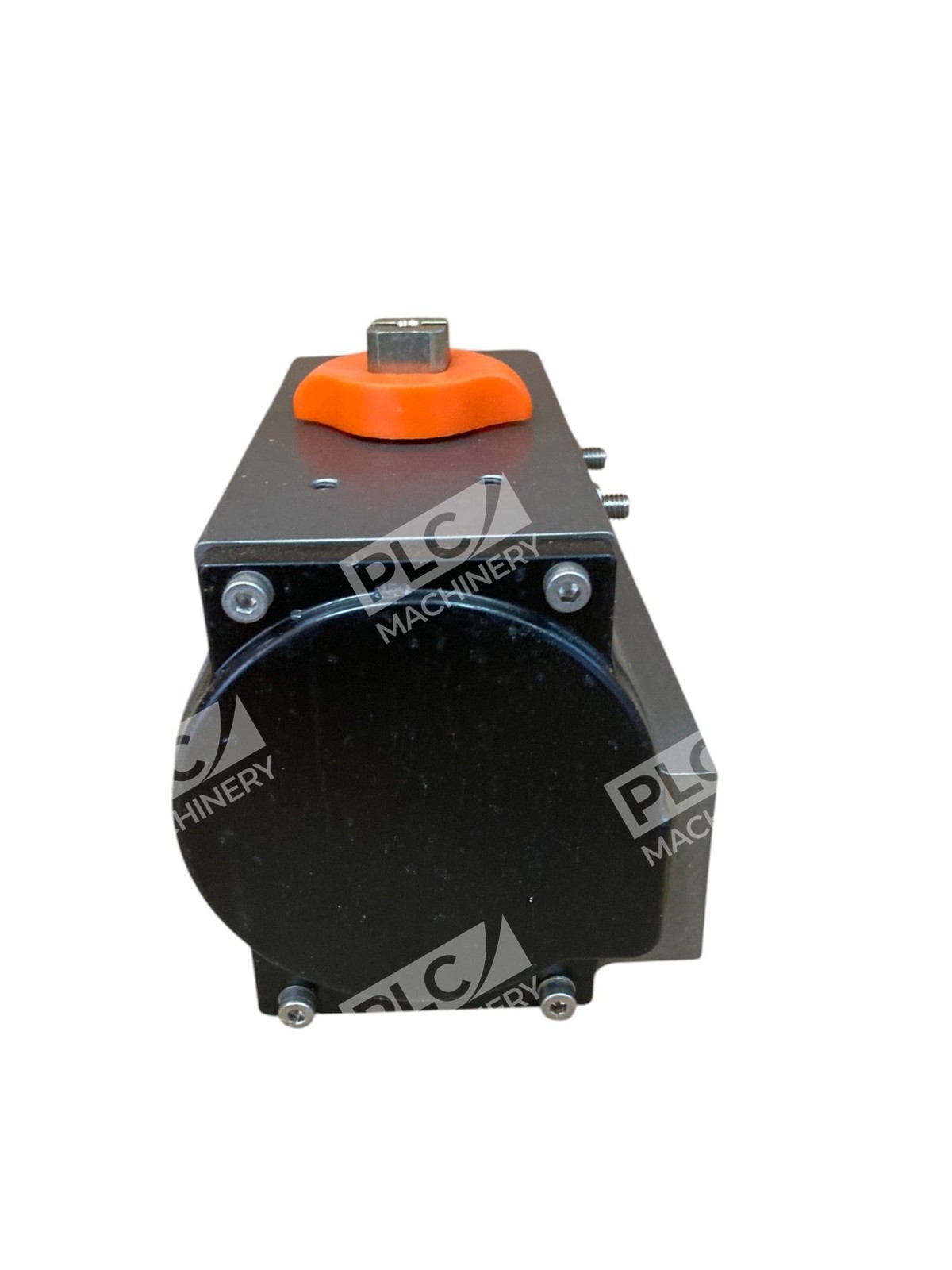

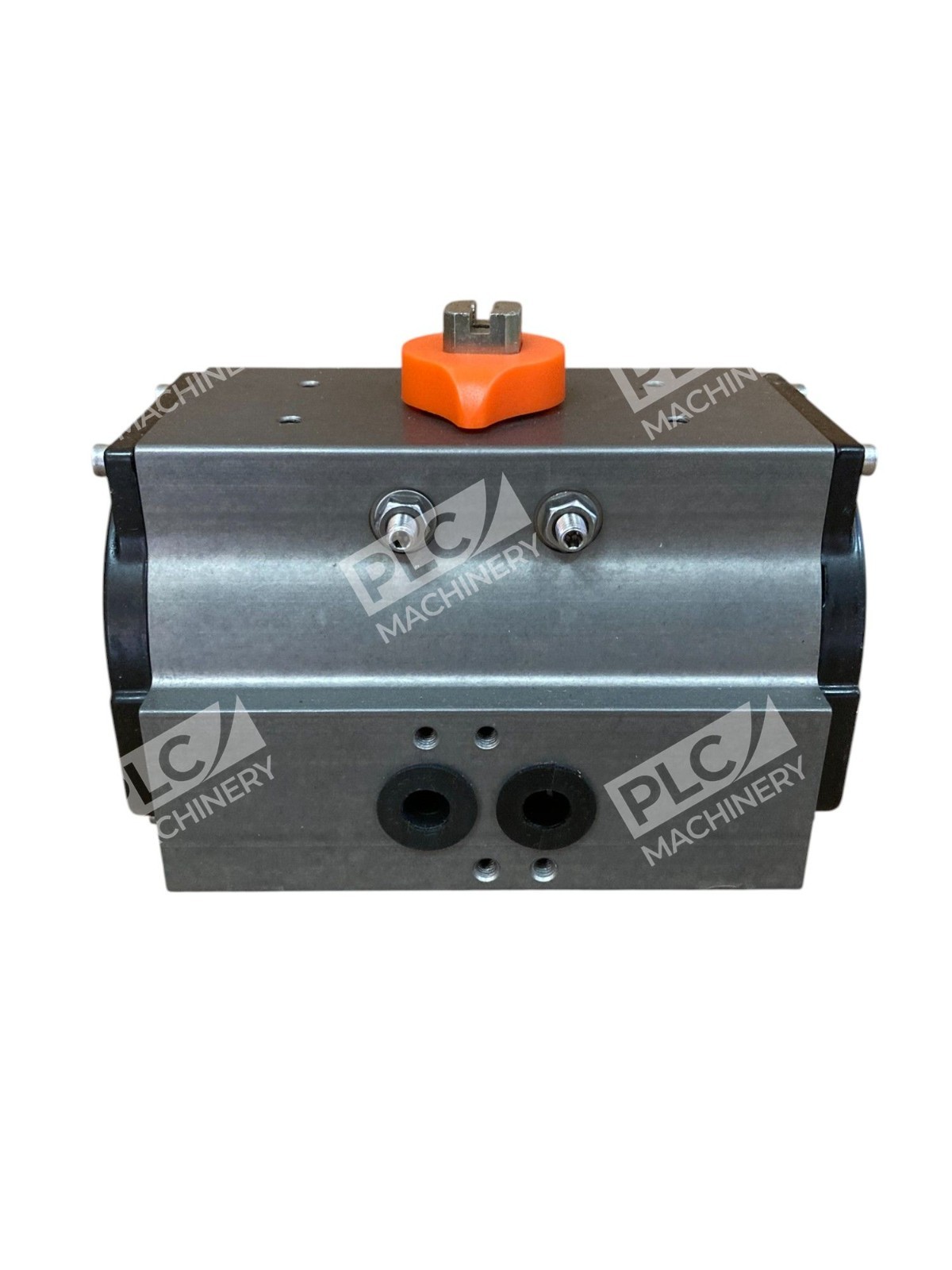

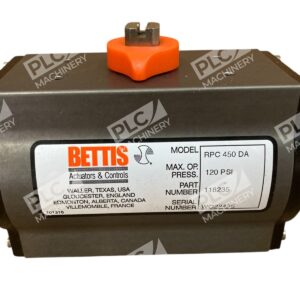

The Bettis RPC 450 pneumatic valve actuator (model 118235) is a compact, durable rack-and-pinion actuator engineered for precise quarter-turn valve control in industrial automation. Rated for a maximum operating pressure of 120 PSI, this actuator combines robust construction with reliable performance in diverse fluid control applications. The RPC 450 series is designed by Emerson for long service life and minimal maintenance in both on–off and proportional control scenarios.
Key Features
- Rack-and-pinion design for smooth, efficient quarter-turn operation
- 120 PSI maximum operating pressure rating
- Double-acting pneumatic configuration (DA) with CW/CCW rotation capability
- Compact mounting footprint suitable for tight valve installations
- Integrated fail-safe positioning with spring return option
- Field-proven durability in oil, water, and chemical service applications
Technical Specifications
The RPC 450 combines pneumatic efficiency with mechanical simplicity. Key operational parameters include maximum pressure of 120 PSI, double-acting (DA) operation with digital output (DAG) feedback capability, and clockwise (CW) shaft rotation. The actuator accepts standard ISO-sized valve mounting pads and delivers predictable torque across its operating range.
Typical Applications
- Ball and butterfly valve control in water treatment facilities
- On-off and proportional fluid isolation in industrial process lines
- Automated gate, damper, and louver positioning
- HVAC and mechanical systems requiring reliable fail-safe actuation
- Pump bypass and pressure relief valve modulation
Compatibility & Replacements
Compatible With
- ISO 5210 and ISO 5211 standard valve mounting interfaces
- 3/2 and 4/2 pneumatic directional control valves
- Proportional and on-off solenoid pilot systems
- Industrial pneumatic supply networks (filtered, regulated air at 50–120 PSI)
- Emerson/Bettis control instrumentation and feedback modules
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The RPC 450 series may replace earlier RPC 250 or RPE series units depending on torque and mounting requirements; consult Emerson documentation for direct cross-reference.
Works With
- Pneumatic positioner systems for remote or automatic valve sequencing
- Proportional solenoid valve controllers and air pilot supplies
- Industrial process control systems and DCS/PLC networks via feedback modules
- Bettis digital position transmitter and sensor accessories
