Overview

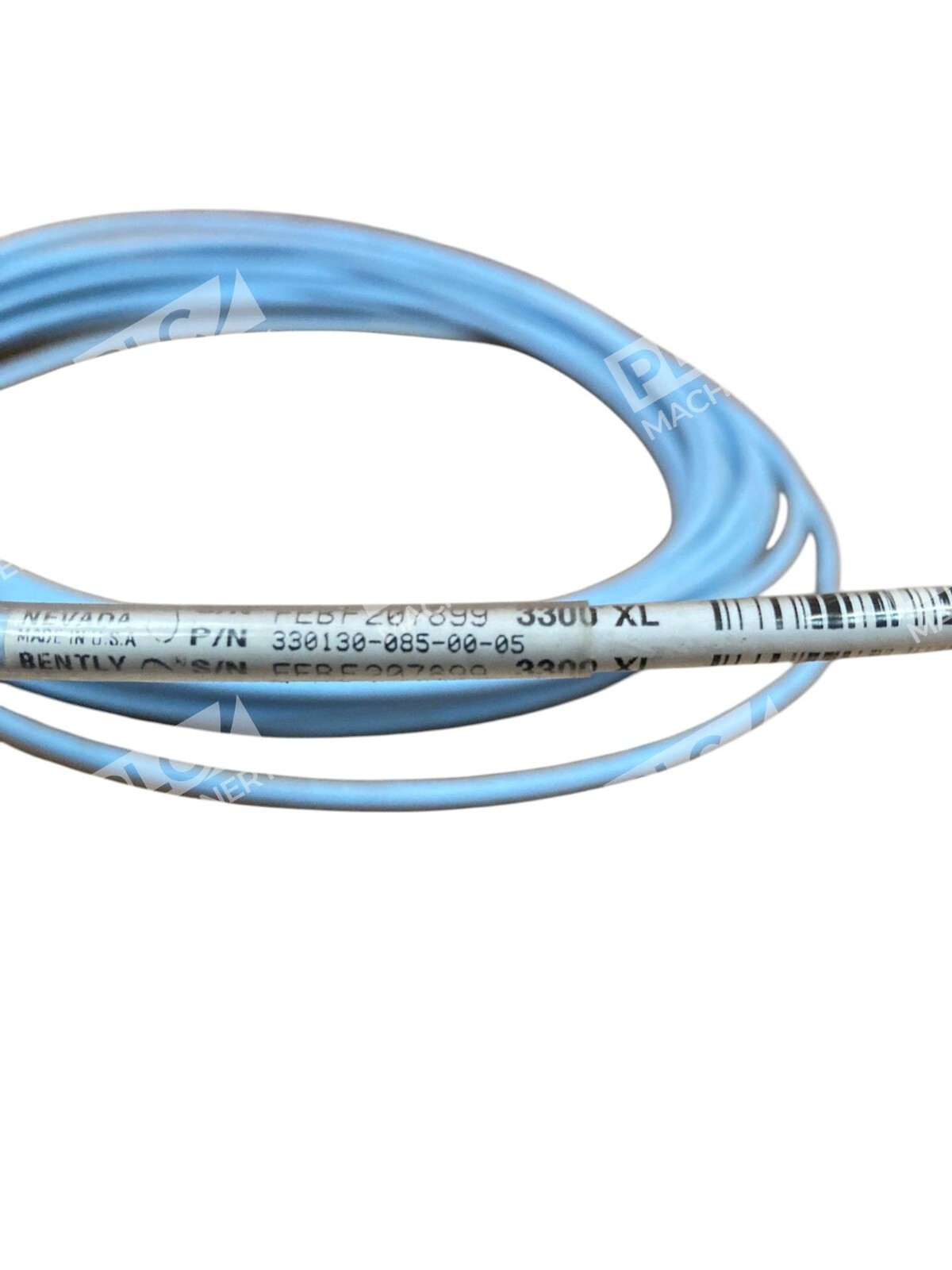

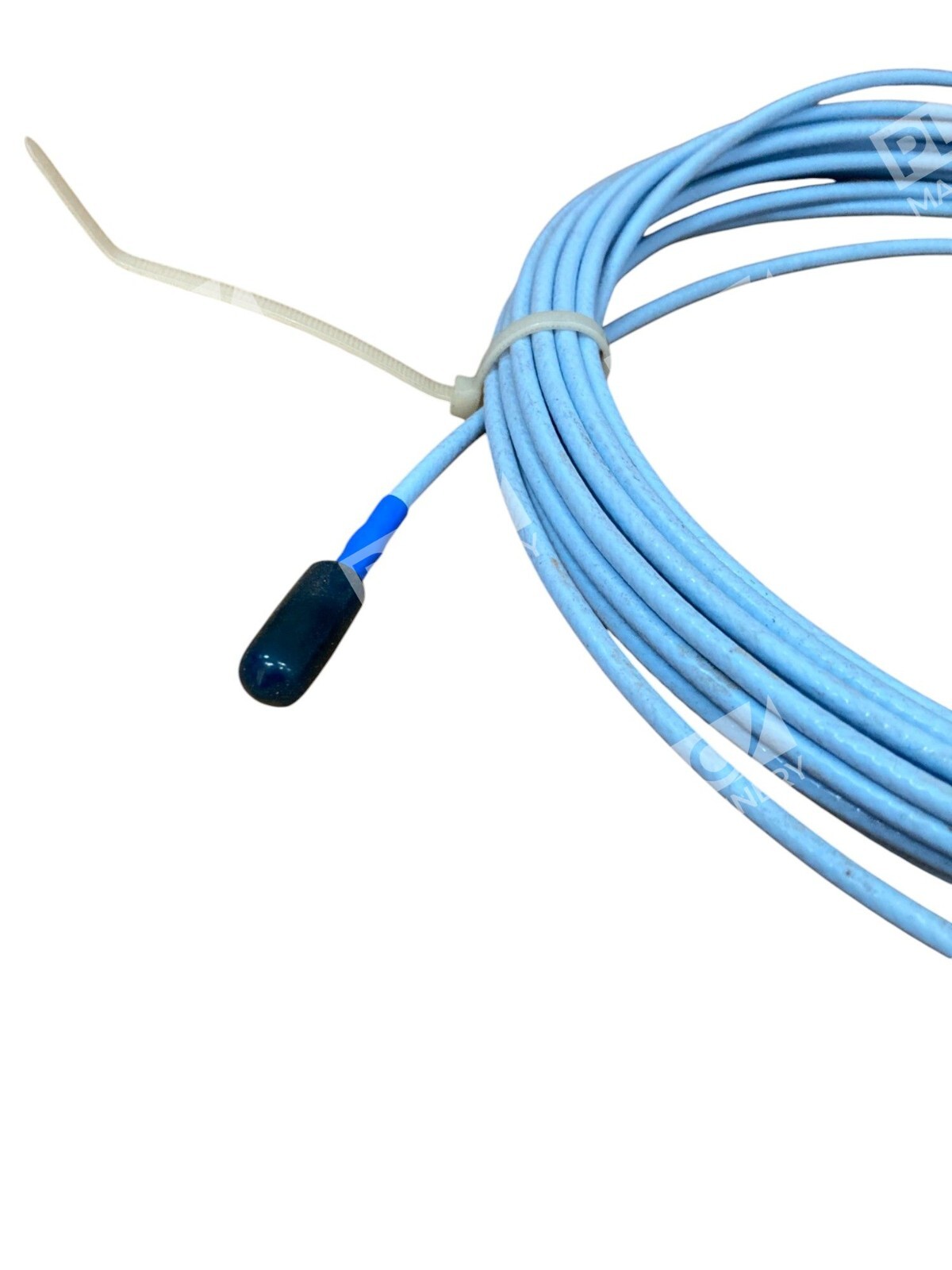

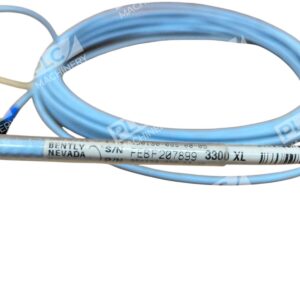

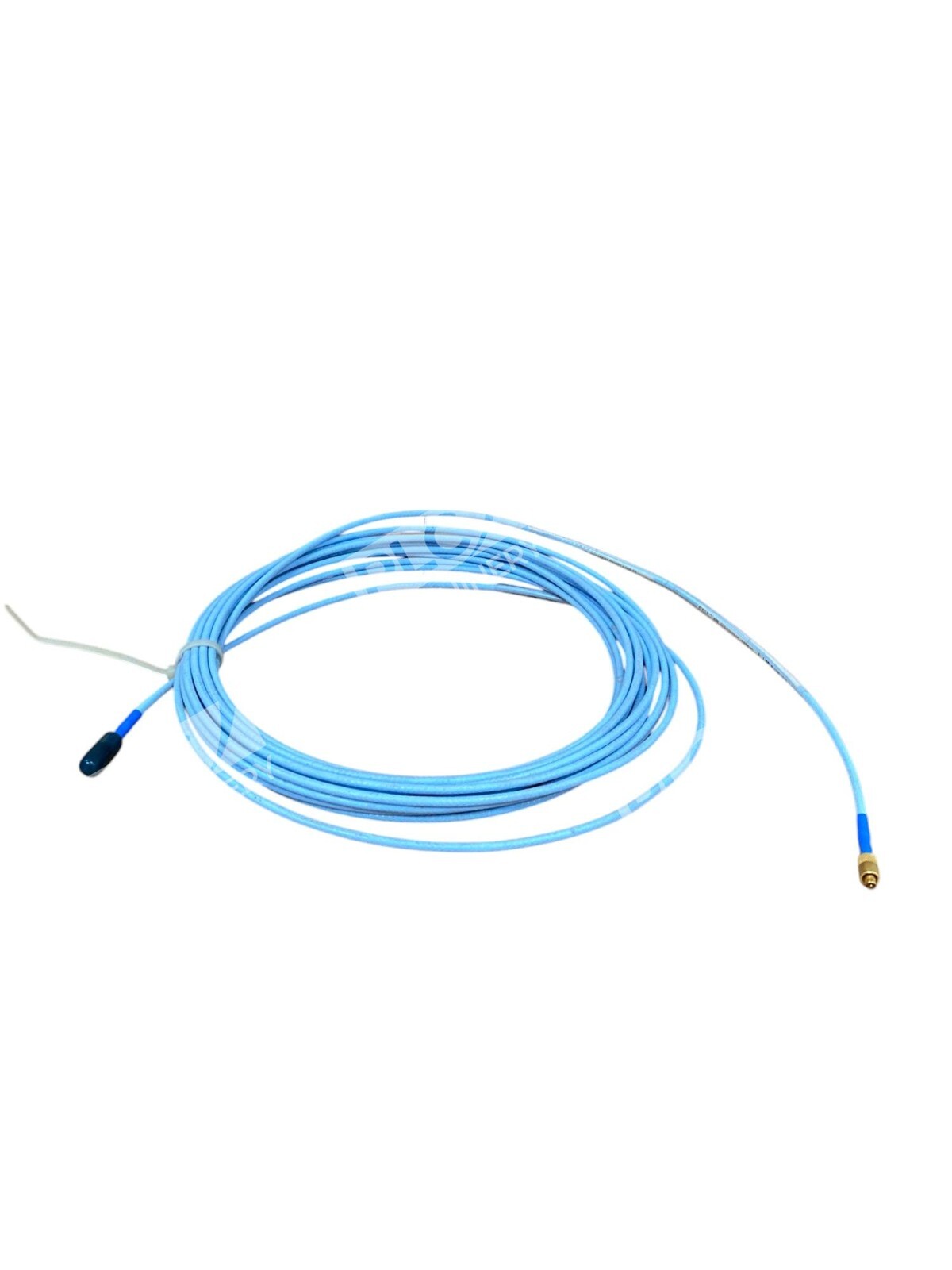

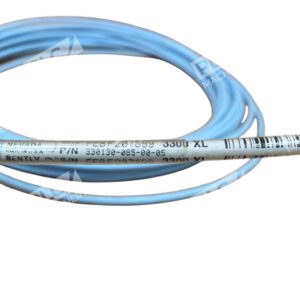

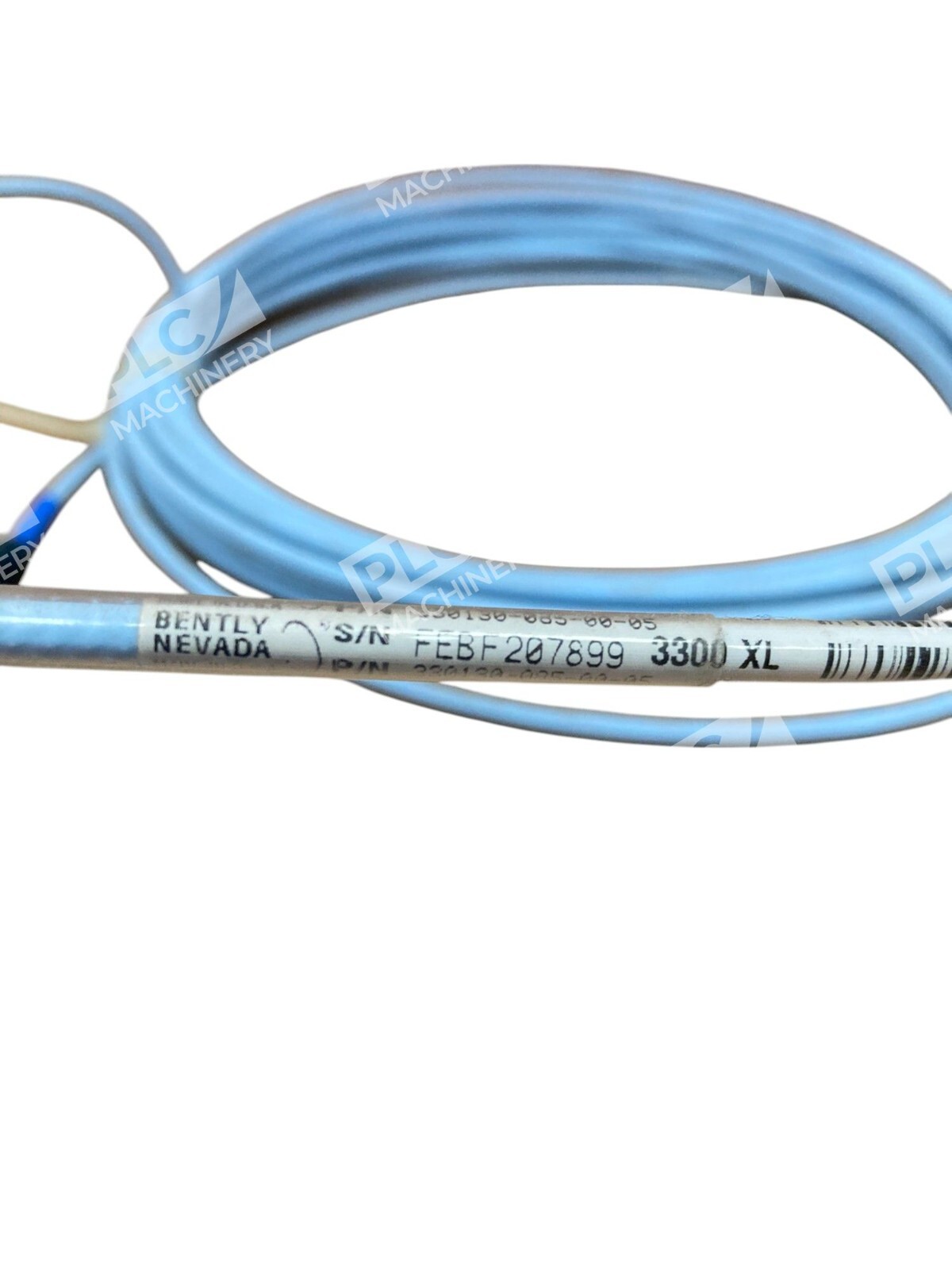

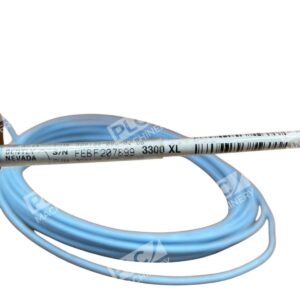

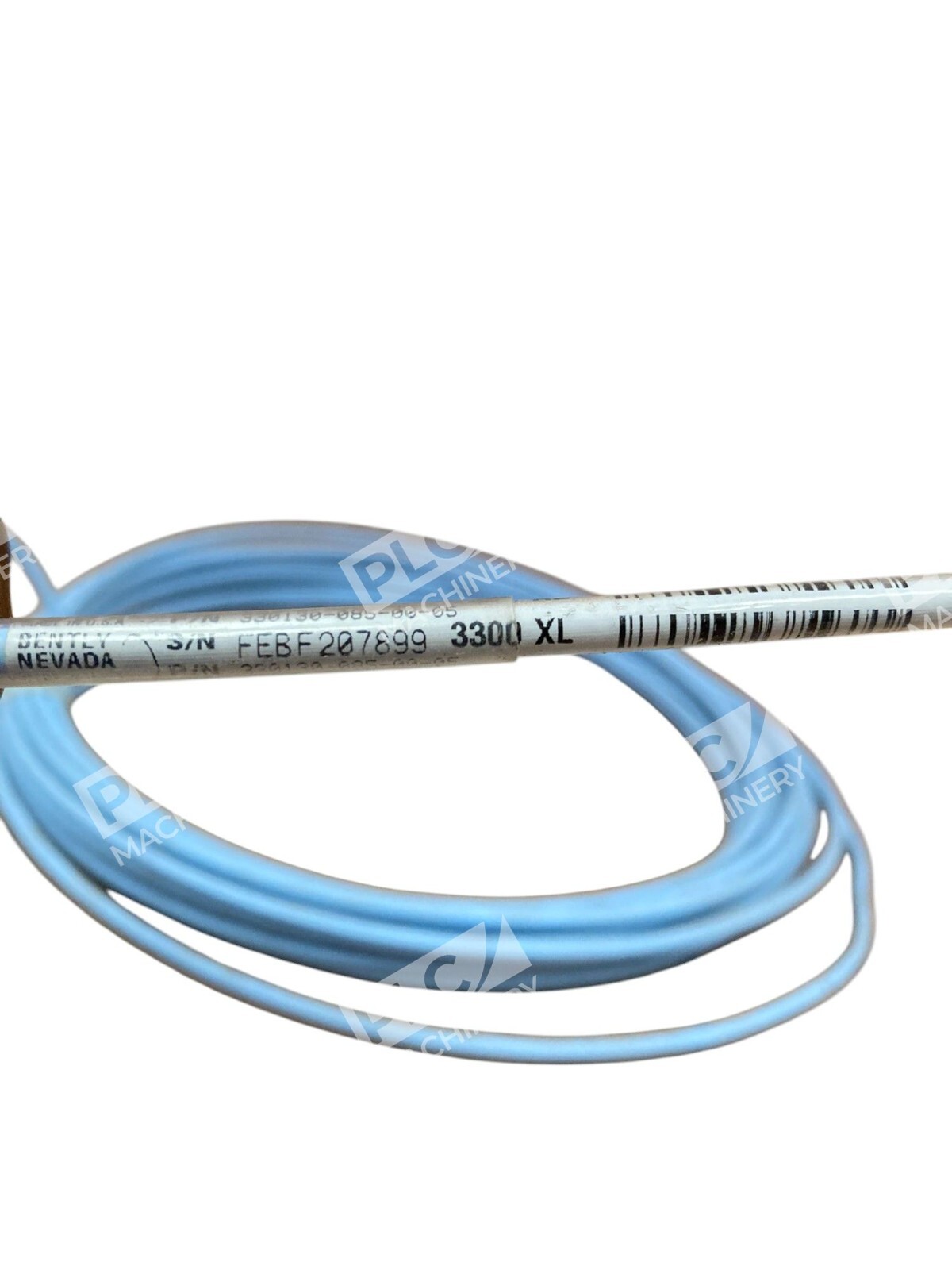

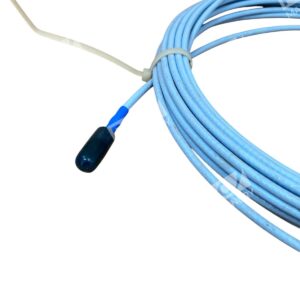

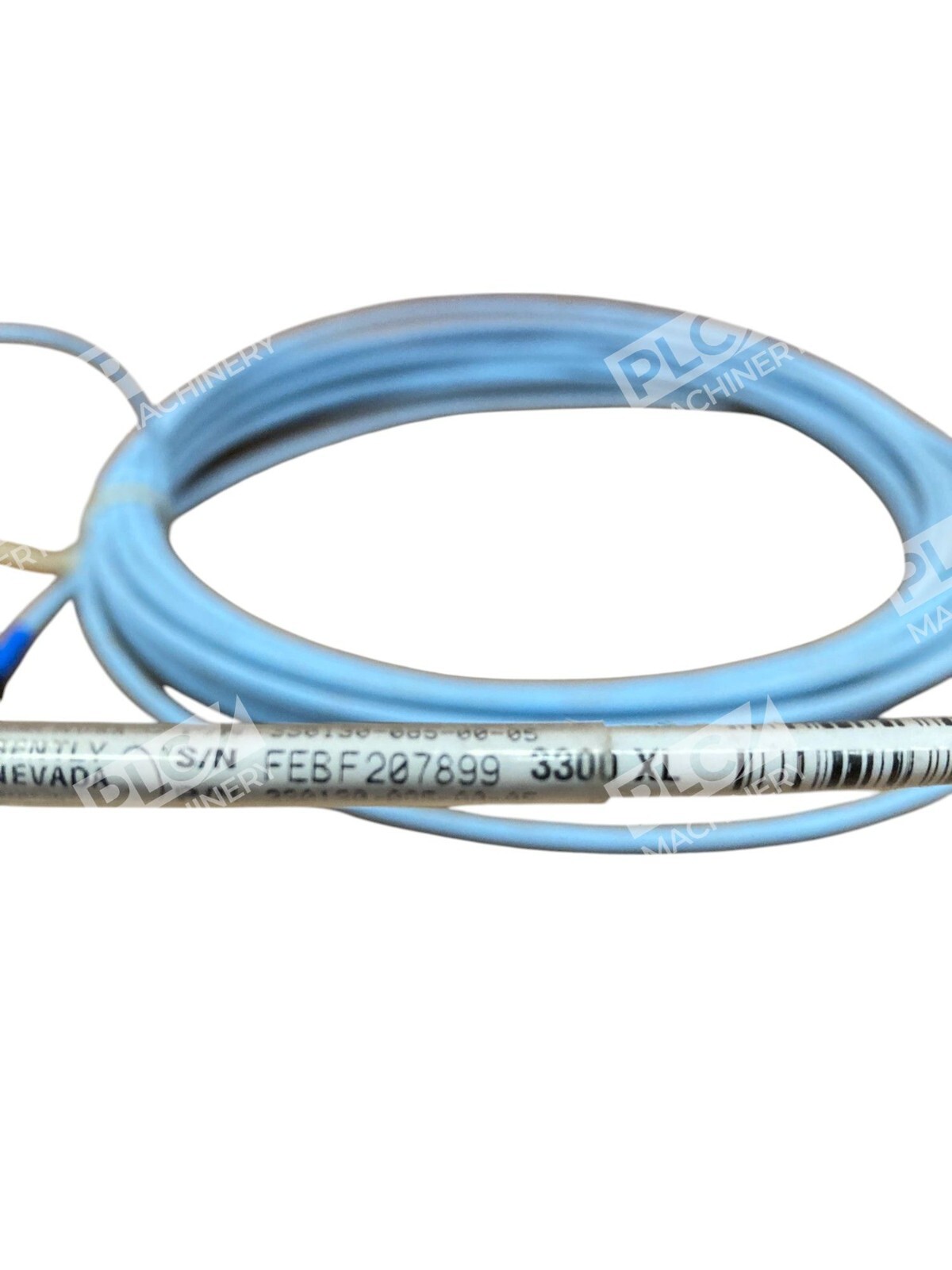

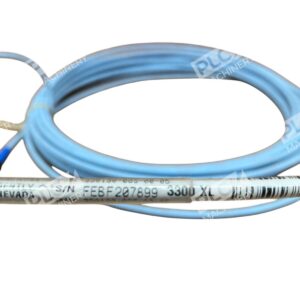

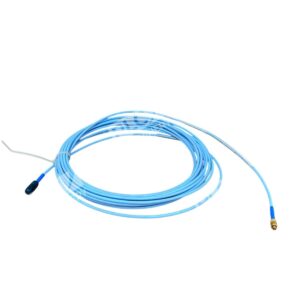

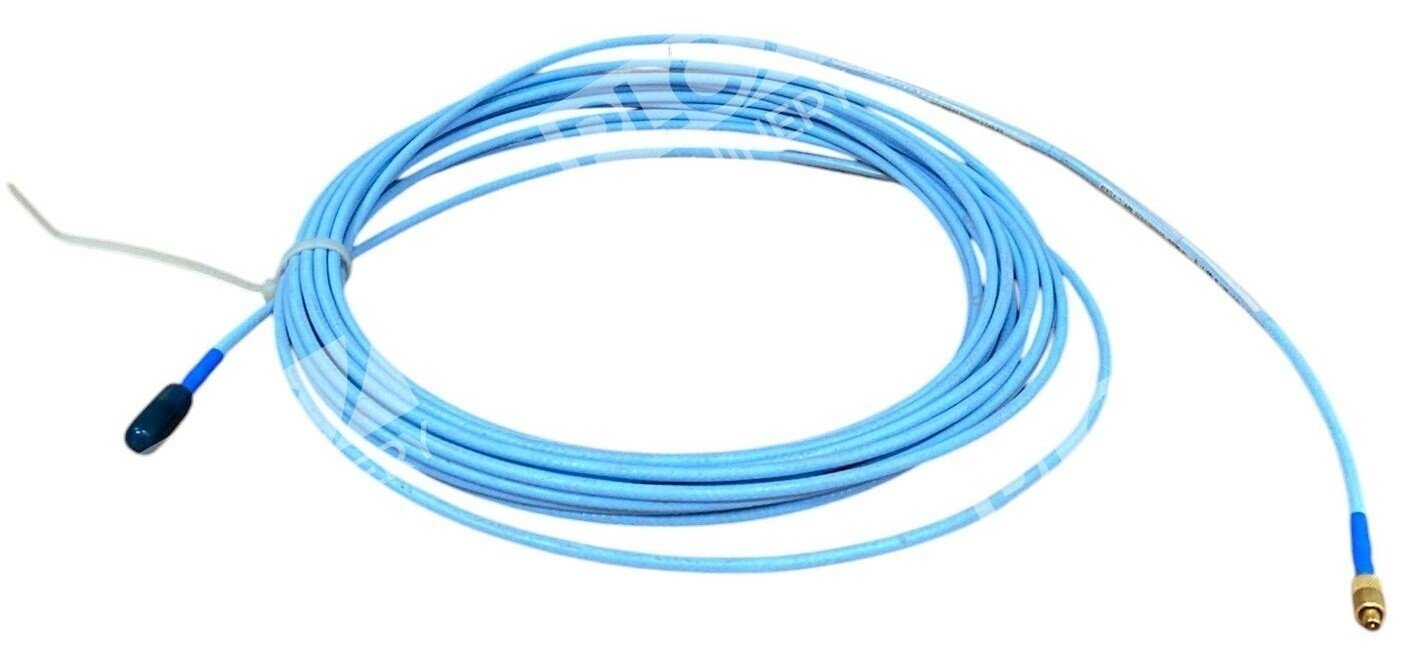

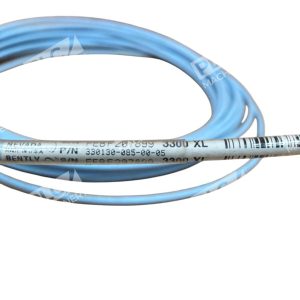

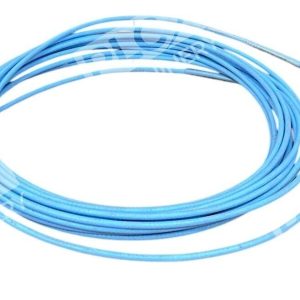

The Bently Nevada 330130-085-00-05 is a standard extension cable designed for the 3300 XL proximity transducer system. This extension cable is used to connect 3300 XL Proximitor sensors to their corresponding signal conditioning modules and ensures reliable signal transmission with high durability and interference protection. It is commonly used with 3300 XL 8 mm proximity probes to monitor machinery such as turbines, compressors, and pumps. This is an OEM component ideal for machinery health monitoring and predictive maintenance applications in heavy industrial environments.
Key Features
- Extended Cable Length: 8.5 meters (27.9 feet) for flexible sensor placement and routing flexibility
- Triaxial Construction: 75Ω triaxial, FEP-insulated construction provides reliable signal transmission over extended distances
- CableLoc Design: Offers 330 N (75 lbf) pull strength for secure attachment of the probe cable and probe tip
- International Certifications: CSA, ATEX, IECEx approvals for use in regulated and hazardous locations
- Standard Cable Type: Standard Cable Agency Approval: Multiple Approvals
- FluidLoc Option Compatible: FluidLoc option available to prevent oil and liquids from leaking through the cable in sensitive industrial applications
Technical Specifications
- Cable Impedance: 75Ω triaxial
- Insulation Material: Fluoroethylene propylene (FEP)
- Cable Length: 8.5 m (27.9 feet)
- Operating Temperature Range: -51°C to +177°C (-60°F to +351°F)
- Cable Weight: 34 g/m

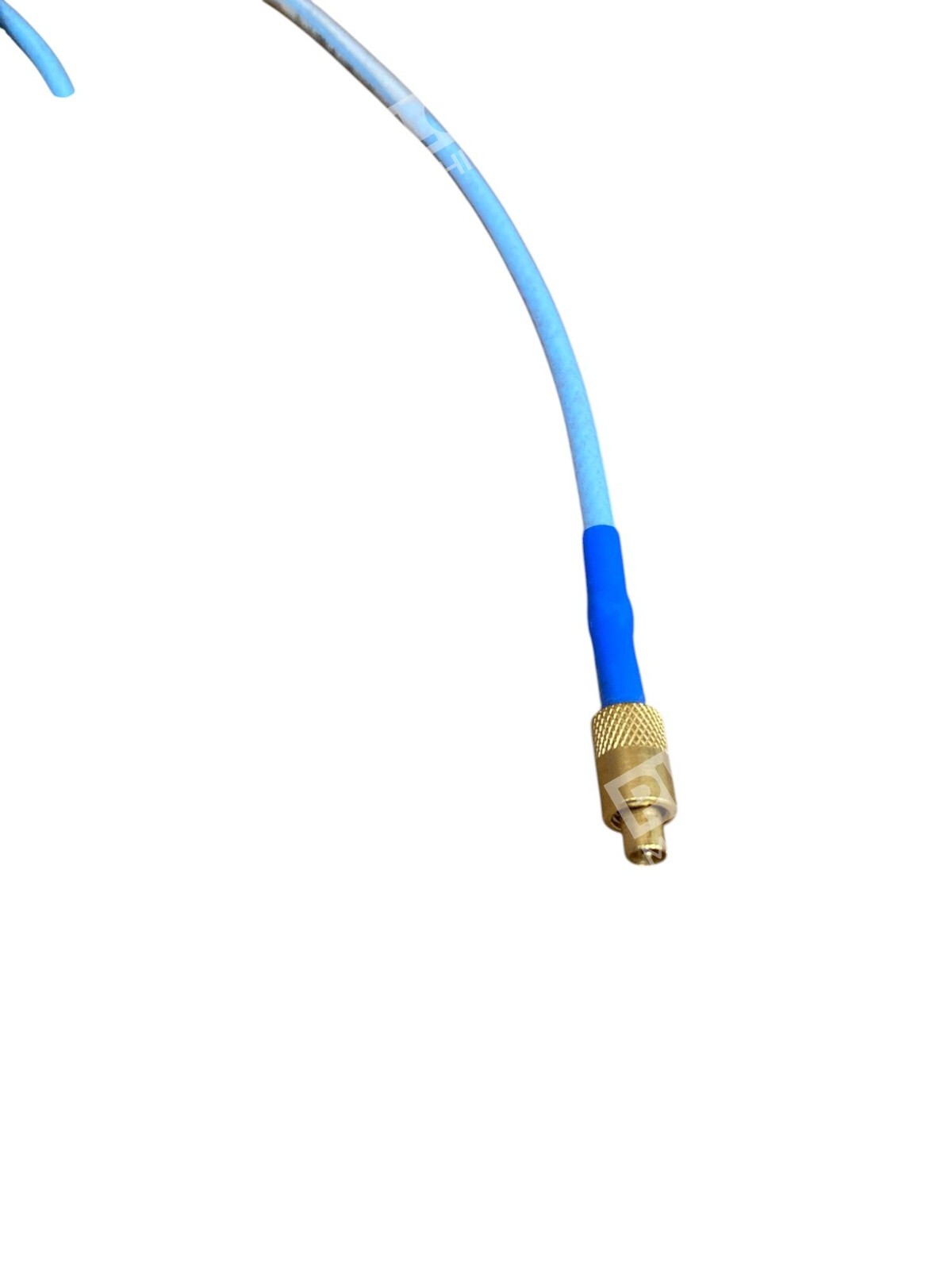

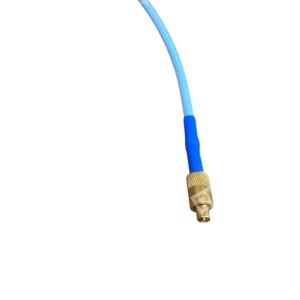

- Connector Type: Standard coupling for 3300 XL system integration
- Agency Certifications: CSA, ATEX, IECEx
- Pull Strength: 330 N (75 lbf)
- Cable Capacitance: ~69.9 pF/m
- Origin: USA
Typical Applications
The Bently Nevada 330130-085-00-05 extension cable is used in predictive maintenance and condition monitoring systems for critical rotating machinery including:
- Steam and gas turbines (power generation)
- Centrifugal compressors (oil & gas, petrochemical)
- Reciprocating compressors
- Large centrifugal pumps
- Industrial fans and blowers
- Machine tools and spindle systems requiring precision vibration data
Compatibility & Replacements
Compatible With
- Bently Nevada 3300 XL Proximitor signal conditioning modules
- Bently Nevada 3300 XL 8 mm proximity probes
- Bently Nevada 3300 XL proximity transducer system
- Industrial vibration and position monitoring equipment
- Heavy industrial machinery monitoring and protection systems
Replaces / Drop-In Replacement For
- 330130-085-00-00 (standard variant without agency approvals)
- 330130-085-00-CN (regional variant)
Works With
- 3300 XL Proximity Transducer System ecosystem
- Bently Nevada industrial vibration analysis software
- ISO 20816 (formerly ISO 10816) machinery condition monitoring standards
- CSA, ATEX, and IECEx regulated installations
