Overview

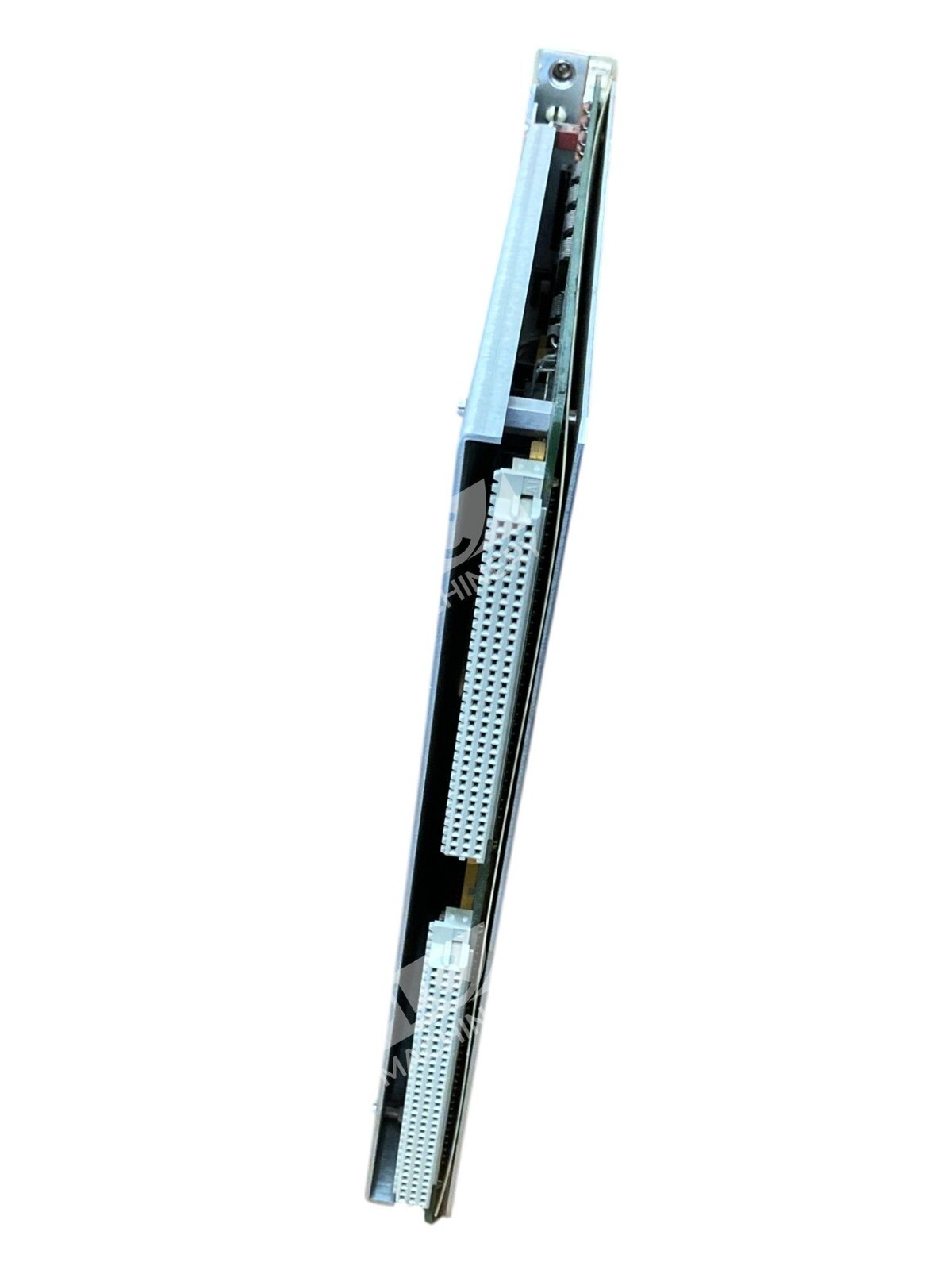

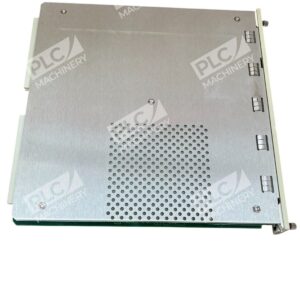

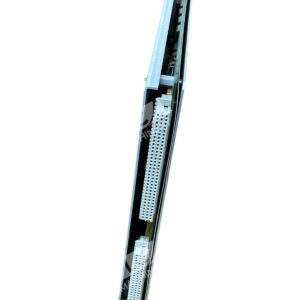

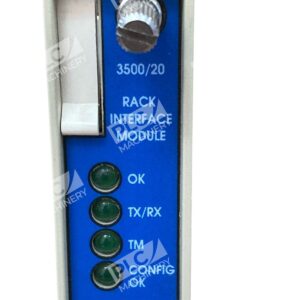

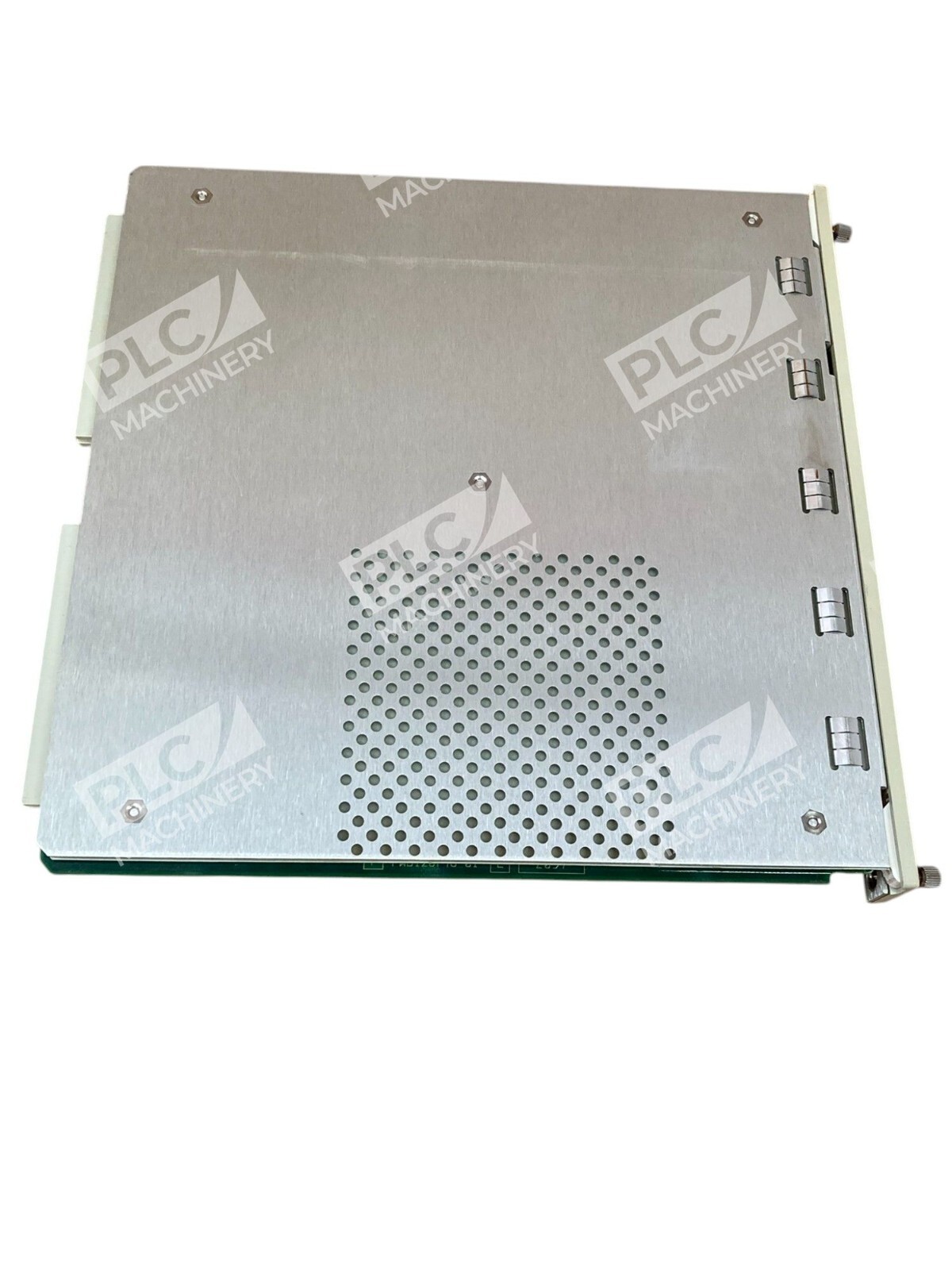

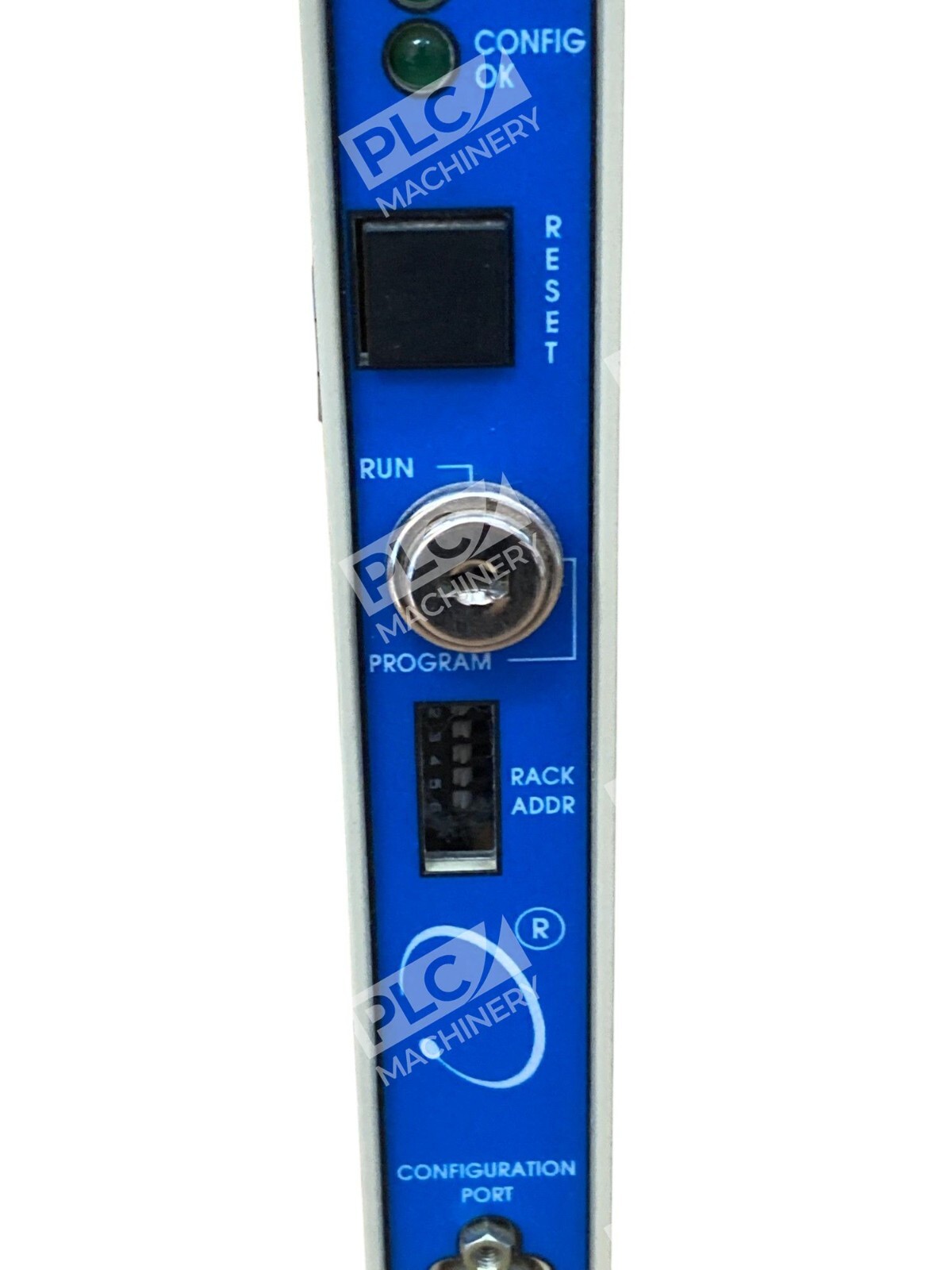

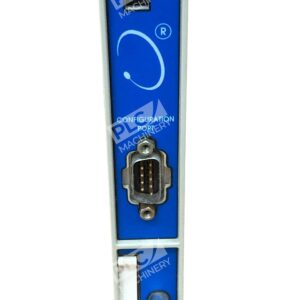

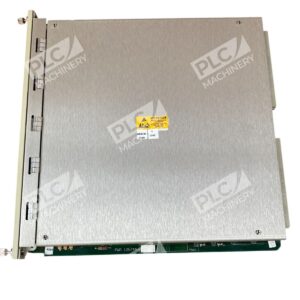

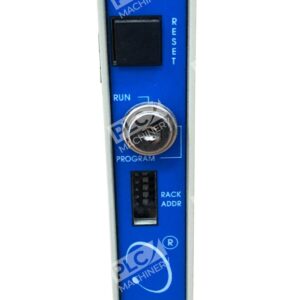

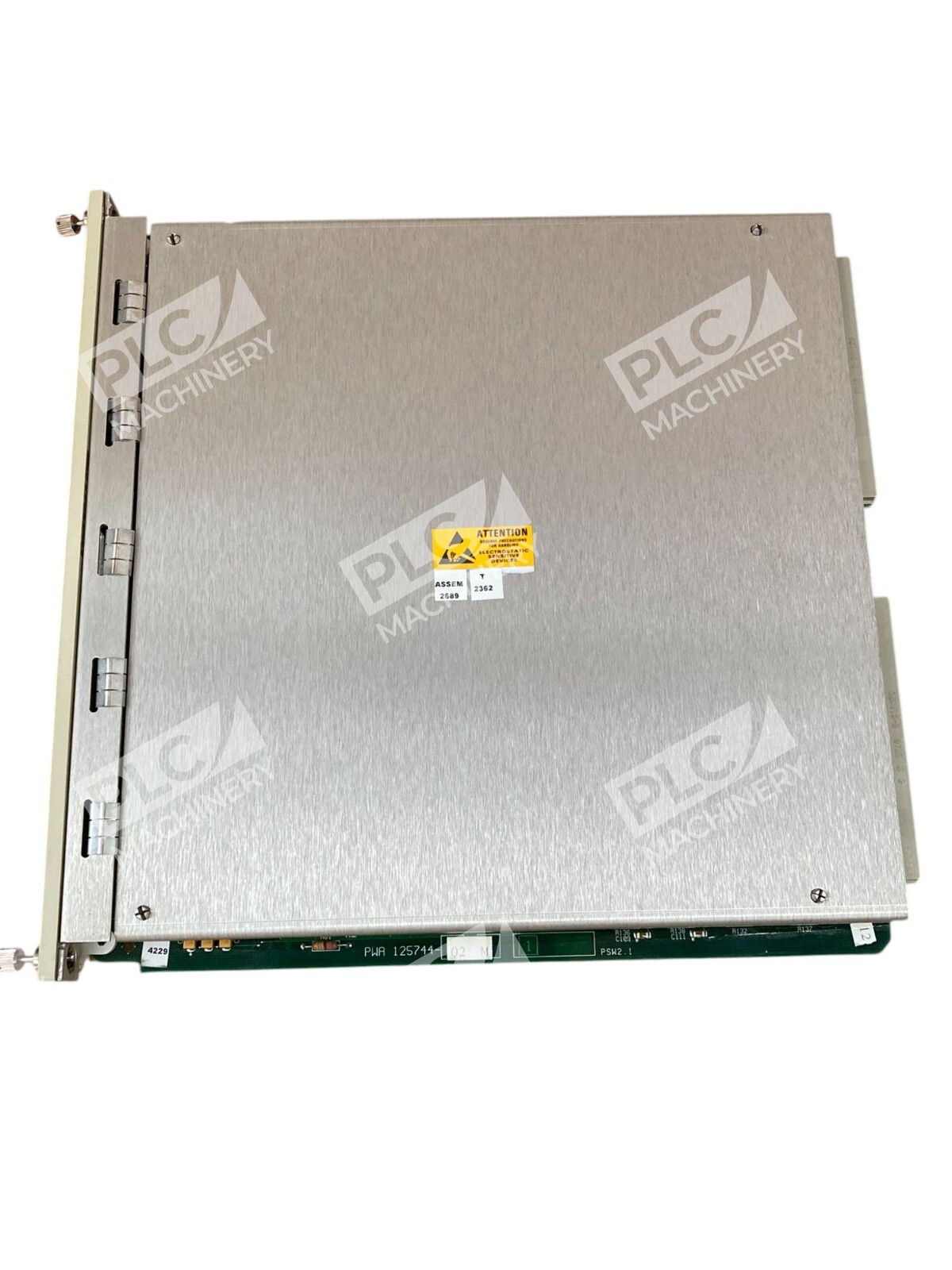

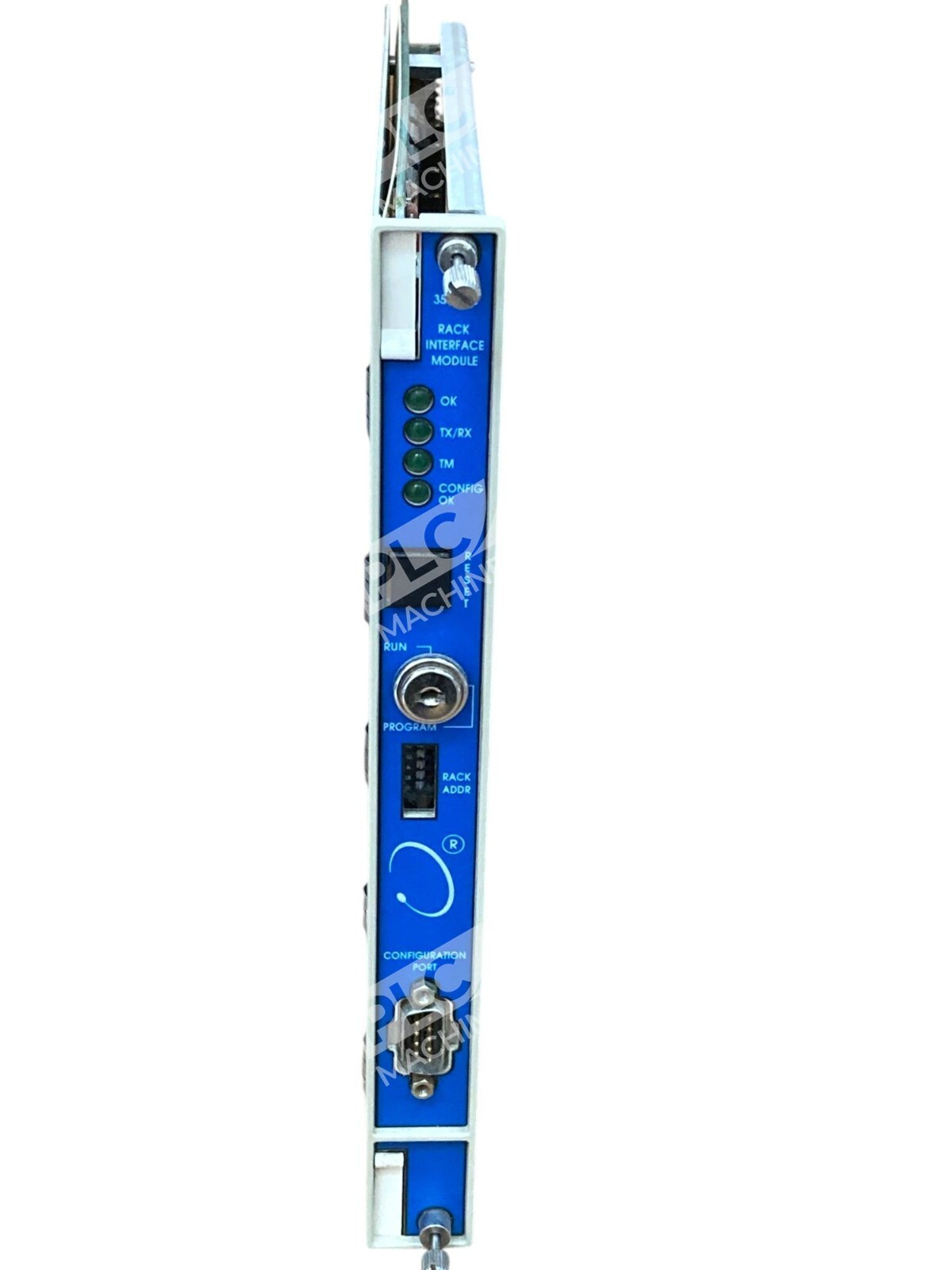

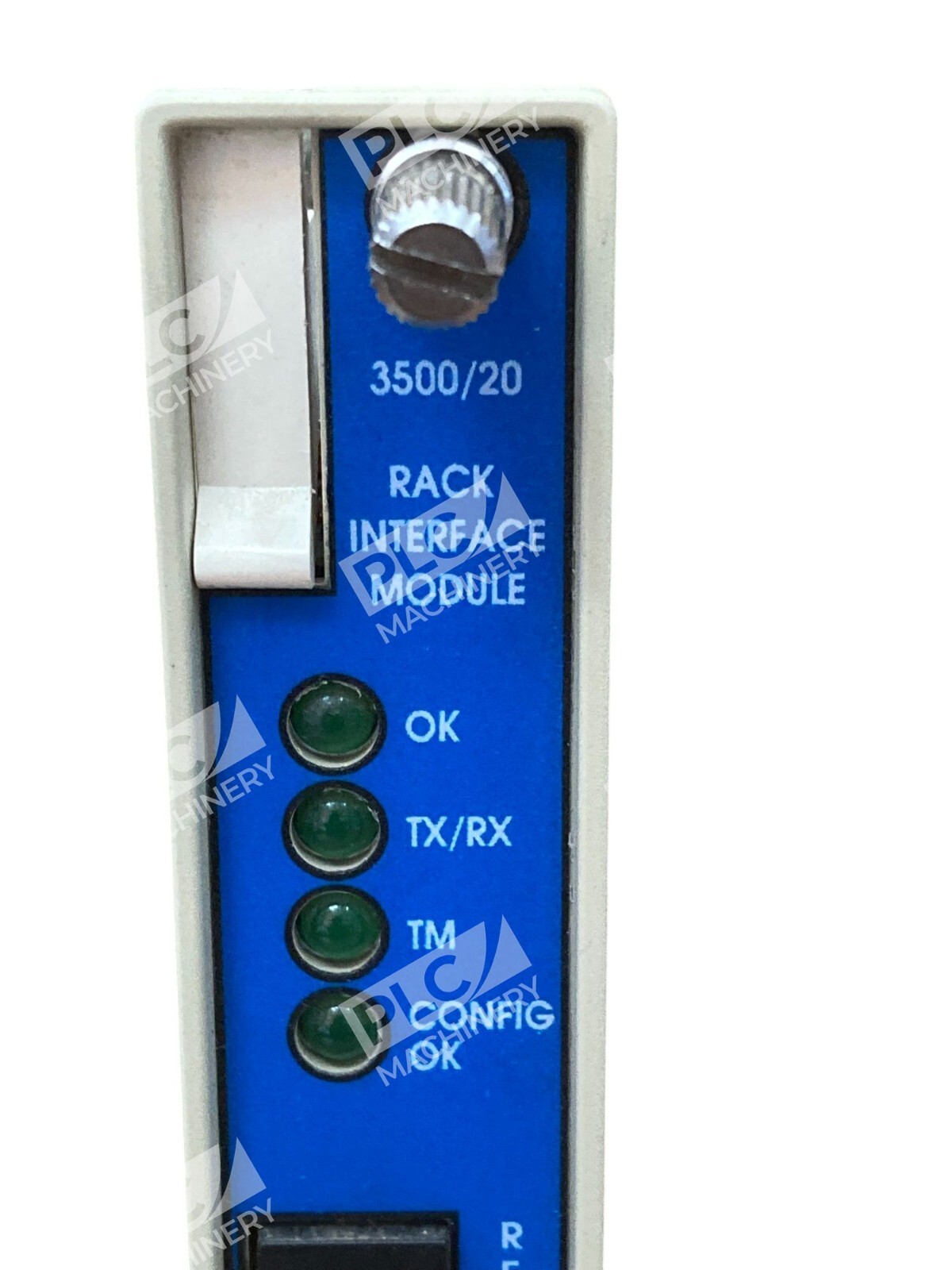

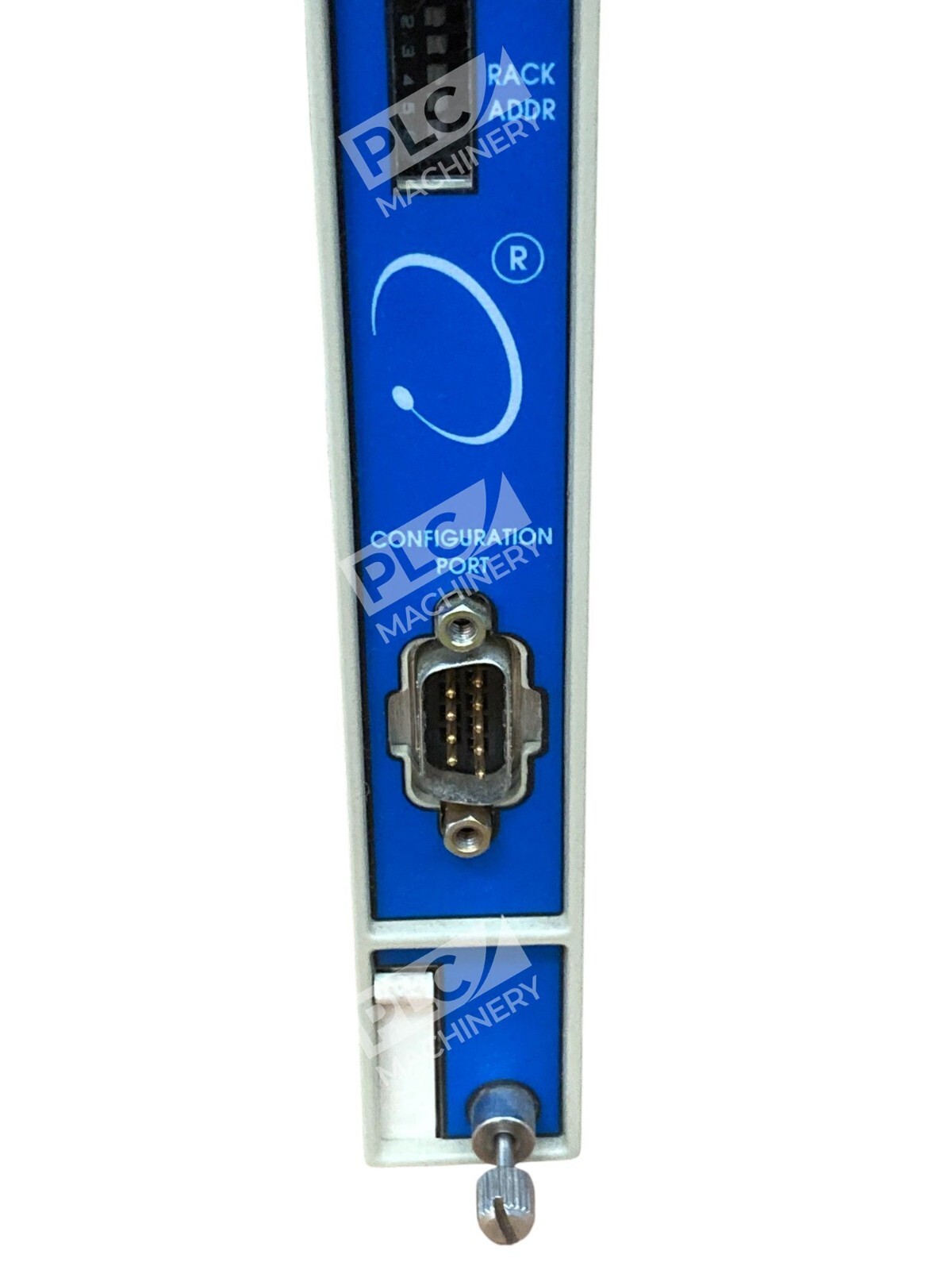

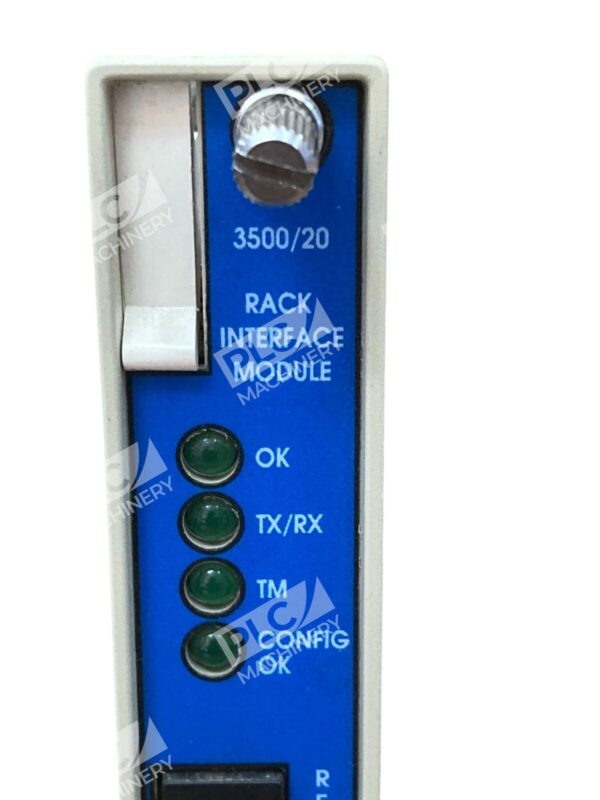

The Bently Nevada 125768-01 Rack Interface Module serves as the primary interface for the 3500/20 Series Machinery Health Monitoring System. This module is a crucial component of the 3500 Series racks, designed to facilitate configuration and data retrieval in industrial vibration monitoring systems. The RIM I/O Module with RS232/RS422 Interface has a maximum cable length of 30 meters (100 feet) for RS-232 and 1,200 meters (4,000 feet) for RS-422.
Key Features
- Uses RS-232, RS-422, or external modem for communication
- Supports a maximum baud rate of 38.4 kbaud via proprietary Bently Nevada protocol
- Must be installed in the first slot of the rack, adjacent to the power supplies
- Compatible with various Bently Nevada external communications processors, including TDXnet, TDIX, and DDIX
- Not part of the critical monitoring path, so RIM operation does not affect overall system monitoring capability
Technical Specifications
The 125768-01 RIM delivers robust performance in machinery monitoring applications with the following verified specifications:
- Power Supply Voltage: 12-24VDC
- Operating Temperature Range: -40°C to +70°C
- Storage Temperature Range: -55°C to +85°C
- RS-232 Cable Length: Maximum 30 meters (100 feet)
- RS-422 Cable Length: Maximum 1,200 meters (4,000 feet)
- Baud Rate: Maximum 38.4 kbaud
- Dimensions: 10.2cm × 11.4cm × 13.2cm
- Weight: 0.5 kg
Typical Applications
The Bently Nevada 125768-01 is designed for:
- Machinery vibration monitoring and health assessment in critical industrial equipment
- Integration with Distributed Control Systems (DCS) and plant monitoring software
- Real-time data acquisition and transmission in condition monitoring networks
- Transient data capture and machinery protection systems in manufacturing and process industries
- Standard and TMR (Triple Modular Redundant) monitoring configurations
Compatibility & Replacements
Compatible With
- Bently Nevada 3500 Series racks and monitoring systems
- Bently Nevada external communications processors: TDXnet, TDIX, DDIX
- RS-232 and RS-422 serial communication networks
- Machinery health monitoring and condition-based maintenance systems
Replaces / Drop-In Replacement For
The 125768-01 is the RIM I/O Module with RS232/RS422 Interface option within the 3500/20 product family. It is a standard configuration for the 3500/20 Rack Interface Module series. For TMR applications requiring redundancy, the TMR version (part number 125744-01) is required instead.
Works With
- Bently Nevada 3500 Series Machinery Health Monitoring System software
- RS-232 and RS-422 serial communication protocols
- Modbus RTU and ASCII protocols
- External modem connectivity for remote monitoring
- DCS and SCADA systems via communication processor interfaces
